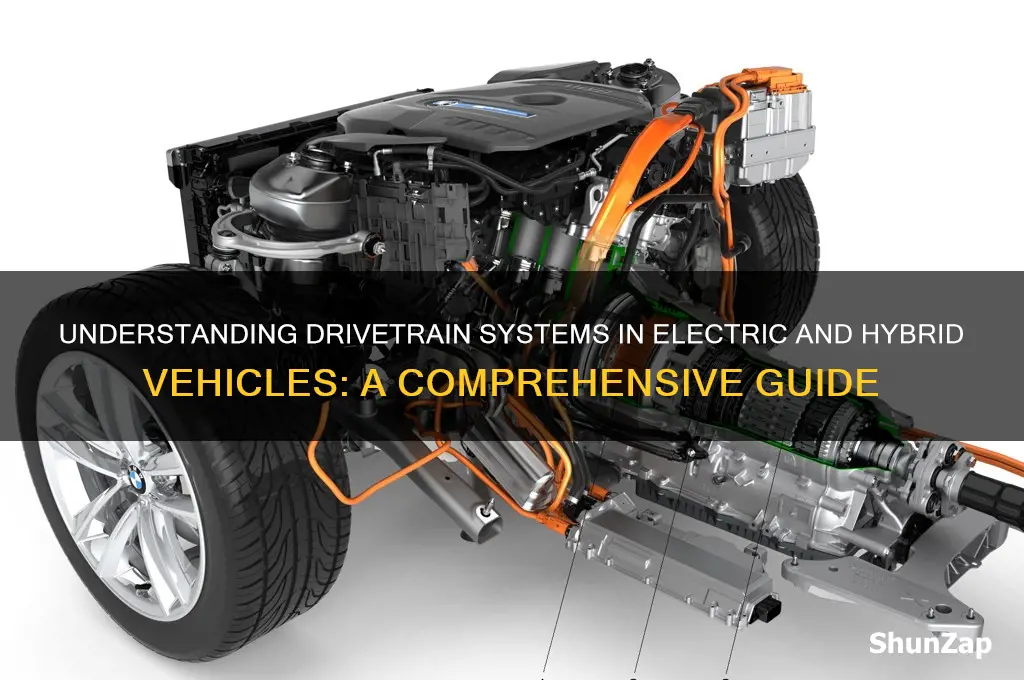

The drivetrain in electric and hybrid vehicles is a critical system that efficiently transfers power from the propulsion source to the wheels, enabling movement. Unlike traditional internal combustion engine (ICE) vehicles, which rely on a complex mechanical system involving a transmission and driveshaft, electric and hybrid drivetrains are simpler and more efficient. In fully electric vehicles (EVs), the drivetrain typically consists of an electric motor, inverter, and reduction gearbox, directly converting electrical energy from the battery into mechanical power. Hybrid vehicles, on the other hand, combine an electric motor with an ICE, often using a planetary gearset or power-split device to seamlessly blend power from both sources. This innovative design not only enhances fuel efficiency and reduces emissions but also delivers smoother acceleration and regenerative braking, making drivetrains a cornerstone of modern sustainable transportation.
| Characteristics | Values |
|---|---|
| Definition | The drivetrain in electric or hybrid cars is the system that delivers power from the engine or motor to the wheels, enabling the vehicle to move. |
| Components | Electric Motor(s), Transmission (if applicable), Inverter, Battery Pack, Power Electronics, Differential, Axles. |
| Types | Electric Vehicles (EVs): Battery Electric Vehicle (BEV), Hybrid Vehicles: Parallel Hybrid, Series Hybrid, Plug-in Hybrid (PHEV). |
| Power Source | EVs: Battery Pack (charged via external power source), Hybrids: Combination of Internal Combustion Engine (ICE) and Battery Pack. |
| Efficiency | EVs: ~77-80% efficient (energy from battery to wheels), Hybrids: ~30-50% efficient (combined ICE and electric motor). |
| Emissions | EVs: Zero tailpipe emissions, Hybrids: Lower emissions than traditional ICE vehicles but not zero. |
| Range | EVs: 200-500+ miles per charge (varies by model), Hybrids: Extended range due to ICE backup. |
| Charging/Refueling | EVs: Charging via EVSE (Electric Vehicle Supply Equipment), Hybrids: Refuel at gas stations and charge batteries. |
| Maintenance | EVs: Lower maintenance (no oil changes, fewer moving parts), Hybrids: Moderate maintenance (ICE components require servicing). |
| Cost | EVs: Higher upfront cost but lower operational costs, Hybrids: Moderate upfront cost, savings on fuel. |
| Performance | EVs: Instant torque, smooth acceleration, Hybrids: Combined power of ICE and electric motor for balanced performance. |
| Environmental Impact | EVs: Minimal environmental impact (depends on electricity source), Hybrids: Reduced impact compared to ICE vehicles. |
| Regenerative Braking | Both EVs and Hybrids use regenerative braking to recover energy and improve efficiency. |
| Technology Advancements | Improved battery technology, faster charging, lightweight materials, advanced power electronics. |
| Market Trends | Growing demand for EVs, increasing hybrid options, government incentives for electrification. |
Explore related products
What You'll Learn
- Electric Motor Types: AC induction, permanent magnet, and switched reluctance motors explained
- Battery Integration: How batteries power the drivetrain and manage energy efficiency
- Transmission Systems: Single-speed vs. multi-speed transmissions in electric and hybrid vehicles
- Power Electronics: Role of inverters, converters, and controllers in drivetrain operation
- Hybrid Drivetrain Configurations: Series, parallel, and series-parallel hybrid systems compared
Electric Motor Types: AC induction, permanent magnet, and switched reluctance motors explained
Electric motors are the heart of electric and hybrid vehicle drivetrains, converting electrical energy into mechanical motion. Among the most common types are AC induction, permanent magnet, and switched reluctance motors, each with distinct characteristics that influence performance, efficiency, and cost. Understanding these differences is crucial for engineers, manufacturers, and consumers alike.
AC Induction Motors (ACIM): Widely used in early electric vehicles like the Tesla Roadster, AC induction motors rely on electromagnetic induction to produce torque. A rotating magnetic field in the stator induces currents in the rotor, creating motion. Their simplicity and robustness make them cost-effective, but they typically lag behind permanent magnet motors in efficiency, especially at high speeds. ACIMs are often paired with variable frequency drives to optimize performance across speed ranges. However, their reliance on rare-earth-free materials makes them attractive for sustainability-focused designs.
Permanent Magnet Motors (PMM): Dominating modern EVs, including Tesla’s Model 3 and Chevrolet’s Bolt, permanent magnet motors use embedded magnets in the rotor to generate torque. This design delivers higher efficiency and power density compared to ACIMs, particularly at high speeds. However, the use of rare-earth elements like neodymium increases costs and raises supply chain concerns. PMMs also require precise control to avoid demagnetization at high temperatures. Despite these challenges, their superior performance makes them the go-to choice for premium EVs.
Switched Reluctance Motors (SRM): Emerging as a cost-effective alternative, switched reluctance motors operate by aligning the rotor’s salient poles with the stator’s magnetic field. Their simple construction—no magnets or windings in the rotor—reduces material costs and improves thermal resilience. However, SRMs are noisier and less efficient at high speeds due to torque ripple. Companies like Toyota are exploring SRMs for hybrid applications, where their low-speed efficiency and durability shine. While not yet mainstream in EVs, advancements in control algorithms could position SRMs as a viable option for budget-conscious models.
Practical Considerations: When selecting a motor type, factors like vehicle class, cost constraints, and performance goals dictate the choice. For instance, high-performance EVs prioritize PMMs for their efficiency and power, while cost-sensitive hybrids might opt for SRMs or ACIMs. Maintenance is another factor: PMMs require monitoring for magnet degradation, while ACIMs and SRMs offer greater longevity with fewer rare-earth dependencies. As the industry evolves, hybrid motor designs—combining the strengths of these types—may emerge to address specific use cases.
Takeaway: The choice of electric motor type significantly impacts an EV or hybrid’s drivetrain efficiency, cost, and sustainability. AC induction motors offer simplicity and affordability, permanent magnet motors deliver unmatched performance, and switched reluctance motors provide a promising balance of cost and durability. As technology advances, the optimal motor type will increasingly depend on the vehicle’s intended application and market positioning.
Electric Byrd Scooters: Unveiling the Motor Technology Powering Their Ride
You may want to see also
Explore related products
Battery Integration: How batteries power the drivetrain and manage energy efficiency
Electric and hybrid vehicles rely on a seamless interplay between the battery and the drivetrain to deliver power efficiently. At the heart of this system is the battery pack, which stores electrical energy and supplies it to the electric motor(s) in the drivetrain. Unlike traditional internal combustion engines, which burn fuel directly, electric and hybrid drivetrains convert electrical energy into mechanical motion. This process demands precise energy management to optimize performance, range, and efficiency. For instance, a typical electric vehicle (EV) battery operates at a voltage range of 300 to 400 volts, delivering power to the motor through a sophisticated electronic control unit (ECU) that regulates energy flow based on driving conditions.
One critical aspect of battery integration is energy efficiency management. Batteries in electric and hybrid vehicles are designed not only to provide power but also to recover it through regenerative braking. When the driver applies the brakes, the electric motor reverses its function, acting as a generator to convert kinetic energy back into electrical energy, which is then stored in the battery. This process can recover up to 70% of the energy that would otherwise be lost as heat in conventional braking systems. For example, the Tesla Model 3 uses regenerative braking to extend its range, allowing drivers to travel farther on a single charge. However, this system requires careful calibration to ensure smooth deceleration without compromising safety.
Another key consideration is thermal management, as battery performance and longevity are highly sensitive to temperature. Electric and hybrid drivetrains incorporate cooling systems to maintain optimal battery temperatures, typically between 20°C and 40°C. Excessive heat can degrade battery cells, while extreme cold reduces their efficiency. For instance, the Nissan Leaf employs a liquid-cooled battery system to prevent overheating during high-demand driving conditions. Conversely, pre-heating the battery in cold climates can improve efficiency and reduce charging times. Manufacturers often integrate battery management systems (BMS) to monitor temperature, voltage, and state of charge, ensuring the battery operates within safe parameters.
The integration of batteries into the drivetrain also involves balancing power delivery with energy conservation. Hybrid vehicles, such as the Toyota Prius, use a combination of electric motors and internal combustion engines to optimize fuel efficiency. The battery powers the electric motor during low-speed driving, while the gasoline engine takes over at higher speeds or when additional power is needed. This dual approach maximizes energy efficiency by leveraging the strengths of both systems. In fully electric vehicles, the battery must supply all the power, making energy density and charging speed critical factors. Advances in lithium-ion technology have increased energy density to around 250-300 Wh/kg, enabling longer ranges without adding excessive weight.
Finally, the future of battery integration in drivetrains lies in innovation and standardization. Solid-state batteries, currently under development, promise higher energy density, faster charging, and improved safety compared to lithium-ion batteries. Additionally, vehicle-to-grid (V2G) technology allows EVs to return stored energy to the power grid, turning them into mobile energy storage units. For consumers, practical tips include avoiding frequent fast charging, which can degrade battery health, and maintaining a charge level between 20% and 80% to prolong battery life. As battery technology evolves, its seamless integration with the drivetrain will remain a cornerstone of electric and hybrid vehicle performance.
DIY Electric Car: Build Your Own Battery-Powered Vehicle Easily
You may want to see also
Explore related products
Transmission Systems: Single-speed vs. multi-speed transmissions in electric and hybrid vehicles
Electric and hybrid vehicles rely on transmission systems to transfer power from the motor to the wheels, but the choice between single-speed and multi-speed transmissions significantly impacts performance, efficiency, and driving experience. Single-speed transmissions, common in many electric vehicles (EVs), offer simplicity and reliability. They consist of a fixed gear ratio that directly connects the electric motor to the wheels, eliminating the need for shifting. This design reduces mechanical complexity, lowers maintenance requirements, and maximizes efficiency at steady speeds. For instance, Tesla’s models, including the Model 3 and Model Y, use single-speed transmissions, which contribute to their smooth acceleration and minimal energy loss. However, this simplicity comes with a trade-off: limited optimization across varying driving conditions.
Multi-speed transmissions, on the other hand, introduce additional gears to enhance performance and efficiency across different speeds and loads. In hybrid vehicles, such as the Toyota Prius, multi-speed transmissions (often automated or continuously variable transmissions) work alongside the internal combustion engine and electric motor to balance power delivery. These systems allow the engine to operate within its most efficient RPM range while providing better torque at low speeds and improved fuel efficiency at highway speeds. For electric vehicles, multi-speed transmissions are less common but are gaining traction in high-performance models. The Porsche Taycan, for example, uses a two-speed transmission to optimize acceleration and top speed, with the first gear delivering rapid off-the-line performance and the second gear sustaining high-speed efficiency.
The choice between single-speed and multi-speed transmissions depends on the vehicle’s intended use and design priorities. Single-speed transmissions are ideal for urban EVs prioritizing simplicity, reliability, and cost-effectiveness. They excel in stop-and-go traffic and deliver consistent performance without the complexity of gear shifts. Multi-speed transmissions, however, are better suited for high-performance EVs or hybrids requiring versatility across diverse driving conditions. They offer improved acceleration, higher top speeds, and enhanced efficiency at varying RPMs, making them a compelling choice for sports cars or long-distance travel.
Practical considerations also play a role in this decision. Single-speed transmissions require less maintenance and are lighter, contributing to overall vehicle efficiency. Multi-speed systems, while more complex, can extend the range and capabilities of electric and hybrid vehicles, particularly in demanding scenarios. For consumers, understanding these differences is crucial when selecting a vehicle. If daily commuting and simplicity are priorities, a single-speed transmission may suffice. For those seeking dynamic performance or frequent highway driving, a multi-speed system could be the better investment.
In conclusion, the transmission system—whether single-speed or multi-speed—is a critical component in the drivetrain of electric and hybrid vehicles. Each design offers distinct advantages, and the choice ultimately hinges on the vehicle’s purpose, performance goals, and driver preferences. As technology advances, we may see further innovations in transmission systems, blurring the lines between these two approaches and offering even greater efficiency and versatility in the future.
Find Your Nearest Electric Car Charging Station: Quick & Easy Guide
You may want to see also
Explore related products
Power Electronics: Role of inverters, converters, and controllers in drivetrain operation
The drivetrain of an electric or hybrid vehicle is a complex system that converts electrical energy into mechanical motion, and power electronics are the unsung heroes of this process. At the heart of this system are inverters, converters, and controllers, each playing a critical role in ensuring efficient and reliable operation. Inverters, for instance, are responsible for converting the direct current (DC) from the battery into alternating current (AC) required by the electric motor. This AC power drives the motor, which in turn propels the vehicle. Without inverters, the electrical energy stored in the battery would be incompatible with the motor’s needs, rendering the drivetrain ineffective.
Converters, on the other hand, manage voltage levels within the drivetrain. Electric vehicles often operate at high-voltage levels (typically 400V or more), but certain components, like auxiliary systems, require lower voltages (12V or 48V). DC-DC converters step down the voltage to meet these requirements, ensuring compatibility and safety. Additionally, bidirectional converters allow energy to flow in both directions, enabling regenerative braking—a process where kinetic energy is converted back into electrical energy and stored in the battery during deceleration. This not only improves efficiency but also extends the vehicle’s range.
Controllers act as the brain of the drivetrain, orchestrating the operation of inverters and converters to optimize performance. These devices monitor inputs such as accelerator position, battery state, and motor speed to adjust power delivery in real time. Advanced controllers use algorithms to balance power output, thermal management, and energy efficiency, ensuring the vehicle operates smoothly under varying driving conditions. For example, during rapid acceleration, the controller signals the inverter to increase AC frequency and amplitude, delivering maximum torque to the motor.
The interplay between inverters, converters, and controllers is critical for achieving the high efficiency and responsiveness expected from electric and hybrid vehicles. In hybrid systems, these components also manage the transition between electric and internal combustion modes, ensuring seamless operation. For instance, during low-speed driving, the controller prioritizes electric power, while at highway speeds, it may engage the internal combustion engine for sustained power. This dynamic management is key to maximizing fuel efficiency and reducing emissions.
Practical considerations for these power electronics include thermal management and reliability. Inverters and converters generate significant heat during operation, requiring robust cooling systems to prevent overheating. Liquid cooling is often preferred over air cooling for its higher efficiency, especially in high-power applications. Additionally, the longevity of these components is vital, as they are subjected to frequent cycling and varying loads. Manufacturers often employ wide-bandgap semiconductors like silicon carbide (SiC) or gallium nitride (GaN) to improve efficiency and reduce heat generation, though these materials come at a higher cost.
In summary, inverters, converters, and controllers are indispensable components of electric and hybrid drivetrains, each fulfilling a unique function that contributes to the overall efficiency and performance of the vehicle. Understanding their roles and interactions provides insight into the sophistication of modern electric propulsion systems. For enthusiasts and engineers alike, optimizing these power electronics is a key area of focus in the ongoing evolution of sustainable transportation.
California's Electric Car Mandate: What It Means for Drivers and Automakers
You may want to see also
Explore related products
Hybrid Drivetrain Configurations: Series, parallel, and series-parallel hybrid systems compared
Hybrid drivetrain configurations are the backbone of how electric and hybrid vehicles balance efficiency, power, and range. Among the most common are series, parallel, and series-parallel systems, each with distinct mechanisms and trade-offs. Understanding these architectures is crucial for anyone evaluating hybrid or electric vehicles, as they directly impact performance, fuel economy, and driving experience.
Series Hybrid Systems: Simplicity Meets Efficiency
In a series hybrid, the internal combustion engine (ICE) acts solely as a generator, producing electricity to charge the battery or power the electric motor directly. The wheels are driven exclusively by the electric motor, decoupling the ICE from the drivetrain. This configuration excels in stop-and-go traffic, where regenerative braking maximizes energy recapture. For example, the BMW i3 REx uses a series hybrid setup, offering extended range without direct ICE propulsion. However, the ICE’s continuous operation at optimal RPMs can reduce efficiency at highway speeds, as energy is lost in the conversion from mechanical to electrical power.
Parallel Hybrid Systems: Direct Power, Direct Trade-offs
Parallel hybrids allow both the ICE and electric motor to power the wheels directly, either independently or together. This setup provides flexibility, enabling electric-only driving at low speeds and combined power for acceleration or high-load conditions. The Toyota Prius is a classic example, using a planetary gearset to blend power sources seamlessly. While parallel systems are simpler and lighter than series-parallel designs, they can struggle with efficiency in electric-only modes due to the ICE’s mechanical connection to the drivetrain, even when idle.
Series-Parallel Systems: The Best of Both Worlds
Series-parallel hybrids combine the strengths of series and parallel configurations, offering mode-switching capabilities based on driving conditions. For instance, the Chevrolet Volt operates in series mode for efficiency and switches to parallel mode for higher power demands. This system allows the ICE to drive the wheels directly when efficient, bypassing the generator step, while still enabling all-electric operation. However, the complexity of managing multiple power pathways increases weight and cost, making it less common in smaller vehicles.
Practical Considerations: Choosing the Right Configuration
When selecting a hybrid vehicle, consider your driving habits. Series hybrids are ideal for urban drivers prioritizing electric efficiency, while parallel systems suit those needing direct power without complexity. Series-parallel hybrids offer versatility but come with a premium price tag. For instance, if your daily commute is under 50 miles, a plug-in series-parallel hybrid like the Hyundai Ioniq could maximize electric-only usage, reducing fuel costs. Conversely, a parallel hybrid like the Honda Accord Hybrid may better serve highway-heavy routes.
Takeaway: No One-Size-Fits-All Solution
Each hybrid drivetrain configuration has unique advantages and limitations. Series systems prioritize electric efficiency, parallel setups offer direct power flexibility, and series-parallel designs blend both at the cost of complexity. By aligning your driving needs with these architectures, you can make an informed decision that optimizes performance, efficiency, and long-term value.
Electric Car Battery Degradation: Causes, Impact, and Longevity Explained
You may want to see also
Frequently asked questions
A drivetrain in electric or hybrid cars is the system responsible for delivering power from the engine or electric motor to the wheels, enabling the vehicle to move. It includes components like the motor(s), transmission (if applicable), driveshaft, and axles.
In electric cars, the drivetrain is simpler, typically consisting of an electric motor, inverter, and reduction gearbox. Hybrid cars have a more complex drivetrain that combines an internal combustion engine, electric motor(s), and a battery system, often with a planetary gear set to manage power distribution.
Yes, common types include front-wheel drive (FWD), rear-wheel drive (RWD), all-wheel drive (AWD), and four-wheel drive (4WD). Electric and hybrid vehicles often use AWD or RWD configurations, with some high-performance models offering unique setups for better efficiency or traction.
Electric and hybrid drivetrains offer improved efficiency, reduced emissions, and smoother acceleration due to the instant torque of electric motors. They also require less maintenance since they have fewer moving parts compared to traditional internal combustion engines.
