Electric air core temperature gauges are a type of gauge that can be used to monitor engine coolant or water temperature. They are typically designed with a small magnetic core surrounded by copper windings, which move in response to changes in voltage. This movement is regulated by an electronic sending unit that adjusts its resistance based on temperature or pressure readings. These gauges are known for their responsiveness and fast pointer movement, even when the vehicle is turned off. They are widely used in motorsports and are available in various sizes and styles, including short sweep electric gauges, which utilize a smaller portion of the dial for measurements. Proper grounding is crucial for the accuracy of electric air core temperature gauges.
| Characteristics | Values |
|---|---|
| Description | An electric air core temp gauge is a small magnetic core with copper windings around it that will move in relation to the voltage it sees. |
| Mechanism | An electronic sending unit changes its resistance to the ground based on the reading. As a temperature or pressure changes, the resistance the gauge measures and thereby the voltage the air core sees varies, dictating that the indicator moves to a calibrated position on the dial. |
| Pointer movement | Fast and responsive. Air core tachs are capable of moving from 0 to 10k rpm in 333 milliseconds. |
| Zeroing | When power is removed, it will not always return to zero. |
| Accuracy | Depends on the quality of the ground. A good ground is imperative for the best possible results during installation. |
| Installation | A simple ground path is required. |
| Use cases | Suitable for motorsports, desert racing, drag racing, and street applications. |
| Features | May include back-lit illumination for night use, and different color bulb covers. |
Explore related products
What You'll Learn
Air core gauges are a type of rotary actuator

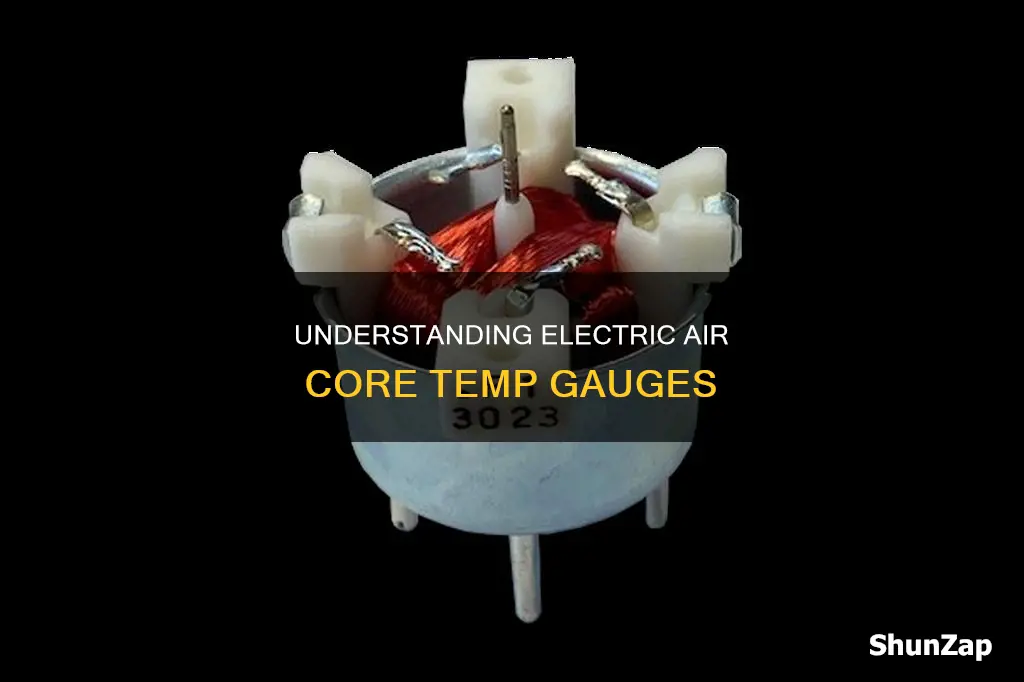

An air core gauge is a specific type of rotary actuator in an analog display gauge that allows an indicator to rotate a full 360 degrees. It is used in gauges and displays, most commonly in automotive instrument clusters. An air core gauge is a type of "air-core motor" or "pointer indication device".
Air-core movements (air core motors) are robust gauge mechanisms commonly used in automotive and marine gauges. An air-core is a very basic electric "motor" with a permanent magnet rotor and no commutator brushes. It is called an "air-core" because there is no iron in the magnetic path, although there is plastic in the magnetic path instead of air.
The air core gauge consists of two independent, perpendicular coils surrounding a hollow chamber. A needle shaft protrudes into the chamber, where a permanent magnet is affixed to the shaft. Air core gauges require special electronics to properly drive the coils. One pair of the output lines drives the sin coil, and one pair drives the cos coil.
The simplest actuator is purely mechanical, where linear motion in one direction gives rise to rotation. The most common actuators are electrically powered, but they may also be powered pneumatically or hydraulically, or use energy stored in springs. The motion produced by an actuator may be either continuous rotation, as in an electric motor, or movement to a fixed angular position, as in servomotors and stepper motors.
Air core gauges are also known as Short Sweep Electric (SSE) gauges. They are a small magnetic core with copper windings around them that will move in relation to the voltage they see. This is regulated by an electronic sending unit, which will change its resistance to the ground based on the reading. As a temperature or pressure changes, the resistance the gauge measures and thereby the voltage the air core sees varies, dictating that the indicator moves to a calibrated position on the dial.
Air Travel and Electrical Tape: What You Need to Know
You may want to see also
Explore related products
They are commonly used in automotive instrument clusters
Electric air core temperature gauges, also known as Short Sweep Electric (SSE) gauges, are commonly used in automotive instrument clusters. They are popular due to their accuracy, durability, and ease of installation. These gauges are designed to monitor temperature and pressure changes in vehicles.
At its core, an SSE gauge consists of a small magnetic core surrounded by copper windings. This assembly moves in response to changes in voltage, which is regulated by an electronic sending unit. As the temperature or pressure fluctuates, the resistance measured by the gauge changes, resulting in variations in the voltage experienced by the air core. Consequently, the indicator on the dial moves to a calibrated position, indicating the current temperature or pressure.
One of the advantages of SSE gauges is their fast and responsive pointer movement. They can quickly respond to changes in temperature or pressure, making them suitable for automotive applications. Additionally, SSE gauges are ruggedized for extreme conditions, making them ideal for high-shock or vibration environments, such as desert or drag racing.
The installation process for SSE gauges is relatively simple and often includes mounting hardware and adapters. It is important to ensure proper grounding during installation, as it directly impacts the accuracy of the gauge readings. A good ground connection is imperative for achieving optimal results.
Electric air core temperature gauges are widely used in automotive instrument clusters due to their accuracy, responsiveness, ease of installation, and ability to operate in demanding environments. They provide valuable information about temperature and pressure changes within vehicles, assisting in performance monitoring and diagnostics.
Electric Currents: Powering Devices, What's the Currency?
You may want to see also
Explore related products
They have no return spring or direct physical connection to the zero point
Electric air core temperature gauges, also known as Short Sweep Electric (SSE) gauges, are a popular choice for temperature measurement. They operate using a small magnetic core with copper windings that move in response to changes in voltage. This movement is regulated by an electronic sending unit that adjusts its resistance to the ground based on the temperature or pressure readings.
One unique aspect of electric air core temperature gauges is that they do not have a return spring or a direct physical connection to the zero point. This means that when power is removed, such as when a vehicle is turned off, the gauge might not always return to zero. This is a common feature of all electronic gauges and is not indicative of any malfunction. The lack of a return spring contributes to the incredibly fast pointer movement that air core gauges are known for.
The absence of a direct physical connection to the zero point also highlights the importance of accurate resistance measurements in these gauges. A good ground connection is crucial for optimal performance during installation. Without a strong ground, the gauge may read higher or lower than the actual temperature, especially in temperature gauges that operate over a wide resistance scale.
To ensure accurate readings, it is recommended to verify the voltmeter reading using a handheld multimeter at the back of the gauge. This helps determine if the discrepancy is due to low overall system voltage or a high-resistance connection on the power or ground side. Additionally, proper grounding of the sender wires and the use of the correct sender are essential to prevent issues like SSE pressure and temperature readings that are too low or the absence of readings altogether.
In summary, the lack of a return spring and direct physical connection to the zero point in electric air core temperature gauges is a design feature that allows for fast pointer movement and accurate temperature measurements. However, it also underscores the importance of ensuring proper grounding and resistance measurements to obtain precise data from these gauges.
Electric Razors: American Airlines' Policy Explained
You may want to see also
Explore related products
They are regulated by an electronic sending unit
An electric air core temp gauge, also known as a Short Sweep Electric (SSE) or Air-Core gauge, is a small magnetic core with copper windings around it. It is regulated by an electronic sending unit, which changes its resistance to the ground based on the reading.
The sending unit is a type of sensor or probe that receives data from the vehicle and sends it to the gauge. It is a transducer, which means it turns one form of energy into another. In the case of a vehicle sending unit, it usually turns heat (for a temperature gauge) or diaphragm movement (for a pressure gauge) into an electrical signal.
The sending unit is a vital part of many automotive gauge systems, including fuel level, oil pressure, and water temperature gauges. For example, in a fuel level gauge, the sending unit uses a float system that rises and falls with the level of fuel in the tank. The float is attached to an arm linked to a rheostat (a variable resistor) that is connected electronically to the fuel gauge. As the float height changes, the electrical resistance changes, and the fuel gauge interprets this to display the fuel level.
The accuracy of the gauge reading depends on the accuracy of the resistance measurements of the sending unit, so a good ground is essential for the best results. A poor ground can lead to incorrect readings, such as the gauge reading too high or too low.
Understanding Three-Phase Electrical Loads: Powering Our World
You may want to see also
Explore related products
They are best suited for race applications
An electric air core temp gauge, also known as a Short Sweep Electric (SSE) or Air-Core gauge, is a small magnetic core with copper windings around it that moves in relation to the voltage it receives. This voltage is regulated by an electronic sending unit, which changes its resistance to the ground based on the pressure it is receiving. As the temperature or pressure changes, the resistance varies, moving the indicator to a calibrated position on the dial.
These gauges are best suited for race applications due to several reasons. Firstly, they are incredibly responsive, with air core tachs capable of moving from 0 to 10k rpm in 333 milliseconds. This responsiveness is crucial for racing scenarios where quick decisions and adjustments are necessary.
Secondly, SSE gauges are designed to be robust and durable. They can withstand high levels of continuous vibration and shock, making them ideal for extreme racing environments such as desert racing or drag racing applications that experience tire shake. The meter movements can even be filled with liquid silicone for additional dampening in high-impact racing scenarios.
Additionally, SSE gauges offer user-configurable warnings, where the lighting changes at different points on the dial to communicate certain conditions to the driver. This feature enhances the driver's awareness and allows them to make timely adjustments during a race.
Moreover, electric gauges are preferred by some over mechanical gauges because the fluid-filled lines of mechanical gauges can rupture. Mechanical gauges have fluid-filled tubes that connect directly to the engine, and these tubes can be prone to rupturing, especially during the high-performance demands of racing.
Finally, electric air core temp gauges are easy to install, which is an important consideration for race applications where time is of the essence. They do not require complex physical connections, making them more convenient for racing setups.
EMT: Understanding Electrical Conduit and Its Uses
You may want to see also
Frequently asked questions
An electric air core temp gauge is a small magnetic core with copper windings around it that moves in relation to the voltage it receives. This is regulated by an electronic sending unit, which changes its resistance to the ground based on the reading.
As temperature or pressure changes, the resistance the gauge measures and the voltage the air core sees varies, dictating that the indicator moves to a calibrated position on the dial.
Air-Core or Short Sweep Electric (SSE) gauges are the most popular type of gauges. They are differentiated from other gauges by their use of a smaller percentage of the dial (90 degrees of rotation). Needle movement usually starts around the 9 o'clock position and moves to the 3 o'clock position at full scale.
