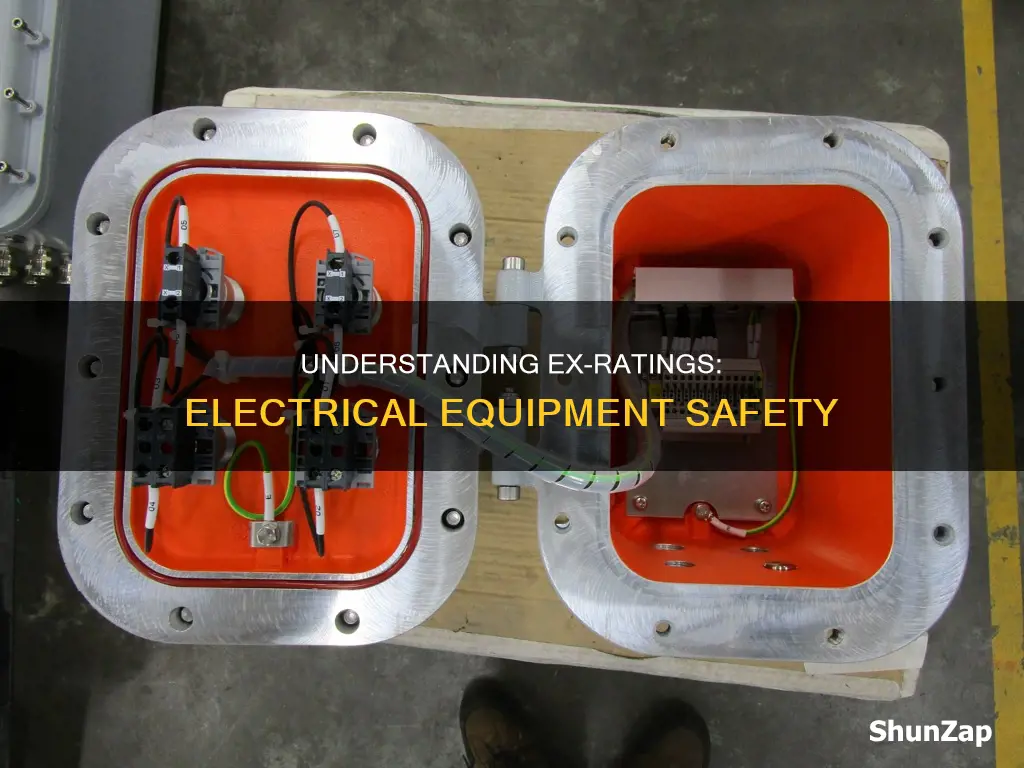

The Ex rating of electrical equipment is an abbreviation for explosion, indicating that the equipment is safe for use in explosive atmospheres, such as those containing flammable gases or dust. Ex-rated equipment is designed to prevent ignition-based hazards and is constructed to contain any sparks, flames, or explosions that may be produced by the equipment or to prevent their production. These hazardous areas, also known as Ex areas, are classified according to zoning classifications that determine the type of Ex-rated equipment required, ensuring only safe equipment is employed. The Ex rating is a crucial indicator of the safety of electrical devices in hazardous locations, and its careful design is achieved through rigorous testing and compliance with international standards.
| Characteristics | Values |
|---|---|
| Full form | Ex is short for "explosion" |
| Use | Safe for use in explosive atmospheres |
| Hazards | Prevents ignition-based hazards |
| Testing | Rigorous testing and compliance with international standards |
| Safety | Unparalleled safety and reliability in hazardous settings |
| Zoning | Ex areas are marked with a specific zoning classification to manage risk levels |
| Intrinsic Safety | Restricts electrical energy to a non-incendiary level within hazardous areas |
| Customised framework | Provides a customised framework for protecting electrical equipment within hazardous environments |
| Protection strategies | Minimise electrical equipment in a hazardous location, or make the area less hazardous |
| Protection types | Intrinsic safety, explosion-proofing, Ex e Increased Safety, Ex i Intrinsic Safety, Ex d Flameproof, Ex m Encapsulation, Ex p Pressurised Enclosures, Ex o Oil Immersion, Ex q Powder Filling, Ex n Reduced Risk |
| Certification | IECEx, ATEX, EEx, AEx |
| Labeling | Clearly visible on a main part or the exterior of the equipment, includes manufacturer's name, type code, symbol 'X', etc. |
Explore related products
What You'll Learn
- Ex rating equipment is designed to prevent ignition-based hazards
- Ex zones categorise hazardous areas, defining the frequency of explosive atmospheres
- Ex i Intrinsic Safety focuses on ensuring electrical equipment operates safely by restricting electrical energy
- Ex e Increased Safety ensures reliable prevention of sparks, high temperatures, and electrical arcs
- Ex equipment must be certified by national government agencies or recognised independent agencies
Ex rating equipment is designed to prevent ignition-based hazards
Ex-rated equipment is designed to prevent ignition-based hazards in hazardous areas, often referred to as "Ex areas". These areas contain ignitable substances in the air, such as flammable gases or dust, which could be ignited by sparks or high temperatures from non-Ex equipment.
To prevent this, Ex equipment is designed to contain any sparks, flames, or explosions that may be produced by the equipment or to prevent their production altogether. This careful design is achieved through rigorous testing and compliance with international standards. These standards vary by jurisdiction, and certification is conducted by national government agencies or recognised independent agencies.
The Ex rating is an abbreviation for "explosion," signifying that electrical equipment is safe for use in explosive atmospheres. Ex zones categorise hazardous areas, defining how frequently explosive atmospheres may be present. These zones provide a structured approach to ensuring safety and guiding the selection, installation, and maintenance of appropriate equipment. For example, Zone 0 indicates an environment where an explosive gas is continuously present, while Zone 1 signals that it is likely to occur in normal operations.
There are various protection strategies for hazardous locations, including intrinsic safety and explosion-proofing. Intrinsic safety designs equipment to operate using minimal energy, insufficient to cause ignition. Explosion-proofing contains ignition hazards, prevents the entry of hazardous substances, and contains any fire or explosion that could occur.
In addition to the Ex rating, there are other indicators of protection against explosive atmospheres, such as Ex e (increased safety), Ex i (intrinsic safety), Ex d (flameproof), and many more. These indicators represent different methods of protecting electrical equipment within hazardous environments, ensuring that equipment operates safely without causing ignition-based hazards.
Robots, Dreams, and Sheep: The Amazonian Electric Conundrum
You may want to see also
Explore related products
$449.99 $479.99
Ex zones categorise hazardous areas, defining the frequency of explosive atmospheres
Ex-rated equipment refers to equipment that has been classified as safe for use in hazardous areas, which are often referred to as "Ex areas". These areas are defined as locations where there is a risk of fire or explosion due to the presence of ignitable substances in the air, such as flammable gases or dust.
The zoning classification is crucial for managing risk levels and determining the type of Ex-rated equipment required. Employers must conduct risk assessments and audits to ensure compliance with the designated zones. Ex-rated equipment is designed to prevent ignition-based hazards and undergo rigorous testing to meet international safety standards.
There are various explosion protection concepts, such as Ex i (Intrinsic Safety), which focuses on restricting electrical energy to a non-incendiary level, and Ex e (Increased Safety), which aims to provide an impact-resistant enclosure to prevent sparks, temperatures, or currents that could ignite the external atmosphere. Other concepts include Ex d (Flameproof), Ex m (Encapsulation), Ex p (Pressurised Enclosures), and Ex q (Powder Filling).
The selection and installation of equipment in hazardous areas are guided by standards and regulations, such as the Equipment and Protective Systems for Use in Potentially Explosive Atmospheres Regulations 1996 in the UK, to ensure safe operation and mitigate risks.
Electricians United: MJ Electric's Workforce Strength
You may want to see also
Explore related products
Ex i Intrinsic Safety focuses on ensuring electrical equipment operates safely by restricting electrical energy
Ex-rated equipment is designed for use in hazardous areas, often referred to as Ex areas. These areas are at risk of fire or explosion due to the presence of ignitable substances in the air, such as flammable gases or dust. The Ex rating, an abbreviation for "explosion," indicates that electrical equipment is safe for use in these explosive atmospheres.
Ex i Intrinsic Safety is a type of protection that ensures electrical equipment operates safely in hazardous areas by restricting electrical energy to a level below what could cause ignition. This is achieved by limiting the energy in the danger zone, or hazardous area, to prevent the ignition of an explosive mixture. The process focuses on reducing electrical energy to a non-incendiary level, ensuring that even a minor spark cannot be produced to trigger a catastrophic event.
Intrinsic Safety (I.S.) is a low-energy signalling technique that prevents explosions by limiting the energy transferred to a hazardous area. This is done by ensuring the energy remains well below the threshold required to initiate ignition. The system must be considered as a whole, including interconnecting wiring, and the energy restriction applies to the entire setup rather than individual parts.
The 'Ex i' type of protection is based on the IEC 60079-11 standard, with certified intrinsically safe circuits placed in the danger zone. These circuits are distinguished by a light blue colour and are designed to prevent ignition through sparking or heating effects. The field equipment surface temperature will not cause ignition, even under specified fault conditions.
Overall, Ex i Intrinsic Safety plays a crucial role in ensuring the safe operation of electrical equipment in hazardous areas. By restricting electrical energy to non-incendiary levels, this protection method effectively mitigates the risk of explosions or fires in environments laden with potentially explosive substances.
Efficiently Removing a Stuck Screw from an Electric Screwdriver
You may want to see also
Explore related products
Ex e Increased Safety ensures reliable prevention of sparks, high temperatures, and electrical arcs
Ex-rated equipment refers to equipment that has been classified as safe for use in hazardous areas, which are often referred to as "Ex areas". These areas are characterised by the presence of flammable gases, dust, or other ignitable substances in the air that can be ignited by sparks or high temperatures, leading to explosions or fires.
One specific type of Ex-rated equipment is Ex e, which stands for "Increased Safety". This protection concept is applied to installations to ensure increased security against excessive temperatures, sparks, and electrical arcs from hazardous area electrical equipment. The goal of the Ex e standard is to provide an impact-resistant enclosure for electrical equipment, preventing the internal or external generation of sparks, high temperatures, or current creepage that could ignite the external flammable atmosphere in a hazardous area.
To achieve this, Ex e requires a high level of component integrity, eliminating potential ignition sources, such as sparking contacts. The internal temperature of the components is critical and must be carefully managed to prevent excessive temperatures. Additional measures, such as specific requirements for winding wire, insulation, and thermal monitoring equipment, further enhance the explosion protection provided by Ex e.
The use of Ex e equipment provides a higher level of explosion protection and ensures the reliable prevention of sparks, high temperatures, and electrical arcs. This not only maintains safety in hazardous areas but also boosts operational resilience and reliability. By employing Ex e equipment, industries can confidently operate in challenging environments, knowing that their equipment meets the highest safety standards and provides unparalleled safety and reliability.
Do Spaceship Buttons Require Electricity to Function?
You may want to see also
Explore related products
Ex equipment must be certified by national government agencies or recognised independent agencies
Ex-rated equipment refers to equipment that has been certified and classified as safe for use in hazardous areas, often referred to as "Ex areas". These areas are characterised by the presence of ignitable substances in the air, such as flammable gases or dust, which pose a risk of fire or explosion.
To ensure safety in these hazardous areas, Ex equipment must be certified by national government agencies or recognised independent agencies. This certification process involves rigorous testing to meet international standards. The specific Ex rating assigned to a piece of equipment indicates that it has been designed to prevent ignition-based hazards in specific Ex areas.
For example, in the United States, the National Electrical Manufacturers Association (NEMA) defines standards for enclosure types for various applications. Similarly, the Occupational Safety and Health Administration oversees the classification of hazardous locations, while the independent National Fire Protection Association (NFPA) publishes standards that are often adopted by government agencies.
In other countries, such as Australia, a unified approach to certification ensures that all Ex-rated equipment meets stringent safety standards. This fosters confidence and consistency across industries, reducing the risk of incidents in hazardous locations.
The certification of Ex equipment is crucial as non-Ex equipment may emit sparks or reach high temperatures that can cause explosions or fires in these sensitive environments. By contrast, Ex equipment is specifically designed to contain or prevent sparks, flames, or explosions. This careful design and certification process ensures unparalleled safety and reliability in hazardous settings, protecting both human lives and assets.
