Commercial aircraft electricity is a fascinating and essential aspect of aviation. Most airplanes use a frequency of 400 Hz for their electrical systems, which is significantly higher than the standard 50 or 60 Hz found in wall outlets. This higher frequency is chosen to reduce the weight of the aircraft, as it requires fewer generators or alternators to produce the same amount of power. The use of 400 Hz power has become a universal standard for aerospace electrical systems, allowing for standardization and compatibility worldwide. This decision to prioritize weight reduction over potential voltage drops associated with high-frequency systems reflects the unique design considerations of aircraft, where minimizing weight is critical for performance and fuel efficiency.
| Characteristics | Values |
|---|---|
| Frequency of electricity in commercial aircraft | 400 Hz |
| Frequency of electricity in standard wall outlets | 50 or 60 Hz |
| Frequency of electricity in common household electrical outlets | 50 or 60 Hz |
| Frequency of electricity in large parts of the world | 50 Hz |
| Frequency of electricity in the Americas and parts of Asia | 60 Hz |
| Reason for using a higher frequency in aircraft | Reduced weight and standardization of electrical devices and components |
| Reason for using a lower frequency in standard wall outlets | Lower frequency allows for long transmission lines |
Explore related products
What You'll Learn
Why do commercial aircraft use 400 Hz AC power?
Commercial aircraft use 400 Hz AC power primarily because it reduces weight and allows for standardisation.
When aviation first began using electricity, it was direct current (DC) power. As alternating current (AC) became more prevalent, the size and weight of transformers, motors, and power supplies became a primary concern. A higher frequency would make these components lighter, and so a special generator was designed to output 400 Hz. This higher frequency allowed for a motor the size of a watermelon to be replaced by one the size of a one-pound coffee can, performing the same amount of work. This weight saving allowed for increased cargo capacity and decreased fuel consumption.
The use of 400 Hz power also allowed for standardisation of electrical devices and components. If aircraft were designed with varying electrical systems, they would not have cross-compatible devices and components.

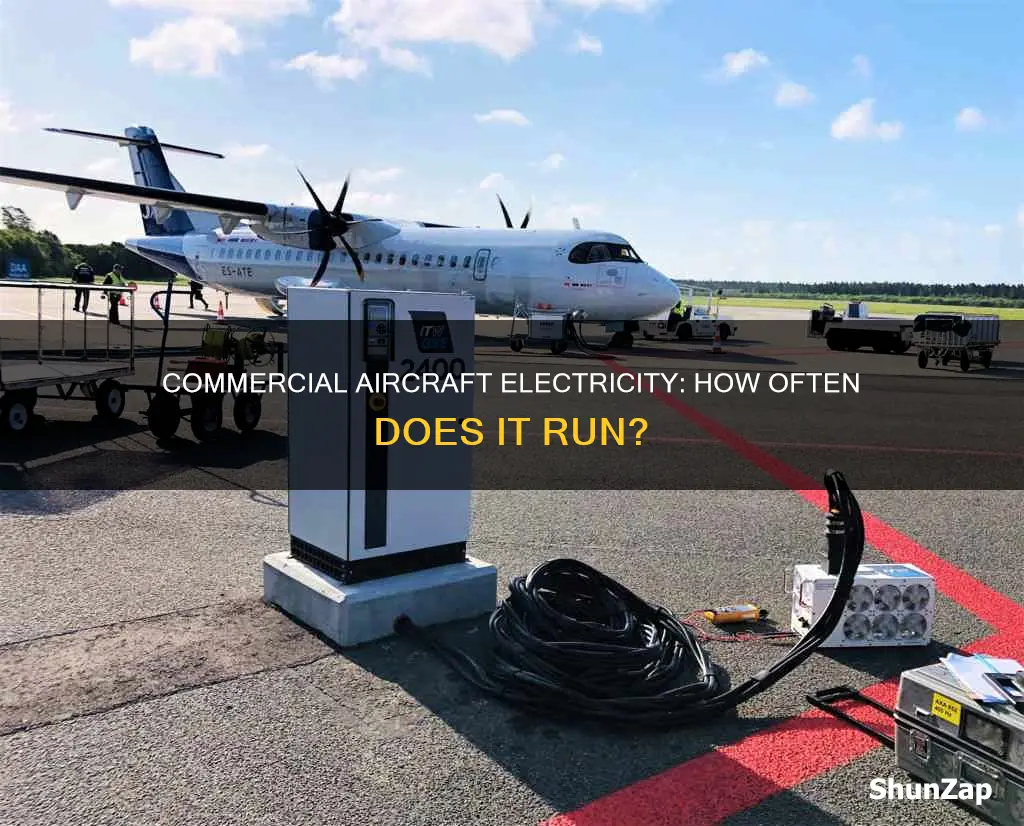

The aviation power system of 400 Hz became one of the first worldwide-adopted standards, with airports around the world standardising the same power system, including the physical plug and cable. This meant that aircraft could land anywhere in the world and be serviced.
It is important to note that while 400 Hz is the standard for aircraft, it is not suitable for long-distance power transmission due to increased power loss. Therefore, 400 Hz power systems are usually confined to a building or vehicle.
Electric Blankets: Are They a Health Risk?
You may want to see also
Explore related products
Why is 400 Hz better than 50 or 60 Hz?
The use of 400 Hz power in aircraft is driven by several key factors, the first of which is weight reduction. Electrical systems are crucial in modern aircraft, as they power a multitude of devices and components. If aircraft used a lower frequency, they would require more generators or alternators, increasing overall weight. 400 Hz power systems allow for smaller and lighter transformers and motors when compared to 50 Hz or 60 Hz systems. Induction motors rotate at a speed proportional to frequency, so a higher frequency power supply yields more power for the same motor volume and mass.
The second factor is standardization. 400 Hz became one of the first worldwide-adopted standards in aviation, ensuring that aircraft could be serviced anywhere they landed. Standardization also allows for cross-compatibility between devices and components.
Additionally, 400 Hz power is advantageous in aircraft because it cannot be transmitted over long distances efficiently. Such high frequencies greatly increase series impedance due to the inductance of transmission lines, making power transmission challenging. Therefore, 400 Hz power systems are typically confined to buildings or vehicles, making them suitable for aircraft.
While 50 Hz and 60 Hz frequencies are common in many parts of the world, with 60 Hz being more economical for power companies, 400 Hz is preferred in aircraft due to the specific requirements of aviation, including the need for lightweight and compact electrical systems.
Bob Nardelli: A General Electric Leadership Story
You may want to see also
Explore related products
How does 400 Hz reduce aircraft weight?
The aviation industry operates on 400 Hz power to reduce the weight of aircraft. When the aviation industry began using electricity, it was direct current (DC) power. As alternating current (AC) became more prevalent in aircraft, the size and weight of transformers, motors, and power supplies became a primary concern.
To address this issue, it was proposed to use a higher frequency to make these components lighter. A higher frequency would result in increased power loss over long transmission lengths, but since the length of power transmission in aircraft is small, this increase in power loss would be negligible.
As a result, a special generator was designed to create an output of 400 Hz. This higher frequency allowed for the use of smaller and lighter motors without compromising functionality. For example, a motor the size of a watermelon could be replaced by one the size of a one-pound coffee can, which could perform the same amount of work.
The weight reduction achieved by using 400 Hz power has significant benefits for aircraft. It enables increased cargo capacity and decreased fuel consumption, making 400 Hz power a successful and widely adopted standard for modern AC-powered aircraft. Additionally, the standardization on 400 Hz power worldwide ensures that aircraft can be serviced at any airport, regardless of their origin.
Knife Sharpening: Electric Sharpener Techniques for Beginners
You may want to see also
Explore related products
What are the benefits of using AC over DC?
AC power is widely used in commercial aircraft due to its numerous advantages over DC power.
Firstly, AC power is easier to generate through rotational means, such as a spinning shaft from an engine gearbox, as it is the natural product of generators. This makes it more convenient and efficient for power generation in aircraft engines. AC power is also simpler to convert to different voltages using transformers, which is crucial for distributing power across various aircraft systems. This voltage flexibility allows for the use of smaller and lighter transformers, reducing weight and space requirements.
Additionally, AC power can be transmitted over long distances with minimal power losses when stepped up to very high voltages. This is particularly advantageous for larger aircraft, where weight and space savings are critical. AC voltage can utilize thinner wires than DC, reducing bulk and weight, which is essential for optimizing aircraft performance.
Furthermore, AC power is better suited for precision electronics and systems that require a constant frequency. It is commonly used for avionics boxes, CRT screens, and ground power at airports, making it a standard choice for aircraft electrical systems.
While DC power has its advantages, such as being the standard for battery-operated devices, AC power offers greater flexibility, efficiency, and weight savings, making it the preferred choice for commercial aircraft electrical systems.
Mastering Lincoln Electric Welding: A Step-by-Step Guide
You may want to see also
Explore related products
Why did the aviation industry adopt 400 Hz as the standard?
The aviation industry's standard frequency of 400 Hz is a legacy of the early days of electrification, when many different frequencies and voltages were used.
When aviation began using electricity, it was direct current (DC) power. As alternating current (AC) became more prevalent in aircraft, the primary concern was the size and weight of transformers, motors, and power supplies. A higher frequency would make these components lighter, and since the length of power transmission was small, the increased power loss would be negligible.
A special generator was designed to create an output of 400 Hz, which allowed a motor the size of a watermelon to be replaced by one the size of a one-pound coffee can, doing the same amount of work. This weight saving allowed increased cargo capacity and decreased fuel consumption.
Standardization is one of the most important reasons for the aviation industry's adoption of 400 Hz. If aircraft had electrical systems with different power frequencies, components wouldn't be cross-compatible. 400 Hz is a standard, common frequency for all aircraft, meaning components on different kinds of planes can be swapped out and easily replaced, removed, or fixed.
Airports around the world standardized on the same power system, including the physical plug and cable, as well as the 400 Hz power, so that aircraft could land anywhere in the world and be serviced. This was one of the first worldwide-adopted standards.
Greenhouses: Plumbing, Electricity, and Other Requirements
You may want to see also
Frequently asked questions
Commercial aircraft electricity operates at a frequency of 400 Hz.
Commercial aircraft use 400 Hz electricity because it reduces the weight of the aircraft, allowing for increased cargo capacity and decreased fuel consumption.
Standard wall outlets use electricity with a frequency of 50 or 60 Hz.
Using 400 Hz electricity allows for the use of smaller transformers, motors, and power supplies, which reduces the weight of the aircraft.
Yes, airports around the world have standardized the power system to 400 Hz so that aircraft can land and be serviced anywhere in the world.
