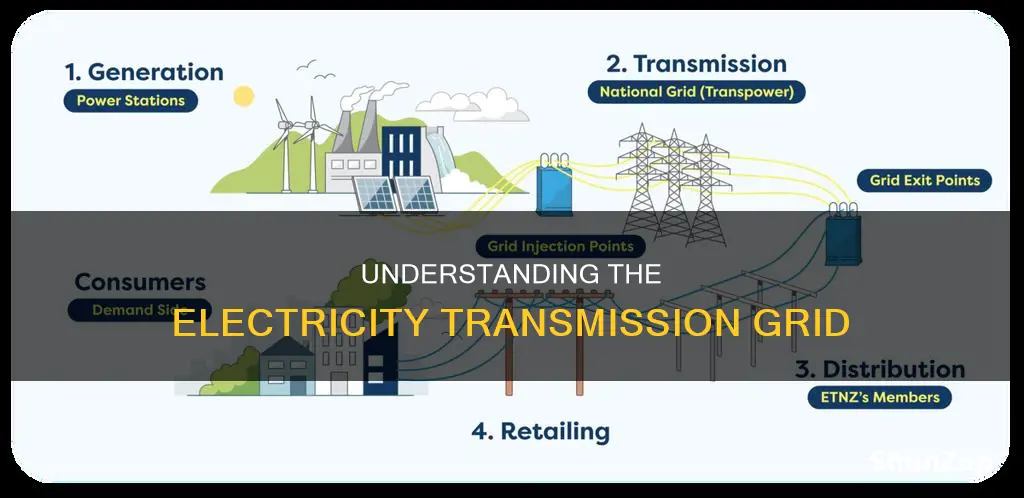

The electrical grid, also known as the electricity network, is a complex, interconnected system that delivers electricity from producers to consumers. It consists of power stations, electrical substations, transmission lines, and distribution networks. The grid's primary functions are generation, transmission, and distribution. During generation, electricity is produced in power plants through the conversion of mechanical energy from a turbine into electrical energy using a generator. The electricity then undergoes “step-up” conversion, where voltage is increased through transformers, enabling long-distance transmission. Finally, during distribution, electricity reaches consumers through a network of power lines and substations that step down voltage to safer levels for everyday use. This complex system ensures a constant balance between supply and demand, powering everything from industry to household appliances.
| Characteristics | Values |
|---|---|
| Purpose | To deliver electricity from power plants to homes and businesses |
| Functions | Generation, transmission, and distribution |
| Size | Varies from microgrids to super grids or mega grids that cover whole countries or continents |
| Ownership | Utilities, or energy utility companies, own electricity generators |
| Management | Grid operators, or independent system operators (ISOs) or regional transmission organizations (RTOs) |
| Regulation | Public Utility Commission (PUC) or the Public Service Commission (PSC) at the state level |
| Backup | Reserve margin, or a specified amount of backup electricity generating capacity |
| Transmission | High-voltage transmission lines carry electricity over long distances |
| Efficiency | Transmission efficiency is greater at higher voltages and lower currents |
| Security | Prone to malicious intrusion or attack, cyber threats, and extreme weather events |
Explore related products
What You'll Learn
- Electrical grids vary in size, from microgrids to supergrids
- Grids are nearly always synchronous, with AC frequencies synchronised
- Transmission lines, or power lines, carry power from plants to substations
- Grid reliability refers to how well the grid matches supply with demand
- Bottlenecks occur when there is more energy than lines can deliver
Electrical grids vary in size, from microgrids to supergrids
An electrical grid is a complex network of power generation, transmission, and distribution that delivers electricity from power plants to homes and businesses. Electrical grids vary in size and complexity, from microgrids to supergrids, each serving different purposes and functioning in distinct ways.
Microgrids are small-scale, local electrical grids with defined electrical boundaries. They can operate in grid-connected or off-grid modes, providing flexibility and control over power distribution. Stand-alone or isolated microgrids, also known as "island grids", function independently and are commonly found in rural or geographically remote areas, including islands. These grids are often used to provide access to electricity in regions that were previously unelectrified. Very small microgrids, known as nanogrids, can be implemented at the level of a single house or small building, with multiple nanogrids interconnecting to form a microgrid network. Community microgrids can serve thousands of customers, allowing for the sharing of power within a community, particularly in rural areas.
On the other hand, supergrids represent large-scale, intelligent power grids. They are designed to accommodate high penetration levels of renewable energy sources and transportation electrification. Supergrids are managed by grid operators, who monitor the power grid and maintain the electrical flow to transmission lines and distribution networks. These operators, also known as Independent System Operators (ISOs) or Regional Transmission Organizations (RTOs), facilitate competition among electricity suppliers and provide access to transmission lines.
The size and complexity of electrical grids allow for reliability, flexibility, and economic competition. The interconnected nature of large grids ensures electricity can be deployed across large regions, meeting demand even in the face of anticipated or unexpected losses. The grid allows for the use of diverse resources, enabling power transmission from distant locations, such as wind turbines positioned in areas with strong winds. Additionally, the presence of multiple generators and power plants encourages economic competition, driving down prices for consumers.
