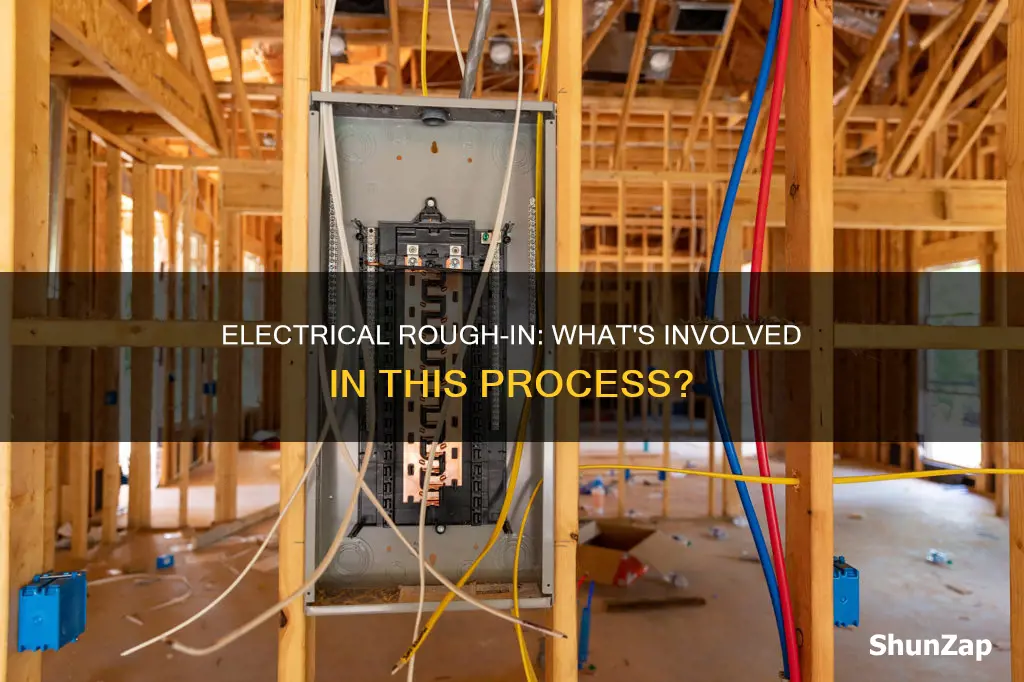

Electrical rough-in is a critical part of the building and remodelling process, laying the groundwork for a building's electrical system. It involves installing electrical boxes and outlets, as well as running wires through walls and ceilings to connect them. The process typically begins once the framing of a house or room is complete but before the drywall or other wall coverings are installed. This stage is crucial for ensuring safety, functionality, and compliance with local codes and safety standards. It includes planning the locations of outlets, switches, and fixtures, as well as running wires and setting up boxes for power outlets and light switches. Proper execution of the electrical rough-in can boost confidence in the safety of the building and enhance its market value.
| Characteristics | Values |
|---|---|
| Purpose | To ensure the electrical system is safe and meets local codes |
| Stage | The rough-in stage involves installing electrical boxes and outlets, and running wires between them |
| Planning | A detailed plan is required, outlining the location of outlets, switches, light fixtures, and wiring routes |
| Installation | Electrical boxes are installed at designated points, and wires are run from these boxes back to the main service panel |
| Connections | All wires must be connected correctly, and boxes must be properly secured to the walls |
| Safety | It includes preventing short circuits and ensuring secure connections to avoid electrical shocks |
| Compliance | It must comply with building codes and safety standards, including GFCI and AFCI circuit protection requirements |
| Inspection | An inspector checks the proper number of circuits, GFCI and AFCI protection, electrical box installation, and surge protection |
| Wiring | Wires are run through the centre of wall studs, with horizontal runs at least 20-24 inches above the floor, protected by metal plates |
| Diagram | A basic electrical wiring diagram helps with organisation and compliance, including labelling circuits, wire types, gauge, and lengths |
| Testing | Testing occurs after the rough-in stage to ensure proper functionality before connecting to the power source |
Explore related products
What You'll Learn
Planning
Create a Detailed Plan:
Develop a comprehensive blueprint that outlines the placement of electrical panels, outlets, switches, fixtures, and wiring routes. This plan should be created by a professional, such as an architect or engineer, and followed closely during the installation. It is crucial to ensure compliance with building codes and safety standards.
Gather Tools and Materials:
Before beginning the rough-in, ensure you have all the necessary tools and materials, including wires, conduits, electrical boxes, switches, and proper safety gear. Having everything on hand will make the installation process more efficient and help avoid delays.
Mark and Secure Electrical Box Locations:
Use a pencil to mark the locations for electrical boxes on the walls and ceilings. Electrical boxes will house switches, outlets, and light fixtures, so proper placement is essential. Secure the boxes to studs or joists using screws or nails, ensuring they are sturdy and properly aligned.
Run Wires and Cables Safely:
Plan the path for running electrical wires and cables through the walls and ceilings. Cables should be routed through the center of wall studs to protect them from penetration by drywall screws and nails. Use protective metal plates at each wall stud penetration for added safety. Drill holes with precision, choosing the right bit size for the cable and maintaining the proper clearance from the stud edges.
Label and Stage Wires:
Label each wire with its circuit number and amperage. Staging the wires involves preparing them for final connections without completing the circuit. Strip the insulation at wire ends, fold the wires neatly inside electrical boxes, and leave enough length for easy access during the final connection.
Inspect and Verify:
Before moving to the next phase, ensure that your electrical rough-in passes inspection. An inspector will check for proper circuits, GFCI and AFCI circuit protection, and compliance with local codes. They will also verify that electrical boxes are installed correctly and are large enough to accommodate the wires and devices.
Understanding Electric Potential at Midpoint Calculations
You may want to see also
Explore related products
Electrical boxes
The installation of electrical boxes is typically the first hands-on step in the rough-in process. Before installing the boxes, it is important to mark their locations on the walls and ceilings using a pencil. This ensures that the boxes are installed in the correct positions. Electrical boxes should be attached securely to studs or joists using screws or nails, ensuring that they are sturdy and properly aligned for safe and convenient access.
It is important to allow for clearance by ensuring that the electrical boxes extend slightly from the wall. This alignment is necessary to accommodate the drywall. To run cables through walls and ceilings, holes must be drilled with precision and caution. The choice of the right bit is crucial, and a spade or auger bit suitable for the cable size should be used. It is important to position the holes correctly by drilling in the center of the studs to avoid weakening them.
To ensure safety and prevent damage, it is essential to maintain adequate clearance between the holes and the edges of the studs. A minimum distance of 1.25 inches should be maintained to prevent any potential issues with nails or screws. Additionally, during the rough-in process, wires are stripped at their ends and neatly folded inside the electrical boxes. This staging process ensures that future installation steps can proceed smoothly and efficiently.
Overall, the installation of electrical boxes during the rough-in stage is a critical aspect of establishing a safe and functional electrical system. It involves careful planning, precise execution, and adherence to local codes and safety standards.
Duke vs OUC: Who Charges More?
You may want to see also
Explore related products
Wiring
Planning
Before starting the wiring process, it is crucial to have a detailed plan in place. This plan should include the locations of outlets, switches, light fixtures, and the route of all wiring. Having a clear blueprint ensures compliance with building codes and safety standards. It is recommended to have this plan created by an architect or engineer, and it is crucial that all contractors and subcontractors understand and agree on it.
Running Wires
Once the plan is established, the next step is to run wires from the electrical boxes back to the main service panel. This includes running wires through the center of wall studs to protect them from penetration by drywall screws and nails. Horizontal runs should be at least 20 to 24 inches above the floor, and each wall stud penetration should be protected by a metal protective plate. This step requires careful drilling of holes to run cables through walls and ceilings, ensuring precision and caution.
Staging Wires
Staging wires is an essential step in the rough-in process, preparing them for final connections without completing the circuit. This involves stripping the insulation at wire ends, neatly folding the wires inside electrical boxes, and leaving enough length for easy access during the final connection. Staging ensures that future installation steps proceed smoothly and efficiently.
Circuit Mapping and Labelling
Each circuit should be labelled, noting its purpose and connected devices. Details such as wire types, gauge, and lengths should also be indicated. This helps with troubleshooting and provides reassurance to inspectors. While not required by code, some electricians and homeowners choose to label wires to indicate the circuit number and amperage, which is beneficial for inspection and future reference.
Inspection
Before moving on to the next phase, the electrical rough-in must pass inspection by a certified inspector. They will check that all applicable circuit conductors and outlet boxes are installed, and all joints are made. Inspectors will also verify that electrical boxes are flush with the wall and large enough to accommodate the number of wire conductors and devices. They will ensure compliance with local codes and safety standards, including GFCI and AFCI circuit protection requirements.
Overall, the wiring aspect of electrical rough-ins requires careful planning, precise execution, and attention to safety standards to ensure a functional and secure electrical system.
Understanding Electricity: Watts vs Volts
You may want to see also
Explore related products
Safety and compliance
The rough-in stage involves installing electrical boxes and outlets, as well as running wires through walls and ceilings to connect them. Proper placement and installation are vital for safety and functionality. All wires must be correctly and safely installed, and all connections must be secure to prevent electrical shocks and short circuits, which can lead to fires.
To ensure safety and compliance, it is essential to start with a detailed plan that outlines the locations of outlets, switches, light fixtures, and wiring routes. This plan should be closely followed during installation. Licensed electricians are typically required to handle electrical rough-in work due to safety considerations and the need for accuracy.
Before covering walls and ceilings, inspectors will check that all applicable circuit conductors and outlet boxes are installed, and all joints are made. They will also ensure that the electrical system meets local codes, including proper circuits, GFCI and AFCI circuit protection, and electrical box compliance. Inspectors provide reassurance and help identify potential issues early in the process.
Additionally, it is important to consider safety devices during the rough-in stage. This includes surge protectors and isolated ground receptacles to protect sensitive electronic devices from current fluctuations and interference. Proper grounding and circuit protection are crucial for the safe operation of electrical devices in the home.
Preventing Electrical Fires at Home: Quick Tips to Stay Safe
You may want to see also
Explore related products
Inspection
Electrical rough-in is a critical part of the building and remodelling process, providing the foundation for a safe and efficient electrical system. It involves laying the groundwork for the electrical system, including running wires through walls and ceilings, and setting up boxes for power outlets and light switches. The rough-in process typically occurs after the framing of a house or room is completed but before the drywall or wall coverings are installed. This stage is crucial for ensuring safety, functionality, and compliance with local codes.
Before proceeding with the electrical rough-in, it is essential to understand the inspection requirements to ensure compliance and safety. Here is a comprehensive overview of the inspection process:
Planning and Preparation
Firstly, a detailed plan or blueprint must be created by an architect or engineer. This plan outlines the locations of electrical panels, outlets, switches, fixtures, and the route of wiring. It is crucial to have this plan approved by all contractors and subcontractors before initiating the rough-in work.
Installation Inspection
Once the rough-in installation begins, inspectors will verify various aspects to ensure compliance with local codes and safety standards:
- Circuit Conductors and Outlet Boxes: Inspectors will check that all applicable circuit conductors and outlet boxes are installed according to the plan. This includes ensuring that the proper number of circuits is dedicated to specific appliances, especially in kitchens.
- Connections and Joints: All connections and joints will be inspected to ensure they are made securely and correctly.
- Electrical Boxes: Inspectors will examine if the electrical boxes are flush with the wall and large enough to accommodate the wire conductors and devices they will contain.
- Wiring Techniques: Inspectors will assess the wiring techniques, ensuring that cables are run through the centre of wall studs to protect them from penetration by drywall screws and nails. They will also check if horizontal runs are at the recommended height and protected by metal protective plates.
- GFCI and AFCI Protection: Inspectors will verify the inclusion of GFCI (Ground Fault Circuit Interrupter) protection for outlets or circuit breakers in areas like kitchens and near water sources. They will also check for AFCI (Arc-Fault Circuit Interrupters) protection, now required for most electrical circuits in a home.
- Surge Protection: For homes with delicate electronic devices, inspectors may recommend the use of isolated ground receptacles to protect against current fluctuations and interference.
- Compliance with Codes: Inspectors will ensure that the rough-in installation complies with all local codes and safety standards, including wattage limits for fixtures and circuit breakers.
Post-Installation Inspection
After the rough-in installation is complete, a final inspection will be conducted to approve the work:
- Functionality: All components will be tested to ensure proper functionality before connecting them to their power sources.
- Troubleshooting: If issues are identified during the testing phase, electricians can troubleshoot and make any necessary adjustments.
It is important to note that specific inspection requirements may vary based on local regulations and the scope of the project. Ensuring a thorough understanding of these requirements is crucial to achieving a safe and compliant electrical rough-in installation.
Inspecting Marine Dock Electrical Tracking: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Electrical rough-in is a stage in the construction process that involves installing electrical wiring, boxes, and outlets, as well as running wires between them. It is a critical step that ensures the electrical system is safe and compliant with local codes.
Electrical rough-in is important because it provides the foundation for a safe and efficient electrical system. It ensures that the electrical infrastructure is in place before walls and ceilings are sealed, reducing the risk of errors that can be costly and dangerous.
Electrical rough-in includes installing electrical boxes, which house switches, outlets, and light fixtures. It also involves running wires through walls and ceilings to connect to designated outlets and fixtures. Planning is crucial, and a detailed blueprint outlines the placement of electrical components to ensure compliance with building codes.
Electrical rough-in is a complex process that is typically handled by a licensed electrician due to safety concerns and the need for accuracy. While it can be a DIY project, it is crucial to have a detailed plan, the necessary tools and materials, and a thorough understanding of local electrical codes.
After the electrical rough-in, an inspection is conducted to ensure compliance with codes and safety standards. This includes checking the installation of circuit conductors, outlet boxes, and joints. Once the rough-in passes inspection, the final installation can proceed, where components are tested and connected to their power sources.
