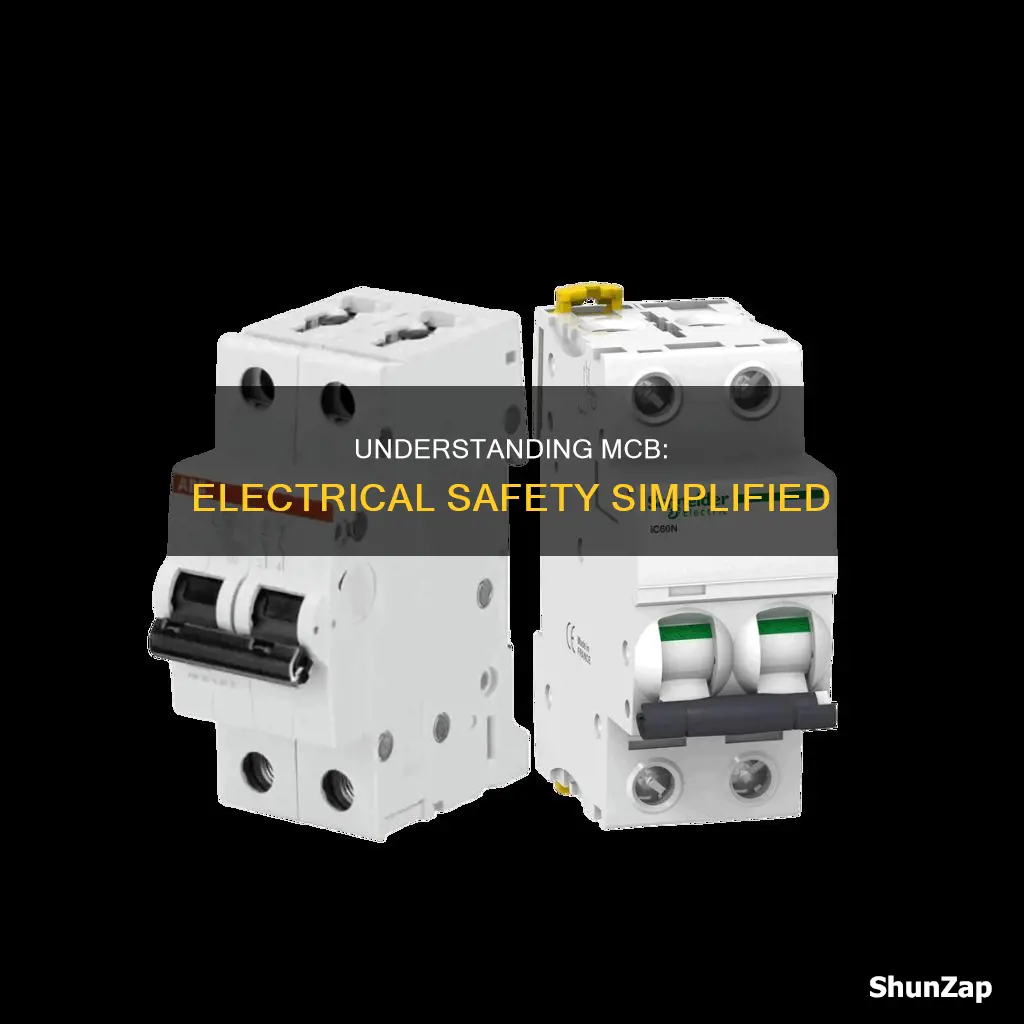

Miniature Circuit Breaker (MCB) is a protective device that controls the flow of electrical current within circuits. MCBs are widely used in electrical systems to prevent potential electrical hazards. They are designed to meet the needs of low-power applications, ranging from 0.5A to 125A. MCBs are typically used in domestic settings to protect electrical wiring and appliances from damage caused by too much current, such as overloads and short circuits. They are also used in commercial appliances like IT equipment and servers. MCBs have largely replaced fuse wires as they are safer, reusable, and easier to use.
| Characteristics | Values |
|---|---|
| Full Form | Miniature Circuit Breaker |
| Use | Protect electrical circuits and installations from over-current |
| Amp Ratings | 6, 10, 16, 63, 100, and 125 |
| Interrupting Rating | Under 18000 Amps |
| Components | Main contacts, Trip unit, Terminal, Housing |
| Working | The bimetallic strip gets heated and deflects by bending during over-current, releasing a mechanical latch and turning off the MCB |
| Types | A, B, C, D, Hybrid, Electronic, Differential, Residual Current Circuit Breaker (RCCB) |
| Safety | Safer than fuse wires, reusable, and easy to use, replace, and isolate circuits |
Explore related products
What You'll Learn
- MCB stands for Miniature Circuit Breaker
- MCBs protect electrical systems and appliances from damage caused by too much current
- MCBs are safer and more efficient than fuse wires
- MCBs are available in a variety of Amp ratings for domestic wiring installations
- There are six types of MCBs, categorised by their sensitivity to current overflow
MCB stands for Miniature Circuit Breaker
MCBs have largely replaced fuse wires as a safety measure in electrical circuits. Fuses were designed to melt and break the circuit to protect electrical equipment, but this also meant that they had to be completely replaced. In contrast, MCBs are reusable and can be easily reset by switching them back on. They are also safer to use and more convenient for electricians during installations.
MCBs consist of several components, including main contacts, a trip unit, terminals, and housing. The main contacts carry the load current and are connected to the incoming and outgoing wires of the circuit. The trip unit is the core component that monitors the current flow and trips the breaker in the event of an overcurrent or short circuit. It consists of a bimetallic strip, a magnetic actuator, and an operating mechanism. The terminals provide connections for the wires, while the housing is a protective casing that insulates live parts from other electrical components.
There are different types of MCBs available, including thermal, magnetic, hybrid, electronic, and differential. Thermal MCBs use a bimetallic strip to protect against overload current, while magnetic MCBs employ an electromagnet to safeguard against short-circuit current. Hybrid MCBs combine the features of both thermal and magnetic types, tripping based on temperature rise or magnetic force. Electronic MCBs use electronic components to monitor the current and provide faster and more accurate tripping. Differential MCBs are used in DC circuits to protect against earth faults and short circuits by monitoring the current in live and neutral wires.
MCBs play a crucial role in protecting electrical systems and appliances from damage caused by excessive current, including overloads and short circuits. They are commonly found in various domestic wiring installations, such as lighting systems, boilers, and high-energy heating systems. By interrupting the current during abnormal flow, MCBs help prevent potential hazards, ensuring the reliable operation of electrical installations and maintaining the safety of individuals and premises.
Repairing Your Electric Scooter Throttle: A Step-by-Step Guide
You may want to see also
Explore related products
MCBs protect electrical systems and appliances from damage caused by too much current
MCB stands for Miniature Circuit Breaker. They are widely used protective devices in electrical systems. MCBs are typically designed to meet the needs of low-power applications, generally ranging from 0.5A to 125A. They are indispensable across all domestic residences for preventing fires, equipment destruction, and severe electric shocks.
MCBs are automatic electrical switches that protect electrical circuits from damage caused by overload or short circuits. They are also known as trip switches and are a type of low-voltage protection device. They can automatically turn off an electrical circuit when it detects dangerous overloading or short-circuit faults. MCBs are equipped with a bimetallic strip that is sensitive to heat. When the circuit is overloaded for a long time, the bi-metallic strip becomes overheated and deformed, causing displacement of the latch point. This displacement releases the spring and makes the moving contact move for opening the MCB.
MCBs are indispensable for electrical safety in transportation systems, residential buildings, commercial buildings, industrial areas, renewable energy systems, and telecommunication systems. They help in preventing electrical faults like overload and short circuit, which can lead to equipment damage, power outages, or even fire hazards.
MCBs are also important for protecting old appliances with deteriorating insulation from drawing excess current and overheating. They provide the first line of defence by instantly cutting off the electricity flow when dangerous overloading or short circuit faults occur. This prevents voltage levels from reaching connected equipment at dangerous levels that can overload and fry internal electronics.
Voting on Electronic Devices: A Step-by-Step Guide
You may want to see also
Explore related products
MCBs are safer and more efficient than fuse wires
MCB stands for Miniature Circuit Breaker. They are protective devices that control the flow of electrical current within circuits, ensuring the safety and integrity of electrical systems. They are widely used in electrical systems and are designed to meet the needs of low-power applications, ranging from 0.5A to 125A.
Another advantage of MCBs is their resettable nature. After a trip occurs, MCBs can be easily reset by flipping them back to the "ON" position, restoring power to the circuit without any replacement needed. In contrast, fuse wires cannot be reused once they melt and must be replaced, which can be inconvenient and costly over time.
Additionally, MCBs offer more comprehensive protection against electrical faults. They are designed to interrupt the flow of current in cases of overload or short-circuiting, preventing damage to the electrical system and minimising the risk of electrical fires. Fuse wires, while also providing protection, may not always respond as quickly or effectively to various types of electrical faults, potentially leaving the electrical system more vulnerable.
Moreover, MCBs are more versatile and suitable for a wider range of applications. They are commonly used in lighting circuits, residential setups, and certain industrial systems, making them a popular choice for both homes and organisations. Fuse wires may have more limited applications and may not be as adaptable to different power requirements.
In summary, MCBs offer superior safety, efficiency, and convenience compared to fuse wires. They provide faster response times during electrical faults, can be easily reset, offer comprehensive protection, and are versatile enough to meet the needs of various electrical systems. Therefore, when considering options for electrical protection, MCBs are a reliable and preferred choice to enhance the safety and performance of electrical installations.
Electricity Access: A Global Challenge
You may want to see also
Explore related products
MCBs are available in a variety of Amp ratings for domestic wiring installations
MCB stands for Miniature Circuit Breaker, a protective device that controls the flow of electrical current within circuits. They are modern alternatives to fuses, offering safety and efficiency to electrical systems. MCBs are widely used to protect electrical systems and appliances from damage caused by excessive current, such as overloads and short circuits.
MCBs are available in a variety of Amp ratings, which indicate the maximum amount of electrical current they can handle without tripping. For domestic wiring installations, common MCB ratings range from 6 to 32 amps, depending on the circuit they protect. For example, lighting circuits typically use a 6A MCB, while higher-powered appliances like air conditioners or ovens may require 16A or 32A MCBs.
The choice of Amp rating depends on the electrical load, which refers to the total current drawn by all connected appliances and devices. It is crucial to match the MCB's Amp rating to the load demand without surpassing the wiring's safe capacity. Installing an MCB with an insufficient rating will result in frequent tripping, causing inconvenience and potential damage to sensitive appliances. Conversely, an MCB with too high a rating may fail to trip when necessary, compromising safety.
When selecting an MCB, it is essential to consider the wiring capacity. The Amp rating of the MCB should not exceed the current-carrying capacity of the wiring to prevent overheating and electrical failures. For instance, in a 240V system, a circuit powering 3000 watts of appliances requires an MCB rated at a minimum of 12.5 amps. In this case, a 16A MCB would be ideal to accommodate the load with some margin.
It is important to consult a qualified electrician to assess the electrical demand and choose MCBs with the correct Amp ratings for residential installations. They can guide you in selecting the most suitable MCB for your specific needs, ensuring the safety and efficiency of your electrical system.
Half Moon Bay Power Outage: Lights Out?
You may want to see also
Explore related products
There are six types of MCBs, categorised by their sensitivity to current overflow
An MCB, or Miniature Circuit Breaker, is a protective device that controls the flow of electrical current within circuits. It is a modern alternative to fuses, which were used in the past to protect circuits. MCBs are used in homes and organisations to prevent potential electrical hazards.
Type A
Type A MCBs trip off the circuit when the current exceeds 2-3 times the actual current rating. They are highly sensitive to short circuits and are used in the manufacturing of semiconductors.
Type B
Type B MCBs trip off the circuit when the current exceeds 3-5 times the current flow and are used in cable protection. They are ideal for residential or light commercial applications like heaters and lamps.
Type C
Type C MCBs trip off the circuit when the current exceeds 5-10 times the actual current flow. They are used in domestic appliances like transformers, fluorescent lighting circuits, and IT equipment like personal computers, servers, and printers. They are also designed to protect against both over-current and earth fault currents.
Type D
Type D MCBs trip off the circuit when the current exceeds 10-20 times the current flow and are used in motors. They are designed to protect against over-current and earth fault currents, with a higher tripping threshold than Type C MCBs.
Type G
Type G MCBs are designed to protect against over-current and earth fault currents in residual current devices (RCDs) used in electrical systems.
Type H
Type H MCBs are designed to protect against over-current and earth fault currents in electrical systems that are powered by direct current (DC).
Electric Meter Reading: National Grid's Process Explained
You may want to see also
Frequently asked questions
MCB stands for Miniature Circuit Breaker.
An MCB is a protective device that controls the flow of electrical current within a circuit. It trips the breaker when there is an overload or short circuit, preventing damage to appliances and the electrical system.
An MCB has a bi-metallic strip that heats up and bends when there is an overload or short circuit. This releases a mechanical latch, which opens the circuit and stops the current flow.
An MCCB, or Moulded Case Circuit Breaker, is used when the load current exceeds the limit of an MCB. MCCBs can handle higher currents and are often used in industrial applications.
