The Polaris Pulse electrical system is a wiring system for Polaris vehicles that allows users to control and power accessories such as light bars, wipers, washers, and stereos. The system provides four separate circuits, each with its own hot, switched, and ground connections. Users can also make their own Pulse connectors by purchasing Metripack280 plugs with 10/12ga connectors and combination fuse holder and relay. However, some users have found the Pulse Bar overrated and unnecessary, opting instead to install their own fuse/relay boxes or waterproof circuit relays.
Explore related products
What You'll Learn
Polaris Pulse Bar benefits
The Polaris Pulse Bar provides four separate circuits, each with its own hot, switched, and ground connections. This is particularly useful for powering accessories such as wipers, washers, lights, and stereos. One of the Pulse Bar circuits is a convenient way to power a fuse block, allowing for a "hot" fuse block and a "switched" fuse block.
The Pulse Bar simplifies wiring and installation processes, making it easier to find switched power sources and resulting in cleaner installations. It also eliminates the need for additional relays in the circuit, as the Pulse Bar is already controlled by a relay that ensures connected accessories will only turn on when the key is on.
The Polaris Pulse Bar is especially beneficial for those who want a simple plug-and-play solution and are only running a few accessories. It offers convenience and ease of use, making it a good option for those who are not electrically inclined.
Additionally, the Pulse Bar provides protection with its fuse system. All six of the Pulse connectors are protected by a 40-amp fuse, ensuring safe electrical operations.
Plug-In Prius: Electric or Not?
You may want to see also
Explore related products
Polaris Pulse Connectors

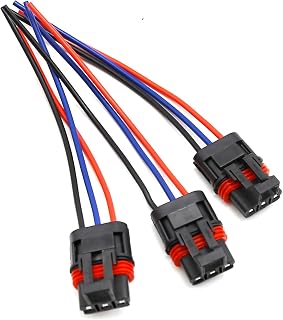

Polaris released the Pulse Electrical System to make it easier to install OEM accessories on select model UTVs. The Polaris Pulse Pigtail Connector provides battery positive, battery ground, and switched power (ignition). The Pulse Pigtail Connector measures 12" and allows for an easy electrical connection for aftermarket accessories. Any aftermarket accessory can be plugged directly into the Pulse busbar.
The Polaris Pulse Connectors have six connectors, all protected by a 40-amp fuse. The top connector is the ground, the middle is keyed positive, and the bottom is constant positive. The Pulse bar is controlled by a relay, which ensures that anything connected to the Pulse bar will only turn on when the key is on.
It is possible to use an additional relay in the circuit, but it is unnecessary and may cause problems with other accessories. The keyed + wire should not be used for anything in this circuit; instead, the constant + should be used.
The Polaris Pulse Connectors can be purchased from authorised Polaris dealers, either online or in-store.
Planning Electrical Circuits: A Guide for Your Home
You may want to see also
Explore related products
Polaris Pulse Bar wiring diagram
Polaris Pulse is a light bar wiring system. It is used to wire accessories such as light bars, turn signals, whips, rear lights, and roof light bars.
The Polaris Pulse Bar wiring diagram involves several steps. Firstly, the yellow wire from the Pulse bar is connected to the dash switch, and then to the relay. This enables the lights to be turned on by flipping the switch when the key is in the "ON" position. Secondly, a 16-gauge wire is spliced off the Pulse bar's red wire and connected to the dash switch and the relay's trigger point. This ensures that only a small amount of current, sufficient to activate the relay, passes through the switch. Thirdly, each of the three lights should have its own fuse holder, which can be centralised in a distribution block for easy access.
There are a few considerations to keep in mind. One is the amp load, which may allow for the elimination of relays if the load is low enough to be managed by the switch. Another is the ground connection, which should go directly to the battery or chassis ground rather than through the Pulse bar. Additionally, the keyed + wire should not be used in the same circuit as the constant + wire, as it may cause issues with other accessories.
It is important to note that the Pulse bar can supply approximately 10 to 15 amps, and the switched power is meant to control relays that apply constant power to accessories. The constant 12V at the Pulse bar is fused at 40 amps, so the total amp usage should not exceed this limit.
Quickly and Safely Remove Paint from Electrical Sockets
You may want to see also
Explore related products
Making your own Pulse Connectors
Polaris Pulse TM is an electrical system that allows users to connect and power accessories such as light bars, mirrors, and speakers to their vehicles. The system has a total amperage capacity of 40 amps, and each of the six Pulse connectors is protected by a 40-amp fuse.
To make your own Pulse connectors, you will need to purchase some parts and carefully consider your vehicle's electrical system. Here is a step-by-step guide:
- Purchase Metripack280 plugs with 10/12ga connectors from eBay. These will serve as the basic connectors for your Pulse system.
- Obtain combination fuse holders and relays. These can be purchased from Amazon, and they are essential for protecting your electrical system from overload.
- Decide on the accessories you want to connect. This could include light bars, mirrors, speakers, or other electronic devices. Ensure that the total amperage draw of all your accessories does not exceed 35 amps to stay within the safe limits of the Pulse system.
- Consider your wiring setup. You may need to install new wiring back to the battery if you have already maxed out the accessory plugs on the Pulse bar. Additionally, think about the placement of your accessories and how you will route the wires to them.
- Utilize a relay to control the power supply to your accessories. This will ensure that the accessories only turn on when the vehicle's key is on, as demonstrated in one user's setup.
- Understand the limitations of your vehicle's alternator and electrical system. Consult professionals or forums for advice on managing electrical loads and ensuring safety.
- Install your accessories and test the setup. Ensure that your wiring is correct and that you have not exceeded the amperage capacity of the Pulse system.
By following these steps and consulting relevant resources and forums, you can make your own Pulse connectors and safely power your desired accessories. Remember to prioritize safety and consult experts if you are unsure about any aspects of the process.
Electric Heavy-Up: Surveying Before Upgrading Your Electrical System
You may want to see also
Explore related products
Polaris Pulse Bar fuse box
The Polaris Pulse Bar is a component of the Polaris Pulse TM electrical system, which allows users to wire accessories such as light bars, pods, LED strips, overhead stereos, wipers, washers, and heater blower motors. It has a 40-amp Jcase fuse and a 10-amp fuse for accessories. The Pulse Bar's total amperage capacity is 40 amps, and it is recommended that the total amperage draw from its accessories should not exceed 35 amps.
When wiring accessories to the Pulse Bar, it is important to consider the alternator's capacity and the electrical load. Some accessories, such as light bars, have high power draw and can quickly max out the Pulse Bar's 40-amp fuse. In such cases, it may be necessary to wire these accessories directly to the battery cable terminal on the Pulse Bar, using their own fuse and relay.
Additionally, the Pulse Bar's accessory wire is designed to run relays only, and not to power accessories directly unless they are very low power. It is recommended to run the fuse block to the battery for power supply and use a relay or solenoid for control. The relay or solenoid can be controlled by the orange wire, which requires minimal power but connects the fuse block to the full battery power.
To simplify wiring and tidiness, a fuse block can be used to consolidate wiring and fuses in one location, making it easier to access and diagnose any issues. It is important to note that the Pulse Bar's keyed positive connector should only be used to control a relay and not to directly power accessories. This ensures that the accessories will only turn on when the key is on.
Overall, the Polaris Pulse Bar fuse box offers a convenient way to wire and power accessories, but users should be mindful of the total amperage capacity and consider using additional fuse blocks or switch panels for more complex setups.
Fixing Your Toro Electric Leaf Blower: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The Polaris Pulse electrical system is a light bar wiring system that provides four separate circuits, each with their own hot, switched, and ground connections.
The Polaris Pulse electrical system makes it easier to find switched power and can result in a cleaner install compared to other systems. It is also useful for those who want an easy plug-and-go option and are only running a couple of accessories.
The installation process may vary depending on the specific vehicle and accessories being used. However, some general steps may include purchasing the necessary parts, such as Metripack280 plugs, combination fuse holders, and relays, and then following the wiring diagram and instructions provided by the manufacturer.
