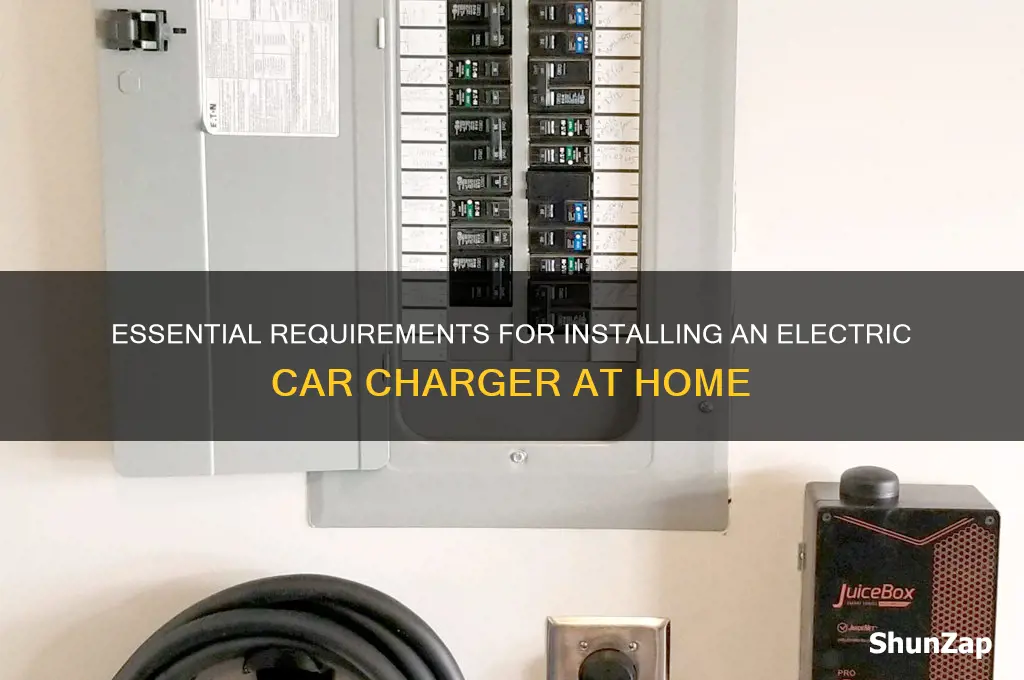

Installing an electric car charger requires several key components and considerations. First, you’ll need a compatible charging unit, typically Level 2 for home use, which provides faster charging than standard Level 1 chargers. A dedicated 240-volt circuit with sufficient amperage (usually 40-50 amps) is essential to support the charger’s power demands. Professional installation by a licensed electrician is highly recommended to ensure compliance with local electrical codes and safety standards. Additionally, you’ll need to assess your home’s electrical panel capacity to confirm it can handle the extra load or upgrade it if necessary. Permits may be required depending on your location, and it’s important to choose a charger that is compatible with your electric vehicle’s connector type. Finally, consider the placement of the charger, ensuring it is easily accessible and protected from harsh weather conditions.
Explore related products
What You'll Learn
- Electrical Panel Upgrade: Ensure panel capacity and amperage support charger requirements, avoiding overloads
- Permits and Inspections: Obtain local permits, comply with codes, and schedule inspections for safety
- Charger Type Selection: Choose Level 1, 2, or DC fast charger based on needs and vehicle
- Dedicated Circuit Installation: Install a 240V circuit with proper wiring and breaker for Level 2
- Location and Mounting: Select a dry, accessible spot, mount charger securely, and ensure cable reach
Electrical Panel Upgrade: Ensure panel capacity and amperage support charger requirements, avoiding overloads
Before installing an electric vehicle (EV) charger, assess your home’s electrical panel to ensure it can handle the additional load. Most Level 2 chargers, the most common type for home use, require 40 to 50 amps of power. If your panel’s capacity is already near its limit, adding a charger could overload the system, leading to tripped breakers or even electrical fires. Start by checking your panel’s main breaker rating (usually 100, 150, or 200 amps) and compare it to your current usage. A licensed electrician can perform a load calculation to determine if an upgrade is necessary.
Upgrading your electrical panel is not just about increasing amperage; it’s about ensuring safety and efficiency. Older homes, particularly those with 60- or 100-amp panels, often lack the capacity to support modern appliances and an EV charger simultaneously. A 200-amp panel is typically recommended for homes with electric vehicles, as it provides ample headroom for future upgrades. Additionally, consider installing a subpanel dedicated to the EV charger if your main panel is already crowded. This isolates the charger’s load and simplifies maintenance.
Cost is a practical consideration when planning a panel upgrade. Upgrading from a 100-amp to a 200-amp panel can range from $1,500 to $3,000, depending on local labor rates and materials. While this may seem steep, it’s a necessary investment to avoid overloading your system. Some utilities and governments offer rebates or incentives for EV-related upgrades, so research local programs to offset expenses. Factor in the long-term savings of electric vehicle ownership when weighing the cost of this upgrade.
Finally, hiring a qualified electrician is non-negotiable for this task. DIY electrical work is dangerous and often violates local codes. A professional will ensure the panel upgrade complies with National Electrical Code (NEC) standards, including proper grounding and circuit protection. They can also advise on additional safety features, such as arc-fault circuit interrupters (AFCIs), which are required in many jurisdictions. By prioritizing safety and capacity, you’ll create a reliable charging setup that supports your EV without compromising your home’s electrical system.
Electric Vehicles for Hunting: Are They Allowed?
You may want to see also
Explore related products
Permits and Inspections: Obtain local permits, comply with codes, and schedule inspections for safety
Installing an electric vehicle (EV) charger at home isn’t just about plugging in a device—it’s a project that requires adherence to local regulations to ensure safety and compliance. Before drilling holes or connecting wires, research your municipality’s permitting requirements. Most areas mandate a permit for electrical upgrades, especially when installing a Level 2 charger, which typically requires a dedicated 240-volt circuit. Failure to obtain the necessary permits can result in fines, project delays, or even the removal of the charger. Start by contacting your local building department or visiting their website to download permit applications and understand the specific codes that apply to EV charger installations.
Once you’ve secured the permit, compliance with electrical and building codes becomes your next priority. These codes vary by location but often include requirements for wiring size (e.g., 8-gauge or 10-gauge for Level 2 chargers), circuit breaker specifications, and grounding standards. For instance, the National Electrical Code (NEC) in the U.S. mandates that EV chargers be installed on a dedicated circuit to prevent overloading. Additionally, outdoor chargers must meet weatherproofing standards, such as having a NEMA 3R or higher rating. Ignoring these codes not only risks safety but also voids warranties and insurance coverage. Hiring a licensed electrician familiar with local regulations can streamline this process and ensure accuracy.
Inspections are the final—and critical—step in the installation process. After the charger is installed, a local inspector will verify that the work meets all code requirements. This inspection typically includes checking the wiring, circuit breaker, and overall installation for safety and functionality. Scheduling the inspection promptly is essential, as using the charger before it’s approved can lead to penalties. In some jurisdictions, inspections must be requested within a specific timeframe after installation, so plan accordingly. If the inspector identifies issues, you’ll need to address them and reschedule a follow-up inspection before the charger can be legally operated.
While permits and inspections may seem like bureaucratic hurdles, they serve a vital purpose: protecting homeowners and ensuring the longevity of EV charging infrastructure. For example, improper wiring can lead to electrical fires, while inadequate grounding poses a shock hazard. By following these steps, you not only comply with the law but also safeguard your investment and peace of mind. Practical tips include keeping all documentation (permits, receipts, and inspection reports) in one place for future reference and consulting with your utility provider, as some offer rebates for code-compliant installations. In the end, a little paperwork today prevents major headaches tomorrow.
The Power Behind 25kV: Advantages in Electric Traction Systems
You may want to see also
Explore related products
Charger Type Selection: Choose Level 1, 2, or DC fast charger based on needs and vehicle
Selecting the right charger for your electric vehicle (EV) is a decision that hinges on balancing speed, cost, and practicality. The three primary options—Level 1, Level 2, and DC fast chargers—each cater to different lifestyles and vehicle requirements. Level 1 chargers, which use a standard 120-volt household outlet, are the slowest but most accessible option, adding about 2 to 5 miles of range per hour of charging. They’re ideal for drivers with short daily commutes or those who can charge overnight without urgency. However, for those needing quicker replenishment, Level 1 may feel glacially slow, especially for long-range EVs.
Level 2 chargers, operating on 240 volts, strike a middle ground between speed and accessibility. They deliver 12 to 80 miles of range per hour, depending on the charger and vehicle, making them a popular choice for home installations. While they require professional electrical work to install, costing between $500 and $2,000, they’re a practical investment for daily drivers. Most EVs come with a portable Level 2 charger, but a dedicated wall-mounted unit offers convenience and faster charging. This option is particularly suited for households with off-peak electricity rates, maximizing cost efficiency.
DC fast chargers are the heavyweights of the EV charging world, delivering up to 100 miles of range in just 20 minutes. However, they’re not a residential solution due to their high voltage (400+ volts) and installation costs, which can exceed $50,000. These chargers are typically found in public charging stations and are best for long-distance travelers or those without home charging options. Not all EVs support DC fast charging, so compatibility is a critical factor. For instance, Tesla’s Supercharger network is exclusive to Tesla vehicles, while CCS and CHAdeMO connectors serve other brands.
The choice of charger type should align with your vehicle’s capabilities and your driving habits. For example, a Nissan Leaf with a 40-kWh battery may not benefit from a DC fast charger as much as a Tesla Model S with a 100-kWh battery. Additionally, consider future-proofing your decision—if you plan to upgrade to a longer-range EV, investing in Level 2 infrastructure now could save money later. Always consult your vehicle’s manual and an electrician to ensure compatibility and safety, as improper installation can void warranties or pose hazards.
In summary, Level 1 chargers are the budget-friendly, no-frills option for casual EV users, while Level 2 chargers offer a sweet spot for daily drivers seeking efficiency. DC fast chargers, though expensive and public-facing, are indispensable for road trips and high-mileage lifestyles. By evaluating your needs, vehicle specs, and long-term goals, you can choose a charger that keeps you moving without breaking the bank.
Essential Tool for Testing Continuity in Electrical Circuits: Multimeter Guide
You may want to see also
Explore related products
Dedicated Circuit Installation: Install a 240V circuit with proper wiring and breaker for Level 2
Installing a Level 2 electric vehicle (EV) charger requires a dedicated 240V circuit, which is significantly more powerful than standard household outlets. This circuit must be properly wired and protected by a suitable breaker to ensure safety and efficiency. Unlike Level 1 charging, which uses a 120V outlet and provides about 5 miles of range per hour, Level 2 charging delivers up to 25 miles of range per hour, making it a preferred choice for daily EV use. The first step in this installation is assessing your electrical panel’s capacity to handle the additional load, as overloading can lead to tripped breakers or even electrical fires.
The wiring for a 240V circuit typically involves using a 4-wire cable: two hot wires, a neutral wire, and a ground wire. The gauge of the wire depends on the amperage of the circuit, with common sizes being 10-gauge for 30-amp circuits or 8-gauge for 40-amp circuits. It’s crucial to match the wire gauge to the breaker size to prevent overheating. For example, a 30-amp circuit should use a 30-amp double-pole breaker and 10-gauge wire, while a 40-amp circuit requires an 8-gauge wire and a 40-amp breaker. Always consult the EV charger’s manual for specific requirements, as some models may have unique needs.
One critical aspect often overlooked is the importance of hiring a licensed electrician for this installation. While DIY enthusiasts might feel confident tackling electrical projects, dedicated circuit installations involve complex calculations and adherence to local building codes. An electrician will ensure the circuit is properly grounded, the wiring is up to code, and the breaker is correctly sized. They can also advise on whether your electrical panel needs an upgrade to accommodate the new circuit. Attempting this without professional help can void warranties, fail inspections, or create hazardous conditions.
Finally, consider the long-term benefits of investing in a 240V dedicated circuit. Beyond faster charging times, it adds value to your property by future-proofing it for EV adoption. Additionally, some utilities offer rebates for Level 2 charger installations, offsetting the initial cost. Proper installation ensures your charger operates efficiently for years, reducing wear on your EV’s battery and minimizing downtime. By prioritizing safety and compliance, you’ll enjoy the convenience of home charging without compromising your electrical system’s integrity.
The Future of EV Charging: EVSE Electric Vehicle Technology
You may want to see also
Explore related products
Location and Mounting: Select a dry, accessible spot, mount charger securely, and ensure cable reach
Choosing the right location for your electric vehicle (EV) charger is a critical step that blends practicality with safety. The ideal spot should be dry to prevent electrical hazards and accessible to ensure ease of use. Imagine pulling into your driveway after a long day, only to realize the charger is awkwardly placed behind a pillar or too far from your parking spot. To avoid this, assess your daily routine and vehicle positioning. A garage or carport often provides the best shelter, but if you’re opting for an outdoor installation, ensure it’s under a covered area or equipped with a weatherproof unit. Accessibility also means avoiding high-traffic areas where the cable could become a tripping hazard or get damaged.
Once the location is decided, mounting the charger securely becomes the next priority. Think of this as anchoring a piece of essential infrastructure—it needs to withstand daily use, weather conditions, and occasional accidental bumps. Use robust mounting hardware suitable for the wall material (concrete, brick, or drywall) and follow the manufacturer’s guidelines. For instance, a charger mounted on a brick wall might require masonry anchors, while drywall installations need sturdy studs. Ensure the charger is installed at a height that accommodates all users, typically around 4 to 5 feet above the ground. A wobbly or improperly secured charger isn’t just inconvenient—it’s a safety risk.
Cable reach is often overlooked but equally vital. Measure the distance from the charger to your vehicle’s charging port, accounting for any bends or obstacles. Most EV charging cables range from 18 to 25 feet, but it’s better to have a little extra length than to come up short. A cable that’s too short forces awkward positioning or requires extensions, which can be cumbersome and less efficient. Conversely, an overly long cable can become tangled or pose a tripping hazard. Consider using cable organizers or clips to keep it neatly managed when not in use.
A practical tip: simulate the charging process before finalizing the location. Park your vehicle as you normally would and stretch a measuring tape from the intended charger spot to the charging port. This simple test can save you from costly adjustments later. Additionally, if you have multiple EV models or plan to upgrade, ensure the setup accommodates different cable lengths and port positions.
In summary, the trifecta of location, mounting, and cable reach demands careful planning but pays off in convenience and safety. A dry, accessible spot ensures longevity and ease of use, while secure mounting prevents accidents. Proper cable reach eliminates frustration and keeps your charging routine seamless. Treat this step as an investment in your EV ownership experience—done right, it’s a one-time effort with lasting benefits.
Electric Car Service Essentials: Maintenance, Costs, and What to Expect
You may want to see also
Frequently asked questions
You’ll need a dedicated parking space, a stable Wi-Fi or cellular connection (for smart chargers), and access to your home’s electrical panel. Ensure your electrical system can handle the additional load, and check local regulations or permits required for installation.
Most EV chargers require a 240-volt circuit, similar to what a dryer or oven uses. Your electrical panel must have enough capacity to support the charger, typically with a 40-60 amp breaker. Older homes may need an electrical panel upgrade.
Yes, hiring a licensed electrician is highly recommended. They will ensure the installation meets safety standards, complies with local codes, and avoids overloading your electrical system.
Requirements vary by location. Check with your local government or utility provider for necessary permits, inspections, or HOA approvals before installation. Some areas may also offer incentives for EV charger installations.
Installation in multi-unit dwellings depends on your building’s policies and electrical infrastructure. You’ll likely need approval from the property manager or HOA and may require a shared charging solution or dedicated circuit installation.
