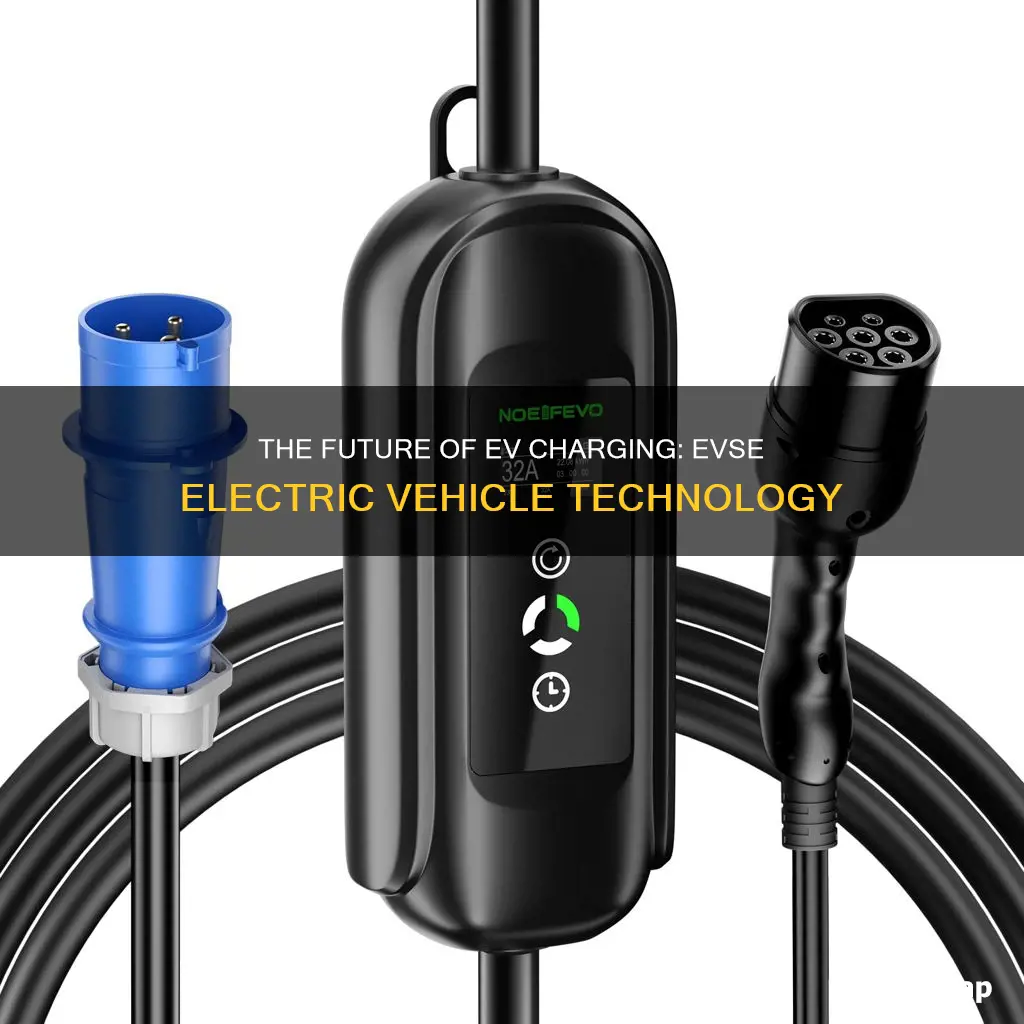

Electric Vehicle Supply Equipment (EVSE) is the technical term for an electric vehicle charging station. EVSE controls the transfer of electricity from the local power supply to an electric vehicle (EV) so that its batteries can recharge safely and efficiently. EVSE units come in various forms and sizes, each tailored to specific applications. The most common form is the box-on-a-cable, which is typically used for home charging. Wall- and pedestal-mounted devices are more versatile and can be used in a variety of settings, while towers are typically found at public and fleet depot locations with multiple charging stations. EVSEs can also vary in terms of charging levels and speeds, with Level 1 charging being the slowest and Level 3 DC Fast Charging being the quickest method.
| Characteristics | Values |
|---|---|
| Common Name | Electric vehicle charging station |
| Technical Name | Electric Vehicle Supply Equipment (EVSE) |
| Function | Supplies electricity to electric vehicles for the purpose of recharging their batteries |
| Components | Connectors, cables, electrical conductors, control electronics, power input, user interface, firmware, etc. |
| Safety Mechanisms | Circuit breakers, ground fault circuit interrupters, thermal sensors, etc. |
| Charging Levels | Level 1, Level 2, and Level 3 (DC Fast Charging) |
| Charging Speed | Level 1: up to 20 hours; Level 2: 5 to 6 hours; Level 3: 30-45 minutes |
| Use Cases | Home, work, public charging, etc. |
Explore related products
What You'll Learn
- Electric Vehicle Supply Equipment (EVSE) is the technical term for charging stations
- EVSE controls the transfer of electricity from the power supply to an EV
- EVSE units come in various forms, including box-on-a-cable, wall-mounted, and towers
- EVSE charging levels vary by power source and region, with Level 1 being the slowest and Level 3 the fastest
- EVSE safety mechanisms include circuit breakers, ground fault circuit interrupters, and thermal sensors
Electric Vehicle Supply Equipment (EVSE) is the technical term for charging stations
The National Electronics Manufacturers Association (NEMA) defines EVSEs as devices that "provide electric power to the vehicle and use that to recharge the vehicle's batteries". EVSE systems include electrical conductors, cables, connectors, related equipment, software, and communications protocols that deliver energy efficiently and safely to the vehicle.
The process of charging an EV involves connecting a cable to a charging station, similar to charging a smartphone. However, it is important to note that the charging station itself does not always recharge electric vehicles. Instead, an onboard charger within the EV manages the conversion of power to DC electricity, which is then sent to the battery. This onboard charging system is bypassed when using DC power, which is delivered directly to the battery. DC charging is faster but more expensive, and it makes up the majority of higher-end level 3 chargers.
EVSEs have different levels of charging, which vary by power source and charging speed. Level 1 charging uses standard 120-volt household outlets and can take up to 20 hours for a full charge. Level 2 charging employs a 208-240 volt supply and can fully charge a vehicle in 5 to 6 hours. Level 3 charging, also known as DC Fast Charging, is the quickest method, charging an EV to 80% in less than an hour. However, not all EVs can handle this level of charging.
The form factors for EVSE housing also vary. They can range from a box on the cable itself, typically used for home charging, to wall- or pedestal-mounted devices that can be used in various settings, to towers found at public charging locations. EVSE units may also feature a user interface, such as an LCD screen, providing essential information about the charging session.
