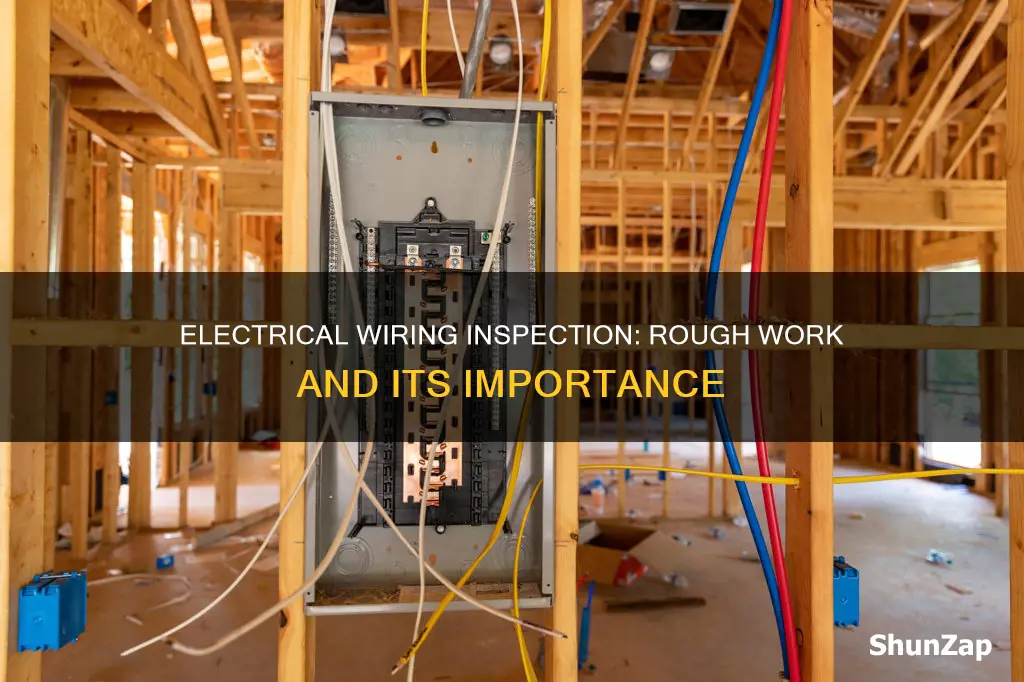

A rough-in electrical inspection is a crucial step in the construction or renovation process of a building. It ensures that the electrical system complies with local and national safety standards. The inspection is conducted when the building is halfway through construction, and all electrical wiring methods have been installed in floors, walls, and ceilings. It involves verifying the proper installation of outlet boxes, cables, wiring, and conduits, and ensuring they meet electrical demand. This process can be detailed and time-consuming, especially if the inspector is unfamiliar with the work. It is important to prepare the area before the inspection, ensuring it is clean and organized, with a clear path to electrical installations.
| Characteristics | Values |
|---|---|
| Purpose | Verify the proper installation of all outlet boxes, cables, wiring, and conduit |
| Timing | Halfway through the construction or renovation process, before the walls are closed up and wiring is hidden by insulation, vapour barrier, drywall, etc. |
| Scope | All electrical boxes, cables, conduit, and wires |
| Inspection Criteria | Proper electrical circuits, cable anchoring, wire labeling, surge protection, outlet and switch heights, cable and wire installation, bonding connections, protection plates, compliance with local and national safety standards |
| Outcome | Approval to close up walls and confirmation that electrical system meets safety standards |
Explore related products
What You'll Learn
Electrical boxes
A rough electrical wiring inspection is a crucial step in the construction or renovation of a building to ensure that the electrical system complies with local and national safety standards. This inspection typically occurs when all electrical boxes, cables, conduit, and wires have been installed, and before the walls are closed up.
Size and Spaciousness:
Inspectors will check if the electrical boxes are appropriately sized for the electrical demand of the home or building. Spacious electrical boxes are recommended, especially in newly constructed buildings. These larger boxes make it easier to complete wire connections and increase the likelihood of passing inspection.
Secure Fastening:
The electrical box should be securely fastened to the wall studs to provide stability for the box and the devices connected to it. This ensures that the box can bear the weight of the devices and prevents accidental damage or disconnection.
Outlet and Switch Heights:
Inspectors will measure the height of outlets and switches to ensure they are installed at the correct heights. Typically, outlets should be at least 15 inches above the floor, while switches should be at least 48 inches above the floor. However, these heights may be adjusted for accessibility or in a child's room.
Cable Anchoring and Clamping:
Proper cable anchoring is crucial during a rough-in inspection. Inspectors will check that cables are securely attached to wall studs and that the cable sheathing protrudes into the box by at least 1/4 inch at the point of attachment. This ensures that the cable clamps grip the sheathing and not the conducting wires.
Grounding and Wire Connections:
Inspectors will verify the proper grounding of each box to guarantee a safe path for electricity in case of faults. They will also inspect wire connections inside the boxes to ensure they are tight and secure, reducing the risk of electrical issues or fires.
It is important to note that failing an inspection is not a cause for concern. You can make the necessary adjustments and schedule another inspection to ensure your electrical system meets safety standards.
Pneumatic Tools: More Powerful Than Electric?
You may want to see also
Explore related products
Cables and wiring
Rough-in electrical wiring refers to the initial installation of electrical wiring and conduit in a building during construction or renovation. This typically happens before the walls and ceilings are finished, allowing for easier access to the electrical system for installation and inspection.
During a rough-in inspection, inspectors will check that cables are properly sized for the loads they will carry and that they are protected by nail plates. They will also check for proper cable anchoring, ensuring that cables are attached to wall studs to secure them. The first staple should be no further than 8 inches from a box, and then there should be staples at least every 4 feet thereafter. Cables should be run through the centre of wall studs to prevent penetration from drywall screws and nails. The horizontal runs should be at least 20 to 24 inches above the floor, and each wall stud penetration should be protected by a metal protective plate to keep the wires safe.
Inspectors will also review how the cables are clamped in the boxes. The cable sheathing should stick into the box by at least 1/4 inch at the point of attachment of the cable to the box, so that the cable clamps grip the sheathing of the cable, not the conducting wires themselves.
Ground wires are also important. Inspectors will look for solid ground-wire splices and, in metal boxes, a ground screw or clip that secures the ground wire.
Finally, inspectors will check for neat, consistent work throughout the system. Wire labelling is not required by code, but it is reassuring for inspectors to see wires in electrical boxes labelled to indicate the circuit number and amperage of the circuit.
Electrical Fires: Causes and Prevention at Home
You may want to see also
Explore related products
Surge protection
When planning for surge protection, it is important to consider all sensitive appliances, including electronic boards in washers, dryers, refrigerators, and ranges. The use of isolated ground receptacles is recommended for these devices as they protect against current fluctuations and interference.
To ensure proper functionality, inspectors will check that the surge protection devices are appropriately rated for the electrical load they are designed to protect. They will also verify that these devices are correctly connected to the electrical system. This inspection process helps prevent potential hazards like electrical shocks and fires, ensuring the safety and proper functioning of the electrical system.
Additionally, during the rough-in inspection, inspectors will review cable anchoring, electrical box installation, wire clamping, and circuit requirements to ensure compliance with safety standards and local codes.
Best Electric Pole Saw: Reach for the Sky
You may want to see also
Explore related products
Proper electrical circuits
A rough-in electrical wiring inspection is a critical step in ensuring that the electrical components of a building are functioning properly and safely. It is typically performed before the walls and ceilings are finished, allowing for easier access to the electrical system for installation and inspection. Here are some key considerations for proper electrical circuits during a rough-in inspection:
Number of Circuits
The electrical inspector will verify that the building has an appropriate number of circuits to meet the area's electrical requirements. All appliances inside the building must have proper circuits, and there must be sufficient general lighting and general appliance circuits installed in each room. Each room should have the correct number of circuits for general lighting and appliances.
Dedicated Circuits
Every appliance that requires a dedicated circuit, such as a microwave, garbage disposal, or dishwasher, must have one, especially in kitchens. This ensures that these appliances have the dedicated power supply they need and helps to prevent overloading of circuits.
Circuit Protection
Most electrical circuits in a home now require AFCI (Arc-Fault Circuit Interrupters) protection. This is a safety measure designed to detect and interrupt dangerous electrical arcs that can lead to fires. GFCI protection is also essential for certain areas, such as kitchen small-appliance outlets. GFCI (Ground Fault Circuit Interrupters) protect against electrical shocks by detecting and interrupting ground faults.
Surge Protection
If you have delicate electronic devices, such as TVs, stereos, or computers, the inspector may recommend using isolated ground receptacles and surge protectors. These devices protect against current fluctuations, interference, and power surges, safeguarding sensitive electronics from potential damage.
Wire Length and Anchoring
There should be at least 8 inches of usable wire length extending from the electrical box to allow for connections and future trimming. Proper cable anchoring is also crucial. Cables should be attached securely to wall studs, with the first staple no further than 8 inches from the box and then at least every 4 feet thereafter. This ensures the cables are securely held in place and protected from damage.
Wire Gauge and Amperage
The inspector will check that the wire gauge matches the amperage of the circuit. For example, a 14-gauge wire is used for 15-amp circuits, while a 12-gauge wire is used for 20-amp circuits. This ensures that the wiring can safely handle the electrical current without overheating or posing a fire hazard.
In summary, proper electrical circuits during a rough-in inspection involve ensuring an adequate number of circuits, dedicated circuits for specific appliances, circuit protection with AFCI and GFCI measures, surge protection for sensitive electronics, proper wire length and anchoring, and matching wire gauge to amperage. These considerations help guarantee the safe and efficient functioning of the electrical system in a building.
Electric Kettles in the USA: Common or Uncommon?
You may want to see also
Explore related products
Safety standards
A rough-in electrical inspection is a critical process that ensures the safe and proper installation of electrical systems in a building during construction or renovation. The following safety standards are essential to ensure compliance and protect against potential hazards:
Electrical Boxes
Inspectors will examine electrical boxes to ensure they are large enough to accommodate the wire conductors and devices they will contain. The boxes should be securely fastened and flush with the wall. Spacious electrical boxes are recommended to facilitate wire connections and enhance safety.
Cable Anchoring and Protection
Proper cable anchoring is crucial. Cables should be attached to wall studs and secured with staples, with the first staple no further than 8 inches from a box and subsequent staples at least every 4 feet. Metal protective plates should be installed to safeguard cables from penetration by drywall screws and nails.
Wiring Installation
All wiring must be correctly installed, supported, and protected. Wires should be stapled at specified intervals and run through drilled holes in the framing, free from pinching or damage that could lead to electrical shorts or fires. Surge protection devices are also recommended to safeguard sensitive electronic devices.
Electrical Circuits
Inspectors will verify that the building has the appropriate number of circuits to meet the electrical demand of the space. All appliances must have dedicated circuits where necessary, especially in kitchens. Proper circuit protection, such as AFCI circuit breakers, is essential to prevent dangerous electrical arcs that can cause fires.
Safety Features
Inspectors will check for safety features such as ground fault circuit interrupters (GFCIs) in wet areas like kitchens, bathrooms, and outdoor spaces. These devices protect against electric shock by cutting off power in the event of a fault.
It is important to note that while some safety practices may vary based on local codes and regulations, the overall goal of a rough-in electrical inspection is to ensure the electrical system is safe, functional, and compliant with applicable standards.
Reconnecting Your Pool Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A rough-in electrical inspection is an inspection that takes place when all electrical wiring methods have been installed in floors, walls, and ceilings. It ensures that the electrical system complies with local and national safety standards.
A rough-in electrical inspection takes place when all branch circuit wiring and outlet boxes are installed, before the wiring is hidden by insulation, vapour barrier, drywall, etc.
During a rough-in electrical inspection, inspectors will check that all electrical boxes are flush with the wall and are large enough to accommodate the number of wire conductors they will contain. They will also check that cables are installed, strapped, and supported correctly, and that all outlet boxes are installed and securely fastened.
To prepare for a rough-in electrical inspection, ensure that the area is clean and free of any construction debris. Create a clear path to the new electrical installations and allow enough space for the inspector to move around. It is also important to organize the wiring and connect all grounding wires, leaving only those that will attach to devices.
