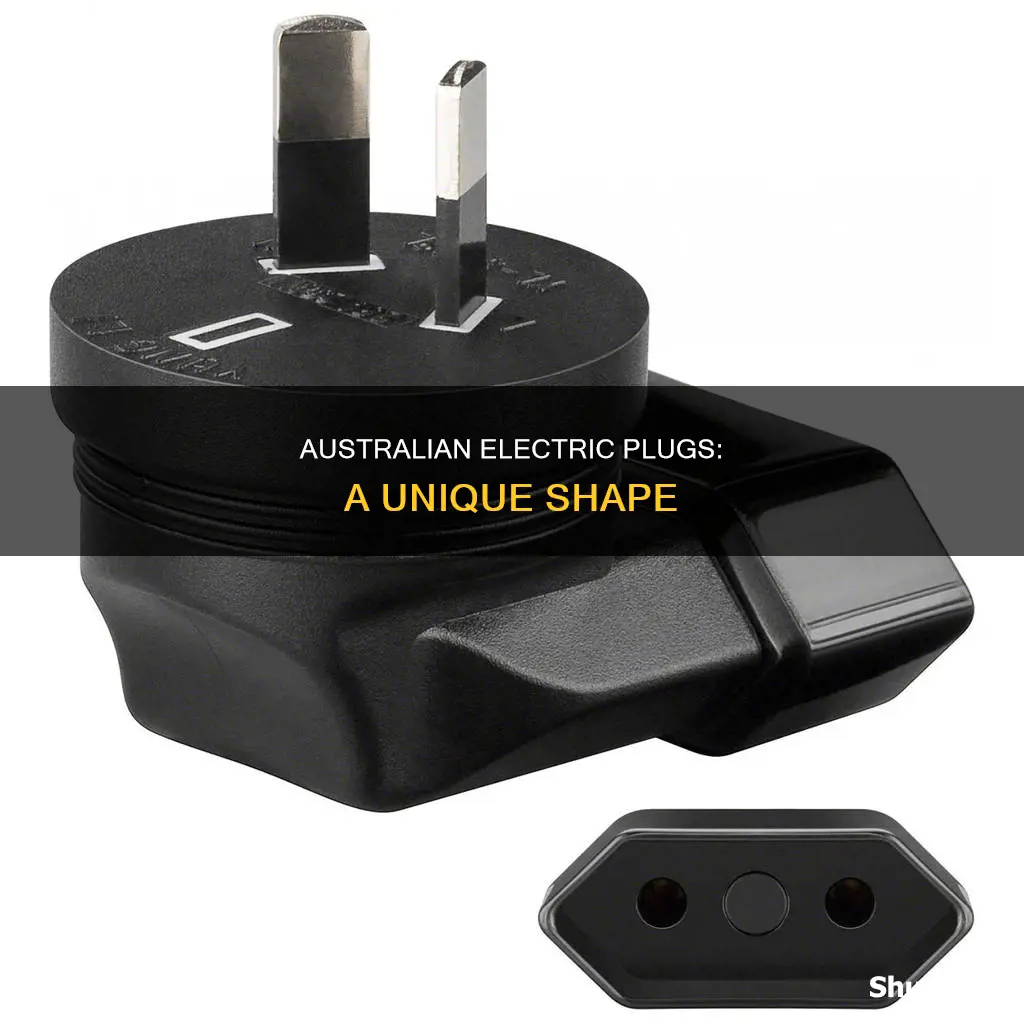

Australia has strict safety regulations for electrical plugs and sockets, and its own set of standards. The Australian plug type is officially designated as Type I, and is instantly recognisable by its distinctive three flat pins arranged in a triangular shape. This unique configuration is designed for a standard voltage of 230V and a frequency of 50Hz. The Australian plug was originally based on an American plug and socket-outlet designed by Harvey Hubbell II, which was patented in 1916.
| Characteristics | Values |
|---|---|
| Plug Type | Type I |
| Plug Shape | Three flat pins in a triangular pattern |
| Pin Shape | Flat |
| Pin Configuration | Two flat pins forming an inverted V-shape, plus a vertical earthing pin |
| Pin Dimensions | 6.35 mm x 1.6 mm, 17.35 mm long |
| Voltage | 230V (sometimes 240V) |
| Frequency | 50Hz |
| Current | 10 Amps |
| Socket Type | AS/NZS 3112 |
| Safety Regulations | AS/NZS 3112, RCM mark |
Explore related products
What You'll Learn
Type I plug
In Australia, the standard plug is Type I. This plug type has three flat pins arranged in a unique triangular configuration. The flat blades measure 6.35 by 1.6 mm with the active (line) and neutral pins 17.35 mm long, set at a 30-degree angle to the vertical. The vertical earth pin is 20 mm long. The pins are spaced 13.7 mm apart, with a distance of 10.3 mm between the centre of the grounding pin and the middle of the plug.
The Australian electrical system operates with a frequency of 50Hz and is designed for a supply voltage of 240V AC. The outlets are rated for 10 Amps with a 3-pin earthed connection. The Type I plug is designed so that even if it is not fully inserted into the socket, the insulated live and neutral pins ensure that touching the exposed part of the prongs will not give you a shock.
The Type I plug is used in Australia, New Zealand, Papua New Guinea, China, Argentina, and several other countries. It is worth noting that overseas plugs will not fit into Australian outlets and vice versa, so travellers will need to bring the appropriate adapter.
The Australian Type I plug is very similar to the obsolete Type A plug from the US. It was patented in 1916 by Harvey Hubbell II, the same engineer who invented the Type A plug. Hubbell's three-blade design was never popular in the US due to its incompatibility with Type A plugs, but it was favoured in Australia over the British Type D system as it was easier for local manufacturers to produce.
Electrical License Reciprocity: States Honoring Texas Licenses
You may want to see also
Explore related products
AS/NZS 3112 standard
The AS/NZS 3112 standard is the unified Australian and New Zealand guideline for electrical AC plugs (male) and sockets (female). It is also used in places like Fiji, Tonga, the Solomon Islands, Papua New Guinea, and Argentina. The standard ensures safe power transmission throughout these countries.
Australia's standard plug/socket system was originally codified as standard C112 in 1938. The Australian standard of 1937 was the result of a "gentlemen's agreement" between manufacturers Fred Cook of Ring-Grip, Geoffrey Gerard of Gerard Industries, and Brian Harper Miller of the State Electricity Commission of Victoria (SECV). The design was based on an American plug and socket outlet first intended for use at 120V. By the early 1930s, this design had been up-rated to 250V, 10A capacity, and the sockets were supplied by Harvey Hubbell. Current Australian plugs fit these American outlets perfectly.
In 1990, the C112 standard was superseded by AS 3112. A major update was released in 2000 as AS/NZS 3112:2000, which mandated active and neutral insulated pins on the plugs sold for use with these socket-outlets. This significantly reduces the risk of electric shock from accidentally touching the pins of a partially inserted plug. The standard AS/NZS 3112:2004 introduced more stringent testing procedures to test for bending of the pins and subtle changes to the radius of the pin tips. The current version is AS/NZS 3112:2017.
AS/NZS 3112-compliant plugs have two flat pins forming an inverted V-shape, plus a vertical earthing pin. The flat blades measure 6.35 by 1.6 mm with the active (line) and neutral pins 17.35 mm long, set at a 30° angle to the vertical. The vertical earth pin is 20 mm in length. The standard provides the Australian and New Zealand electrical industry, including manufacturers, test laboratories, and regulators, with requirements and test methods for plugs and sockets. It covers only safety matters and related conditions and is to be read in conjunction with other relevant standards.
Electric Scooters: Ontario's Street Legality Question
You may want to see also
Explore related products
3-pin earthed connection
In Australia, the standard plug type is Type I, which features three flat pins in a unique triangular configuration. The Australian electrical system operates at a frequency of 50Hz and is designed for a supply voltage of 240V AC. Electrical outlets in Australia are rated for 10 amps and use a 3-pin earthed connection for safety and reliability.
The 3-pin earthed connection consists of an Active, Neutral and Earth connection. The width of the earthing pin varies with the current rating: 6.3 mm for 10A plugs and 8 mm for 15A plugs. The 15A outlet has a wider Earth pin compared to the 10A outlet. The 20A outlet has even wider pins, with a wider Earth pin and wider Line and Neutral pins. A 32A outlet has the widest pins, with a sideways U-shaped earth pin and wider Line and Neutral pins.
The Australian plug is designed to be compatible with socket outlets of the same or higher rating. For example, a 10A plug will fit into all five types of socket outlets, while a 32A plug will only fit into a 32A socket outlet. The direction of the earth pin in Australian plugs can vary, but it is often facing downwards. This is in contrast to China, where the earth pin is typically facing upwards.
The Type I plug is also used in several other countries, including New Zealand, Papua New Guinea, Fiji, Argentina, the Solomon Islands, and some Pacific Island countries. It is important to note that overseas plugs are not compatible with Australian outlets and vice versa, so travellers must use appropriate adapters.
New Home Warranty: What Electrical Issues Are Covered?
You may want to see also
Explore related products
230V supply voltage
Australian plugs have three flat pins in a triangular pattern, also known as an inverted V-shape. The standard voltage in Australia is 230V, with a frequency of 50Hz. The allowable voltage range at the point of supply is +10% to -6% of the nominal 230V, which means it can vary between 216.2V and 253V. The preferred operating range is even narrower, from +6% to -2% of 230V (225V to 244V).
The 230V standard has been in place in most areas of Australia since 2000. However, Western Australia and Queensland retained the previous standard of 240V until more recently. Queensland transitioned to 230V in 2020, while Western Australia has not yet transitioned.
It's important to note that the voltage in Australia can fluctuate within the allowable range, and it's dangerous to use an appliance that is rated at a different voltage from the supply. Travellers to Australia should be aware of this and use a voltage converter or transformer if necessary. Most modern devices, such as phones and laptops, are dual voltage appliances and can operate within a range of voltages, typically 110-240V. However, plugging a 110V appliance into a 230V outlet can result in damage to the device.
Australian outlets provide a nominal RMS voltage of 230V at a maximum of 10 amps and always include an earth connection. A standard 10 amp outlet can supply up to 2,300 watts or 2.3 kilowatts of power. However, for safety and to prevent overloading, it's recommended to limit the load to about 80% of the maximum capacity, or 1,840 watts for sustained use.
There are several variants of outlets in Australia, catering to different power requirements and applications. These include 10A, 15A, 20A, 25A, and 32A outlets, each with distinct characteristics such as wider pins or different pin shapes.
Electricity's Role in Assembly Line Gaming
You may want to see also
Explore related products
Travel adaptor
If you're travelling to Australia, you'll need to get a travel adaptor if you plan on plugging in any electronic devices, as Australian power outlets use Type I plugs. The standard Australian plug type is a 3-flat-pin plug without an extra ground pin, with the pins arranged in a triangular configuration. Two pins are angled, and the third is a grounding pin.
Adapters allow electrical connections up to 240 volts. However, they do not change the current or voltage, so you may need a voltage converter for some devices. Australian power outlets are rated for 10 amps with a 3-pin earthed connection, working off 240V AC at 50 Hz. This is different from the US and Europe, which operate on 110V/120V AC at 60Hz.
You can buy a basic adapter set that includes one non-grounded Australian adapter, or a deluxe set that includes two Australian adapters. You can also buy individual adapters if you think you'll need more than one. It's worth noting that adapter plugs may fit tightly at first, but they will loosen with use.
When selecting a travel adapter, ensure it supports the plug type of your devices and is compatible with the voltage requirements of your devices. Many modern devices, such as laptops and smartphones, are dual-voltage (e.g. 100-240V) and can work in different countries without issue. For added convenience, consider an Australian travel adapter that supports your devices and includes a built-in voltage converter or transformer.
Ford Mustang Mach-E: Electric Evolution of a Classic
You may want to see also
Frequently asked questions
Australian plugs are of Type I and have three flat pins arranged in a unique triangular configuration.
Australian electricity operates on a 230V supply voltage and 50Hz frequency. However, in practice, the voltage is often 240V.
If the plug shape in your home country is different from the Australian Type I plug, you will need a travel adapter. A travel adapter simply changes the shape of the plug and does not alter the voltage or frequency. Additionally, if your appliance is designed for a different voltage, you will need a voltage converter as well.
The standard for Australian plugs and sockets is AS/NZS 3112, which specifies the requirements for plugs, sockets, and electrical accessories. This standard ensures the safety of consumers and compliance is marked by the Regulatory Compliance Mark (RCM).
