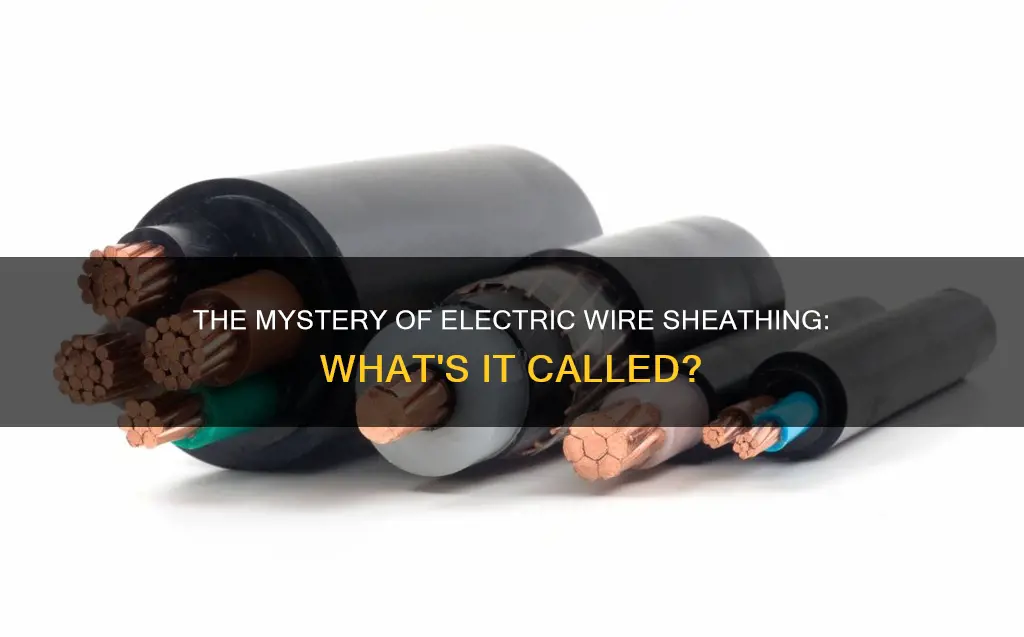

Cable sheathing is an essential step in the cable manufacturing process, where an outer covering is applied to a cable. This outer covering, or sheath, is typically made from materials such as PVC, polyurethane, or thermoplastic, and serves to protect the internal wires of the cable from various environmental conditions, mechanical stress, and external elements. The specific material used for sheathing can impact the overall performance of a cable, including its electrical integrity, resistance to moisture, chemicals, UV light, and fire, as well as its flexibility and durability. Cable sheathing also enables customisation and identification through colour coding and labelling, aiding in maintenance and troubleshooting. Understanding the intricacies of cable sheathing is important for manufacturers, installers, and consumers alike, as it ensures the cables meet industry standards, enhances their functionality, and extends their operational life.
| Characteristics | Values |
|---|---|
| Purpose | Protect the conductors inside the cable |
| Materials | PVC, Polyurethane, LSZH, Thermoplastic, Rubber |
| Benefits | Fire safety, Environmental resistance, Enhanced electrical insulation, Customisation, Durability |
| Identification | Colour-coded, Labelled |
| Challenges | Choosing the correct material, Compatibility with cable's intended use |
Explore related products
What You'll Learn
Cable Sheathing Materials
Cable sheathing is an essential step in the cable manufacturing process, where an outer sheath or covering is added to protect the cable from environmental and mechanical damage. The choice of sheathing material depends on the cable's intended use, flexibility requirements, and the types of environmental and chemical influences it will be subjected to.
Common Cable Sheathing Materials
Polyvinyl Chloride (PVC)
PVC is the most common and cheapest option for cable sheathing. It offers good flexibility, low cost, and reasonable durability. It is also resistant to oil and water. However, PVC is susceptible to UV light, can degrade and become brittle over time, and emits harmful halogen gases and smoke when burnt.
Polyethylene (PE)
PE is a thermoplastic polymer that is tougher and stiffer than PVC. Unlike PVC, PE does not burn but melts and re-forms when it cools. It is ideal for outdoor use and rugged applications. However, PE degrades when exposed to UV light, so additional ultraviolet absorbers (UVA) are added to make it suitable for extended outdoor exposure.
Polyurethane
Polyurethane provides good mechanical and chemical resistance and is ideal for high-flexing automation applications. It can be halogen-free and flame-retardant, although it is not suitable for extreme temperatures.
Low Smoke Zero Halogen (LSZH)
LSZH compounds offer excellent low-smoke, halogen-free flame retardant properties. They are often used in public buildings, such as hospitals and airports, to reduce toxic emissions and enhance safety.
Teflon (PTFE)
Teflon is a non-flammable, very flexible, non-toxic, and environmentally safe material. It can operate within a wide temperature range and is unaffected by most fuels, oils, and fluids.
Other Materials
Other materials used for cable sheathing include polyamide (PA), polypropylene (PP), silicones (SIR), chloroprene rubber (CR), natural rubber, synthetic rubber compounds, and thermoplastic-sheathed cable (TPS). The choice of material depends on the specific requirements of the cable's application, with some materials offering enhanced protection against moisture, UV radiation, mechanical stress, electromagnetic interference, and corrosion.
Painting Electrical Conduit: Is It Safe?
You may want to see also
Explore related products
Cable Sheathing Benefits
Cable sheathing is an essential step in the cable manufacturing process, providing a range of benefits that enhance the overall performance, safety, and reliability of electrical cables.
One of the primary functions of cable sheathing is to provide mechanical protection to the cable. The outer sheath safeguards the internal conductors from physical damage caused by abrasion, friction, and external impact during installation, regular handling, and use. This protective layer also shields the cable from mechanical stress, crushing forces, and potential mechanical impacts, helping to maintain its structural integrity.
Cable sheathing also offers environmental resistance by preventing water ingress and safeguarding against corrosive substances, oils, solvents, and other harsh chemicals present in industrial and outdoor environments. This moisture barrier protects the cable from corrosion and electrical insulation degradation, ensuring consistent electrical performance and preventing interference or signal loss in data transmission cables.
Fire safety is another critical benefit of cable sheathing. Fire-retardant materials, such as polyurethane and LSZH (Low Smoke Zero Halogen), inhibit the spread of flames and reduce smoke and toxic emissions during a fire. LSZH sheathing is particularly advantageous in confined spaces and public areas, as it minimises the release of harmful gases, enhancing fire safety.
Cable sheathing also provides flexibility and ease of installation. The flexible materials used in cable sheaths, such as PVC (Polyvinyl Chloride), rubber, and polyethylene (PE), make them easier to handle, bend, and install in various applications, including complex routing and confined spaces.
Additionally, cable sheathing aids in regulatory compliance. The materials used often comply with industry standards and regulations related to electrical safety, environmental impact, and fire resistance, ensuring that cables are reliable and safe for their intended applications.
Overall, cable sheathing plays a vital role in modern electrical systems, protecting wires and cables while ensuring their long-term performance, durability, and safety across diverse environments.
Electric Shavers: A Sensitive Skin Solution?
You may want to see also
Explore related products
Cable Sheath Identification
Cable sheathing is a crucial step in the cable manufacturing process, ensuring the safety, durability, and functionality of cables. It involves applying an outer covering or sheath to protect the cable from various environmental conditions and mechanical stress. The choice of sheath material depends on the cable's specifications and intended use, and different materials offer different advantages.
One of the most common sheath materials is PVC (Polyvinyl Chloride), known for its durability, flexibility, and chemical resistance. It is widely used in household wiring, construction, and telecommunications. However, some grades of PVC can be susceptible to UV light and may release toxic fumes when burnt. To address this, modified PVC compounds have been developed to reduce the emission of HCI gas and smoke.
Another option is PE (Polyethylene), which is commonly used in underground cables and automotive wiring due to its toughness, moisture resistance, and suitability for outdoor environments. Low-density PE (LDPE) is more flexible and offers excellent moisture resistance, while high-density PE (HDPE) provides good weather resistance and is suitable for external applications.
For fire safety, cable sheathing materials can be fire-retardant, inhibiting the spread of flames and reducing smoke emissions. Materials like LSZH (Low Smoke Zero Halogen) minimise toxic emissions, making them ideal for confined spaces and public areas.
Custom cable construction allows for cable sheath identification through colour coding and labelling, aiding in cable identification, maintenance, and troubleshooting. For example, the colour of the sheath on NM cables indicates either the gauge of the current-carrying conductors or special properties of the sheathing. Similarly, in Europe, each individual thermoplastic sheath within the outer sheath is coloured to indicate the purpose of the conductor.
Beginner's Guide to Playing Electric Drums
You may want to see also
Explore related products
Cable Sheathing Applications
Cable sheathing is an essential step in the cable manufacturing process, where an outer sheath or covering is extruded onto the cable. The cable sheathing process typically involves seven steps, two of which are optional, depending on the application of the cable being manufactured.
The first step is to choose the cable sheathing material, which can be PVC, PE, or LSZH. PVC is the most common and cheapest option, offering good flexibility, low cost, and reasonable durability. It also provides resistance to oil and water, although some grades weather badly and are susceptible to UV light, emitting toxic fumes when burnt. PE, on the other hand, can be stiff and hard, but low-density PE (LDPE) offers more flexibility. High-density PE sheaths (HDPE) are suitable for external or burial applications, providing excellent moisture and weather resistance. LSZH (Low Smoke Zero Halogen) materials minimise toxic emissions, making them ideal for confined spaces and areas with stringent safety standards.
Additives can be added to the chosen material, such as plasticisers, stabilisers, flame retardants, and colourants, depending on the desired properties and regulatory requirements. The second step involves mixing the material and additives in precise proportions to achieve uniform dispersion and desired characteristics like flexibility and flame resistance.
The third step is to apply the sheath to the cable by feeding it into an extruder, where it is heated, pressured, and shaped through a specialised die to form the desired cross-sectional shape and dimensions.
Cable sheathing offers numerous benefits and has various applications. It provides a protective layer around electrical cables, ensuring safe and efficient transmission of current, voltage, and signals. The flexible materials used in sheathing make cables easier to handle, bend, and install, even in complex routing and confined spaces. Sheathing helps with regulatory compliance by meeting standards for electrical safety, environmental impact, and fire resistance. It also enhances fire safety by inhibiting flame spread and reducing smoke emissions.
Cable sheathing extends cable longevity by protecting against environmental conditions like moisture, UV radiation, and mechanical stress. It also provides chemical resistance, safeguarding cables from exposure to industrial chemicals, oils, and solvents. Sheathing enables customisation through colour coding and labelling, aiding in cable identification, maintenance, and troubleshooting. Additionally, it helps maintain consistent electrical performance, preventing interference and signal loss in data transmission.
Different types of cables are approved for specific applications. For instance, flat TPS is commonly used for fixed wiring of domestic and industrial lighting, power outlets, and appliances, while the round equivalent is prevalent in industrial and commercial installations. Cable sheathing is a fundamental aspect of cable manufacturing, enhancing the reliability and performance of electrical and data transmission systems.
Grounding Electric Types: Super-Effective Moves and Strategies
You may want to see also
Explore related products
Cable Sheathing Challenges
Cable sheathing is an essential step in the cable manufacturing process, providing protection from external damage and ensuring the safe transmission of electricity and data. While it offers numerous benefits, there are also several challenges associated with cable sheathing that must be considered.
One of the primary challenges is selecting the appropriate material for the cable sheathing. The chosen material must be compatible with the cable's intended use, taking into account factors such as environmental conditions, chemical exposure, mechanical stress, and regulatory requirements. For instance, certain applications may require cable sheathing that provides moisture barriers, chemical resistance, or UV stabilisation. If an unsuitable material is selected, it can lead to premature degradation, reduced performance, or even safety risks.
Balancing cost-effectiveness with performance and regulatory compliance is another significant challenge. High-quality cable sheathing materials can be expensive, impacting the overall cost of cable production. Manufacturers and users must carefully consider the balance between cost, performance, and compliance to ensure profitability and customer satisfaction.
The installation of cables with sheathing can also present challenges, particularly in complex or tight spaces. Flexibility and ease of handling become critical factors in such situations, influencing installation efficiency and labour costs. Rigid materials may offer superior protection but can be more difficult to install, requiring specialised tools and techniques.
As environmental concerns grow, the cable sheathing industry faces the challenge of reducing its environmental impact. Some cable sheathing materials contain chemicals or additives that pose environmental hazards during production, use, and disposal. While the industry is moving towards more sustainable options, such as biodegradable sheathing and recyclable materials, smaller manufacturing companies may struggle to implement these changes due to cost and innovation barriers.
In summary, while cable sheathing offers enhanced protection and performance, it also presents challenges related to material selection, cost, installation, and environmental impact. Addressing these challenges is crucial to ensuring the safe, effective, and sustainable use of cable sheathing in various applications.
Mastering Electric MIG Welding for Stainless Steel
You may want to see also
Frequently asked questions
Sheathing on electric wiring is called cable sheathing.
Cable sheathing is an outer jacket or covering that is extruded onto a cable.
Cable sheathing can be made from a variety of materials, including PVC, Polyurethane, and thermoplastic.
Cable sheathing has several purposes, including protecting the cable from moisture, chemicals, UV radiation, and mechanical stress, as well as enhancing electrical insulation and fire safety.
