Electric fences are designed to prevent animals from accessing or exiting a particular area. They are regulated to ensure they operate safely. Electric fence energizers put out high voltage, ranging from 3000 to 10,000 volts, to get the animal's attention. However, they reduce the deadly amps to a very low amperage, ranging from 15 to 500 milliamps, which is not life-threatening to humans. The voltage requirements vary depending on the type of animal the fence is intended to contain. For example, dairy cattle require 2000 volts, while deer and elk require 4000-5000 volts.
| Characteristics | Values |
|---|---|
| Voltage Range | 3,000 volts to 10,000 volts |
| Voltage for Security Fences | Can be lethal |
| Voltage for Agricultural Fences | Not lethal |
| Voltage for Effective Shock | Minimum 3,000 volts |
| Voltage for Human Safety | Low voltage and low amperage |
| Voltage Drop Due to Vegetation | Yes |
| Voltage Drop Due to Length of Fence | Yes |
| Voltage Drop Due to Insufficient Diameter of Wire | Yes |
| Voltage Drop Due to Wet Weather | Yes |
| Voltage Drop Due to Poor Insulation | Yes |
| Voltage Drop Due to Poor Earth System | Yes |
Explore related products
What You'll Learn
Electric fence voltage requirements
Electric fences use electric shocks to prevent animals or people from crossing a boundary. The voltage of the shock can be uncomfortable, painful, or even lethal, as in the case of security fences. The voltage of an electric fence ranges from 6,000 to 10,000 volts.
The voltage requirements for electric fences depend on various factors, such as the type of livestock or target. For example, bulls tend to avoid electric fences with adequate voltage, while goats require higher voltage. The length of the fence also matters, as longer fences have less ability to store energy.
To ensure the effectiveness of the electric fence, it is crucial to maintain the voltage by regularly checking for vegetation, fallen branches, or broken wires. Vegetation on the fence line can reduce voltage and allow electricity to leak to the ground, especially during wet weather. Therefore, keeping the fence line clear of any growth is essential.
Additionally, the design of the electric fence system is crucial. A good earth system is necessary, and it should be kept away from buildings and other electrical systems. The use of appropriate cables, such as galvanised steel cable, and tight connections is also important to prevent voltage leakage.
The power source for the electric fence should be considered as well. Depending on the remoteness and length of the fence, a permanent electrical circuit, large lead-acid batteries, or solar panels may be used. Regular voltage checks with a digital voltmeter are recommended to ensure the fence functions properly.
Jones Electrical Distribution: Performance Analysis and Insights
You may want to see also
Explore related products
How to measure voltage
Electric fences are designed to prevent animals from accessing or exiting a particular area. They are also used to control access to certain areas in urban settings. Despite high voltages of over 5,000 volts, electric fences are much safer than one might assume. This is because, while the voltage is high, the current or amplification is very low, ranging from 15 to 500 milliamps.

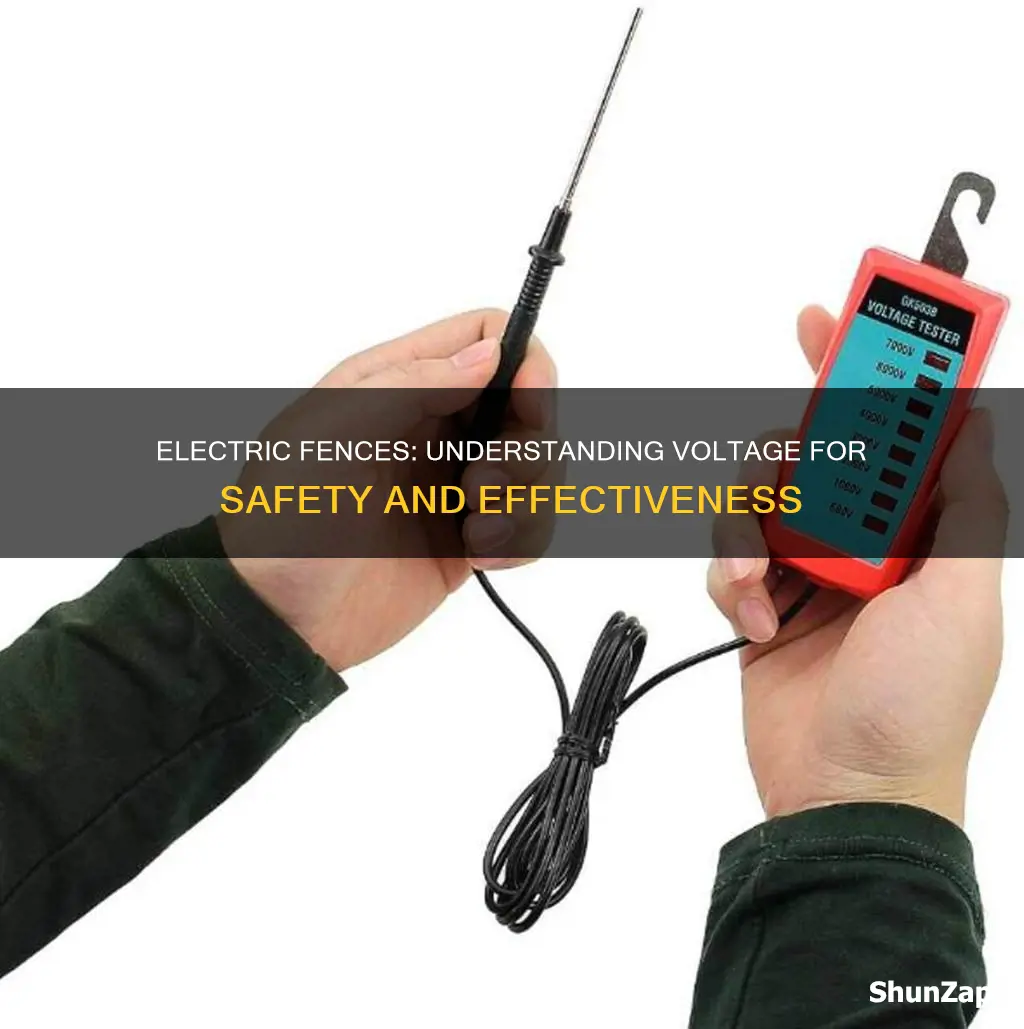

To measure the voltage of an electric fence, you can use a dedicated electric fence voltmeter. This tool is specifically designed to detect voltage in electric fences and costs around $30-$50 USD. Most models include a handheld meter with a digital readout and a metal prong on top, and an attached metal probe at the end of a wire.
- Refer to the owner's manual or signage on the charger to determine the correct voltage range for your fence. Electric fence voltages typically range from 2,000 to 10,000 volts, depending on the type of animals they are meant to control.
- Move to the section of the fence furthest from the charger. The charger, usually a small box, provides electricity to the fence.
- Identify the ground wire. If your fence has two or more wires, one of them is probably a ground wire. Use your owner's manual to identify it.
- Touch the meter's probe to the ground wire. Keep your hand on the plastic or rubber section of the probe, not the metal tip. If your fence does not have a ground wire, skip this step and proceed to the next one.
- Stick the metal end of the probe several inches/centimeters deep into the soil if there isn't a ground wire or if you are unsure which wire is the ground wire.
- With the probe still touching the ground wire or stuck in the soil, touch the metal prong on the tester to each charged wire.
- Read the voltage from the digital readout on the voltmeter.
Alternatively, you can use a non-contact voltmeter to simply confirm whether the fence is on or off. This tool does not require you to touch the wire to check for voltage. It is safer and usually costs less than $20 USD. Here is how you can use it:
- Turn on the voltmeter and check for a blinking light at the tip. Ensure that there is a battery installed.
- Point the meter at the fence when you are within 5 feet (1.5 meters) of it.
- The meter will start beeping and have a steady light at the tip when it detects voltage.
It is important to note that you should always follow safety precautions when working with electric fences. Poor grounding is a major cause of electric fence malfunctions, so it is recommended to have an expert ensure that your ground wire is connected properly. Additionally, always refer to the owner's manual and follow the manufacturer's instructions for installation, usage, and maintenance of the electric fence and its components.
Understanding Electric Flux Through Spheres
You may want to see also
Explore related products
How vegetation impacts voltage
Vegetation has a significant impact on the voltage of an electric fence. As vegetation grows on the fence line, it contributes to a heavy fence load, reducing the voltage on the line. The more vegetation, the higher the load on the fence. This is because the voltage begins to drop as the resistance on the fence line increases. Vegetation completes the electrical loop, causing the output voltage of the energizer to drop. Therefore, it is crucial to keep the fence line clear of vegetation to ensure the animal receives the maximum shock from the energizer.
For fences with heavy vegetation, a powerful charger paired with a 12½-gauge wire is recommended. Materials like aluminum-clad, high-tensile steel offer excellent conductivity and durability for long lines under load. However, long-pulse energizers, often called "weed burners," are not recommended due to the risk of starting fires or melting fence materials.
The presence of vegetation on an electric fence can also impact the accuracy of voltage readings. While voltage readings across resistance levels can provide information about the system, they do not account for pulse duration. As a result, capacitor size and voltage may provide a better indication of stored power, but delivery efficiency can still vary between units.
To maintain the effectiveness of an electric fence, regular maintenance is required to keep the fence line clear of vegetation. By minimizing the growth on the line, you can ensure that the voltage remains at a level that will deter animals effectively.
Repairing Male Electrical Cords: A DIY Guide
You may want to see also
Explore related products
Voltage and safety
Electric fences use high voltage to deter animals and people from crossing them. Despite the high voltage, electric fences are generally considered safe for humans and animals. This is because, despite the high voltage, the current or amplification (amps) is very low, ranging from 15 to 500 milliamps.
The safety of electric fences is achieved through two main factors: the voltage and the current. While the voltage is high, the current is very low, which means that the risk of serious injury from an electric fence is low. In fact, electric fences account for less than one serious injury per year worldwide. This is compared to the numerous injuries and deaths that result from human exposure to machinery, animals, and weapons.
The voltage of an electric fence can vary depending on the type of livestock or animal it is intended to deter. For example, beef cattle may require 2,000-3,000 volts, while sheep or goats may require 4,000-5,000 volts due to their thick insulating coats.
It is important to note that the effectiveness of an electric fence also depends on factors such as the type of wire used, the conductivity of the ground, and the presence of vegetation or other conditions that can divert or impede the flow of electricity. Regular maintenance and proper installation are crucial for the safety and effectiveness of electric fences.
There are also regulations and safety standards in place to ensure the safe use of electric fences. Existing laws prohibit the sale, installation, or use of an electrified fence connected to a source of electrical current unless the current is limited and regulated by an electrical controller that meets specified standards.
Electricity Access in Brazil: Household Reach
You may want to see also
Explore related products
![JSOT 12 Pack Solar Lights Outdoor Waterproof for Stairs Decor, Solar Deck Lights Stainless Steel Step Fence Patio Post Wall Lamp for Garden Pathway Walkway LED Lamp Light [Warm Light]](https://m.media-amazon.com/images/I/81j7kU6ADwL._AC_UL320_.jpg)
$13.99
Voltage and amperage
Electric fences use high voltage, typically ranging from 2,000 to 10,000 volts, to create a strong electrical pulse that deters animals and humans from crossing the fence. The voltage varies depending on the type of animal or purpose of the fence, with aggressive bulls requiring higher voltages (3,000-5,000 V) than dairy cattle (2,000 V), for example.
Voltage is crucial in ensuring the effectiveness of an electric fence. It determines the speed at which the electrical current travels along the fence line. Higher voltages increase the likelihood of completing the electrical circuit, as they can better overcome resistance from vegetation or other factors. Therefore, maintaining adequate voltage is essential to ensuring the fence functions as intended.
However, voltage alone does not determine the strength of the shock delivered by an electric fence. The amperage, or current, is equally important. Electric fences operate with very low amperage, typically ranging from 15 to 500 milliamps, which is significantly lower than the amperage used in household appliances or machinery. This low amperage ensures that the shock is not deadly and allows individuals to remove themselves from the source of electricity.
The combination of high voltage and low amperage makes electric fences surprisingly safe. While the high voltage creates a memorable sensation that deters individuals from crossing the fence, the low amperage prevents serious injury or death. This balance between voltage and amperage is carefully regulated by law to ensure the safe use of electric fences.
Additionally, the design of electric fence systems plays a crucial role in their effectiveness and safety. Proper installation, maintenance, and grounding are essential to maintaining the desired voltage and amperage levels. Vegetation, faulty components, and weather conditions can all impact the voltage and amperage, affecting the overall performance of the fence. Regular inspections and maintenance are necessary to mitigate these issues and ensure optimal fence functionality.
Trimming Boxwoods: Electric Trimmer Techniques for Perfect Hedges
You may want to see also
Frequently asked questions
The voltage of an electric fence can vary depending on its purpose and the type of livestock it is used for. The recommended minimum voltage for an effective shock is 3,000 volts, but electric fences can go up to 10,000 volts.
Electric fences used for security purposes can have voltages ranging from uncomfortable to lethal. However, most electric fencing is used for agricultural fencing and animal control, with lower voltages that are not lethal.
The voltage of an electric fence for animals depends on the type of animal. For example, goats require higher voltages than other livestock. The voltage should be enough to create an uncomfortable shock that deters the animal from crossing the boundary.
Vegetation can reduce the voltage on an electric fence line. It is important to regularly check and clear any vegetation growing on or near the fence to maintain the desired voltage and effectiveness of the fence.
