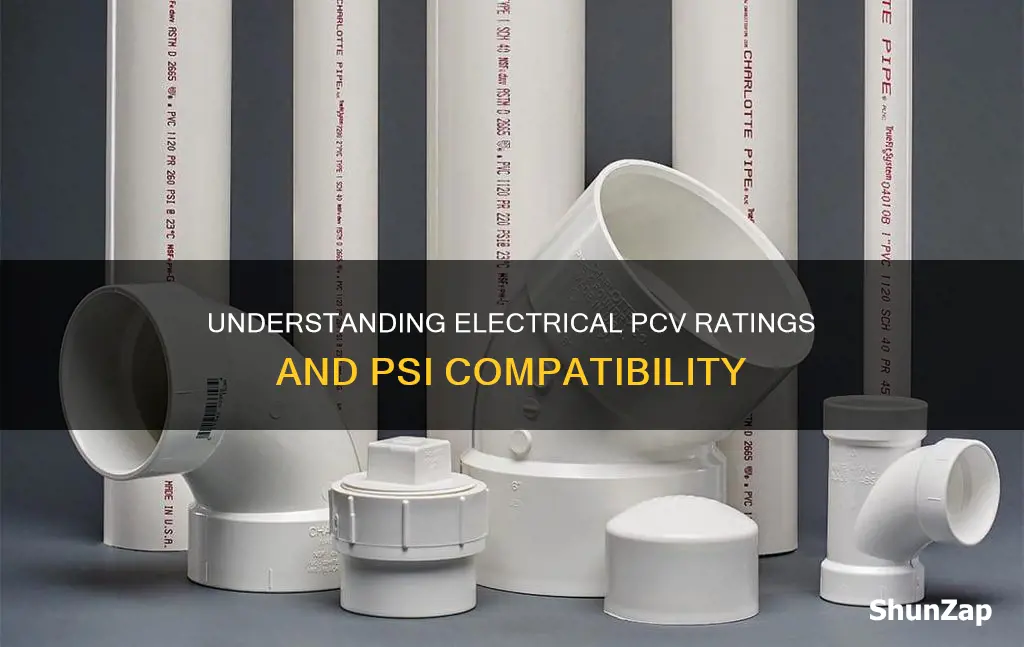

When selecting PVC pipes for projects involving liquid transportation under pressure, such as water supply systems, irrigation, or industrial applications, it is crucial to understand their pressure ratings. PSI, or pounds per square inch, is the unit of measurement for pressure. The pressure rating of PVC pipes varies depending on factors such as pipe size, wall thickness, and fluid temperature. For instance, a Schedule 40 PVC pipe rated for 450 PSI at 73°F may have a reduced pressure rating of around 200 PSI at 140°F. Thicker-walled pipes are generally designed to withstand higher pressures without rupturing. It is important to note that the maximum operating pressure decreases with higher temperatures, and at 140°F, the strength is derated to approximately 20% of its strength at 73°F.
| Characteristics | Values |
|---|---|
| PSI Definition | Pounds per Square Inch |
| PSI Rating Factor | Pipe size, wall thickness, fluid temperature |
| PSI and Temperature Relationship | PSI rating decreases with higher fluid temperature |
| PSI and Wall Thickness Relationship | Thicker walls can withstand higher PSI |
| PSI and Strength | Tensile strength, collapse pressure, burst pressure |
| PSI and Safety | Safety factors built in, burst pressure 2-3x higher than working pressure |
| PSI and Applications | 100 PSI for drainage, venting, and low-pressure applications |
| PSI and Failure | Proper installation is critical to prevent premature failure |
| PSI and User Error | User error can cause pipe explosion |
Explore related products
What You'll Learn
PSI and PVC pipe strength
The strength of a PVC pipe is typically defined by its pressure rating, which refers to the maximum amount of pressure it can withstand without failing. This pressure rating is measured in PSI, or pounds per square inch, indicating the amount of force applied to one square inch of surface area.
PVC pipes are used in various applications, such as water supply systems, irrigation, and industrial processes, where the pipes are subjected to internal pressure from liquids or gases. The pressure rating of PVC pipes is influenced by several factors, including pipe size, wall thickness, and fluid temperature.
For example, a Schedule 40 PVC pipe rated for 450 PSI at 73°F (23°C) may have its pressure rating reduced to around 200 PSI at 140°F (60°C). This relationship between temperature and pressure rating is crucial to consider when dealing with hot water or liquids, as exceeding the pressure limit can lead to pipe bursts or leaks.
The wall thickness of a PVC pipe also plays a critical role in its pressure rating. Thicker walls, as found in Schedule 80 PVC pipes, enable the pipe to withstand higher internal pressure. This is because thicker walls can better absorb and distribute the pressure exerted by the fluid or gas flowing through the pipe.
While PVC pipes offer a cost-effective solution and are commonly used, they are not as strong as metal pipes. They are susceptible to degradation in sunlight and may not be suitable for all structural applications, especially when considering vertical strength.
In summary, when selecting a PVC pipe for a specific application, it is essential to consider the pressure rating in PSI, which takes into account factors such as pipe size, wall thickness, and fluid temperature, to ensure the pipe can safely withstand the expected internal pressure without failing.
Electric Ukulele Synergy in Risk of Rain 2
You may want to see also
Explore related products
$9.99
PSI and PVC pipe size
When selecting PVC pipes for projects, it is essential to consider the pipe's PSI rating, which indicates its ability to withstand internal pressure. PSI, or Pounds per Square Inch, is a unit of measurement for pressure. The PSI rating of a PVC pipe is influenced by factors such as pipe size, wall thickness, and the temperature of the fluid being transported.
The relationship between PSI and temperature is crucial. For instance, a Schedule 40 PVC pipe rated for 450 PSI at 73°F (23°C) may have its pressure rating reduced to around 200 PSI at 140°F (60°C). This means that at higher temperatures, the pipe's ability to withstand pressure decreases significantly, and there is a risk of pipe bursts or leaks if the pressure rating is exceeded. Therefore, it is important to consult manufacturing data and consider the maximum operating temperature of PVC when selecting pipes for applications involving hot water or liquids.
The size of the PVC pipe also affects its PSI rating. Smaller pipes, particularly Schedule 80, can generally handle higher pressure and are suitable for most home and business uses. For example, a 1-inch Schedule 40 PVC pipe can handle about 370 PSI at 73°F, while a 1-inch Schedule 80 PVC pipe can handle up to 520 PSI at the same temperature. This difference in PSI rating between Schedules 40 and 80 pipes highlights the impact of wall thickness on the pipe's ability to withstand pressure.
In addition to PSI ratings, it is important to consider other strength measurements of PVC pipes, such as collapse pressure (or crush strength) and tensile strength. Collapse pressure refers to the amount of external pressure a pipe can withstand before collapsing inwards, which is crucial for subterranean applications. Tensile strength, on the other hand, refers to the maximum weight a pipe can bear before breaking or losing its original shape. These strength measurements, along with burst pressure, provide a comprehensive understanding of the structural integrity of PVC pipes.
Electricity Management: Museum Strategies for Energy Efficiency
You may want to see also
Explore related products
PSI and PVC pipe wall thickness
The PSI rating of a PVC pipe indicates how much internal pressure it can handle before failing. PSI, or Pounds per Square Inch, is a unit of measurement for pressure, indicating the amount of force applied to one square inch of surface area. The PSI rating of a PVC pipe is influenced by factors such as pipe size, wall thickness, and the temperature of the fluid being transported.
The wall thickness of a PVC pipe is critical to its pressure rating. Thicker walls allow the pipe to handle more internal pressure. When fluid or gas flows through a pipe, it exerts pressure on the walls. If the pressure exceeds the strength of the pipe, it can deform, leak, or fail. Thicker walls enable the pipe to better absorb and distribute the pressure.
The relationship between wall thickness and pressure rating is straightforward. For instance, a Schedule 40 PVC pipe rated for 450 PSI at 73°F may have its pressure rating reduced to 200 PSI at 140°F. At higher temperatures, the strength of the pipe decreases. Therefore, it is crucial to consider both pressure and temperature requirements when selecting PVC pipes for a project.
In industrial applications, Schedule 80 PVC pipes are preferred due to their thicker walls and higher pressure ratings. The pressure rating for Schedule 80 pipes ranges from 210 PSI to 630 PSI, depending on the pipe size and fluid temperature. These pipes are used when water or other fluids are transported under higher pressures or in more demanding environments. The thicker walls of Schedule 80 PVC also provide better protection against physical damage and exposure to harsh substances.
While PVC pipes are widely used due to their strength and affordability, they are not as strong as metal pipes. The strength of a PVC pipe can be measured in terms of collapse pressure, burst pressure, and tensile strength. Collapse pressure refers to the amount of outside pressure a pipe can withstand before collapsing inwards, while burst pressure is the amount of internal pressure a pipe can take before failing. Tensile strength, on the other hand, refers to the maximum amount of weight a pipe can bear before losing its original shape.
The Extreme Heat of Electric Arc Furnaces
You may want to see also
Explore related products
PSI and PVC pipe temperature
The PSI rating of a PVC pipe indicates its strength, or how much pressure it can withstand before it fails. PSI, or Pounds per Square Inch, is a unit of measurement for pressure, indicating the amount of force applied to one square inch of surface area. The PSI rating of a PVC pipe is influenced by factors such as the pipe's size, wall thickness, and the temperature of the fluid being transported.
The relationship between PSI and temperature in PVC pipes is critical to understand, especially for applications involving hot water or liquids. As the temperature of the fluid increases, the pressure rating of the PVC pipe decreases. For example, a Schedule 40 PVC pipe rated for 450 PSI at 73°F (23°C) may have its pressure rating reduced to around 200 PSI at 140°F (60°C). This means that at higher temperatures, the pipe is more susceptible to bursting or leaking if the pressure exceeds its reduced pressure rating. Therefore, it is essential to consider both the pressure and temperature requirements when selecting PVC pipes for a project.
The wall thickness of a PVC pipe also plays a crucial role in its PSI rating. Thicker walls, such as those found in Schedule 80 PVC pipes, allow the pipe to handle more internal pressure. Schedule 80 PVC pipes are preferred in industrial applications due to their higher pressure rating and resistance to many chemicals. They are often used for chemical transport and in fire protection systems. On the other hand, smaller pipes with thinner walls, such as Schedule 40 PVC, may have lower PSI ratings but are still suitable for most home and business uses.
It is important to note that the maximum operating temperature for PVC pipes is typically around 140°F (60°C), beyond which the strength of the pipe is significantly reduced. At this maximum temperature, the strength of the pipe is derated to approximately 20% of its strength at 73°F (23°C). Therefore, it is crucial to consider the temperature of the fluid being transported and select a PVC pipe with an appropriate PSI rating to prevent failure.
In summary, the PSI rating of a PVC pipe is closely related to the temperature of the fluid it transports. Higher temperatures result in lower PSI ratings, and thicker-walled pipes, such as Schedule 80, offer higher pressure ratings. By considering both the pressure and temperature requirements, one can select the appropriate PVC pipe for a project, ensuring its structural integrity and preventing potential failures.
Electricity Waste: Environmental Impact and Solutions
You may want to see also
Explore related products
PSI and PVC pipe bursting
PSI (Pounds per Square Inch) is a unit of measurement for pressure. The PSI rating of a PVC pipe indicates its ability to withstand internal pressure. The higher the PSI rating, the more pressure the pipe can withstand. The PSI rating of a PVC pipe varies depending on factors such as pipe size, wall thickness, and the temperature of the fluid being transported. For example, a Schedule 40 PVC pipe rated for 450 PSI at 73°F (23°C) may have its pressure rating reduced to around 200 PSI at 140°F (60°C). This relationship between temperature and pressure is crucial, as exceeding the pressure rating at a given temperature could lead to pipe bursts or leaks.
PVC pipes have different strength measurements, including collapse pressure, burst pressure, and tensile strength. Collapse pressure refers to the amount of outside pressure a pipe can withstand before collapsing inwards, which is important when burying pipes underground. Burst pressure, on the other hand, is the amount of internal pressure a pipe can take before failing, and it is crucial when pumping fluids through a piping system. Tensile strength refers to the maximum amount of weight a pipe can bear before losing its original shape or breaking, and it can be measured by hanging weights from the pipe.
PVC pipes are commonly used in projects that involve transporting liquids under pressure, such as water supply systems, irrigation, and industrial applications. However, PVC has a reputation for being less durable under pressure compared to metal pipes. In the context of pipe bursting, PVC pipes are considered fracturable, and they can be replaced using trenchless methods like pipe bursting and pipe splitting. Pipe bursting involves using a bursting head to fragment the existing pipe and create space for a new pipe to be installed in the same alignment. This method is commonly used to replace brittle pipes made of materials like clay, asbestos cement, concrete, and cast iron.
The process of pipe bursting has evolved, and static pipe bursting is now the most common variant due to the absence of shock waves that can damage nearby utilities. Other methods include pneumatic and hydraulic pipe bursting, which use dynamic force to break the old pipe. The choice of method depends on various factors, including soil conditions, groundwater conditions, and the type of new pipe being installed. Proper planning is essential when considering pipe bursting projects, especially when dealing with hybrid pipe types that may require special considerations during replacement.
Understanding Electrical Diagrams: A One-Liner's Guide
You may want to see also
Frequently asked questions
PSI stands for Pounds per Square Inch and is the unit of measurement for pressure.
The PSI rating of PVC pipes depends on various factors such as wall thickness, temperature, and intended use. For example, a Schedule 40 PVC pipe can be rated for 450 PSI at 73°F, while a Schedule 80 PVC pipe of the same size can handle up to 520 PSI at the same temperature.
In addition to wall thickness and temperature, the intended use of the pipe is an important factor. PVC pipes used for drainage lines, venting, and low-pressure applications typically have lower PSI ratings, such as 100 PSI.
The maximum operating pressure of PVC pipes decreases with increasing temperature. For example, a pipe rated for 450 PSI at 73°F may only be rated for 200 PSI at 140°F.
