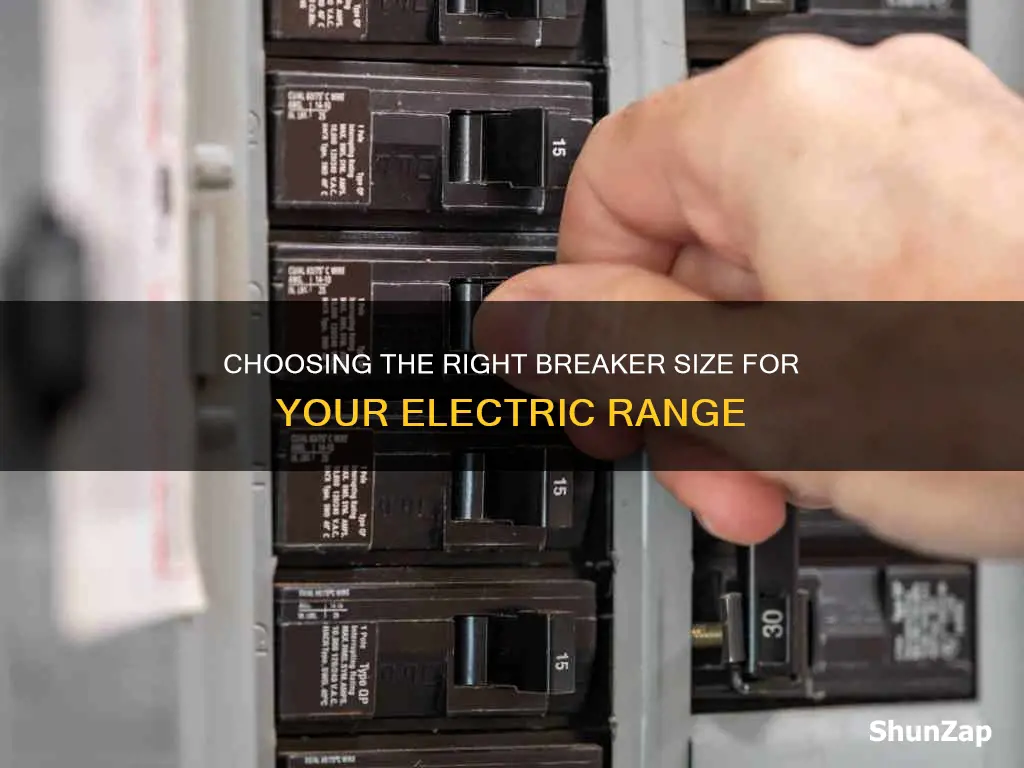

Choosing the right circuit breaker size for your electric stove is crucial for safety and performance. Electric stoves typically operate on either 120V or 240V circuits, with wattage demands depending on the number of burners and additional features. The wattage rating of your stove will determine the current draw, which is essential for selecting the correct circuit breaker size. Most electric ranges require either a 40 or 50-amp double pole circuit breaker, with 50 amps being the more common option. It's important to note that the breaker rating cannot exceed the receptacle rating, and the manufacturer's specifications should be followed for hardwired appliances. Undersized breakers can lead to overheating and fire hazards, while oversized breakers may not adequately protect your electrical system.
| Characteristics | Values |
|---|---|
| Circuit breaker rating | Should not exceed the receptacle rating |
| Manufacturer specifications | Manufacturer specifies the circuit rating for hardwired appliances |
| Amperage | Each circuit breaker has a specific rated amperage; when amperage is exceeded, the circuit breaker shuts down the flow of current |
| Standard household circuits | 15 or 20 amps |
| Circuit breaker capacity | A 15-amp circuit breaker can handle 12 amps; a 20-amp circuit breaker can handle 16 amps |
| Wattage | Wattage rating of the stove top determines the amount of current it draws |
| Common circuit breaker | 40 or 50 amp double pole circuit breaker; 50-amp circuit is more common |
| Conductor size | Matched to the breaker |
| Wire gauge | 8 AWG copper or 6 AWG aluminum conductors for a 40-amp breaker; 6 AWG copper or 4 AWG aluminum conductors for a 50-amp breaker |
Explore related products
What You'll Learn
Circuit breaker sizing for electric stoves
Circuit breakers are designed to prevent damage to electrical wiring and appliances. When the amount of current or amperage exceeds the rated amount, the circuit breaker shuts down the flow of current in that circuit.
The first step in choosing the correct circuit breaker size for an electric stove is to understand the electrical requirements of the appliance. Electric stoves typically operate on either 120V or 240V circuits, with varying wattage demands based on the number of burners and additional features. The wattage rating of the stove will determine the amount of current it draws, which is a critical factor in selecting the appropriate circuit breaker size.
For example, consider an electric stove with four burners and a total wattage rating of 8,000 watts operating on a 240V circuit. The current draw can be calculated as follows: Current (Amps) = Wattage / Voltage. So, for this stove, Current (Amps) = 8,000 watts / 240 volts, resulting in a current draw of 33.3 amps. This calculation provides the maximum current draw for this stove, which will inform the choice of circuit breaker size.
Most electric stoves require either a 40-amp or a 50-amp double-pole circuit breaker, with 50-amp circuits being more common. It is important to note that the breaker rating cannot exceed the receptacle rating, as specified by code. Additionally, the manufacturer usually specifies the circuit rating for hardwired appliances, and the code defers to the manufacturer in such cases.
To ensure safe and efficient operation of an electric stove, selecting the appropriate circuit breaker size is crucial. An undersized circuit breaker can lead to issues such as overheating, tripping, and potential fire hazards. On the other hand, an oversized breaker may fail to adequately protect the electrical system. Therefore, it is essential to carefully consider the various factors influencing circuit breaker sizing and follow proper installation procedures to safeguard your home and family.
Electric Dreams: Powering Through Opinions
You may want to see also
Explore related products
Electric stove wattage and voltage
Electric stoves are available in a variety of wattages and voltages, and the appropriate size of the circuit breaker depends on these factors. The wattage of an electric stove burner typically varies based on its size, with smaller units using around 1000 watts and larger heating elements going up to 3000 watts. An average modern stove top element will use around 1500 watts per hour of heating on medium to high settings.
The voltage requirements for an electric stove also depend on the specific model and its heating elements. Electric stoves with resistance heating elements, which are the most common type, follow Ohm's Law, which states that voltage equals current multiplied by resistance. Therefore, a higher voltage applied to the same element will result in a higher current. For example, a 240-volt stove will draw more amperes than a 208-volt stove with the same heating element.
The appropriate size of the circuit breaker for an electric stove depends on its wattage and voltage. A 30-amp breaker is commonly used for standard residential ranges, although some sources suggest that a 40-amp or 50-amp breaker is more suitable. It's important to note that the breaker rating cannot exceed the receptacle rating, as specified by electrical codes. Additionally, the manufacturer's recommendations should be considered, as they specify the circuit rating for hardwired appliances.
When selecting a circuit breaker for an electric stove, it's crucial to understand the concept of amperage. Each circuit breaker has a specific rated amperage or the maximum amount of current it can handle. When this amperage is exceeded, the circuit breaker shuts down the current flow to prevent damage to the wiring and appliances. For example, a 15-amp circuit breaker can typically handle around 12 amps, while a 20-amp circuit breaker can handle about 16 amps.
Ionic Chemical Reactions: Electric Charge Balance
You may want to see also
Explore related products
Amperage and current
In the context of electric ranges, the power demand varies depending on the appliance's rating. Most electric ranges require a 50-amp 240-volt circuit, wired with #6-gauge wire. However, smaller ranges may only need a 40-amp circuit, wired with #8-gauge wire. This circuit is wired with a 3-wire cable, including white, black, and red wires, along with a bare copper ground wire.
It's worth noting that the National Electrical Code (NEC) has different rules for different types of ranges. For drop-in ranges, the circuit conductors must match the wattage on the nameplate rating, whereas circuits for plug-in freestanding ranges can be lower. If the rating is 12,000 watts or less, a circuit designed to handle only 8,000 watts may be sufficient. This allows for the use of #8 AWG cable and a 40-amp breaker instead of #6 cable and a 50-amp breaker.
When it comes to the amperage and current of an electric range, it's important to consult a professional electrician. They can advise on the specific requirements and ensure that the installation is safe and complies with relevant codes.
Additionally, it's worth noting that the standard for most household circuits is 15 or 20 amps, and circuit breakers can typically handle about 80% of their overall amperage. This means a 15-amp circuit breaker can manage around 12 amps, while a 20-amp breaker can handle approximately 16 amps.
Electric Boilers: Costlier to Run?
You may want to see also
Explore related products
Receptacle and plug ratings
Electric ranges have special wiring needs. They require a 120/240-volt circuit and receptacle, with an independent neutral wire that provides a return path for the 120-volt portion of the circuit. This is because an electric range uses a 120-volt current to power timers, vent fans, and other accessories, and a 240-volt current to heat the stovetop and oven heating elements.
The standard for most household circuits is 15 or 20 amps, but electric ranges typically require 30 to 50 amps. A range receptacle is a specialised outlet designed to connect your electric range to the power supply, ensuring a safe and secure connection for high-powered cooking appliances. It is essential for safely powering high-current electric ranges, requiring specific voltage and amperage ratings.
When choosing a breaker for an electric range, the breaker rating cannot exceed the receptacle rating. If your electric range has a 30-amp plug, you will need a 30-amp outlet and a 30-amp breaker. If it has a 50-amp plug, you will need a 50-amp outlet and a 50-amp breaker.
It is important to note that if you are upgrading from a gas range to an electric range, you will likely need to upgrade your outlets to accommodate the higher power requirements. Most electric ranges require a 220-volt outlet, which provides more power than a standard 110-volt outlet and helps protect against electrical fires. Upgrading your outlets can be expensive, but it is important to ensure that your appliances operate safely and efficiently.
Computers: Energy Consumption and Electricity Usage
You may want to see also
Explore related products
Electric range wiring
Electric cooking ranges have distinct wiring requirements because they use a 120/240-volt circuit and receptacle. A 120-volt current powers the timers, vent fans, and other accessories, while a 240-volt current is required to heat the stovetop and oven heating elements. Therefore, a 120/240-volt receptacle and circuit with an independent neutral wire are needed.
The electrical circuit that powers an electric range must have sufficient amperage to meet the range's power demands. The power demand of ranges varies depending on the appliance's rating, but a 50-amp 240-volt circuit wired with #6-gauge wire is typically required. Smaller ranges may require a 40-amp circuit wired with #8-gauge wire. The circuit is wired with a 3-wire cable, including white, black, and red wires, plus a bare copper ground wire.
It is important to note that a range cannot be plugged into a standard outlet because it requires more power than a normal outlet can provide. Using the wrong type of outlet can lead to fire, serious injury, or electrical shock. Drop-in ranges are typically hard-wired, and the circuit conductors must precisely match the appliance's wattage rating.
When connecting the power cord, the back access panel on the range must be removed, and the cord must be threaded into the range's panels. The wires are then connected to their matching screw terminals. The two hot terminals are interchangeable, but each must only have one wire connected. It is crucial to attach the strain relief to prevent cord damage.
Additionally, the range cable should be secured if it lacks stable support. Before turning on the electricity, switch off the electric stove outlet's breaker to prevent overloading. After restoring power, test the outlet's power, and ensure it is stable at 220 volts before plugging in the electric stove.
Electrical Interlock Plates: Are They Legal in Oregon?
You may want to see also
Frequently asked questions
The size of the breaker depends on the wattage rating of your stove top. Most electric ranges require either a 40 or 50 amp double pole circuit breaker. A 50 amp circuit is more common.
An undersized circuit breaker can lead to overheating, tripping, and potential fire hazards. An oversized breaker may fail to protect your electrical system.
First, determine the wattage rating of your stove top. Then, calculate the current draw: Current (Amps) = Wattage / Voltage. This calculation will inform your choice of circuit breaker size.
The standard for most household circuits is 15 or 20 amps.
Per 210.19, 40A is the minimum branch circuit size for a range with a rating of 8.75kW or greater.
