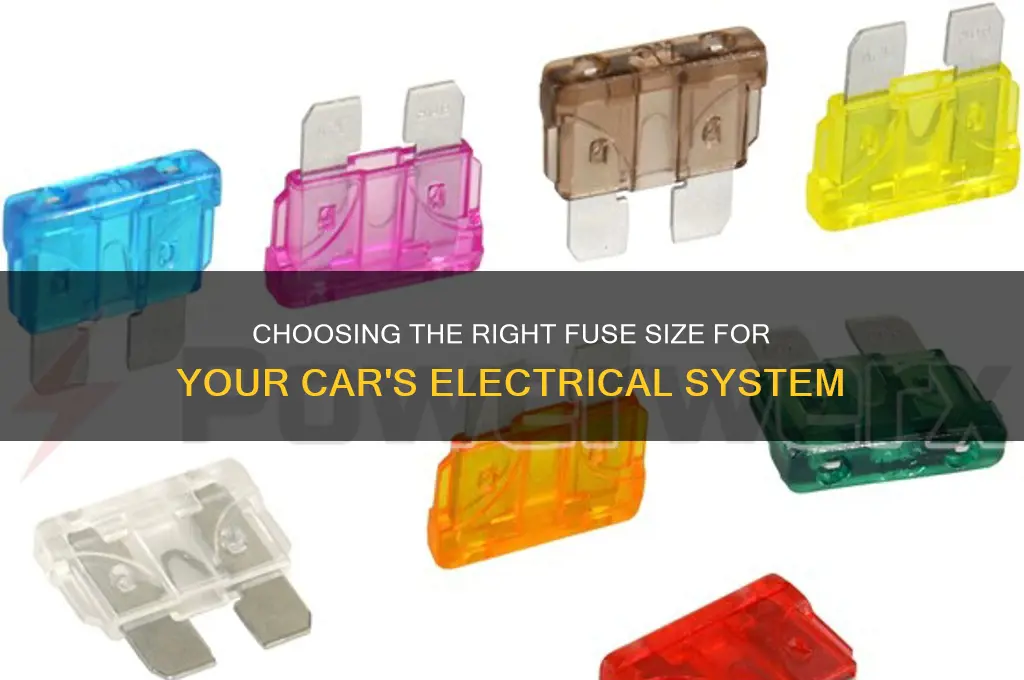

When it comes to car electrical systems, selecting the correct fuse size is crucial for ensuring safety and preventing damage to your vehicle's components. The appropriate fuse size depends on the specific electrical circuit it protects, as each circuit has a maximum current rating. Using a fuse with the wrong amperage can lead to blown fuses, electrical malfunctions, or even fires. To determine the right size, consult your car's manual or the component's specifications, and always match the fuse rating to the circuit's requirements. Understanding fuse sizes and their applications is essential for maintaining a reliable and safe automotive electrical system.
| Characteristics | Values |
|---|---|
| Fuse Type | Blade (ATO), Mini Blade (ATM), Micro Blade (ATP), Cartridge, Bolted |
| Current Rating (Amps) | 1A, 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 80A, 100A (varies by type) |
| Voltage Rating | Typically 32V DC (for automotive systems) |
| Blow Characteristics | Fast-acting, Slow-acting (time-delay) |
| Color Coding | Standardized by amp rating (e.g., Blue = 15A, Yellow = 20A, etc.) |
| Material | Zinc-plated terminals, Transparent housing for visual inspection |
| Compatibility | Specific to vehicle make/model and electrical component |
| Location | Fuse box (under hood, dashboard, trunk), inline (for accessories) |
| Replacement Rule | Always replace with the same amp rating; never exceed the circuit’s design limit |
| Safety Standard | Meets ISO, SAE, or OEM specifications |
| Temperature Range | Typically -40°C to +125°C |
| Application | Headlights, radio, fuel pump, AC, aftermarket accessories, etc. |
| Diagnosis | Use a multimeter or visual inspection for blown fuses |
| Common Sizes | 5A, 10A, 15A, 20A, 30A (most frequently used in cars) |
Explore related products
What You'll Learn
- Fuse Size Chart: Refer to vehicle manual or online resources for specific fuse sizes
- Amperage Rating: Match fuse amperage to circuit load to prevent overheating or damage
- Common Mistakes: Avoid using higher-rated fuses; always replace with correct size
- Testing Fuses: Use a multimeter to check if a fuse is blown or intact
- Upgrading Systems: Higher-power accessories may require larger fuses; consult an electrician
Fuse Size Chart: Refer to vehicle manual or online resources for specific fuse sizes
Selecting the correct fuse size for your car’s electrical system is critical to prevent damage and ensure safety. A fuse size chart is a valuable tool, but it’s not a one-size-fits-all solution. Vehicle manufacturers design electrical systems with specific amperage ratings, and using the wrong fuse can lead to blown fuses, electrical fires, or component failure. Always refer to your vehicle manual as the primary resource, as it provides precise fuse sizes for each circuit. If the manual is unavailable, reputable online resources such as manufacturer websites, automotive forums, or verified databases like the Fuse Box Diagram platform can offer accurate information tailored to your make, model, and year.
While generic fuse size charts exist, they often lack the granularity needed for modern vehicles. For instance, a chart might suggest a 10A fuse for interior lights, but your car may require a 7.5A fuse due to its LED system. This discrepancy highlights the importance of vehicle-specific data. Online resources like YouTube tutorials or automotive blogs can provide visual guides, but verify their credibility by cross-referencing with official sources. Remember, a fuse’s purpose is to protect the circuit, so using the correct size is non-negotiable.
If you’re unsure about fuse sizes, follow these steps: 1. Locate your vehicle’s fuse box diagram, typically found in the manual or on the fuse box cover. 2. Identify the circuit in question (e.g., headlights, radio, or fuel pump). 3. Note the recommended amperage rating. 4. Purchase a fuse of the exact size; never substitute with a higher-rated fuse, as this defeats the protective function. For example, if the manual specifies a 15A fuse for the stereo, using a 20A fuse could allow excessive current to flow, damaging the wiring.
A practical tip: Keep a spare fuse kit in your car, including common sizes like 5A, 10A, 15A, 20A, and 30A. Label each fuse with its amperage to avoid confusion. However, only replace a blown fuse with the correct size after identifying the root cause of the failure. Repeatedly blowing a fuse indicates an underlying issue, such as a short circuit or overloaded component, which requires professional diagnosis.
In conclusion, while a fuse size chart can provide a starting point, it’s no substitute for vehicle-specific information. Relying on your manual or trusted online resources ensures you use the correct fuse size, safeguarding your car’s electrical system and your safety. Treat fuses as precision tools—the right one fits perfectly, while the wrong one can cause chaos.
