Unraveling Ev Mysteries: A Guide To Diagnostic Techniques

Diagnosing electric vehicles (EVs) requires a unique set of skills and tools compared to traditional internal combustion engine vehicles. With their complex electrical systems, EVs can present unique challenges for mechanics and technicians. This guide will explore the essential steps and techniques for diagnosing and troubleshooting common issues in electric vehicles, covering topics such as battery health assessment, motor performance testing, and the use of specialized diagnostic equipment. Understanding these processes is crucial for maintaining and repairing the growing number of electric vehicles on the road.

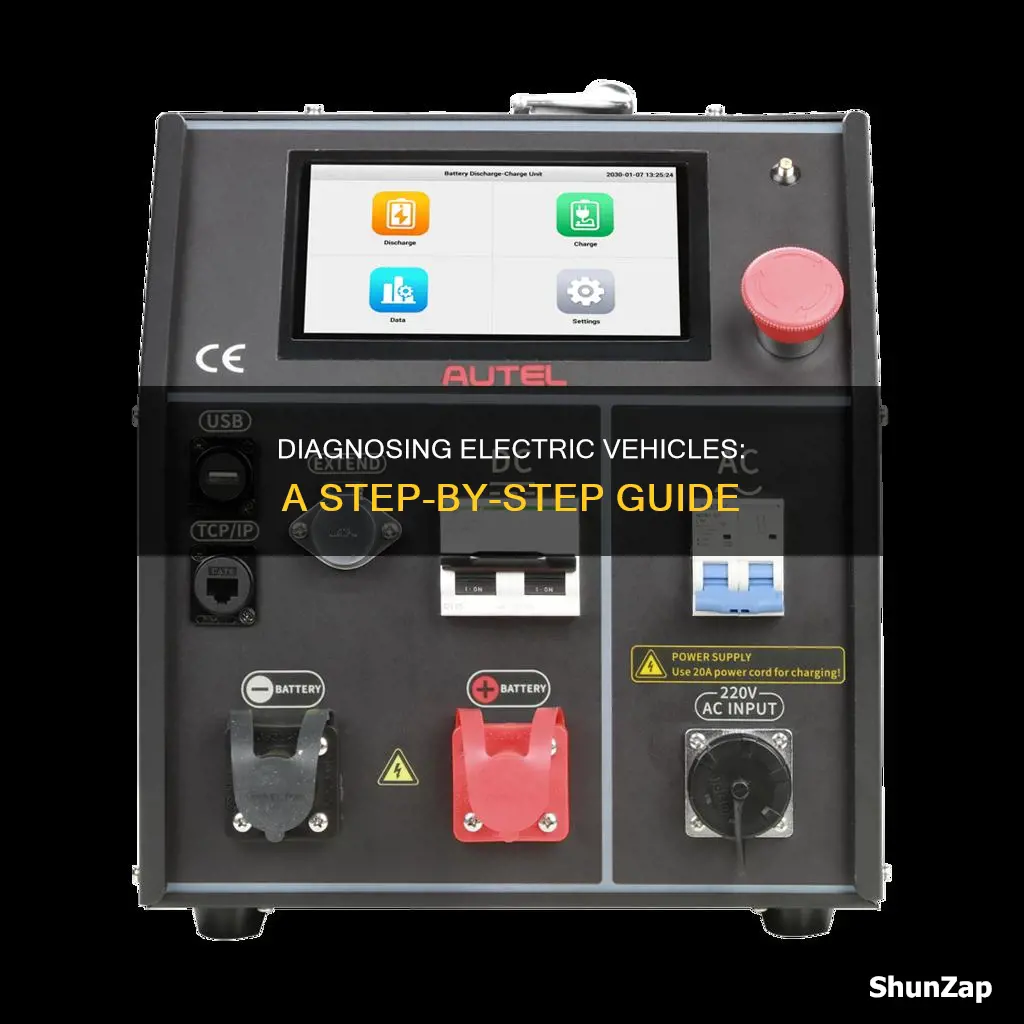

Battery Health: Check battery voltage, temperature, and capacity to assess performance

When it comes to diagnosing electric vehicles (EVs), one of the most critical aspects is assessing the health of the battery pack. The battery is the heart of an EV, and its performance directly impacts the vehicle's range, efficiency, and overall reliability. Here's a detailed guide on how to check and evaluate battery health, focusing on voltage, temperature, and capacity.

Voltage Inspection:

Battery voltage is a fundamental parameter that provides insights into its state of charge and overall health. Modern EVs are equipped with sophisticated battery management systems (BMS) that monitor and control voltage levels. To check the voltage, you can use a digital multimeter or a specialized EV diagnostic tool. Connect the multimeter to the battery terminals, ensuring proper polarity. The reading should correspond to the expected voltage for a fully charged battery, typically around 378-390 volts for a standard lithium-ion EV battery. If the voltage is significantly lower, it may indicate a discharged battery or potential issues with the BMS.

Temperature Monitoring:

Battery temperature is another crucial factor affecting performance and longevity. Excessive heat can degrade battery cells, while extremely low temperatures can reduce capacity. Most EVs have temperature sensors integrated into the battery pack, and the BMS displays this information. You can also check the temperature by feeling the battery pack or using a temperature gauge. Ideal operating temperatures for lithium-ion batteries are typically between 15°C and 30°C (59°F to 86°F). If the temperature is consistently above or below this range, it may require further investigation to identify potential cooling or heating system issues.

Capacity Testing:

Battery capacity, or the amount of energy it can store and deliver, is essential for determining its overall health. Over time, batteries may experience capacity degradation due to various factors, including age, usage patterns, and environmental conditions. You can perform a capacity test by fully charging the battery and then using a load tester or a specialized EV diagnostic tool to measure the current draw during discharge. Compare the test results with the manufacturer's specifications or previous test data to assess the battery's performance. A significant drop in capacity over a short period could indicate battery aging or potential cell imbalances.

Regularly monitoring these three parameters—voltage, temperature, and capacity—can help EV owners and technicians identify potential issues early on. It allows for timely maintenance, such as battery cooling system cleaning or even replacement, ensuring the EV's battery remains in optimal condition and maximizing its lifespan. Additionally, keeping the battery within the recommended temperature range and avoiding extreme charging or discharging can significantly contribute to preserving battery health.

Motor Diagnostics: Inspect motor current, voltage, and temperature for faults

When it comes to diagnosing electric vehicle (EV) motors, monitoring and analyzing motor current, voltage, and temperature is a crucial step in identifying potential issues. These parameters provide valuable insights into the motor's performance and can help pinpoint faults or malfunctions. Here's a detailed guide on how to inspect these critical aspects:

Motor Current Inspection: Start by examining the motor's current draw. Normal operation typically requires a steady and consistent current flow. Any significant deviations from the expected range could indicate a problem. For instance, if the current spikes unexpectedly, it might suggest a short circuit or a malfunctioning component. Conversely, a sudden drop in current could be a sign of a motor overload or a damaged inverter. Using a multimeter, you can measure the current at different operating points to establish a baseline and identify any anomalies.

Voltage Monitoring: Voltage is another critical parameter to assess. In an EV, the motor requires a specific voltage to function optimally. If the voltage drops below the required threshold, it can lead to reduced performance or even motor failure. Over time, voltage fluctuations or drops during acceleration or deceleration could indicate issues with the power electronics or the battery pack. By monitoring the voltage at various load conditions, you can ensure the motor receives the necessary power and detect any voltage-related problems.

Temperature Analysis: Motor temperature is a vital indicator of its health. Excessive heat can cause damage to the motor's windings and insulation over time. Elevated temperatures might be caused by high-load conditions, inefficient cooling systems, or internal resistance. Regularly checking the motor's temperature using thermal imaging or temperature probes can help identify hot spots and potential fault areas. It is essential to compare the temperature readings with the manufacturer's specifications to ensure the motor operates within safe limits.

By systematically inspecting motor current, voltage, and temperature, EV technicians can quickly identify and address potential issues. These diagnostic steps are fundamental to maintaining the performance and longevity of electric vehicle motors, ensuring a reliable and efficient driving experience. Regular monitoring of these parameters can also help prevent unexpected breakdowns and costly repairs.

Power Electronics: Test inverters and converters for efficiency and functionality

When it comes to diagnosing electric vehicles (EVs), understanding the power electronics, specifically the inverters and converters, is crucial. These components play a vital role in converting direct current (DC) from the battery to alternating current (AC) for the vehicle's electrical system and motors. Testing these devices for efficiency and functionality is essential to ensure optimal performance and identify potential issues.

To begin, it is important to familiarize yourself with the basic principles of inverters and converters. Inverters take DC power and convert it into AC power, which is suitable for running various electrical devices and motors. Converters, on the other hand, are used to adjust the voltage and current levels, ensuring the electrical system operates within safe and efficient parameters. Both components are critical to the overall performance and efficiency of the EV.

Testing the efficiency of inverters and converters involves measuring their power loss and ensuring they operate within the specified voltage and current ranges. This can be done using specialized test equipment, such as power analyzers or oscilloscopes, to accurately measure the input and output power. By comparing the measured values with the manufacturer's specifications, you can identify any deviations or inefficiencies. For example, if the inverter's output voltage is consistently lower than the required value, it may indicate a faulty component or a need for adjustment.

Functionality testing is another crucial aspect. This involves checking the proper operation of the inverter and converter under various load conditions. You can simulate different driving scenarios by applying specific loads, such as starting the vehicle, accelerating, or running accessories. During these tests, monitor the device's performance, including voltage, current, and temperature. Any abnormal behavior, such as excessive heat generation or voltage fluctuations, could indicate a malfunction.

Additionally, it is essential to inspect the wiring and connections associated with the power electronics. Loose or damaged connections can lead to increased resistance, affecting the overall efficiency and performance. Visual inspections and continuity tests can help identify any issues with the wiring harness. Furthermore, ensuring proper grounding and using high-quality connectors can minimize the risk of electrical problems.

In summary, diagnosing electric vehicles requires a comprehensive understanding of power electronics, particularly inverters and converters. By testing efficiency through power analysis and functionality through load simulations, you can identify potential issues. Regular maintenance and inspections of these components, along with proper wiring practices, contribute to the overall reliability and longevity of electric vehicles.

Sensor Calibration: Verify sensors like speed, temperature, and pressure for accuracy

Sensor calibration is a critical aspect of diagnosing and maintaining electric vehicles (EVs) to ensure optimal performance and safety. This process involves verifying the accuracy of various sensors that provide essential data for the vehicle's operation. Here's a detailed guide on how to approach sensor calibration for EVs, focusing on speed, temperature, and pressure sensors:

Speed Sensor Calibration:

• Begin by understanding the vehicle's speed sensor, which is crucial for accurate speed measurement and control. This sensor is typically located near the wheels and measures rotational speed.
• To calibrate, you'll need a precision speedometer or a device that can simulate a known speed. Drive the EV on a flat, straight surface and ensure the vehicle is stationary.
• Compare the simulated speed with the vehicle's speedometer reading. Adjust the sensor if there's a discrepancy. This might involve tightening or replacing the sensor wiring to ensure proper connection.
• For more advanced EVs, you might need to access the vehicle's onboard computer or diagnostic system to adjust sensor parameters. This could include setting the speed sensor's calibration value to match the actual speed.

Temperature Sensor Verification:

• Temperature sensors in EVs are vital for monitoring battery temperature, engine cooling, and overall system health. These sensors provide critical data for efficient operation and safety.
• Calibration involves ensuring the sensor provides accurate temperature readings. You can use a precision thermometer or a temperature-controlled environment for testing.
• Place the sensor in different areas of the vehicle, such as near the battery pack or engine compartment, and measure the temperature. Compare these readings with known temperatures to ensure accuracy.
• If the sensor readings are off, you may need to adjust the sensor's position or clean any dirt or debris that might affect its performance. In some cases, replacing the sensor might be necessary if it is faulty.

Pressure Sensor Accuracy:

• Pressure sensors in EVs are commonly used for tire pressure monitoring and battery pressure management. Accurate pressure readings are essential for safety and performance.
• To calibrate, you can use a precision pressure gauge or a controlled environment to simulate different pressure levels.
• Test the tire pressure sensors by inflating the tires to various pressures and comparing the sensor readings with the actual pressure. Adjust the sensor's calibration if needed.
• For battery pressure sensors, ensure they provide accurate readings by simulating different battery states. This might involve using a controlled environment or specialized equipment to mimic high and low-pressure conditions.

When performing sensor calibration, it's essential to consult the vehicle's service manual or manufacturer's guidelines. Each EV model may have specific procedures and tools required for accurate calibration. Additionally, regular sensor maintenance and calibration can help extend the vehicle's lifespan and ensure reliable performance. By verifying the accuracy of speed, temperature, and pressure sensors, you can effectively diagnose and maintain electric vehicles, contributing to their overall efficiency and safety.

Software Updates: Ensure software is up-to-date for optimal performance and bug fixes

Maintaining the software of an electric vehicle (EV) is crucial for its optimal performance, longevity, and safety. Just like any other electronic device, EVs rely on sophisticated software systems to manage various functions, from battery management to driving assistance features. Regular software updates are essential to ensure that your EV remains in top condition and to address any potential issues that may arise over time.

Software updates often include performance enhancements, bug fixes, and security patches. These updates can improve the overall efficiency of your EV, ensuring that it operates smoothly and reliably. For instance, updates might optimize battery charging algorithms, resulting in faster charging times and improved range. They can also fix software glitches that may cause unexpected behavior, such as sudden power loss or erratic responses to driver inputs. By keeping your EV's software up-to-date, you can minimize the risk of unexpected breakdowns and ensure a seamless driving experience.

Manufacturers often release software updates to address specific issues reported by customers or identified through internal testing. These updates can be critical in resolving problems that might otherwise impact the vehicle's performance and safety. For example, a software patch might be released to fix a bug that causes the EV to lose power steering assistance at high speeds, ensuring better control and safety for the driver. Staying informed about and promptly installing these updates is essential to maintain the reliability of your EV.

In addition to performance and bug fixes, software updates can also introduce new features and enhancements. These might include improved navigation systems, updated entertainment software, or the addition of new driver-assistance technologies. By keeping your EV's software current, you can take advantage of the latest innovations and ensure that your vehicle remains competitive and technologically advanced.

To ensure your EV's software is up-to-date, it's recommended to regularly check for updates through the vehicle's infotainment system or the manufacturer's website. Many modern EVs provide automatic software updates, ensuring that your vehicle always runs the latest version of the software. However, if you prefer manual updates, you can follow the manufacturer's guidelines to download and install the updates safely. Regularly updating your EV's software is a simple yet effective way to maintain its performance, safety, and overall driving experience.
