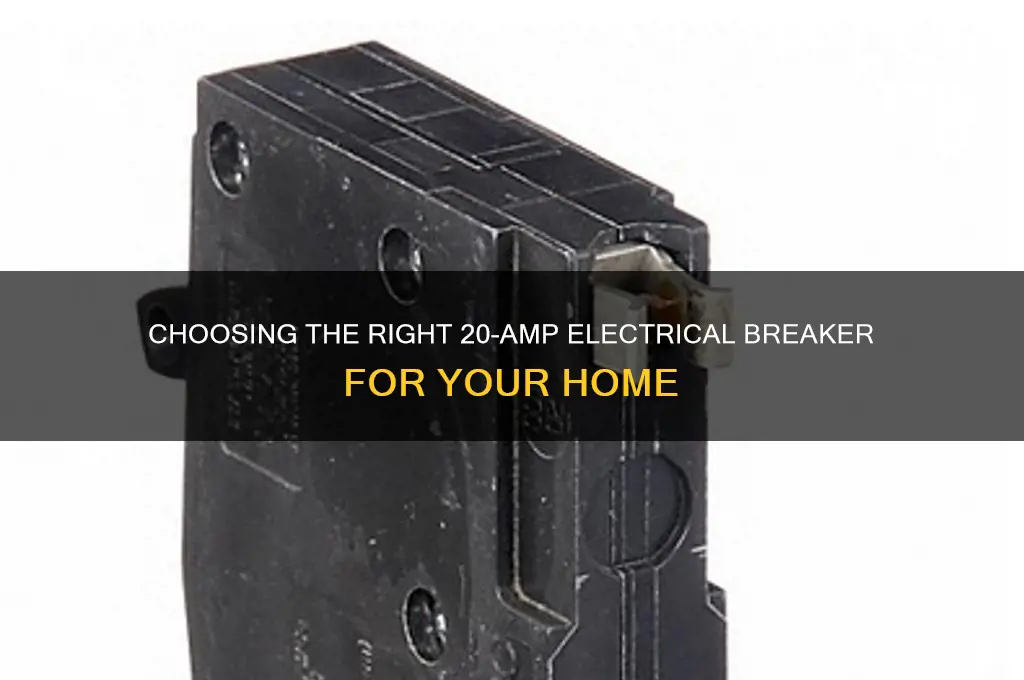

When selecting an electrical breaker for a 20-amp circuit, it’s crucial to choose a breaker that matches the amperage rating to ensure safety and proper functionality. A 20-amp breaker is commonly used for circuits powering high-demand appliances like microwaves, refrigerators, or dedicated outlets for power tools. It’s essential to use a single-pole 20-amp breaker for standard 120-volt circuits, ensuring it is compatible with your electrical panel. Additionally, consider factors such as the breaker’s interrupt rating (typically 10,000 AIC or higher for residential use) and whether it meets local electrical codes. Always consult a licensed electrician if you’re unsure about installation or compatibility to avoid overloading the circuit and potential hazards.
Explore related products
What You'll Learn
- Breaker Types: Standard vs. GFCI vs. AFCI for 20-amp circuits
- Wire Gauge: Suitable wire size for 20-amp breakers (e.g., 12 AWG)
- Brand Recommendations: Top brands for reliable 20-amp breakers (e.g., Square D, Siemens)
- Installation Tips: Proper installation steps for 20-amp breakers in panels
- Safety Standards: NEC compliance for 20-amp breaker usage in residential settings
Breaker Types: Standard vs. GFCI vs. AFCI for 20-amp circuits
When selecting a 20-amp electrical breaker, understanding the differences between standard, GFCI (Ground Fault Circuit Interrupter), and AFCI (Arc Fault Circuit Interrupter) breakers is crucial. Standard breakers are the most common type and are designed to protect circuits from overcurrent and short circuits. For a 20-amp circuit, a standard breaker will trip when the current exceeds 20 amps, preventing overheating and potential fire hazards. These breakers are ideal for general-purpose circuits, such as lighting and receptacles in living areas, where ground faults or arc faults are less likely to occur. However, they do not provide protection against ground faults or arc faults, which is where GFCI and AFCI breakers come into play.
GFCI breakers are specifically engineered to protect against ground faults, which occur when electrical current leaks to the ground instead of flowing through the intended circuit. This type of breaker is essential in areas where water and electricity may come into contact, such as kitchens, bathrooms, and outdoor receptacles. For a 20-amp circuit in these locations, a GFCI breaker will trip if it detects a current leakage as small as 4-6 milliamps, significantly reducing the risk of electrical shock. While GFCI breakers are more expensive than standard breakers, they are a critical safety feature in wet or damp environments. It’s important to note that GFCI breakers do not protect against arc faults, which is where AFCI breakers are necessary.
AFCI breakers are designed to detect and mitigate arc faults, which are dangerous electrical discharges that can occur when wires are damaged, overheated, or improperly installed. Arc faults are a leading cause of electrical fires, making AFCI breakers a vital safety upgrade, especially in bedrooms and other living areas. For a 20-amp circuit, an AFCI breaker monitors the electrical waveform and will trip if it detects the irregular patterns characteristic of an arc fault. While AFCI breakers are more complex and costly than standard or GFCI breakers, they provide an additional layer of protection against fire hazards. AFCI breakers are required by the National Electrical Code (NEC) in many residential areas, particularly for bedroom circuits.
When deciding between these breaker types for a 20-amp circuit, consider the specific application and safety requirements. Standard breakers are sufficient for general-purpose circuits where ground or arc faults are unlikely. GFCI breakers are mandatory in areas with a higher risk of ground faults, such as kitchens and bathrooms. AFCI breakers are essential in living spaces to prevent fires caused by arc faults. In some cases, combination AFCI/GFCI breakers are available, offering both arc fault and ground fault protection in a single device, which can be a practical solution for circuits requiring both types of protection.
Lastly, it’s important to ensure that the breaker you choose is compatible with your electrical panel and meets local building codes. Always consult the NEC or a licensed electrician to determine the appropriate breaker type for your 20-amp circuit. Proper installation and regular testing of GFCI and AFCI breakers are also critical to maintaining their effectiveness. By selecting the right breaker type, you can enhance the safety and reliability of your electrical system.
Brazil's Electrical Standard: Understanding the Country's Electric Current Usage
You may want to see also
Explore related products
Wire Gauge: Suitable wire size for 20-amp breakers (e.g., 12 AWG)
When selecting the appropriate wire gauge for a 20-amp breaker, it’s crucial to prioritize safety and efficiency. The National Electrical Code (NEC) provides guidelines to ensure the wire size matches the amperage rating of the circuit. For a 20-amp breaker, the most commonly recommended wire gauge is 12 AWG (American Wire Gauge). This size is suitable because it can safely handle the current without overheating, which is a critical factor in preventing electrical fires and ensuring the longevity of the wiring system. Using a wire gauge that is too small (e.g., 14 AWG) for a 20-amp circuit can lead to excessive heat buildup, while a larger gauge (e.g., 10 AWG) is unnecessary and more expensive.
The choice of 12 AWG wire for 20-amp breakers is based on its current-carrying capacity and resistance. According to the NEC, 12 AWG copper wire is rated for up to 20 amps under normal conditions. This rating takes into account factors such as ambient temperature, insulation type, and the number of conductors in a conduit. For example, if the wire is installed in a conduit with multiple other wires, the ampacity may need to be derated to account for heat dissipation. However, in most residential applications, 12 AWG is the standard and safe choice for 20-amp circuits.
It’s important to note that the wire gauge must be consistent throughout the entire circuit. Mixing wire sizes, such as using 12 AWG for part of the circuit and 14 AWG for another, can create hazards and violate electrical codes. Additionally, the wire insulation must be rated for the application, such as THHN (Thermoplastic High Heat-resistant Nylon-coated) for indoor wiring or UF-B (Underground Feeder) for outdoor or underground installations. Always ensure the wire and insulation are appropriate for the environment in which they will be used.
While 12 AWG is the standard for 20-amp breakers, there are exceptions and special considerations. For instance, in marine or industrial applications, different wire types or gauges may be required due to harsher conditions or specific regulations. Always consult local electrical codes and, if necessary, a licensed electrician to ensure compliance and safety. Proper wire selection is not just about meeting the minimum requirements but also about ensuring the system operates reliably and safely over its lifespan.
Lastly, when installing wiring for a 20-amp circuit, consider the overall load and the number of devices connected. While 12 AWG is suitable for the breaker’s rating, overloading the circuit with too many devices can still cause issues. Use the 80% rule as a guideline: the total load on the circuit should not exceed 80% of the breaker’s rating (16 amps for a 20-amp breaker). This ensures the circuit operates within safe limits and reduces the risk of tripping the breaker or causing damage. Proper planning and adherence to these guidelines will result in a safe and efficient electrical system.
