When dealing with electrical issues, identifying a broken wire is crucial for safety and functionality. To check for a broken electrical wire, you can use a multimeter, which measures continuity and resistance, or a voltage tester to detect live currents. Additionally, visual inspection for exposed or frayed wires, along with listening for buzzing or crackling sounds, can provide early clues. For more complex systems, a circuit tracer or thermal imaging camera can pinpoint hidden breaks. Always ensure power is off before testing to avoid hazards.
| Characteristics | Values |
|---|---|
| Tools for Detection | Multimeter, Voltage Tester, Circuit Tester, Tone Generator, Thermal Camera |
| Multimeter Functionality | Continuity Test, Voltage Measurement, Resistance Check |
| Voltage Tester Types | Non-Contact Voltage Tester, Contact Voltage Tester |
| Circuit Tester Use | Identifies breaks in wiring by checking for complete circuits |

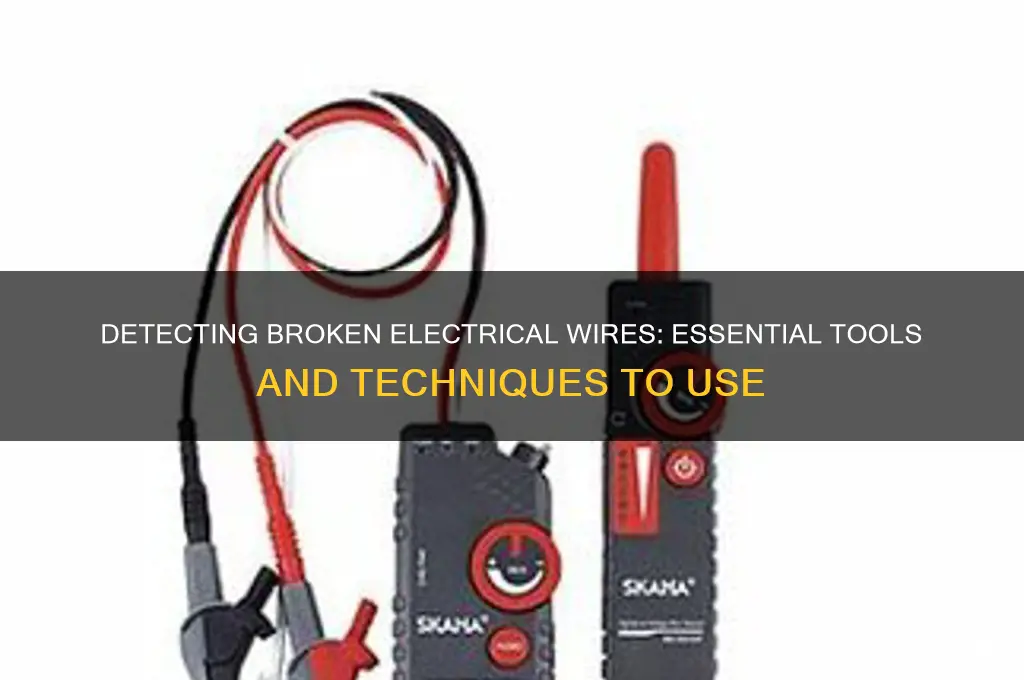

| Tone Generator Application | Traces wires and identifies breaks by sending a tone through the circuit |
| Thermal Camera Use | Detects hot spots caused by resistance in broken or damaged wires |
| Visual Inspection | Check for visible damage, fraying, or exposed wires |
| Audible Continuity Test | Beep indicates unbroken wire; no beep suggests a break |
| Safety Precautions | Turn off power, use insulated tools, wear protective gear |
| Professional Assistance | Recommended for complex or high-voltage systems |
Explore related products
What You'll Learn
- Visual Inspection: Look for visible damage, fraying, or exposed wires
- Multimeter Testing: Use a multimeter to check continuity and identify breaks
- Voltage Tester: Detect live wires and locate breaks in circuits
- Insulation Tester: Assess wire insulation integrity to find hidden faults
- Thermal Imaging: Identify hot spots caused by broken or damaged wires
Visual Inspection: Look for visible damage, fraying, or exposed wires
When conducting a Visual Inspection to check for broken electrical wires, start by ensuring the power is turned off to the circuit or device you’re examining. Safety is paramount, as live wires can cause severe injury or damage. Once the power is off, carefully examine the wires for any visible damage, such as cracks, cuts, or abrasions in the insulation. Damaged insulation can expose the conductive core, leading to short circuits or electrical hazards. Pay close attention to areas where wires bend frequently, as these spots are prone to wear and tear. Use a bright flashlight to illuminate dark areas and ensure no detail is missed.
Next, look for fraying in the wire’s insulation or conductor. Fraying occurs when the wire’s strands become separated or the insulation begins to unravel. This is a clear sign of deterioration and can lead to exposed wires or breaks. Fraying is often caused by age, improper handling, or environmental factors like moisture or heat. If you notice any fraying, the wire should be replaced immediately to prevent further damage or potential electrical failure.
Exposed wires are another critical issue to identify during a visual inspection. These occur when the insulation is completely worn away, leaving the conductive material bare. Exposed wires pose a significant risk of electrical shock, sparks, or fires. Inspect connections, terminals, and areas where wires pass through tight spaces, as these are common spots for insulation to degrade. If you find exposed wires, disconnect the power and repair or replace the wire before restoring power.
During your inspection, also check for discoloration or burn marks on the wires or surrounding materials. These signs indicate overheating, which can be caused by loose connections, overloading, or damaged wires. Discolored wires are often brittle and prone to breaking, so they should be treated as a serious warning sign. Additionally, look for loose connections or wires that appear to be pulled too tightly, as both can cause stress and lead to breaks over time.
Finally, inspect the environment where the wires are located. Wires exposed to moisture, extreme temperatures, or physical impact are more likely to sustain damage. For outdoor wires, check for signs of weathering, such as cracking or brittleness in the insulation. Indoor wires should be examined for damage from pests, such as rodents chewing on the insulation. By systematically examining these factors, a thorough visual inspection can effectively identify broken or damaged electrical wires before they cause larger problems.
Automotive Relays: Essential Components for Safe, Efficient Electrical Systems
You may want to see also
Explore related products
Multimeter Testing: Use a multimeter to check continuity and identify breaks
Multimeter testing is one of the most effective and reliable methods to check for broken electrical wires. A multimeter is a versatile tool that can measure voltage, current, and resistance, but for identifying breaks in a wire, the continuity test is the key function to use. Continuity testing checks if an electrical circuit is complete, allowing current to flow without interruption. If the wire is broken, the multimeter will indicate a lack of continuity, helping you pinpoint the issue. This method is straightforward and requires minimal tools, making it accessible for both professionals and DIY enthusiasts.
To begin testing for a broken wire using a multimeter, first ensure the power to the circuit is turned off to avoid any risk of electrical shock. Set your multimeter to the continuity setting, often denoted by a symbol that looks like a series of waves or a diode. This setting measures the resistance between two points and emits a beep or shows a reading of zero ohms if the circuit is continuous. If the wire is broken, the multimeter will display a high resistance reading or remain silent, indicating a break in the circuit. Always double-check the multimeter’s settings and ensure the probes are in good condition before starting.
Next, connect the multimeter probes to the wire you’re testing. Touch one probe to each end of the wire or the terminals of the circuit. If the wire is intact, the multimeter will beep or show a low resistance reading, confirming continuity. If there’s no beep or the resistance reading is high, it suggests a break in the wire. In such cases, you’ll need to inspect the wire more closely to locate the exact point of the break. This method is particularly useful for long wires or cables where visual inspection alone is insufficient.
For more complex wiring systems, such as those in vehicles or appliances, you may need to isolate sections of the wire to narrow down the location of the break. Disconnect one end of the wire and test each segment individually. This step-by-step approach helps identify the specific area where continuity is lost. Once the break is located, you can either repair the wire by splicing it or replace the damaged section entirely. Always ensure the repair is secure and insulated to prevent future issues.
In addition to identifying breaks, a multimeter can also help diagnose other issues like loose connections or corrosion that might mimic a broken wire. By systematically testing different points along the circuit, you can gather more information about the wire’s condition. This comprehensive approach ensures that you not only find the break but also address any underlying problems that could cause similar symptoms. Multimeter testing is a precise and efficient way to troubleshoot electrical issues, making it an indispensable tool for anyone working with wiring systems.
Electric Cars: Cost vs. Reliability – Which Wins Long-Term?
You may want to see also
Explore related products
Voltage Tester: Detect live wires and locate breaks in circuits
A voltage tester is an essential tool for anyone looking to identify broken electrical wires or diagnose issues in circuits. This handheld device is designed to detect the presence of voltage in wires and outlets, making it a crucial instrument for both professionals and DIY enthusiasts. When dealing with electrical systems, safety is paramount, and a voltage tester provides a non-contact or low-contact method to check for live wires, reducing the risk of electric shock. Its primary function is to confirm whether a wire is live (carrying current) or dead, which is the first step in locating a break in the circuit.
To use a voltage tester for detecting broken wires, start by ensuring the power to the circuit is turned on, as the tester relies on detecting voltage. Most voltage testers have a simple interface with indicator lights or a digital display. For non-contact testers, hold the device near the wire or outlet; if voltage is present, the tester will beep or light up, indicating a live wire. For contact testers, carefully touch the probe to the wire’s exposed end or terminal. If the tester shows no voltage, it suggests the wire is dead, which could indicate a break in the circuit. Always test multiple points along the wire to pinpoint the exact location of the break.
Voltage testers are particularly useful for locating breaks in circuits because they allow you to systematically check each segment of the wiring. Begin at the power source and work your way through the circuit, testing at regular intervals. When the tester fails to detect voltage at a certain point but shows voltage before that point, you’ve likely found the break. This methodical approach ensures accuracy and helps avoid unnecessary repairs or replacements. Additionally, some advanced voltage testers can measure voltage levels, providing further insight into the circuit’s condition.
Another advantage of using a voltage tester is its versatility. It can be used on various types of wiring, including household electrical systems, automotive circuits, and even low-voltage applications like thermostats or doorbells. When dealing with complex wiring systems, a voltage tester helps isolate the problem area quickly, saving time and effort. However, it’s important to choose the right type of voltage tester for the job. For high-voltage systems, opt for a tester with a higher voltage range, while low-voltage testers are suitable for delicate electronics.
In summary, a voltage tester is an indispensable tool for detecting live wires and locating breaks in circuits. Its ease of use, safety features, and precision make it ideal for troubleshooting electrical issues. By systematically testing wires and identifying where voltage drops off, you can efficiently locate and repair broken wires, ensuring the safety and functionality of your electrical systems. Always follow safety guidelines, such as wearing insulated gloves and ensuring the tester is properly calibrated, to minimize risks while working with electricity.
Electric Car Maintenance Costs: Are They Really Budget-Friendly?
You may want to see also
Explore related products
Insulation Tester: Assess wire insulation integrity to find hidden faults
An insulation tester, also known as a megohmmeter or insulation resistance tester, is a specialized tool designed to assess the integrity of wire insulation by measuring its resistance. This device is crucial for identifying hidden faults in electrical wiring that may not be immediately apparent through visual inspection. By applying a high voltage (typically 500V to 5000V) across the wire, the insulation tester quantifies the insulation's ability to resist electrical current flow. A high resistance reading indicates good insulation, while a low reading suggests degradation, damage, or moisture infiltration, which could lead to short circuits or electrical failures.
To use an insulation tester effectively, start by disconnecting the power supply to the wire being tested to ensure safety. Connect the tester's terminals to the conductor and the ground or return path of the wire. Activate the tester to apply the high voltage and observe the resistance value displayed. Compare this reading to the expected insulation resistance for the type of wire and its operating environment. For example, a healthy wire might show resistance in the megohm (MΩ) range, while a faulty one could register in kilohms (kΩ) or lower. Regular testing with an insulation tester is particularly valuable in industrial settings, older buildings, or environments prone to moisture, where insulation degradation is more likely.
One of the key advantages of an insulation tester is its ability to detect issues before they escalate into critical failures. For instance, it can identify insulation weakened by heat, mechanical stress, or chemical exposure, which might not yet cause a complete break in the wire. This proactive approach helps prevent downtime, reduces repair costs, and enhances safety by minimizing the risk of electrical fires or shocks. Additionally, insulation testers often include features like adjustable test voltages, data logging, and diagnostic modes, allowing for tailored and comprehensive assessments.
When selecting an insulation tester, consider factors such as the voltage range, accuracy, portability, and additional functionalities like polarization index (PI) or dielectric absorption ratio (DAR) measurements. These advanced metrics provide deeper insights into insulation health, such as how well the material recovers from the applied voltage. For DIY users or small-scale applications, a basic handheld tester may suffice, while professionals in industrial or commercial settings might require a more robust, feature-rich model.
In conclusion, an insulation tester is an indispensable tool for assessing wire insulation integrity and uncovering hidden faults in electrical systems. Its ability to measure insulation resistance under high voltage conditions makes it highly effective for preventive maintenance and troubleshooting. By incorporating regular insulation testing into electrical maintenance routines, individuals and organizations can ensure the longevity, safety, and reliability of their wiring infrastructure. Whether for residential, commercial, or industrial use, investing in an insulation tester is a proactive step toward safeguarding electrical systems from potential failures.
Luffy's Electric Punch: Unlocking the Power of Gomu Gomu no Mi
You may want to see also
Explore related products
Thermal Imaging: Identify hot spots caused by broken or damaged wires
Thermal imaging is a highly effective and non-invasive method to detect broken or damaged electrical wires by identifying hot spots that indicate potential issues. This technique utilizes infrared cameras to capture temperature variations in electrical systems, allowing you to pinpoint areas of concern without physical contact. When an electrical wire is broken or damaged, it often creates resistance, which generates heat. This heat manifests as a hot spot, visible through a thermal imaging camera, making it a powerful tool for diagnosing electrical problems.
To use thermal imaging for detecting broken wires, start by ensuring the electrical system is under load, as this will highlight temperature differences more clearly. Turn on the circuit or device you are inspecting to allow current to flow through the wires. Next, position the thermal imaging camera to scan the area where the wires are located. The camera will display a color-coded image, with warmer areas appearing in brighter colors (like red or yellow) and cooler areas in darker colors (like blue or black). Look for anomalies such as hot spots along the wiring, connections, or components, as these can indicate a broken or damaged wire.
When interpreting the thermal images, pay close attention to areas where wires are spliced, connected to terminals, or pass through tight spaces, as these are common locations for damage. A hot spot at a connection point may suggest a loose or corroded terminal, while a hot spot along the wire itself could indicate a break or fraying. It’s important to compare the temperatures of similar components or wires in the same circuit to establish a baseline and identify deviations. For example, if one wire in a bundle is significantly hotter than the others, it’s likely the source of the issue.
Thermal imaging is particularly useful in hard-to-reach or concealed areas, such as inside walls, ceilings, or electrical panels, where visual inspection is impractical. It can also detect issues in live systems without the need to shut down power, minimizing disruption. However, it’s essential to use the tool correctly and understand its limitations. Factors like ambient temperature, reflective surfaces, and the distance between the camera and the target can affect the accuracy of the readings. Always consult the camera’s manual and follow safety guidelines when performing thermal inspections.
In addition to identifying broken wires, thermal imaging can also reveal other electrical problems, such as overloaded circuits, faulty breakers, or malfunctioning components. By regularly incorporating thermal imaging into your maintenance routine, you can proactively address potential issues before they escalate into costly or dangerous failures. Investing in a quality thermal imaging camera and learning to interpret its results can save time, reduce downtime, and enhance the safety and efficiency of your electrical systems.
Electric Vehicles in Iowa City: Exploring Their Numbers
You may want to see also
Frequently asked questions
You can use a multimeter, voltage tester, or continuity tester to check for broken electrical wires.
A multimeter measures continuity, resistance, or voltage, allowing you to determine if a wire is broken by checking for an open circuit or lack of electrical flow.
While visual inspection can reveal obvious damage, it may not detect internal breaks or loose connections, so using a testing tool is recommended.
A continuity tester checks if a circuit is complete. If the wire is broken, the tester will not beep or show continuity, indicating a problem.
Yes, non-contact voltage testers can detect live wires but may not directly identify breaks. For broken wires, a multimeter or continuity tester is more effective.
