When wiring a 50-amp hot tub, it’s crucial to use the appropriate materials to ensure safety, efficiency, and compliance with electrical codes. The primary components include a 50-amp double-pole GFCI breaker, 6-gauge (6 AWG) copper wiring rated for outdoor and wet locations, and a weatherproof disconnect box for easy shutoff. Additionally, a non-metallic conduit or direct burial cable is recommended to protect the wiring from environmental damage. Always consult local building codes and hire a licensed electrician to ensure proper installation, as incorrect wiring can pose serious risks such as electrical shock or fire hazards.
| Characteristics | Values |
|---|---|
| Wire Gauge | 6 AWG (American Wire Gauge) |
| Wire Type | Copper, THHN/THWN-2 (stranded or solid) |
| Circuit Breaker | 50A double-pole breaker |
| Conduit Size | 1.25" (for 6 AWG wire) |
| Voltage | 240V |
| Grounding | Required: 6 AWG bare copper or green insulated wire |
| GFCI Protection | Required: 50A GFCI breaker or standalone GFCI |
| Disconnect | Required within sight of the hot tub (e.g., spa panel or disconnect box) |
| Receptacle (if used) | 50A 4-prong (NEMA 6-50R) |
| Maximum Circuit Length | Depends on local code, typically up to 50 feet |
| Load Calculation | Dedicated circuit, no other devices allowed on the same breaker |
| Permits | Required: Check local electrical codes and obtain permits |
| Installation | Must be done by a licensed electrician |
| Outdoor Rating | Use UF-B cable if wiring is exposed to outdoor elements |
| Safety Compliance | NEC (National Electrical Code) and local regulations |
Explore related products
What You'll Learn
- Wire Gauge Requirements: Use 6 AWG copper or 4 AWG aluminum wires for 50A hot tub circuits
- Breaker and GFCI: Install a 50A double-pole GFCI breaker for safety and code compliance
- Conduit and Cable: Use UF-B cable or conduit-protected wires for outdoor hot tub installations
- Disconnect Panel: Include a dedicated disconnect panel within sight of the hot tub
- Grounding and Bonding: Ensure proper grounding with an 8 AWG copper wire and bonding all metal components
Wire Gauge Requirements: Use 6 AWG copper or 4 AWG aluminum wires for 50A hot tub circuits
When wiring a 50A hot tub, selecting the correct wire gauge is critical to ensure safety, efficiency, and compliance with electrical codes. The National Electrical Code (NEC) specifies that 6 AWG copper wire or 4 AWG aluminum wire must be used for 50A hot tub circuits. This requirement is based on the current-carrying capacity of the wires and their ability to handle the load without overheating. Copper wire is generally preferred due to its higher conductivity, but aluminum wire can be used as a cost-effective alternative, provided it is the appropriate gauge.
The choice between copper and aluminum wire depends on factors such as cost, availability, and local electrical codes. 6 AWG copper wire is the standard recommendation for 50A circuits because it can safely handle the amperage required by most hot tubs. Copper has lower resistance than aluminum, allowing for efficient power transmission and minimizing energy loss. If aluminum wire is used, 4 AWG is necessary to compensate for its lower conductivity. Always ensure the wire is rated for wet or outdoor environments, as hot tubs are often installed outside or in moisture-prone areas.
It’s essential to verify the hot tub’s electrical requirements before installation, as some models may have specific recommendations. However, for a standard 50A hot tub, adhering to the 6 AWG copper or 4 AWG aluminum guideline is a safe and reliable approach. Using a smaller gauge wire can lead to overheating, voltage drop, or even electrical fires, while a larger gauge wire, though safer, is unnecessary and more expensive. Always consult the hot tub manufacturer’s instructions and local building codes to ensure compliance.
Proper installation also involves using the correct type of cable, such as UF-B (underground feeder) for outdoor installations or NM-B (non-metallic sheathed cable) for indoor or dry locations. The wire must be protected by a ground fault circuit interrupter (GFCI) and connected to a dedicated 50A double-pole breaker in the main electrical panel. Additionally, the wiring should be installed in a conduit if buried or exposed to protect it from damage and environmental factors.
In summary, for a 50A hot tub circuit, 6 AWG copper wire or 4 AWG aluminum wire is the NEC-approved standard. This ensures the wiring can safely handle the electrical load while maintaining efficiency and longevity. Always prioritize safety by following manufacturer guidelines, local codes, and best practices for electrical installations. If in doubt, consult a licensed electrician to ensure the wiring is done correctly and securely.
Electric vs. Gas: Are Electric Cars Heavier Than Regular Cars?
You may want to see also
Explore related products
Breaker and GFCI: Install a 50A double-pole GFCI breaker for safety and code compliance
When wiring a 50A hot tub, one of the most critical components to ensure safety and code compliance is the installation of a 50A double-pole GFCI (Ground Fault Circuit Interrupter) breaker. This breaker is specifically designed to protect against electrical hazards such as ground faults and short circuits, which are common risks in wet environments like hot tubs. The double-pole configuration ensures that both hot wires in the 240V circuit are protected, providing comprehensive safety for the hot tub's electrical system. Without a GFCI breaker, the risk of electrical shock or equipment damage increases significantly, making this component non-negotiable for any hot tub installation.
Selecting the correct breaker is the first step in this process. A 50A double-pole GFCI breaker is required to match the hot tub's electrical demands and comply with the National Electrical Code (NEC). Ensure the breaker is rated for the voltage of your system, typically 240V for hot tubs. The GFCI functionality is crucial because it can detect small imbalances in the electrical current and immediately shut off power to prevent accidents. When purchasing, verify that the breaker is UL-listed and compatible with your electrical panel to ensure reliability and safety.
Installation of the breaker must be done carefully and in accordance with local electrical codes. Begin by turning off the main power to the electrical panel to avoid any risk of shock. Locate an appropriate slot in the panel for the double-pole breaker, ensuring it aligns with the hot tub's dedicated circuit. Connect the breaker to the bus bars in the panel, following the manufacturer's instructions. The GFCI breaker will have a test and reset button, which should be tested after installation to confirm it is functioning correctly. Proper labeling of the breaker is also essential for future maintenance and safety inspections.
Wiring the hot tub to the GFCI breaker requires the use of 6 AWG copper wire for a 50A circuit, as specified by the NEC. This wire size ensures minimal voltage drop and safe operation under the hot tub's load. The wiring should include three conductors: two hot wires (typically black and red) and one ground wire (green or bare copper). The neutral wire is not required for a 240V hot tub circuit. Connect the wires to the corresponding terminals on the GFCI breaker, ensuring tight connections to prevent overheating. The ground wire must be securely attached to the panel's grounding bus and the hot tub's grounding terminal to complete the safety circuit.
Finally, after installation, it is imperative to test the entire system thoroughly. Turn the power back on and verify that the hot tub operates correctly. Use a multimeter to check voltage at the hot tub terminals to ensure proper power delivery. Test the GFCI breaker by pressing the "test" button to confirm it trips and cuts power as intended. Regularly testing the GFCI functionality is essential to maintain safety over time. By following these steps and adhering to code requirements, you ensure a safe and compliant electrical installation for your 50A hot tub.
The Launch of Tesla's First Electric Vehicle
You may want to see also
Explore related products
Conduit and Cable: Use UF-B cable or conduit-protected wires for outdoor hot tub installations
When wiring a 50A hot tub for outdoor installation, selecting the right conduit and cable is critical for safety, durability, and compliance with electrical codes. UF-B (Underground Feeder-B) cable is the most commonly recommended option for this purpose. UF-B cable is specifically designed for direct burial in the ground and is resistant to moisture, corrosion, and temperature fluctuations, making it ideal for outdoor hot tub installations. Its outer jacket is durable and can withstand exposure to soil, water, and sunlight, ensuring long-term reliability. UF-B cable is available in various gauges, but for a 50A hot tub, you will typically need a 6-gauge cable to handle the amperage safely.
If UF-B cable is not used, conduit-protected wires are another viable option. Conduit provides an additional layer of protection for the wires, shielding them from physical damage, moisture, and environmental hazards. For outdoor hot tub installations, rigid PVC conduit is often used due to its resistance to corrosion and ease of installation. The wires inside the conduit must be rated for wet locations, such as THHN or THWN-2 wires, which are insulated to handle moisture and temperature changes. Using conduit also allows for easier inspection and maintenance of the wiring system, as the wires can be pulled out and replaced if needed.
When installing UF-B cable or conduit-protected wires, it’s essential to follow local electrical codes and manufacturer guidelines. The cable or conduit must be buried at the correct depth, typically 18 to 24 inches below ground level, to protect it from damage and ensure safety. Additionally, the wiring must be properly grounded, and a ground fault circuit interrupter (GFCI) should be installed to prevent electrical shocks. The disconnect panel or breaker box should be located within sight of the hot tub but at a safe distance to avoid water exposure.
For conduit installations, ensure that the conduit is securely anchored and properly sealed at all entry and exit points to prevent water intrusion. Conduit bends must be gradual to avoid damaging the wires inside, and all connections should be made with waterproof fittings. If using UF-B cable, avoid sharp bends and ensure the cable is not pinched or damaged during installation. Both methods require careful planning and execution to meet safety standards and ensure the hot tub operates reliably.
Lastly, hiring a licensed electrician is highly recommended for 50A hot tub installations, as they can ensure the wiring is done correctly and complies with all local regulations. While UF-B cable and conduit-protected wires are both suitable options, the choice depends on factors such as local codes, installation environment, and personal preference. Regardless of the method chosen, prioritizing safety and durability will result in a secure and long-lasting electrical setup for your outdoor hot tub.
Who's Leading the Electric Vehicle Revolution?
You may want to see also
Explore related products

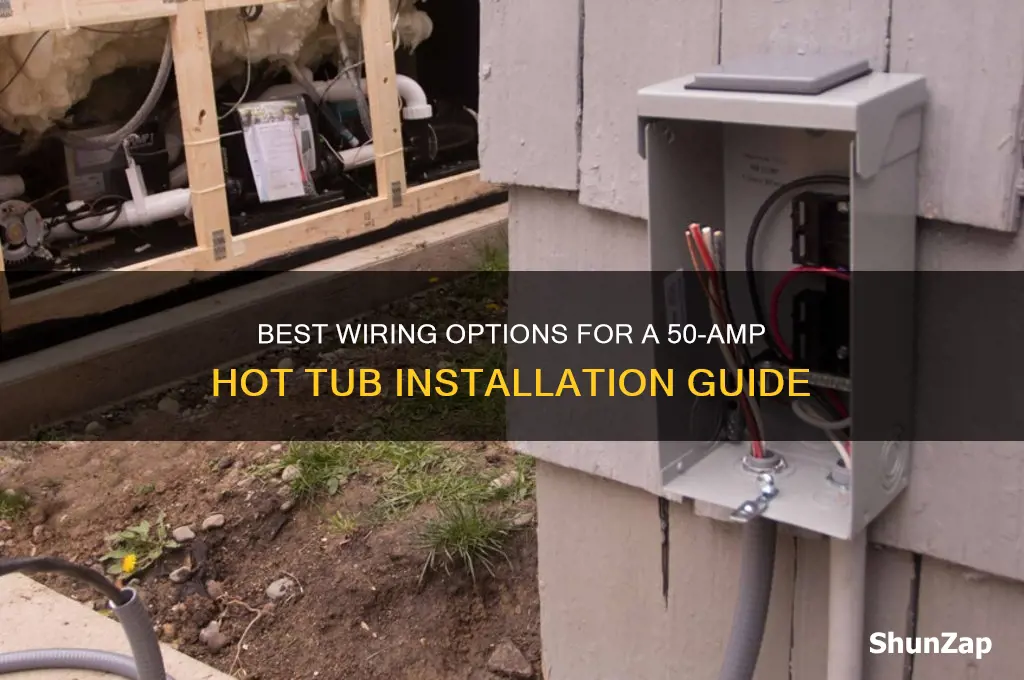

Disconnect Panel: Include a dedicated disconnect panel within sight of the hot tub
When wiring a 50A hot tub, including a dedicated disconnect panel within sight of the hot tub is a critical safety requirement mandated by the National Electrical Code (NEC). This disconnect panel serves as a quick and accessible way to cut power to the hot tub in case of emergencies, maintenance, or repairs. The panel must be clearly visible and located no more than 50 feet from the hot tub, ensuring it can be reached easily without obstructions. It should also be installed in a dry, weather-resistant location to protect it from the elements, especially if the hot tub is outdoors.
The dedicated disconnect panel for a 50A hot tub must be rated for the specific amperage and voltage required by the hot tub. Typically, a 50A GFCI (Ground Fault Circuit Interrupter) breaker is used within the disconnect panel to provide protection against electrical faults. The GFCI breaker is essential for preventing electrical shocks, as it will trip immediately if a ground fault is detected. Ensure the panel is labeled clearly to indicate it controls the hot tub, as this is a requirement for safety and compliance with electrical codes.
Wiring the disconnect panel involves connecting it to the main electrical panel with a 50A double-pole circuit breaker. Use 6 AWG copper wiring for the hot and neutral conductors and 8 AWG or larger for the grounding conductor, as specified by the NEC for 50A circuits. The wiring must be run in a conduit to protect it from damage, especially if buried underground or exposed to outdoor conditions. Proper grounding is also crucial; connect the grounding wire to the grounding terminal in the disconnect panel and ensure it is bonded to the hot tub’s grounding system.
Installation of the disconnect panel should be performed by a licensed electrician to ensure compliance with local codes and safety standards. The electrician will verify that the panel is installed at the correct height (typically 48–60 inches above the ground) and that it is securely mounted. After installation, the system must be tested to ensure the GFCI breaker functions correctly and that the hot tub operates safely. Regular inspections of the disconnect panel and wiring are recommended to maintain safety and prevent potential hazards.
Finally, the disconnect panel should be integrated into the overall electrical design of the hot tub installation. This includes ensuring compatibility with the hot tub’s control system and any additional features like lighting or pumps. By including a dedicated disconnect panel within sight of the hot tub, you not only meet legal requirements but also enhance the safety and convenience of your hot tub installation. Always consult the hot tub manufacturer’s guidelines and local electrical codes to ensure the setup is correct and compliant.
Target Electric Candles: Unveiling the Watch Battery Types They Use
You may want to see also
Explore related products
Grounding and Bonding: Ensure proper grounding with an 8 AWG copper wire and bonding all metal components
When wiring a 50A hot tub, grounding and bonding are critical for safety and compliance with electrical codes. Proper grounding ensures that electrical faults are safely directed to the earth, preventing shocks and fires. For a 50A hot tub, use an 8 AWG copper wire for the grounding conductor. This wire should connect the hot tub's grounding terminal to the grounding bus bar in your main electrical panel. The 8 AWG wire is specifically required for 50A circuits to handle the potential fault current effectively. Ensure the wire is solid copper, as it provides better conductivity and durability compared to stranded wire for this application.
Bonding all metal components is equally important to create a low-resistance path for fault currents. This includes bonding the hot tub's metal frame, water piping (if metallic), and any other non-current-carrying metal parts. Use an 8 AWG or larger copper bonding wire to connect these components to the grounding system. Bonding eliminates voltage differences between metal surfaces, reducing the risk of electric shock to users. All bonding connections should be made with corrosion-resistant fittings, such as stainless steel or zinc-plated clamps, to ensure long-term reliability.
The grounding and bonding wires must be connected to the hot tub's designated terminals, typically located in the control panel or equipment compartment. Verify that these terminals are clearly marked for grounding and bonding. Additionally, the grounding wire from the hot tub should be connected to a grounding electrode system, such as a ground rod or the metal water pipe entering the building, as required by local codes. This ensures a direct path to earth for fault currents.
Inspect all connections to ensure they are tight and secure, as loose connections can compromise safety. Use torque specifications provided by the manufacturer for terminal screws. Label the grounding and bonding wires clearly to avoid confusion during future maintenance or inspections. Properly installed grounding and bonding not only meet electrical code requirements but also protect users and equipment from potential hazards.
Finally, consult the hot tub manufacturer's instructions and local electrical codes for specific requirements, as these may vary based on your location or the hot tub model. Hiring a licensed electrician to perform or verify the grounding and bonding work is highly recommended, as mistakes in this area can have serious consequences. Grounding and bonding are non-negotiable aspects of hot tub wiring, ensuring both safety and compliance with industry standards.
Verizon Fios Impact: Will Your Electricity Bill Increase?
You may want to see also
Frequently asked questions
Use a 6 AWG (American Wire Gauge) copper wire for a 50A hot tub. This wire size is rated to handle the current requirements safely and is commonly used for this application.
Yes, use a UF-B (Underground Feeder) cable rated for direct burial or a wet location. This type of cable is designed to withstand outdoor conditions and moisture, ensuring safety and longevity.
Yes, a ground wire is essential for safety. Use an 8 AWG or 6 AWG copper ground wire, depending on local codes, to provide a path for fault current and protect against electrical hazards.
