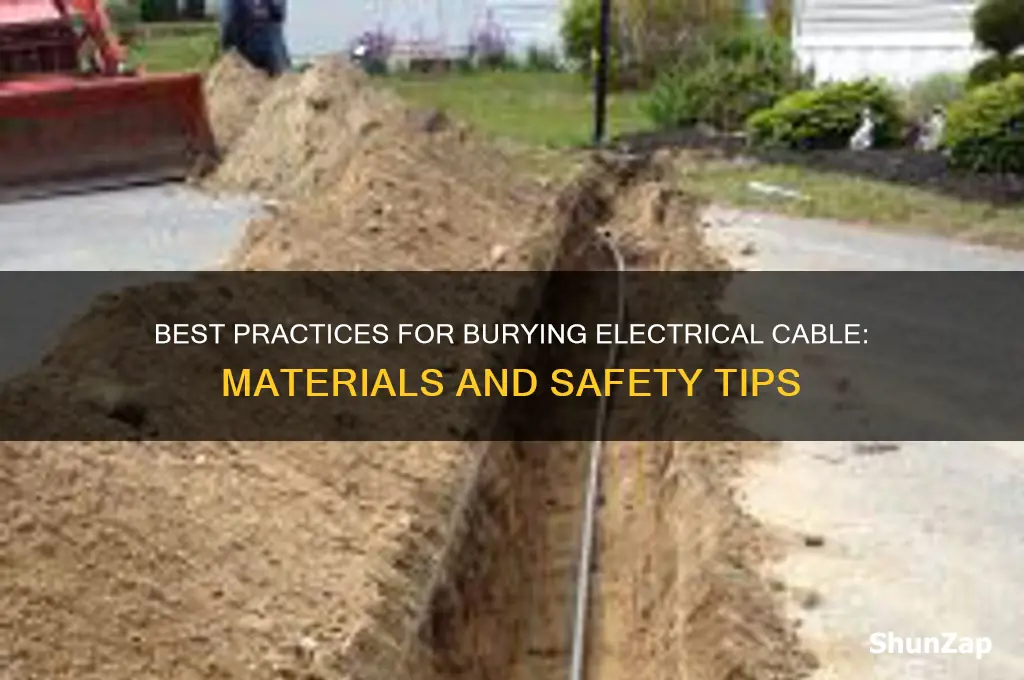

When burying electrical cable, it is crucial to use materials and methods that ensure safety, durability, and compliance with local codes. The primary choice is direct burial cable, specifically designed with a thick, waterproof insulation and a durable outer jacket to withstand underground conditions. Additionally, conduit—typically made of PVC, HDPE, or metal—is often used to protect cables from damage, moisture, and pests, while also facilitating future maintenance or upgrades. For added protection, trench depth should meet local regulations (usually 18-24 inches deep), and the trench should be filled with sand or fine soil to cushion the cable. Always consult local electrical codes and consider using warning tape above the buried line to prevent accidental damage during future excavations.
| Characteristics | Values |
|---|---|
| Conduit Material | PVC (Polyvinyl Chloride), HDPE (High-Density Polyethylene), or Flexible PVC |
| Depth Requirement | Minimum 24 inches (60 cm) for most residential applications |
| Cable Type | Direct burial-rated cables (UF-B, THWN-2, or similar) |
| Conduit Diameter | At least 1.25 inches (3.2 cm) for single cables, larger for multiple |
| Protection Against Moisture | Waterproof conduit and cable with moisture-resistant insulation |
| Protection Against Rodents | Use conduit or armored cable to prevent damage from rodents |
| Thermal Resistance | Ensure cables are rated for underground temperatures |
| Compliance with Local Codes | Adhere to NEC (National Electrical Code) and local regulations |
| Warning Tape | Bury warning tape 12 inches (30 cm) above the cable to prevent accidents |
| Backfill Material | Use fine sand or soil without rocks to avoid damaging the conduit |
| Grounding Requirements | Grounding wire must be included in the conduit or cable assembly |
| Pulling Lubrication | Use silicone-based lubricants for easier cable pulling |
| Inspection and Testing | Test cables for continuity and insulation resistance before backfilling |
| Marking and Documentation | Clearly mark cable locations and maintain records for future reference |
Explore related products
What You'll Learn
Cable Depth Requirements
When burying electrical cables, adhering to proper depth requirements is crucial for safety, functionality, and compliance with local codes. The depth at which a cable is buried depends on its type, location, and intended use. For most residential applications, direct-burial rated cables (such as UF-B) should be buried at a minimum depth of 24 inches (61 cm) below the surface. This depth helps protect the cable from accidental damage caused by digging, landscaping, or other activities. However, local building codes may require deeper burial, so always check with your local authorities before proceeding.
In areas where the cable crosses driveways, walkways, or other high-traffic zones, additional protection is necessary. In these cases, the cable should be buried at a minimum depth of 18 inches (46 cm) and encased in a protective conduit made of PVC, HDPE, or another approved material. The conduit provides an extra layer of defense against mechanical damage and environmental factors. For agricultural or commercial installations, where heavy machinery or vehicles may operate, the burial depth may need to be increased to 30 inches (76 cm) or more, depending on the specific requirements of the project.
Shallow burial depths are sometimes permitted for low-voltage landscape lighting or irrigation systems, typically at 6 to 12 inches (15 to 30 cm), but these installations often require the use of specialized direct-burial cables designed for such applications. Even at these shallower depths, cables should be clearly marked with warning tape or stakes to prevent accidental damage during future excavations. It’s important to note that shallow burial is generally not recommended for standard electrical cables due to the increased risk of damage.
In regions prone to freezing temperatures, burial depth must also account for frost lines to prevent cables from being damaged by shifting soil. The frost line varies by location but typically ranges from 12 to 48 inches (30 to 122 cm) below the surface. Cables should be buried below the frost line to avoid being affected by freezing and thawing cycles. If the required depth exceeds 24 inches, consult a professional to ensure the installation meets safety standards.
Finally, when burying cables near trees, utilities, or other structures, additional considerations may apply. For example, cables should be buried deeper or rerouted to avoid tree roots, which can grow into and damage the cable over time. Always consult utility companies to ensure buried cables do not interfere with existing underground lines. Proper planning and adherence to depth requirements not only ensure the longevity of the electrical system but also prevent hazardous situations and costly repairs.
Who Uses Oncor Electric Delivery in Edinburg, TX?
You may want to see also
Explore related products
Conduit Types for Protection
When burying electrical cables, using the right conduit is crucial for protection against physical damage, moisture, and environmental factors. Conduits serve as a durable shield, ensuring the longevity and safety of the electrical system. There are several types of conduits suitable for underground applications, each with unique features tailored to specific needs. Here’s a detailed look at the most common conduit types for protecting buried electrical cables.
PVC Conduit is one of the most popular choices for underground electrical installations due to its affordability, corrosion resistance, and ease of installation. Schedule 40 and Schedule 80 PVC conduits are commonly used, with the latter offering thicker walls for added durability. PVC is ideal for residential and light commercial applications but should be buried at a minimum depth specified by local codes, typically 18 to 24 inches, and encased in concrete or surrounded by sand to prevent damage from shifting soil. However, PVC is not suitable for high-temperature environments or areas prone to heavy mechanical stress.
Rigid Metal Conduit (RMC) is a heavy-duty option made from galvanized steel or aluminum, providing exceptional protection against physical damage and environmental hazards. RMC is highly resistant to impact, making it ideal for areas with heavy foot or vehicle traffic. Its robust construction also offers excellent protection against moisture and corrosion, especially when properly grounded. However, RMC is more expensive and labor-intensive to install compared to PVC. It is commonly used in industrial and commercial settings where durability and safety are paramount.
Electrical Metallic Tubing (EMT) is a lightweight, thin-walled steel conduit often used for underground applications where flexibility and ease of installation are needed. EMT is typically coated to resist corrosion but may require additional protection in highly corrosive environments. It is less expensive than RMC but offers similar mechanical protection. EMT is best suited for shallow burials and should be used in conjunction with proper grounding practices to ensure safety.
Flexible Non-Metallic Conduit (FNMC) is a versatile option made from materials like PVC or polyethylene, offering flexibility for easier installation in tight or curved spaces. FNMC is resistant to moisture and corrosion, making it suitable for underground use. However, it provides less mechanical protection compared to rigid conduits and is generally used for lighter-duty applications. It is often employed in residential settings where the cable depth and traffic load are minimal.
High-Density Polyethylene (HDPE) Conduit is a durable, non-metallic option that offers excellent resistance to chemicals, moisture, and abrasion. HDPE is lightweight, flexible, and easy to install, making it a preferred choice for direct burial applications. It is also resistant to cracking in cold temperatures and can withstand heavy loads when properly installed. HDPE conduits are often used in telecommunications and power distribution systems due to their longevity and low maintenance requirements.
Selecting the right conduit type depends on factors such as the application, environmental conditions, budget, and local building codes. Proper installation, including correct burial depth, backfill material, and adherence to safety standards, is essential to maximize the protective benefits of the chosen conduit. Always consult local regulations and a qualified electrician to ensure compliance and optimal performance.
