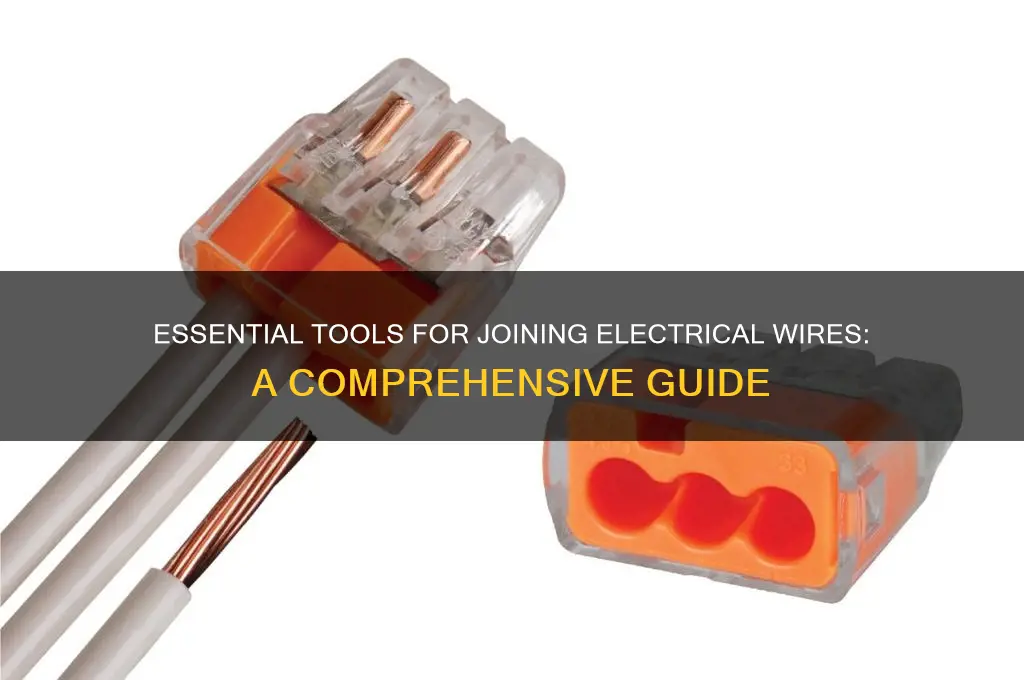

When it comes to joining electrical wires, the most commonly used tool is a wire connector, often referred to as a wire nut. Wire connectors are essential components in electrical work, providing a safe and secure method to connect two or more wires together. They are designed to twist onto the stripped ends of wires, creating a tight and reliable connection that ensures proper conductivity and prevents short circuits. Available in various sizes and color-coded for different wire gauges, wire connectors are a staple in both residential and commercial electrical installations, making them indispensable for electricians and DIY enthusiasts alike.
| Characteristics | Values |
|---|---|
| Tool Name | Wire Connector / Wire Nut / Twist-On Wire Connector / Wire Splice Connector / Crimp Connector / Soldering Iron / Wire Stripper (for preparation) / Pliers (for twisting) |
| Primary Use | Joining or splicing electrical wires securely |
| Types | Twist-on wire connectors, crimp connectors, soldering, terminal blocks, wire nuts, butt connectors, Scotchlok connectors |
| Material | Insulated plastic (wire nuts), metal (crimp connectors), solder (for soldering) |
| Compatibility | Solid or stranded wires, specific gauge ranges (e.g., 14-22 AWG for wire nuts) |
| Installation | Twist-on (wire nuts), crimping (crimp connectors), soldering (soldering iron), screwing (terminal blocks) |
| Insulation | Built-in insulation in wire nuts and crimp connectors; external insulation required for soldered joints |
| Waterproof | Some connectors are waterproof (e.g., heat-shrink butt connectors) |
| Reusability | Twist-on connectors are reusable; crimped and soldered connections are permanent |
| Common Brands | Ideal, Gardner Bender, 3M, Klein Tools, Leviton |
| Safety | Must comply with electrical codes (e.g., NEC); ensures proper insulation and secure connections |
| Applications | Residential wiring, automotive, industrial, DIY projects |
| Tools Needed | Wire stripper, crimping tool (for crimp connectors), soldering iron (for soldering) |
| Cost | Varies; wire nuts ($0.10-$1 each), crimp connectors ($0.50-$5 each), soldering kits ($20-$100) |
Explore related products
What You'll Learn
- Wire Strippers: Essential for preparing wires by removing insulation before joining
- Wire Connectors: Twist-on or push-in types secure wires together safely
- Soldering Irons: Heat wires and solder for strong, permanent connections
- Crimping Tools: Compress connectors onto wires for reliable, gas-tight joints
- Terminal Blocks: Modular blocks allow easy wire connections and disconnections
Wire Strippers: Essential for preparing wires by removing insulation before joining
Wire strippers are indispensable tools in electrical work, specifically designed to remove the insulation from wires, a critical step before joining them. When connecting electrical wires, ensuring a clean and precise strip of the insulation is essential for a secure and safe connection. This is where wire strippers come into play, offering a controlled and efficient method to prepare wires for various joining techniques. The primary function of these strippers is to cut away the outer layer of the wire without damaging the conductive core, allowing for a seamless and reliable electrical connection.
The process of stripping wires might seem straightforward, but it requires precision and the right tool to avoid common pitfalls. Using a wire stripper ensures that the insulation is removed evenly and at the correct depth, exposing just enough of the wire for a solid connection. This is particularly important when dealing with different wire gauges, as each requires a specific approach to stripping. For instance, a self-adjusting wire stripper can automatically adapt to various wire sizes, making it a versatile tool for professionals and DIY enthusiasts alike.
Using Wire Strippers:
- Select the Appropriate Stripper: Wire strippers come in various types, including manual and automatic versions. Manual strippers often feature a series of holes corresponding to different wire gauges, ensuring an accurate strip. Automatic or self-adjusting strippers, on the other hand, simplify the process by automatically adjusting to the wire size.
- Prepare the Wire: Before stripping, ensure the wire is clean and free from any dirt or corrosion. Cut the wire to the desired length, leaving enough room for a secure connection.
- Stripping Technique: Insert the wire into the appropriate hole or slot on the stripper, ensuring it is aligned correctly. Apply gentle pressure and rotate the stripper around the wire to score the insulation. Then, pull the stripper away from the wire, removing the insulation segment. This technique ensures a clean cut without nicking the wire.
In the context of joining electrical wires, wire strippers are often the first tool an electrician reaches for. Whether creating a simple twist connection, using wire nuts, or soldering wires together, properly stripped wires are fundamental to a successful and safe joint. Improperly stripped wires can lead to loose connections, increased resistance, and potential safety hazards. Therefore, investing in a good-quality wire stripper is crucial for anyone working with electrical systems.
Furthermore, wire strippers often come with additional features that enhance their utility. Some models include a cutter for trimming wires, a crimping tool for connectors, and even a built-in wire bender for precise wire manipulation. These multi-functional strippers streamline the wire preparation process, making them an efficient choice for various electrical tasks. In summary, wire strippers are not just about removing insulation; they are about ensuring the integrity of the wire and, consequently, the entire electrical circuit.
When considering the tools required for joining electrical wires, wire strippers are undoubtedly at the top of the list. They provide the foundation for all subsequent steps in the wire-joining process, ensuring that connections are made with precision and safety in mind. With the right wire stripper, electricians and hobbyists can approach wire preparation with confidence, knowing that the first step towards a successful electrical connection has been expertly executed. This emphasis on proper wire stripping highlights its role as a fundamental skill and tool in the electrical trade.
