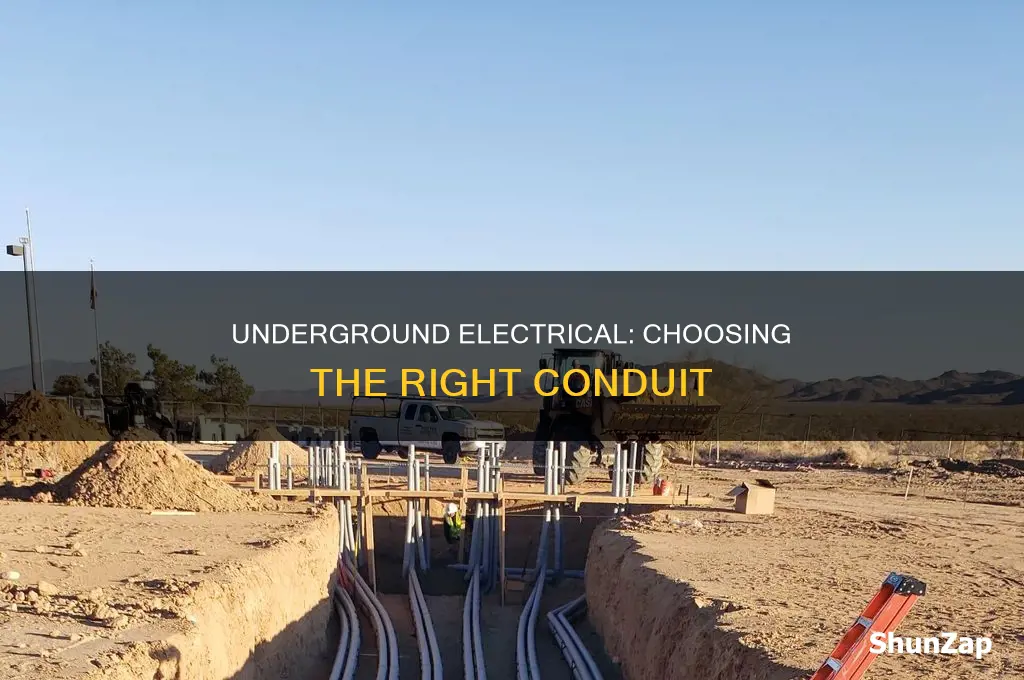

Underground electrical wiring is used to power outdoor features such as lighting, pumps for garden ponds, and electricity in workshops. The type of conduit used for underground wiring is important as it serves as a protective layer for electrical wiring, shielding it from hazards such as moisture, fire, corrosion, and impact. The choice of conduit depends on the specific location and environmental conditions of the project. For instance, fiberglass conduit is resistant to corrosion and a wide range of temperatures, making it a durable option for installations with high moisture levels. Rigid metal conduits are suitable for areas that undergo a lot of stress, such as underneath driveways, but they are more expensive and require threading at both ends. PVC conduits are commonly used for underground wiring and can be as shallow as 18 inches deep, while metal conduits are often used for direct-burial installations.
| Characteristics | Values |
|---|---|
| Purpose | To route electrical wiring and safeguard against hazards such as moisture, fire, corrosion, impact, electrocution and short circuits |
| Types | Plastic, PVC, fiberglass, GRC, EMT, aluminum, PVC-coated steel, stainless steel, metal |
| Installation cost | Varies depending on type, with fiberglass being more cost-efficient due to its lightweight |
| Protective qualities | Corrosion resistance, temperature range, impact resistance, non-metallic, chemically inert |
| Installation time | Installation time varies depending on the type of conduit, with fiberglass requiring less time |
| Depth requirements | Depends on the type of wire and conduit used, ranging from 6 inches to 24 inches or more |
| Pipe size | Depends on the number of wires and wire size |
Explore related products
What You'll Learn
Plastic conduit
One of the key benefits of using plastic conduit is its flexibility. HDPE pipes, for instance, are lightweight and flexible, making them easy to install and ideal for applications that require directional drilling. This type of conduit is also highly durable and resistant to corrosion, making it a cost-effective option for the long term.
When installing plastic conduit, it's important to follow the correct procedures to ensure safety and compliance with electrical codes. The first step is typically to dig a trench at the required depth, which can vary depending on local regulations and the type of wiring used. For instance, 240v power typically requires a depth of at least 18 inches.
After the trench is dug, the plastic conduit is cut to size and bent, if necessary, using a heat gun. The cable is then fed through the conduit, ensuring it reaches from the electrical panel to the desired location. An underground electrical conduit outlet body is attached to the end of the conduit, and the cable is pushed through.
It's important to note that while plastic conduit offers many advantages, it may not be suitable for all applications. In some cases, flexible conduit may not be the best choice, as it can be difficult to lay straight, affecting wire pulls. Additionally, certain types of wiring should not be used with plastic conduit due to safety concerns, such as the risk of fire.
Cutting AC Costs: Simple Ways to Save on Electricity
You may want to see also
Explore related products
Rigid metal conduit
RMC is a robust option for underground electrical applications. However, it is heavy, leading to higher material and labour costs. It is crucial to evaluate the specific location and environmental conditions before selecting RMC to ensure it is appropriate for the project. For example, RMC is not designed to be waterproof, and it may corrode if there is moisture in the soil.
When installing RMC, it is essential to follow the depth requirements outlined by local authorities. These requirements vary depending on the wiring method employed and range from 4 inches to 24 inches in depth.
Compared to alternatives such as PVC or fiberglass, RMC may be more challenging to install due to its weight and rigidity. Bending RMC can be difficult, even with the right tools, and it may be necessary to connect conduit pieces to a junction box instead of making bends.
In summary, RMC is a durable and robust option for underground electrical wiring but is heavy and may corrode in moist conditions. It is important to carefully consider the specific project requirements and environmental conditions before selecting RMC to ensure it is the most suitable option.
Electricity Returns to Puerto Rico: Is the Power Back?
You may want to see also
Explore related products
PVC conduit
When it comes to underground electrical wiring, there are several factors to consider when selecting the appropriate conduit. The specific location and environmental conditions play a vital role in determining the best option. Underground electrical conduit is essential for safeguarding wiring and cables against hazards such as moisture, fire, corrosion, impact, and short circuits.
PVC (polyvinyl chloride) conduit is a popular choice for underground electrical applications. It offers several advantages, including durability, corrosion resistance, and ease of installation. PVC conduit is available in various sizes and types, making it suitable for a wide range of projects.
One important consideration when using PVC conduit is the burial depth. According to the National Electrical Code (NEC), the depth requirements for burying electrical cables and wiring range from 4 inches to 24 inches, depending on the wiring method. For example, GFCI-protected underground feeder cable requires a burial depth of 12 inches. It's important to check with local authorities and code requirements to ensure compliance with specific depth and installation standards.
Another factor to consider is the number of wires and their sizes. The pipe size should be determined accordingly, with larger wires requiring larger pipe diameters. For instance, a single circuit of three #12 wires would typically use a 3/4" pipe, while a 1/2" pipe would be the minimum legal size, although it would make the wire pull more challenging.
Overall, PVC conduit is a versatile and durable option for underground electrical wiring. By considering factors like burial depth, wire size, and local code requirements, you can ensure a safe and effective installation.
Safe Distance: Electric Lines and You
You may want to see also
Explore related products
GFCI-protected underground feeder cable
When it comes to electrical wiring, safety is paramount. Underground feeder (UF) cables are a type of electrical wiring that can be directly buried without using a conduit, except for a sleeve of conduit at both ends where it is above ground. If the circuit is GFCI-protected at the house, the National Electrical Code (NEC) states that it only needs to be buried 12 inches deep (to the top of the conduit or cable).
GFCI, or Ground Fault Circuit Interrupter, is a device that protects people from electric shock. It works by comparing the input current on the hot wire to the output current on the neutral wire, and if there is any imbalance, it quickly shuts off the power. This is important for underground feeder cables as they are often used for outdoor features like landscape lighting, garden ponds, and electricity in carpentry workshops.
When installing a GFCI-protected underground feeder cable, it is crucial to follow the depth requirements specified by the National Electrical Code. The code states that a burial depth of 12 inches is sufficient if the cable is GFCI-protected. This depth requirement applies to both residential and commercial applications.
It is important to note that the type of conduit used for underground electrical wiring depends on various factors, including the specific location and environmental conditions of the project. Engineers and contractors must carefully consider these factors when selecting the appropriate conduit to ensure the safety and longevity of the installation. Some commonly used conduits for underground electrical wiring include fiberglass, PVC, and various traditional metal conduits such as rigid metal conduit (RMC), rigid galvanised steel (RGS), rigid intermediate metal conduit (IMC), and flexible metal conduit (FMC).
Creating Wood Art: Burning with Electricity
You may want to see also
Explore related products
Installation cost
The cost of installing underground electrical conduits varies depending on several factors, including the type of conduit, the length of the trench, labour costs, trenching equipment, and soil conditions.
Trenching costs can range from $5 to $12 per linear foot, or between $500 and $1,200 on average to dig a 100-foot trench for underground conduit. The trench length, depth, soil type, and ground conditions all influence the cost. For example, trenching costs for labour are typically $5.75 per linear foot, plus $4 per linear foot for equipment.
The average cost to install conduit is $4 to $8 per linear foot, excluding trenching costs. The conduit material can also impact the overall cost. PVC conduits are a popular choice for underground installations due to their affordability, ease of installation, and resistance to moisture. Other options include rigid conduits, aluminium, and fiberglass, with the latter being more cost-efficient due to its lightweight nature.
Labour costs for electricians can vary from $40 to $100 per hour, and experienced electricians may charge higher rates. The total labour cost is determined by multiplying the total hours by the hourly rate. For instance, a 20-hour job with an electrician charging $75 per hour would result in a labour cost of $1,500.
Permit costs are another factor, ranging from $500 to $2,000 depending on local requirements. Additionally, utility pole installation costs can add $1,200 to $5,600 per pole on average, and power companies may charge a one-time service fee of $300 to $650.
Overall, the installation cost for underground electrical conduits can vary significantly, and it is important to consider all these factors when planning and budgeting for a project.
Electrical System Examples: Powering Our Daily Lives
You may want to see also
Frequently asked questions
An electrical conduit is a tube used to route electrical wiring in or around a project. It can also be used as a protective layer for the electrical wiring within it.
Key factors to consider include protective qualities, ease of installation, installation cost, long-term durability, upfront costs, availability, and lead times. It is also important to evaluate attributes such as corrosion resistance, temperature range, and impact resistance.
Some common types of electrical conduits used for underground applications include fiberglass, PVC, and various traditional metal conduits such as GRC, EMT, aluminum, PVC-coated steel, and stainless steel.
Fiberglass conduits have several advantages over other types of underground conduit systems. They are resistant to corrosion and rotting due to their non-metallic nature, making them suitable for installations with moisture concerns. Fiberglass is also chemically inert, durable, lightweight, and easy to work with.
The depth requirements for underground electrical conduits vary depending on the wiring method and local code regulations. The National Electrical Code (NEC) specifies that direct-burial underground feeder cables should be buried at a minimum depth of 24 inches. For PVC conduit on vertical feeds, a depth of 18 inches is required, while GFCI-protected feeder cables require a depth of 12 inches.
