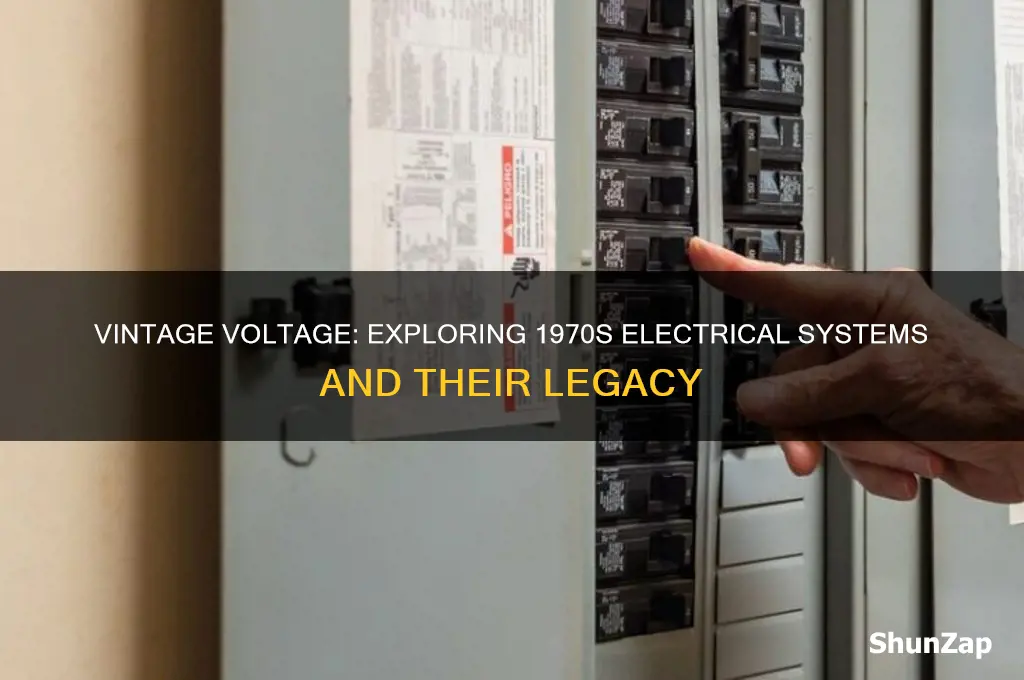

Vintage Voltage: Exploring 1970S Electrical Systems And Their Legacy

what type of electrical system is used in the 70s

The 1970s marked a significant era in the evolution of electrical systems, characterized by a blend of traditional and emerging technologies. During this decade, residential and commercial buildings primarily relied on knob-and-tube wiring and aluminum wiring, though the latter began to face scrutiny due to safety concerns. The electrical systems of the 70s were typically designed for lower power demands compared to modern standards, often featuring 60-amp or 100-amp service panels, which were adequate for the limited number of appliances and devices in use at the time. Additionally, the decade saw the gradual adoption of grounding systems to improve safety, though many older homes still lacked this critical feature. The 70s also witnessed the early integration of circuit breakers over fuses, offering more convenience and reliability. Overall, the electrical systems of this period reflect a transitional phase, bridging the gap between outdated practices and the advancements that would define later decades.

shunzap

70s Home Wiring Standards: Discusses common wiring practices and materials used in residential electrical systems during the 1970s

During the 1970s, residential electrical systems in the United States and many other parts of the world were characterized by specific wiring practices and materials that reflected the technological and safety standards of the time. One of the most common types of wiring used was non-metallic (NM) sheathed cable, often referred to as "Romex." This type of wiring consisted of two or more insulated conductors and a bare ground wire, all wrapped in a flexible plastic jacket. NM cable was widely adopted due to its affordability, ease of installation, and suitability for dry, indoor applications. It was typically rated for 600 volts and came in various gauges, with 12-gauge and 14-gauge being the most common for general lighting and receptacle circuits.

Another hallmark of 1970s home wiring was the use of aluminum wiring in some residential installations. Aluminum was seen as a cost-effective alternative to copper, especially during periods of high copper prices. However, aluminum wiring posed significant safety concerns due to its tendency to expand and contract more than copper, leading to loose connections and potential fire hazards. Despite its risks, aluminum wiring was still used in many homes during this decade, often for branch circuits. It is important to note that modern standards strongly discourage the use of aluminum wiring in residential applications unless specifically designed for it.

Electrical panels in the 1970s were typically equipped with fuse boxes or early circuit breaker panels. Fuse boxes were more common in older homes, while newer constructions often featured circuit breakers. These panels were designed to handle the electrical demands of the time, which were significantly lower than today’s standards due to fewer high-power appliances. A typical panel might have 60 to 100 amps of capacity, with individual circuits rated for 15 or 20 amps. Grounding practices were also evolving during this period, with many homes featuring grounded outlets (three-prong receptacles) to improve safety, though older two-prong outlets were still prevalent in some areas.

Wiring connections in the 1970s were often made using screw terminals or push-in connections on devices like outlets and switches. While screw terminals were more reliable, push-in connections were sometimes used for their convenience, though they were less secure and prone to failure over time. Junction boxes were commonly used to house wire splices, and these were typically made of metal or plastic, depending on the application. Properly securing and insulating these connections was critical to prevent shorts and fires, though standards and enforcement varied by region.

Lastly, the 1970s saw the continued use of knob-and-tube (K&T) wiring in older homes, though it was no longer installed in new constructions. K&T wiring consisted of individual insulated wires run through ceramic knobs and tubes to keep them separated from wood framing. While this system was durable and had a low risk of overheating when properly maintained, it lacked a grounding conductor, making it incompatible with modern safety standards. Homes with K&T wiring often required upgrades to meet contemporary electrical demands and safety codes. Overall, 1970s home wiring standards were a mix of evolving technologies and materials, reflecting the era’s balance between cost, convenience, and safety.

shunzap

Aluminum Wiring Popularity: Explores the widespread use of aluminum wiring in the 70s and its implications

The 1970s marked a significant shift in residential electrical wiring practices, largely due to the widespread adoption of aluminum wiring. This transition was primarily driven by the soaring cost of copper, which had traditionally been the standard material for electrical wiring. As the price of copper escalated, builders and homeowners sought more affordable alternatives, and aluminum emerged as a viable option. Aluminum wiring was not only cheaper but also more abundant, making it an attractive choice during a time of economic uncertainty and rising material costs. This cost-effectiveness led to its rapid integration into new home constructions and electrical system upgrades across the United States and Canada.

Despite its economic advantages, the use of aluminum wiring in the 70s came with notable challenges and safety concerns. Aluminum is inherently less conductive than copper, requiring larger-gauge wires to carry the same amount of current. Additionally, aluminum expands and contracts more than copper when exposed to temperature changes, leading to loose connections over time. These loose connections increased the risk of overheating, arcing, and electrical fires. The differences in the physical properties of aluminum compared to copper were not fully understood or adequately addressed in the initial years of its widespread use, leading to a range of electrical issues in homes equipped with aluminum wiring.

The implications of aluminum wiring became increasingly apparent as reports of electrical failures and fires surfaced. Many of these incidents were attributed to improper installation practices, such as using wire connectors and devices designed for copper wiring with aluminum wires. The incompatibility between aluminum and certain types of connectors led to oxidation and corrosion at connection points, further exacerbating the risk of electrical malfunctions. As a result, the electrical industry had to quickly adapt, developing specialized connectors and installation techniques to mitigate these risks. However, the damage to aluminum wiring’s reputation was already done, and it remains a concern for homeowners and inspectors today.

The legacy of aluminum wiring from the 70s continues to impact modern electrical systems. Homes built during this era often require thorough inspections to assess the condition of their aluminum wiring and ensure it meets current safety standards. Retrofitting or replacing aluminum wiring with copper is sometimes recommended, particularly in cases where the wiring shows signs of deterioration or improper installation. Despite these challenges, aluminum wiring is not inherently unsafe when installed and maintained correctly. Modern building codes and industry standards now provide clear guidelines for working with aluminum wiring, ensuring that its use is both safe and effective.

In conclusion, the popularity of aluminum wiring in the 70s was a direct response to the economic pressures of the time, offering a cost-effective alternative to copper. However, its widespread adoption highlighted the importance of understanding the unique properties and requirements of different wiring materials. The lessons learned from the aluminum wiring era have significantly influenced electrical practices, leading to safer and more reliable systems. While aluminum wiring remains a topic of caution, its history serves as a reminder of the need for careful consideration and proper installation in electrical work.

shunzap

Circuit Breaker Evolution: Highlights advancements in circuit breaker technology and their adoption in 70s electrical systems

The 1970s marked a significant period in the evolution of electrical systems, characterized by the widespread adoption of more reliable and safer technologies. One of the most notable advancements during this era was the development and integration of modern circuit breakers. These devices, which are essential for protecting electrical circuits from damage caused by overcurrent or short circuits, underwent substantial improvements in design and functionality. The 70s electrical systems predominantly utilized single-phase and three-phase AC systems in residential, commercial, and industrial settings, operating at standard voltages such as 120/240V in North America and 220/380V in Europe. Circuit breakers became a cornerstone of these systems, replacing older fuse-based protection methods due to their reusability and faster response times.

One of the key advancements in circuit breaker technology during the 70s was the introduction of thermal-magnetic circuit breakers. These breakers combined thermal and magnetic trip mechanisms to provide more precise and reliable protection. The thermal element responded to overloads by heating a bimetallic strip, while the magnetic element detected short circuits through electromagnetic induction. This dual-action design allowed for quicker and more accurate tripping, reducing the risk of electrical fires and equipment damage. Thermal-magnetic breakers became standard in residential and commercial electrical panels, offering a significant upgrade over earlier technologies.

Another important development was the miniature circuit breaker (MCB), which gained popularity in the 70s for its compact size and ease of installation. MCBs were designed to protect low-current circuits in homes and small businesses, typically rated for currents up to 125 amps. Their modular design allowed for easy integration into consumer units, making them a preferred choice for modern electrical systems. MCBs also featured a manual reset mechanism, enabling users to restore power quickly after a trip, unlike fuses that required replacement.

The 70s also saw the adoption of ground fault circuit interrupters (GFCIs) in electrical systems, particularly in areas with high moisture exposure, such as kitchens, bathrooms, and outdoor outlets. GFCIs were designed to detect imbalances in the electrical current caused by ground faults and immediately shut off power to prevent electric shock. This innovation significantly enhanced safety in residential and commercial environments, becoming a mandatory requirement in many building codes by the end of the decade.

In industrial settings, molded case circuit breakers (MCCBs) emerged as a robust solution for protecting high-current circuits. These breakers, rated for currents up to 2,500 amps, featured adjustable trip settings and were capable of handling heavy loads in manufacturing plants and large commercial facilities. MCCBs played a crucial role in the 70s electrical systems by ensuring the reliability and safety of industrial power distribution networks.

Overall, the 1970s were a transformative decade for circuit breaker technology, with advancements such as thermal-magnetic breakers, MCBs, GFCIs, and MCCBs revolutionizing electrical systems. These innovations not only improved safety and efficiency but also laid the foundation for the modern electrical protection systems we rely on today. The adoption of these technologies in 70s electrical systems marked a pivotal shift toward more reliable and user-friendly power distribution, setting the stage for further developments in the decades to come.

shunzap

Knob and Tube Decline: Examines the phasing out of knob and tube wiring in favor of modern methods

The 1970s marked a significant transition in residential electrical systems, with the gradual decline of knob and tube (K&T) wiring in favor of more modern and safer methods. Knob and tube wiring, which had been a staple in North American homes since the late 19th century, began to fall out of favor due to its limitations and safety concerns. This system, characterized by ceramic knobs and tubes that supported and insulated wires, was designed for a time when electrical demands were minimal. However, by the 1970s, the increasing use of appliances and electronics exposed the inadequacies of K&T wiring, such as its inability to handle higher electrical loads and its lack of grounding, which is essential for preventing electrical shocks and fires.

One of the primary reasons for the decline of knob and tube wiring was the introduction and widespread adoption of non-metallic (NM) sheathed cable, commonly known as Romex. This modern wiring method offered several advantages over K&T, including easier installation, greater flexibility, and the inclusion of a grounding conductor. NM cable became the standard for new construction and renovations, as it could safely accommodate the growing electrical needs of households. Additionally, building codes began to mandate grounding for all electrical circuits, further rendering K&T wiring obsolete, as retrofitting it with a grounding system was often impractical and costly.

Another factor contributing to the phasing out of knob and tube wiring was its incompatibility with modern insulation practices. In the 1970s, energy efficiency became a priority, leading to the increased use of insulation in attics and walls. K&T wiring, which relies on air circulation for cooling, posed a fire hazard when covered by insulation. The heat generated by the wires could no longer dissipate, increasing the risk of overheating and ignition. This issue, combined with insurance companies often refusing to cover homes with K&T wiring, accelerated its decline as homeowners and builders sought safer alternatives.

The shift away from knob and tube wiring also reflected broader changes in electrical standards and safety awareness. The 1970s saw the rise of organizations like the National Electrical Code (NEC) in the United States, which continually updated regulations to address emerging risks. These updates emphasized the importance of grounded systems, circuit protection, and the use of materials resistant to wear and tear. As a result, electricians and builders increasingly turned to modern wiring methods that complied with these standards, leaving K&T wiring behind as a relic of a bygone era.

Despite its decline, knob and tube wiring can still be found in some older homes today, particularly those built before the 1950s. However, its presence often necessitates careful inspection and, in many cases, complete replacement. While K&T wiring is not inherently dangerous if left undisturbed and used within its original design limits, its compatibility with modern lifestyles and safety standards is severely limited. The transition to more advanced wiring systems in the 1970s marked a critical step forward in ensuring the safety and functionality of residential electrical systems, solidifying the decline of knob and tube wiring as an inevitable and necessary evolution.

shunzap

Grounding System Changes: Focuses on improvements in grounding techniques to enhance safety in 70s electrical installations

The 1970s marked a significant shift in electrical systems, with a heightened focus on safety and reliability. One of the most critical areas of improvement during this period was the grounding system. Grounding is essential for preventing electrical shocks, reducing fire hazards, and ensuring the proper functioning of electrical equipment. In the 1970s, grounding techniques evolved to address the limitations of earlier systems, which often relied on rudimentary or inconsistent methods. These changes were driven by advancements in electrical engineering, updated safety standards, and a growing awareness of the risks associated with inadequate grounding.

One of the key grounding system changes in the 1970s was the widespread adoption of the grounded neutral system. In this setup, the neutral wire is intentionally connected to the earth at the main service panel, providing a low-resistance path for fault currents to flow back to the source. This improvement significantly reduced the risk of electrical shocks and equipment damage by ensuring that faults were quickly detected and cleared. Prior to this, many systems used ungrounded or poorly grounded neutrals, which increased the likelihood of dangerous voltage imbalances and electrical fires. The grounded neutral system became a standard in residential, commercial, and industrial installations, setting a new benchmark for safety.

Another important advancement was the introduction of grounding electrodes that were more reliable and effective. In the 1970s, electricians began using materials like copper-clad steel rods and plates, which offered better conductivity and corrosion resistance compared to earlier options. These electrodes were driven deep into the earth to establish a stable connection, ensuring that fault currents could dissipate safely. Additionally, the use of grounding rings or ufer grounds (where the foundation rebar is used as a grounding electrode) became more common in building construction, further enhancing the effectiveness of grounding systems.

The 1970s also saw the implementation of equipment grounding conductors (EGCs) as a standard practice. EGCs are dedicated wires that connect non-current-carrying metal parts of electrical devices (such as appliance frames or outlet boxes) to the grounding system. This innovation provided an additional layer of protection by ensuring that if a live wire came into contact with a metal surface, the fault current would be safely directed to the ground instead of posing a shock hazard to users. The use of EGCs became mandatory in many electrical codes, reflecting a proactive approach to safety.

Finally, the improvement in testing and inspection methods played a crucial role in enhancing grounding systems during the 1970s. Electricians began using more sophisticated tools, such as ground resistance testers, to verify the integrity of grounding connections. Regular inspections became a standard practice to identify and rectify issues like loose connections, corrosion, or inadequate electrode installations. These measures ensured that grounding systems remained effective over time, even as electrical loads and environmental conditions changed.

In summary, the 1970s brought significant grounding system changes that focused on enhancing safety in electrical installations. From the adoption of grounded neutral systems and advanced grounding electrodes to the use of equipment grounding conductors and improved testing methods, these innovations collectively reduced risks and set the foundation for modern electrical safety standards. These changes not only protected lives and property but also reflected a broader commitment to reliability and efficiency in electrical systems.

Frequently asked questions

Homes in the 1970s typically used 120/240-volt single-phase alternating current (AC) electrical systems, similar to modern systems, but with less emphasis on grounding and safety features.

Fuses were more common in older homes during the 1970s, but newer constructions began adopting circuit breakers as they became more widely available and safer.

Yes, grounding was present in 1970s electrical systems, but it was less standardized and less comprehensive compared to modern systems. Many older homes lacked proper grounding.

Non-metallic (NM) sheathed cable, also known as Romex, was commonly used for residential wiring in the 1970s. Aluminum wiring was also prevalent, though it later raised safety concerns.

Three-prong outlets (with a grounding slot) became more common in the 1970s due to updated electrical codes, but many older homes still had two-prong outlets without grounding.
