In new home construction, the most commonly used electrical wiring is non-metallic (NM) cable, often referred to as Romex, which consists of two or more insulated conductors wrapped in a flexible plastic jacket. This type of wiring is favored for its affordability, ease of installation, and compliance with modern building codes. Additionally, new homes increasingly incorporate grounded wiring systems with three-prong outlets to ensure safety and support the growing demand for electronic devices. For specific applications, such as wet areas like kitchens and bathrooms, ground fault circuit interrupter (GFCI) wiring is mandated to prevent electrical hazards. Overall, the choice of wiring in new homes prioritizes safety, efficiency, and adaptability to contemporary electrical needs.
| Characteristics | Values |
|---|---|
| Type of Wiring | Non-Metallic (NM) Cable (Romex), Armored Cable (AC), or Metal-Clad Cable (MC) |
| Wire Material | Copper or Aluminum (though copper is more common due to safety and efficiency) |
| Gauge Sizes | 14-gauge, 12-gauge, 10-gauge (depending on circuit amperage requirements) |
| Insulation Material | PVC (Polyvinyl Chloride) or Thermoplastic for NM Cable |
| Voltage Rating | Typically 600V for residential use |
| Color Coding | Black (hot), White (neutral), Green or Bare Copper (ground) |
| Conduit Usage | PVC conduits for exposed areas or outdoor wiring |
| Grounding | Mandatory grounding for all circuits |
| Circuit Breakers | AFCI (Arc-Fault Circuit Interrupter) and GFCI (Ground-Fault Circuit Interrupter) protection |
| Compliance Standards | NEC (National Electrical Code) compliant |
| Energy Efficiency | Supports energy-efficient appliances and LED lighting |
| Smart Home Compatibility | Designed to integrate with smart home systems and devices |
| Durability | Resistant to moisture, heat, and corrosion |
| Installation Method | Stapled to studs or run through drilled holes in framing |
| Cost | Varies; copper is more expensive than aluminum |
| Safety Features | Flame-retardant insulation, tamper-resistant outlets |
| Environmental Impact | Recyclable materials (copper) and reduced energy consumption |
Explore related products
What You'll Learn
- Romex Wiring: Most common, cost-effective, non-metallic sheathed cable for residential electrical circuits
- Conduit Systems: Flexible or rigid tubing for wiring, ideal for exposed or outdoor areas
- Ground Fault Circuit Interrupters (GFCIs): Required in wet areas like kitchens, bathrooms, and outdoors for safety
- Arc Fault Circuit Interrupters (AFCIs): Mandatory in bedrooms and living areas to prevent fire hazards
- Low-Voltage Wiring: Used for smart home systems, security, and data networks in modern homes
Romex Wiring: Most common, cost-effective, non-metallic sheathed cable for residential electrical circuits
Romex wiring, officially known as non-metallic (NM) sheathed cable, is the most prevalent type of electrical wiring used in new residential construction across North America. Its widespread adoption stems from its cost-effectiveness, ease of installation, and compliance with modern building codes. Romex consists of two or more insulated conductors (typically copper wires) wrapped in a flexible, non-metallic outer jacket, usually made of PVC. This design provides adequate protection against moisture and physical damage while remaining lightweight and simple to work with, making it ideal for standard residential electrical circuits.
One of the key advantages of Romex wiring is its versatility. It is available in various gauges and configurations to accommodate different amperage requirements, with the most common types being 14-gauge and 12-gauge wires. For instance, 14-gauge Romex is often used for 15-amp circuits powering general lighting and receptacles, while 12-gauge Romex is employed for 20-amp circuits, such as those serving kitchen outlets or dedicated appliance circuits. Additionally, Romex cables often include a bare copper ground wire, ensuring compliance with safety standards and providing a path for fault currents to safely dissipate.
Installation of Romex wiring is straightforward, contributing to its popularity among electricians and DIY enthusiasts alike. The cable can be run through walls, floors, and ceilings, either exposed in unfinished areas or concealed within studs and joists. It is important, however, to follow local electrical codes regarding proper stapling, bending radii, and protection from damage. Romex should never be used in wet or damp locations unless specifically rated for such environments, as standard NM cable is not designed for outdoor or high-moisture applications.
Despite its many benefits, Romex wiring is not without limitations. Its non-metallic jacket offers less protection compared to armored cables like BX (metal-clad) or conduit systems, making it unsuitable for exposed or high-traffic areas. Additionally, Romex is not rated for use in temperatures exceeding 60°C, which restricts its application in certain high-heat environments. Nonetheless, for the vast majority of residential wiring needs, Romex remains the go-to choice due to its balance of performance, affordability, and ease of use.

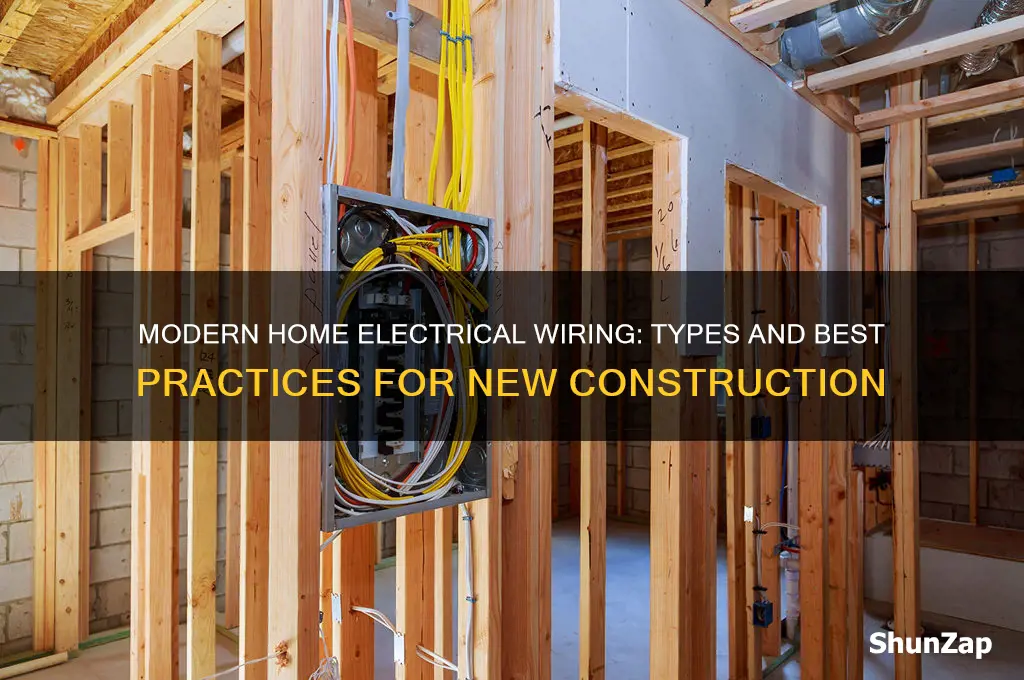

In new home construction, Romex wiring is typically installed during the rough-in phase, before walls are closed up with drywall. Electricians plan the layout of circuits, ensuring that each room has adequate power and that specialized circuits, such as those for HVAC systems or electric ranges, meet specific requirements. Once installed, Romex is connected to circuit breakers in the main electrical panel, providing a safe and reliable distribution of electricity throughout the home. Its dominance in residential wiring is a testament to its practicality and efficiency in meeting the demands of modern living.
Electric Vehicles: Alternator-Free, But Why?
You may want to see also
Explore related products
Conduit Systems: Flexible or rigid tubing for wiring, ideal for exposed or outdoor areas
In new home construction, conduit systems are increasingly favored for their durability, versatility, and safety, especially in exposed or outdoor environments. Conduit systems consist of flexible or rigid tubing designed to protect and route electrical wiring. These systems are ideal for areas where wiring might be exposed to moisture, physical damage, or extreme weather conditions, making them a popular choice for outdoor lighting, garages, and unfinished spaces. The tubing acts as a shield, safeguarding wires from external elements while providing easy access for maintenance or upgrades.
Rigid conduit, typically made of galvanized steel or PVC, is a robust option for areas requiring maximum protection. Its sturdy construction makes it resistant to impact, corrosion, and environmental hazards, ensuring long-term reliability. Rigid conduit is often used in outdoor settings, such as running wiring along the exterior of a home or in areas prone to physical damage. While it requires precise installation due to its inflexibility, it offers superior protection and is compliant with most building codes for exposed wiring.
Flexible conduit, on the other hand, is made from materials like liquid-tight PVC or metal-clad tubing, offering ease of installation and adaptability. Its pliable nature allows it to bend around corners and obstacles, making it suitable for tight or irregular spaces. Flexible conduit is commonly used for outdoor lighting, HVAC systems, and areas where rigid conduit would be impractical. However, it may not provide the same level of protection as rigid conduit, so it’s essential to choose the appropriate type based on the specific application.
One of the key advantages of conduit systems is their future-proofing capabilities. Unlike traditional wiring methods, conduits allow for easy replacement or addition of wires without the need for extensive rewiring. This is particularly beneficial in new homes, where technology and electrical needs may evolve over time. Additionally, conduit systems enhance safety by reducing the risk of electrical fires and short circuits, as the wiring is securely contained within the tubing.
When installing conduit systems in new homes, it’s crucial to adhere to local building codes and regulations. Proper grounding, sealing, and securing of the conduit are essential to ensure safety and functionality. For outdoor applications, weatherproof fittings and seals should be used to prevent water ingress. Whether choosing rigid or flexible conduit, homeowners and builders can trust that these systems provide a reliable, long-lasting solution for exposed or outdoor electrical wiring needs.
Electro Archon's Weapon: Unveiling the Power of Raiden Shogun's Spear
You may want to see also
Explore related products
Ground Fault Circuit Interrupters (GFCIs): Required in wet areas like kitchens, bathrooms, and outdoors for safety
In new home construction, Ground Fault Circuit Interrupters (GFCIs) are a critical component of electrical wiring, particularly in areas prone to moisture. GFCIs are designed to protect against electrical shocks by quickly shutting off power when a ground fault is detected. This is especially important in wet areas such as kitchens, bathrooms, and outdoor spaces, where the risk of electrical hazards is significantly higher due to the presence of water. According to the National Electrical Code (NEC), GFCIs are mandatory in these locations to ensure the safety of occupants. The NEC requires GFCI protection for all 125-volt to 250-volt receptacles in kitchens, bathrooms, laundry rooms, basements, crawl spaces, and outdoors.
GFCIs work by constantly monitoring the flow of electricity through a circuit. If the device detects a difference in the current flowing into the circuit versus the current flowing out, it indicates a ground fault, which could occur if a person comes into contact with a live electrical part. In such cases, the GFCI interrupts the circuit within milliseconds, preventing serious injury or electrocution. This rapid response is why GFCIs are considered a lifesaving technology, particularly in environments where water and electricity may come into close proximity. For instance, in a kitchen, where appliances like toasters and blenders are used near sinks, a GFCI can prevent accidents caused by faulty wiring or damaged cords.
Installing GFCIs in new homes involves using either GFCI outlets or circuit breakers. GFCI outlets are the most common and are installed directly in place of standard receptacles. They feature "Test" and "Reset" buttons, allowing homeowners to periodically check their functionality. Alternatively, GFCI circuit breakers can be installed at the main electrical panel to provide protection for an entire circuit. This is often used in outdoor areas or for multiple outlets in a wet location. It’s essential to follow manufacturer instructions and local building codes during installation to ensure proper functionality and compliance.
Regular testing of GFCIs is crucial to maintaining their effectiveness. Homeowners should test GFCI outlets monthly by pressing the "Test" button, which should cause the "Reset" button to pop out and cut off power. If the GFCI does not trip, it may be faulty and should be replaced immediately. Additionally, GFCIs have a limited lifespan and may need to be replaced every 10–15 years, depending on usage and environmental conditions. Electricians can perform diagnostic tests to ensure GFCIs are operating correctly.
In summary, Ground Fault Circuit Interrupters (GFCIs) are a non-negotiable safety feature in modern electrical wiring, particularly in wet areas of new homes. Their ability to prevent electrical shocks makes them indispensable in kitchens, bathrooms, and outdoor spaces. By adhering to NEC requirements and ensuring proper installation and maintenance, homeowners can significantly reduce the risk of electrical accidents. Whether through GFCI outlets or circuit breakers, this technology plays a vital role in creating a safer living environment.
Electric Mammals: Discover the Shocking Truth About Nature's Power Users
You may want to see also
Explore related products
$24.99 $27.99
$69.59 $74.08
Arc Fault Circuit Interrupters (AFCIs): Mandatory in bedrooms and living areas to prevent fire hazards
In new home construction, electrical safety is a top priority, and one of the critical components ensuring this safety is the use of Arc Fault Circuit Interrupters (AFCIs). These devices are specifically designed to detect and mitigate arc faults, which are a leading cause of electrical fires in residential settings. AFCIs are now mandatory in bedrooms and living areas according to the National Electrical Code (NEC) in the United States, reflecting their importance in preventing fire hazards. Arc faults occur when electricity jumps through the air from one conductor to another, often due to damaged wires, loose connections, or aging electrical systems. By identifying these dangerous arcs, AFCIs can quickly shut off power to the affected circuit, significantly reducing the risk of fire.
The installation of AFCIs in bedrooms and living areas is particularly crucial because these spaces often contain flammable materials like furniture, bedding, and curtains. A fire sparked by an arc fault in these areas can spread rapidly, endangering lives and property. AFCIs work by continuously monitoring the electrical current and distinguishing between normal and potentially hazardous arcing conditions. When a dangerous arc is detected, the AFCI trips the circuit, cutting off power before the arc can ignite surrounding materials. This proactive approach to fire prevention is a key reason why AFCIs are now a standard requirement in modern home wiring.
Homeowners and builders must ensure that AFCIs are installed correctly to comply with safety regulations. AFCI breakers are typically installed in the main electrical panel, replacing standard circuit breakers for designated circuits in bedrooms and living areas. It’s essential to hire a licensed electrician to perform the installation, as improper setup can render the device ineffective. Additionally, regular testing of AFCIs is recommended to ensure they are functioning properly. Most AFCI breakers have a built-in test button that simulates an arc fault, allowing homeowners to verify the device’s operation without creating an actual hazard.
Another important aspect of AFCIs is their compatibility with modern electrical systems. As homes increasingly incorporate advanced electronics and smart devices, the risk of arc faults can rise due to the complexity of wiring and connections. AFCIs are designed to work seamlessly with these systems, providing an added layer of protection without interfering with normal electrical operation. However, it’s important to note that AFCIs are not a substitute for proper wiring practices. Builders and electricians must still adhere to best practices, such as using high-quality materials and avoiding overloading circuits, to minimize the risk of arc faults.
In summary, Arc Fault Circuit Interrupters (AFCIs) are a vital component of electrical wiring in new homes, particularly in bedrooms and living areas, where the risk of fire is highest. Their ability to detect and mitigate arc faults before they cause a fire makes them an indispensable safety feature. By adhering to NEC requirements and ensuring proper installation and maintenance, homeowners can significantly enhance the safety of their electrical systems. As technology continues to evolve, AFCIs will remain a cornerstone of residential electrical safety, protecting families and property from the dangers of electrical fires.
Aspen Glen's Electric Company: Powering Homes with Reliable Energy Solutions
You may want to see also
Explore related products
Low-Voltage Wiring: Used for smart home systems, security, and data networks in modern homes
In modern homes, low-voltage wiring plays a crucial role in supporting smart home systems, security setups, and data networks. Unlike standard electrical wiring that operates at 120 or 240 volts, low-voltage wiring typically carries 50 volts or less, making it safer and more efficient for specific applications. This type of wiring is essential for connecting devices like smart thermostats, security cameras, doorbells, and home automation hubs. It ensures that these systems operate reliably without overloading the electrical grid, while also minimizing energy consumption. Low-voltage wiring is often installed alongside traditional high-voltage wiring during the construction phase to future-proof the home for technological advancements.
One of the primary uses of low-voltage wiring in new homes is for smart home systems. These systems rely on a network of interconnected devices that communicate via low-voltage cables or wirelessly. For example, smart lighting systems use low-voltage wiring to connect LED fixtures and control modules, allowing homeowners to adjust brightness and color via apps or voice commands. Similarly, smart HVAC systems require low-voltage connections to integrate with thermostats and sensors. Properly installed low-voltage wiring ensures seamless operation and scalability, enabling homeowners to add new devices as technology evolves.
Security systems are another critical application of low-voltage wiring in modern homes. Surveillance cameras, motion sensors, and alarm systems all depend on low-voltage cables to transmit data and power. For instance, wired security cameras use low-voltage wiring to deliver consistent power and maintain a stable connection, reducing the risk of signal loss or interference compared to wireless alternatives. Additionally, low-voltage wiring is used for door and window sensors, ensuring immediate alerts in case of unauthorized access. This reliability makes low-voltage wiring a preferred choice for homeowners prioritizing safety and security.
Data networks in new homes also heavily rely on low-voltage wiring, particularly in the form of Ethernet cables. While Wi-Fi is common, wired connections provide faster, more stable internet access, which is essential for streaming, gaming, and smart home devices. Cat6 or Cat6a Ethernet cables, a type of low-voltage wiring, are often installed throughout the home to create a robust network backbone. These cables connect routers, switches, and access points, ensuring high-speed data transfer and reducing latency. For homes with multiple smart devices, a wired network supported by low-voltage wiring is indispensable for optimal performance.
When installing low-voltage wiring in new homes, it’s important to follow best practices to ensure longevity and functionality. Wires should be neatly organized and labeled to avoid confusion during maintenance or upgrades. Using dedicated conduits or cable trays can protect the wiring from damage and interference. Additionally, homeowners should plan for future needs by installing extra cables in key areas, such as living rooms, bedrooms, and home offices. Working with a professional electrician or low-voltage specialist ensures compliance with building codes and industry standards, guaranteeing a safe and efficient installation. In summary, low-voltage wiring is a cornerstone of modern home infrastructure, enabling smart systems, security, and data networks to function seamlessly.
Choosing the Right Wire Size for Your Electric Water Heater Setup
You may want to see also
Frequently asked questions
The most common type of electrical wiring used in new homes is non-metallic (NM) cable, also known as Romex. It consists of two or more insulated conductors wrapped in a flexible plastic jacket.
Yes, alternatives include armored cable (AC), also known as BX, and conduit systems, which are often used in areas requiring additional protection or flexibility for future upgrades.
Copper wiring is preferred and more commonly used in new homes due to its superior conductivity, durability, and safety compared to aluminum wiring.
For standard household circuits, 12-gauge or 14-gauge wire is typically used. 12-gauge is often used for higher-load circuits like kitchens and workshops, while 14-gauge is common for lighting and receptacle circuits.
