In the 1950s, electrical wiring in homes and buildings primarily consisted of non-metallic (NM) sheathed cable, commonly known as Romex, which featured two or three insulated conductors wrapped in a protective plastic or rubber jacket. Additionally, knob-and-tube wiring was still prevalent in older structures, though its use declined as it lacked grounding capabilities. Aluminum wiring also began to emerge as a cost-effective alternative to copper, though its use was limited due to safety concerns and compatibility issues with certain fixtures. Grounding became increasingly important during this era, leading to the adoption of three-prong outlets and grounded wiring systems, marking a shift toward safer electrical installations.
| Characteristics | Values |
|---|---|
| Type of Wiring | Knob-and-Tube (K&T) and early Romex (non-metallic sheathed cable, NM) |
| Material | Rubber or cloth insulation (K&T), rubber-insulated wires (NM) |
| Conductor Material | Copper |
| Voltage Rating | Typically 600V |
| Gauge | Commonly 12-14 AWG for lighting and outlets |
| Grounding | Limited or no grounding (K&T), early NM may have rudimentary grounding |
| Sheathing | No sheathing (K&T), early NM had rubber or cloth-wrapped sheathing |
| Fire Resistance | Low (rubber insulation could degrade and become brittle over time) |
| Common Uses | Residential wiring for lighting, outlets, and appliances |
| Safety Concerns | Overheating, insulation degradation, lack of grounding |
| Current Standards Compliance | Does not meet modern NEC (National Electrical Code) standards |
| Lifespan | 50-70 years, depending on maintenance and environmental conditions |
| Replacement Recommendation | Often replaced with modern NM cable (e.g., Romex with plastic sheathing) |
Explore related products
What You'll Learn

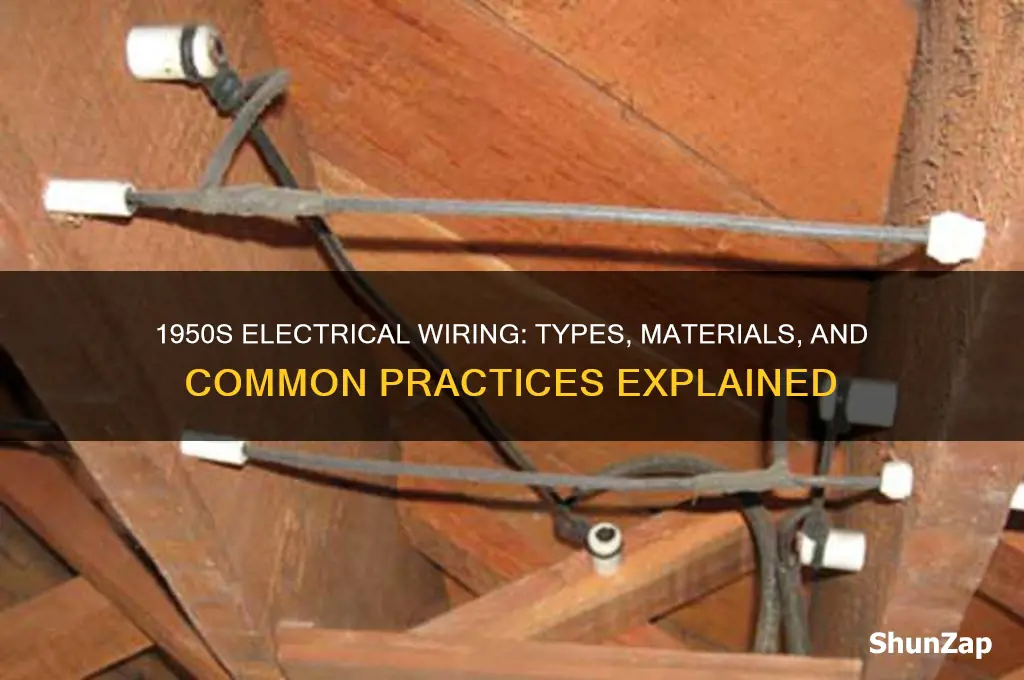

Knob and Tube Wiring
Knob and Tube (K&T) wiring was one of the most common types of electrical wiring used in the 1950s, particularly in residential buildings. Developed in the late 19th century, this wiring method remained popular through the mid-20th century due to its simplicity and cost-effectiveness. K&T wiring consists of single, insulated copper conductors that are run through ceramic knobs and tubes. The knobs are used to support the wires away from combustible materials like wood, while the tubes protect the wires as they pass through framing members, such as floor joists or wall studs. This design was intended to minimize the risk of fire by preventing the wires from coming into direct contact with flammable building materials.
One of the defining features of Knob and Tube wiring is its open-air design. Unlike modern wiring systems that are enclosed within sheathing or cables, K&T wires are exposed to the air. This allows for better heat dissipation, reducing the risk of overheating. However, this open design also means that the wiring is more susceptible to damage from physical contact, pests, or environmental factors. Additionally, K&T systems typically do not include a grounding wire, which is a standard safety feature in modern electrical systems. The lack of grounding increases the risk of electrical shock and makes these systems incompatible with many contemporary appliances and devices that require a grounded circuit.
Installing Knob and Tube wiring involved precise placement and adherence to specific guidelines. Wires were run in a straight line between knobs, with careful attention to maintaining proper spacing and avoiding sharp bends that could damage the insulation. The ceramic tubes were used at points where wires needed to pass through wood or other materials, ensuring that the insulation remained intact. While this method was effective for its time, it became less practical as electrical demands increased in the latter half of the 20th century. Homes with K&T wiring often struggle to support the higher electrical loads required by modern households, leading to overloaded circuits and potential safety hazards.
Despite its limitations, Knob and Tube wiring can still be found in many older homes built in the 1950s and earlier. Homeowners with K&T wiring should be aware of its characteristics and potential risks. For example, the insulation on these wires can degrade over time, especially if exposed to heat or moisture. It’s also important to avoid making modifications, such as adding insulation over the wires, as this can trap heat and increase the risk of fire. Many insurance companies are hesitant to provide coverage for homes with K&T wiring due to these safety concerns, and some may require an inspection or upgrades before issuing a policy.
In cases where Knob and Tube wiring is still in use, it’s often recommended to have it inspected by a licensed electrician. While some K&T systems may be functioning safely, others may pose significant risks. Upgrading to a modern wiring system is frequently the best course of action, especially for homeowners planning to use high-demand appliances or electronics. However, in some instances, a qualified electrician may determine that the existing K&T wiring is safe to maintain, provided it is not overloaded and shows no signs of damage. Understanding the specifics of K&T wiring is crucial for ensuring the safety and functionality of older electrical systems.
Shifting Gears: Are Carmakers Abandoning Electric Vehicles?
You may want to see also
Explore related products
Rubber-Insulated Cables
In the 1950s, rubber-insulated cables were a prevalent choice for electrical wiring in residential, commercial, and industrial applications. These cables were favored for their flexibility, durability, and resistance to moisture, making them suitable for a wide range of environments. The rubber insulation, typically made from natural or synthetic rubber compounds, provided excellent protection for the conductive core, which was usually made of stranded copper or aluminum wires. This combination ensured reliable electrical performance while maintaining the cable's ability to bend and twist without damage, a critical feature for installations in tight or dynamic spaces.
One of the key advantages of rubber-insulated cables in the 1950s was their ability to withstand moderate temperatures and mechanical stress. Unlike earlier wiring materials like cloth-covered cables, rubber insulation offered better protection against heat, oils, and chemicals, reducing the risk of electrical fires and short circuits. This made rubber-insulated cables particularly popular in industrial settings where machinery and equipment generated heat or where exposure to harsh substances was common. Additionally, the rubber's inherent flexibility allowed for easier installation compared to more rigid materials, saving time and labor costs during wiring projects.
Despite their many benefits, rubber-insulated cables from the 1950s had limitations that are important to consider in modern contexts. Over time, the rubber insulation could become brittle, crack, or deteriorate due to aging, heat exposure, or chemical interactions. This degradation could lead to exposed conductors, increasing the risk of electrical hazards such as shocks or fires. As a result, many older installations with rubber-insulated wiring are now considered outdated and may require replacement with modern materials like PVC or thermoplastic-insulated cables, which offer improved longevity and safety features.
In summary, rubber-insulated cables were a cornerstone of electrical wiring in the 1950s, valued for their flexibility, durability, and resistance to moisture and moderate temperatures. Their widespread use in various applications highlighted their versatility and reliability during that era. However, the potential for degradation over time has led to their gradual replacement in many older buildings. Understanding the characteristics and limitations of rubber-insulated cables is essential for assessing the safety and functionality of vintage electrical systems and making informed decisions about upgrades or replacements.
Are Evo Cars Electric? Exploring the Truth Behind the Rumors
You may want to see also
Explore related products
![[UL Listed] 50ft Twisted Cloth Covered Wire, Carry360 Antique Industrial Electronic Wire, 18-Gauge 2-Conductor Vintage Style Fabric Lamp/Pendant Cloth Cord Cable (Black)](https://m.media-amazon.com/images/I/71YfrByBC-L._AC_UL320_.jpg)
Armored Cables (BX)
Armored cables, commonly known as BX cables, were a staple in electrical wiring during the 1950s. These cables are characterized by their durable construction, which includes a flexible metal armor wrapped around the inner conductors. The armor, typically made of interlocking metal strips, provides robust protection against physical damage, making BX cables ideal for both residential and commercial applications. This design not only safeguarded the wires from external hazards but also allowed for easier installation in areas where traditional wiring might be vulnerable to wear and tear.
One of the key advantages of armored cables in the 1950s was their versatility. BX cables could be used in a variety of settings, including exposed runs along walls, through concrete, or in outdoor environments. The metal armor acted as a grounding path, eliminating the need for a separate ground wire in many installations. This feature simplified the wiring process and reduced material costs, making BX cables a cost-effective solution for electricians and builders during that era.
The installation process for BX cables was straightforward, which contributed to their widespread use in the 1950s. Electricians could easily cut the cables to length and connect them using specialized connectors that secured the armor and insulated the conductors. The flexibility of the metal armor allowed the cables to be bent around corners and through tight spaces without compromising their integrity. This ease of installation made BX cables particularly popular in retrofit projects and new construction alike.
Despite their durability, armored cables had limitations that were important to consider during installation. For instance, the metal armor could become sharp when cut, requiring careful handling to avoid injury. Additionally, while the armor provided excellent protection, it did not offer insulation, so proper precautions had to be taken to prevent electrical shorts. Electricians in the 1950s were well-versed in these considerations, ensuring that BX cables were installed safely and effectively.
In summary, armored cables (BX) were a cornerstone of electrical wiring in the 1950s, prized for their durability, versatility, and ease of installation. Their metal armor provided superior protection against physical damage, while their grounding capabilities simplified wiring setups. Though they required careful handling and specific installation techniques, BX cables remained a reliable and cost-effective choice for a wide range of electrical applications during that decade. Their legacy continues today, as they are still used in certain scenarios where ruggedness and reliability are paramount.
Why Bulbs Power Electrical Vibrators: Uncovering the Practical Design Choice
You may want to see also
Explore related products
Non-Metallic Sheathed Cables
The construction of NM cables in the 1950s was relatively straightforward yet highly functional. The inner conductors were usually made of stranded copper, which provided excellent conductivity and durability. Each conductor was insulated with a rubber or plastic coating to prevent short circuits. The outer sheath, made of PVC, offered protection against moisture, chemicals, and physical damage, ensuring the wiring remained safe and reliable. NM cables were available in various gauges, such as 12-gauge and 14-gauge, to accommodate different electrical loads in residential settings. This versatility made them suitable for powering everything from lighting circuits to small appliances.
One of the key advantages of NM cables in the 1950s was their compatibility with modern electrical systems. As homes began to incorporate more electrical devices, NM cables provided a practical solution for distributing power efficiently. They were designed to be used with grounded systems, which became increasingly important as safety standards evolved. The neutral and ground wires within the cable helped prevent electrical shocks and fires, aligning with the growing emphasis on electrical safety during this period. Electricians appreciated the ease of stripping the outer sheath and connecting the wires to outlets, switches, and junction boxes.
Despite their many benefits, NM cables from the 1950s had limitations that are important to note today. The early PVC sheathing was less durable than modern versions and could degrade over time, especially when exposed to heat or certain environmental conditions. Additionally, the insulation on the conductors was not as heat-resistant as contemporary materials, which could pose risks in older installations. Homeowners and electricians working on 1950s wiring must inspect NM cables for signs of wear, such as cracking or brittleness, and consider upgrading to modern wiring if safety concerns arise.
In summary, Non-Metallic Sheathed Cables played a pivotal role in shaping the electrical wiring landscape of the 1950s. Their innovative design, combined with affordability and ease of installation, made them a cornerstone of residential electrical systems during this decade. While they remain in use today, advancements in materials and safety standards have led to improvements in their construction. Understanding the characteristics and limitations of 1950s NM cables is essential for maintaining and updating older electrical systems safely and effectively.
Everyday Devices and Appliances Powered by Electric Energy Explained
You may want to see also
Explore related products
Aluminum Wiring Introduction
In the 1950s, the construction industry witnessed a significant shift in electrical wiring practices, with aluminum wiring emerging as a popular alternative to the traditional copper wiring. This transition was primarily driven by the increasing demand for electrical infrastructure in post-war housing developments and the rising cost of copper. Aluminum wiring was introduced as a cost-effective solution, offering a lightweight and abundant material that could meet the growing electrical needs of the era. Its adoption marked a notable change in residential and commercial wiring standards, setting the stage for a new phase in electrical installation practices.
Aluminum wiring gained traction due to its several inherent advantages. Firstly, aluminum is approximately one-third the weight of copper, making it easier to transport and install. This lightweight property simplified the wiring process, especially in large-scale construction projects. Secondly, aluminum was more affordable than copper, which was experiencing price fluctuations due to high demand and limited supply. Builders and electricians found aluminum wiring to be a budget-friendly option without compromising on conductivity, as aluminum is an excellent conductor of electricity. These factors collectively contributed to its widespread use during this period.
The introduction of aluminum wiring, however, was not without its challenges. One of the primary concerns was the compatibility of aluminum with existing electrical components, many of which were designed for copper wiring. Aluminum has different physical and chemical properties, including a higher coefficient of thermal expansion, which can lead to loose connections over time. This issue became a significant safety concern, as loose connections can cause overheating and potentially lead to electrical fires. Despite these challenges, the 1950s saw the establishment of aluminum wiring as a viable option, prompting the development of new installation techniques and specialized connectors to address these compatibility issues.
During this decade, electricians and manufacturers had to adapt their practices to accommodate aluminum wiring. Specialized training was often required to ensure proper installation, as the techniques differed from those used for copper. The industry responded by creating new standards and guidelines for aluminum wiring installations, focusing on preventing potential hazards. This included the use of specific wire connectors, such as aluminum-to-copper connectors, to ensure secure and safe electrical connections. The evolution of wiring practices during this time laid the groundwork for the continued use of aluminum in electrical systems, albeit with improved methods and a deeper understanding of its unique characteristics.
The 1950s marked a pivotal period in the history of electrical wiring, as aluminum wiring became a prominent feature in many buildings. Its introduction brought about a necessary evolution in wiring techniques and safety standards. While it presented initial challenges, the industry's response paved the way for the continued use of aluminum in electrical applications, shaping the future of wiring practices and material choices in the decades to come. This era's innovations and lessons learned continue to influence modern electrical installations, ensuring safer and more efficient wiring systems.
Peak Power Usage: Which Month Consumes the Most Electricity?
You may want to see also
Frequently asked questions
In the 1950s, homes typically used knob and tube wiring or early forms of non-metallic (NM) sheathed cable, also known as Romex. Knob and tube was more common in older homes, while NM cable became increasingly popular in new construction.
Aluminum wiring was not widely used in the 1950s. It became more common in the 1960s and 1970s due to the rising cost of copper. Most 1950s homes relied on copper wiring.
Grounding was not standard in the 1950s. Most wiring systems lacked a dedicated ground wire, relying instead on two-wire systems (hot and neutral). Grounding became more prevalent in the 1960s with updated electrical codes.
The standard voltage in the 1950s was 120 volts for most household circuits, with 240 volts used for larger appliances like stoves and dryers. This remains the standard voltage in the U.S. today.
Both were used, but fuses were more common in the 1950s. Circuit breakers began to replace fuses in newer homes toward the end of the decade, but many 1950s homes still relied on fuse boxes.
