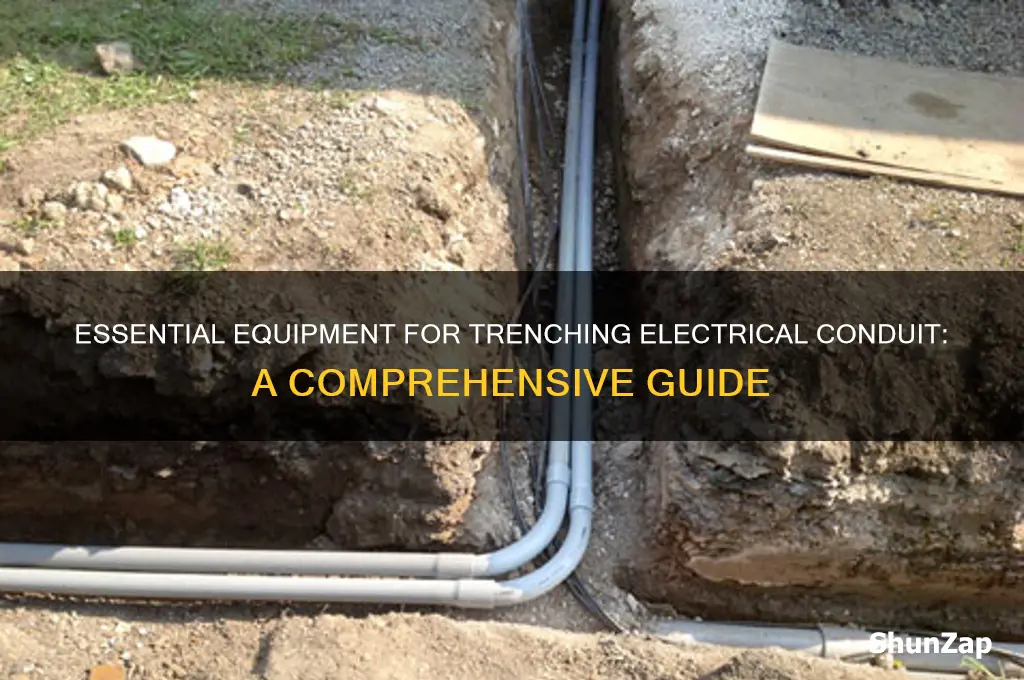

Trenching electrical conduit requires specialized equipment to ensure efficiency, precision, and safety. Commonly used machinery includes trenchers, which come in various types such as walk-behind, ride-on, or excavator-mounted models, designed to dig narrow, straight trenches ideal for conduit installation. For smaller or more delicate projects, manual tools like shovels or pickaxes may be employed, though they are less efficient for larger-scale work. Additionally, equipment like vibratory plows or cable plows can be utilized to create trenches with minimal surface disruption, particularly in urban or landscaped areas. Safety gear, such as gloves, hard hats, and high-visibility clothing, is also essential to protect workers during the trenching process. The choice of equipment depends on factors like soil type, trench depth, project scale, and site conditions, ensuring the conduit is installed securely and in compliance with regulations.
| Characteristics | Values |
|---|---|
| Equipment Type | Trenchers, Mini Excavators, Chain Trencher, Vibratory Plow, Manual Tools |
| Power Source | Gasoline, Diesel, Electric, Hydraulic, Manual |
| Trench Depth Capability | 6 inches to 48 inches (depending on equipment) |
| Trench Width | 2 inches to 12 inches (adjustable based on blade/chain width) |
| Application | Residential, Commercial, Industrial, Utility Installation |
| Operation Mode | Walk-Behind, Ride-On, Attachment for Skid Steer/Excavator |
| Blade/Chain Material | High-Carbon Steel, Carbide-Tipped |
| Speed | 5 to 50 feet per minute (varies by model and soil type) |
| Weight | 200 lbs to 5,000 lbs (depending on size and type) |
| Soil Compatibility | Sand, Clay, Loam, Rocky Soil (with appropriate equipment) |
| Additional Features | Laser Guidance, Depth Control, Debris Removal System, Foldable Design |
| Maintenance Requirements | Regular Blade Sharpening, Lubrication, Filter Changes, Hydraulic Checks |
| Safety Features | Emergency Stop, Anti-Vibration Handles, Guard Shields |
| Cost Range | $500 (manual) to $50,000+ (heavy-duty trenchers) |
| Environmental Impact | Minimal Soil Disturbance (vibratory plow), High Disturbance (chain trencher) |
| Portability | Compact Models for Tight Spaces, Trailer-Mounted for Transport |
Explore related products
What You'll Learn
- Trenchers: Chain, wheel, or laser-guided machines for precise conduit trench digging
- Shovels & Picks: Manual tools for small-scale or tight-space trenching work
- Excavators: Heavy machinery for deep or large-scale conduit trench excavation
- Conduit Benders: Tools to shape electrical conduit for proper trench installation
- Trench Boxes: Safety equipment to prevent trench collapse during conduit placement
Trenchers: Chain, wheel, or laser-guided machines for precise conduit trench digging
Trenchers are specialized machines designed to dig narrow and precise trenches for laying electrical conduit, ensuring efficiency and accuracy in utility installation projects. These machines come in various types, including chain, wheel, and laser-guided models, each suited to specific soil conditions and project requirements. Chain trenchers, for example, are equipped with a rugged, toothed chain that cuts through hard or rocky soil with ease. They are ideal for heavy-duty applications where precision is still necessary but the terrain is challenging. The aggressive cutting action of the chain makes it a reliable choice for digging deep and narrow trenches, which are perfect for electrical conduit installation.
Wheel trenchers, on the other hand, feature a large, circular blade with teeth that rotate to slice through the ground. These machines are best suited for softer soils, such as clay or loam, where they can achieve clean and precise cuts. Wheel trenchers are known for their speed and efficiency, making them a popular choice for larger projects with more forgiving soil conditions. The depth and width of the trench can often be adjusted, allowing for customization based on the size of the conduit being installed. This versatility ensures that the trench is neither too wide nor too narrow, optimizing material usage and reducing waste.
Laser-guided trenchers represent the pinnacle of precision in conduit trench digging. These machines utilize advanced laser technology to maintain consistent depth and alignment, even over long distances or uneven terrain. The laser system provides real-time feedback to the operator, ensuring the trench follows the exact path and depth required for the electrical conduit. This level of accuracy is particularly valuable in urban or densely populated areas where minimizing disruption and avoiding underground utilities are critical. Laser-guided trenchers are often used in conjunction with GPS systems for even greater precision, making them an excellent choice for complex or high-stakes projects.
When selecting a trencher for electrical conduit installation, it’s essential to consider factors such as soil type, trench depth, and project scale. Chain trenchers excel in hard or rocky soils but may be overkill for softer ground. Wheel trenchers offer speed and efficiency in looser soils but struggle with harder materials. Laser-guided trenchers provide unmatched precision but may come with a higher cost and learning curve. Additionally, operators should prioritize safety by ensuring proper training and adhering to manufacturer guidelines, as trenching can pose risks such as cave-ins or equipment malfunctions.
Maintenance and proper operation are key to maximizing the lifespan and performance of trenching equipment. Regular inspections of cutting chains, blades, and laser systems can prevent downtime and ensure consistent results. Operators should also be mindful of environmental factors, such as weather conditions, which can affect soil stability and machine performance. By choosing the right trencher and maintaining it diligently, contractors can achieve precise and efficient conduit trench digging, ultimately saving time and resources while delivering high-quality results.
Best Pliers for Cutting Electrical Wire: A Comprehensive Guide
You may want to see also
Explore related products
Shovels & Picks: Manual tools for small-scale or tight-space trenching work
When it comes to trenching for electrical conduit, especially in small-scale or tight-space scenarios, shovels and picks are indispensable manual tools. These tools are ideal for projects where mechanical equipment cannot access or where precision is crucial. Shovels, for instance, are versatile and come in various types, such as round-point, square-point, and trenching shovels. A round-point shovel is excellent for general digging, while a square-point shovel provides more control when cutting through soil. Trenching shovels, with their narrow blades, are specifically designed to create narrow trenches, making them perfect for laying electrical conduit in confined areas. The choice of shovel depends on the soil type and the depth of the trench required.
Picks, on the other hand, are essential for breaking up hard or compacted soil, rocks, or roots that shovels alone cannot handle. A standard pickaxe combines a pointed end for breaking hard surfaces and a flat end for prying or loosening soil. For tighter spaces, a mattock—a pick with a narrower blade—can be more effective. When using picks, it’s important to strike the ground at an angle to maximize force while minimizing effort. Both shovels and picks require proper technique to avoid fatigue and injury, such as using your body weight to drive the tool into the ground rather than relying solely on arm strength.
In small-scale trenching projects, the combination of shovels and picks allows for precise control over the trench’s depth and width, ensuring the electrical conduit fits snugly. For instance, when working in a backyard or near existing structures, these tools enable workers to avoid damaging utilities or landscaping. Additionally, manual tools are quieter and less disruptive than mechanical equipment, making them suitable for residential areas or projects requiring minimal noise. However, it’s crucial to plan the trench layout beforehand and mark the path to ensure accuracy.
Safety is paramount when using shovels and picks for trenching. Always inspect tools for damage before use, such as loose handles or bent blades, and wear appropriate personal protective equipment (PPE), including gloves and sturdy boots. Be mindful of underground utilities by calling local authorities to mark their locations before digging. When digging deeper trenches, ensure proper shoring to prevent collapses, especially in loose soil. Proper ergonomics, such as bending at the knees and lifting with the legs, can prevent strain and injuries during prolonged work.
For tight-space trenching, such as along fences or between structures, shovels and picks offer the flexibility to navigate obstacles that larger equipment cannot. Techniques like “slicing” the soil in thin layers or using a half-moon edger to create clean edges can enhance efficiency. Regularly clearing debris from the trench ensures a smooth path for the conduit. While manual trenching is labor-intensive, it is often the most cost-effective and practical solution for small projects or areas with limited access. With patience and the right tools, shovels and picks can achieve professional results for electrical conduit installation.
Tallahassee's Electric Evolution: When Buildings Lit Up with Power
You may want to see also
Explore related products
Excavators: Heavy machinery for deep or large-scale conduit trench excavation
Excavators are indispensable heavy machinery for deep or large-scale conduit trench excavation, offering precision, power, and efficiency in demanding electrical conduit installation projects. These machines are designed to handle substantial digging depths and volumes of earth, making them ideal for laying electrical conduits in commercial, industrial, or utility-scale applications. Equipped with a boom, stick, and bucket, excavators can dig trenches with consistent width and depth, ensuring proper alignment for conduit placement. Their hydraulic systems provide the force needed to penetrate tough soil conditions, including clay, rock, or compacted earth, which are often encountered in large-scale projects.
One of the key advantages of excavators is their versatility in trench excavation. Operators can attach specialized buckets or trenching attachments to optimize performance for specific soil types or trench dimensions. For instance, narrow trenching buckets are used to minimize the width of the trench, reducing the amount of backfill required and preserving the surrounding landscape. Additionally, excavators can be fitted with laser-guided systems or GPS technology to ensure the trench follows precise grading and alignment, critical for electrical conduit installations that require strict adherence to safety and regulatory standards.
Excavators are also highly maneuverable, with 360-degree rotating platforms that allow operators to dig trenches in tight or confined spaces. This capability is particularly useful in urban or developed areas where space is limited and precision is paramount. The ability to adjust the boom and stick angles enables excavators to create trenches on slopes or uneven terrain, ensuring the conduit is installed at the correct depth and grade regardless of the landscape challenges. Their stability and power make them suitable for deep trenches, often exceeding 6 feet, which are common in high-voltage electrical conduit projects.
Safety is a critical consideration when using excavators for conduit trench excavation. Operators must adhere to strict protocols to prevent accidents, such as cave-ins or damage to underground utilities. Excavators are often equipped with safety features like backup cameras, proximity sensors, and stabilizers to minimize risks. Additionally, proper planning, including utility locates and soil analysis, is essential before beginning excavation to avoid striking buried cables, pipes, or other obstructions. Skilled operators and well-maintained equipment are vital to ensuring the safe and efficient use of excavators in large-scale conduit trenching.
In summary, excavators are the go-to heavy machinery for deep or large-scale conduit trench excavation due to their power, precision, and adaptability. Their ability to handle challenging soil conditions, achieve consistent trench dimensions, and operate in diverse environments makes them essential for electrical conduit installations in complex or large-scale projects. By leveraging advanced attachments and technologies, excavators ensure that trenches are excavated efficiently and accurately, laying the foundation for reliable electrical infrastructure. Proper operation and safety measures further solidify their role as a cornerstone of modern conduit trenching equipment.
The Green Revolution: Overcoming Electric Vehicle Obstacles
You may want to see also
Explore related products
Conduit Benders: Tools to shape electrical conduit for proper trench installation
When it comes to trenching electrical conduit, one of the essential tools in a professional's arsenal is the conduit bender. These specialized tools are designed to shape and bend electrical conduits with precision, ensuring a proper fit during trench installation. Conduit benders come in various types, each suited for different conduit sizes and materials, such as EMT (Electrical Metallic Tubing), PVC, or rigid metal conduit. The primary goal is to create smooth, accurate bends that comply with electrical codes and facilitate easy wire pulling. Understanding how to use these tools effectively is crucial for any electrician or contractor involved in trench work.
Hand benders are the most common type of conduit benders, ideal for smaller projects or tight spaces where mechanical equipment cannot access. They typically consist of a long, hinged handle with a shoe attachment that fits around the conduit. To use a hand bender, the conduit is marked at the desired bend point, and the shoe is positioned accordingly. By applying force to the handles, the conduit bends to the required angle. Hand benders are available in different sizes, each designed for specific conduit diameters, ensuring clean and consistent bends. While they require physical effort, they offer excellent control and are cost-effective for occasional use.
For larger-scale projects or frequent bending tasks, mechanical conduit benders are a more efficient option. These tools use hydraulic or manual leverage systems to bend conduits with minimal effort. Hydraulic benders, for instance, employ a pump mechanism to apply pressure, making them suitable for thicker or more rigid materials like rigid metal conduit. Manual mechanical benders, on the other hand, use a crank or ratcheting system to achieve bends. These machines often come with adjustable settings for different conduit sizes and bend radii, ensuring versatility on the job site. Mechanical benders are particularly useful for maintaining consistency across multiple bends, which is critical for long trench installations.
Another specialized tool in this category is the rotary bender, which is designed for high-volume bending tasks. Rotary benders use a rotating mechanism to gradually bend the conduit, producing smooth, accurate results. They are often mounted on a bench or stand for stability and can handle a wide range of conduit sizes. These machines are commonly used in workshops or pre-fabrication settings where conduits are prepared before being transported to the trench site. While they may require more setup time, rotary benders significantly reduce labor and increase productivity for large projects.
Regardless of the type of conduit bender used, proper technique and safety precautions are essential. Always ensure the conduit is securely clamped and aligned before bending to prevent kinks or damage. Wear appropriate personal protective equipment, such as gloves and safety glasses, to avoid injuries. Additionally, follow manufacturer guidelines for the specific bender being used, as improper operation can lead to tool damage or subpar bends. By mastering the use of conduit benders, professionals can ensure that electrical conduits are shaped correctly for trench installation, contributing to a safe and efficient electrical system.
Electric Field Separation: How Charged Particles Are Sorted Efficiently
You may want to see also
Explore related products
Trench Boxes: Safety equipment to prevent trench collapse during conduit placement
When trenching for electrical conduit, one of the most critical safety considerations is preventing trench collapse, which can be fatal or cause serious injuries. Trench boxes are essential safety equipment designed to protect workers by stabilizing the walls of the trench and preventing soil movement. These robust, modular structures are made from steel or aluminum and are engineered to withstand the lateral pressures exerted by the surrounding soil. Trench boxes are particularly vital in areas with unstable soil conditions or when trenching deeper than five feet, as required by Occupational Safety and Health Administration (OSHA) regulations. By creating a safe, enclosed workspace, trench boxes allow workers to install electrical conduit efficiently while minimizing the risk of cave-ins.
The design of trench boxes is tailored to accommodate various trench widths and depths, ensuring versatility across different conduit placement projects. They consist of two sidewalls (or panels) connected by spreaders, which maintain the distance between the panels and distribute the soil pressure evenly. The panels are typically braced with steel or aluminum sheets, and some models include adjustable spreaders to fit specific trench dimensions. For electrical conduit installation, trench boxes are often used in conjunction with other equipment like backhoes or trenchers to create the initial excavation. Once the trench is dug, the box is positioned within it, providing a secure environment for workers to lay conduit, pull wires, or perform other tasks without the constant threat of a collapse.
Proper installation and use of trench boxes are paramount to their effectiveness. Before placing the box, the trench must be inspected for signs of instability, such as cracks or shifting soil. The box should be set at the correct depth and aligned with the trench walls, ensuring no gaps where soil could seep through. OSHA mandates that trench boxes must be installed in a manner that prevents movement and provides adequate support for the expected soil load. Additionally, workers should never enter a trench without a properly installed trench box or other protective system in place. Regular inspections of the trench box and surrounding area are also necessary to identify any changes in soil conditions or structural integrity.
Trench boxes not only protect workers but also enhance productivity by providing a stable platform for conduit placement. Without the risk of collapse, workers can focus on the precise alignment and securement of electrical conduit, ensuring a professional and code-compliant installation. Furthermore, trench boxes can be reused across multiple projects, making them a cost-effective investment for contractors and utility companies. Their durability and ease of assembly/disassembly contribute to their widespread use in the electrical and construction industries.
In summary, trench boxes are indispensable safety equipment for preventing trench collapse during electrical conduit placement. Their sturdy construction, adaptability to various trench sizes, and compliance with OSHA standards make them a cornerstone of trench safety protocols. By prioritizing the use of trench boxes, project managers and workers can mitigate risks, adhere to regulatory requirements, and maintain a secure worksite. Whether for residential, commercial, or industrial projects, trench boxes play a critical role in safeguarding lives and ensuring the successful installation of electrical conduit systems.
Electric Toothbrush Bristles: Types, Materials, and Choosing the Right One
You may want to see also
Frequently asked questions
Common equipment includes trenchers (chain, wheel, or portable), backhoes, mini excavators, and manual tools like shovels or pickaxes for smaller projects.
Yes, dedicated trenchers like walk-behind trenchers or ride-on trenchers are often used for precise and efficient conduit trenching.
Yes, a backhoe is versatile and can be used for trenching, especially in larger or more complex projects where additional digging capabilities are needed.
Manual tools such as shovels, pickaxes, and trench shovels (narrow-bladed shovels) are used for tight or hard-to-reach areas where machinery cannot operate.
Yes, a mini excavator is ideal for smaller-scale trenching projects, offering precision and maneuverability in confined spaces.
