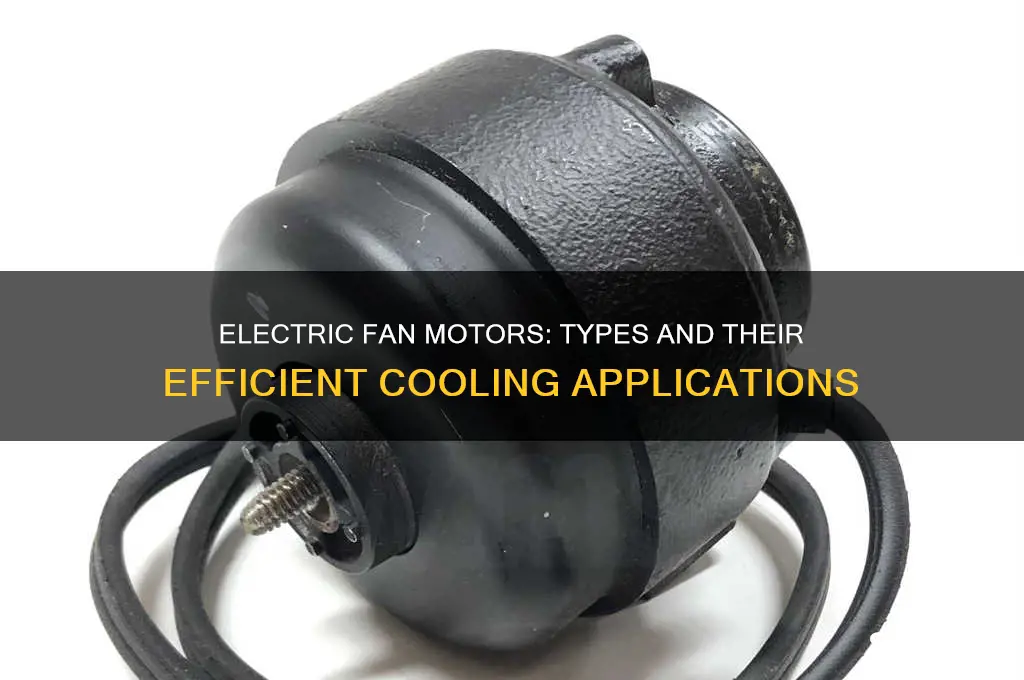

Electric fans are essential household appliances designed to circulate air efficiently, and their functionality relies heavily on the type of motor used. The most common motor found in electric fans is the single-phase induction motor, specifically the shaded-pole motor or split-phase motor. These motors are favored for their simplicity, reliability, and cost-effectiveness. Shaded-pole motors, in particular, are widely used in smaller fans due to their quiet operation and low manufacturing costs, though they are less energy-efficient. For larger or more powerful fans, split-phase motors or capacitor-start motors are often employed, offering better torque and efficiency. Additionally, advancements in technology have led to the use of brushless DC (BLDC) motors in high-end fans, which provide superior energy efficiency, longer lifespan, and quieter operation compared to traditional AC motors. The choice of motor ultimately depends on factors such as fan size, desired performance, and energy consumption requirements.
| Characteristics | Values |
|---|---|
| Motor Type | Brushless DC (BLDC) or Single-Phase Induction Motor |
| Power Rating | Typically 30W to 100W, depending on fan size and speed |
| Speed | Variable, usually 800 to 1500 RPM (adjustable via controls) |
| Voltage | Commonly 120V or 230V AC, depending on region |
| Efficiency | High, up to 85-90% for BLDC motors |
| Noise Level | Low, typically 30-50 dB(A) |
| Lifespan | Long, often 30,000+ hours for BLDC motors |
| Control Method | Electronic speed control (ESC) for BLDC, capacitor-based for induction motors |
| Weight | Lightweight, usually 0.5 to 2 kg |
| Size | Compact, designed to fit within fan housing |
| Starting Torque | High for BLDC, moderate for induction motors |
| Maintenance | Low, especially for BLDC motors with no brushes |
| Cost | BLDC motors are slightly more expensive than induction motors |
| Applications | Ceiling fans, table fans, pedestal fans, exhaust fans |
Explore related products
What You'll Learn
- AC vs DC Motors: Comparison of AC induction and DC brushless motors in fan applications
- BLDC Motor Advantages: Efficiency, durability, and low noise benefits of brushless DC motors
- Single-Phase vs Three-Phase: Differences in motor types based on power supply requirements
- Motor Speed Control: Methods like PWM and variable frequency drives for fan speed adjustment
- Energy Efficiency Ratings: Importance of energy-efficient motors (e.g., IE3/IE4) in fan design
AC vs DC Motors: Comparison of AC induction and DC brushless motors in fan applications
When it comes to electric fans, the choice of motor type plays a crucial role in determining performance, efficiency, and cost. The two primary types of motors used in fan applications are AC induction motors and DC brushless motors (BLDC). Each has distinct characteristics, advantages, and limitations, making them suitable for different scenarios. Understanding the differences between these motors is essential for selecting the right one for specific fan applications.
AC induction motors are widely used in traditional electric fans due to their simplicity, reliability, and cost-effectiveness. These motors operate on alternating current (AC) and rely on the principle of electromagnetic induction to produce rotation. In an AC induction motor, the rotor (rotating part) spins due to the interaction between the magnetic field generated by the stator (stationary part) and the induced currents in the rotor. One of the key advantages of AC induction motors is their robustness and ability to handle heavy loads without complex control systems. However, they are generally less energy-efficient compared to DC brushless motors, especially at variable speeds. Additionally, AC induction motors are bulkier and noisier, which can be a drawback in applications requiring compactness and quiet operation.
On the other hand, DC brushless motors (BLDC) have gained popularity in modern fan applications due to their higher efficiency, quieter operation, and advanced control capabilities. BLDC motors operate on direct current (DC) and use electronic commutation instead of mechanical brushes, reducing wear and tear and increasing lifespan. These motors are paired with electronic speed controllers (ESCs) to achieve precise speed regulation and energy efficiency. BLDC motors are particularly advantageous in applications requiring variable speeds, such as ceiling fans or industrial ventilation systems, as they maintain efficiency across a wide range of speeds. However, they are more expensive and require sophisticated control electronics, which can increase the overall cost of the fan system.
In terms of energy efficiency, DC brushless motors outperform AC induction motors, especially in variable-speed applications. BLDC motors can adjust their speed seamlessly while maintaining high efficiency, making them ideal for energy-conscious designs. AC induction motors, while efficient at full load, tend to lose efficiency at lower speeds due to their fixed-speed nature. This makes BLDC motors a preferred choice for applications where energy consumption and operational costs are critical factors.
Another important consideration is maintenance and durability. AC induction motors are known for their ruggedness and minimal maintenance requirements, as they have no brushes or commutators to wear out. In contrast, while BLDC motors also have a long lifespan due to their brushless design, their electronic components can be more susceptible to damage from voltage spikes or environmental factors. However, advancements in motor design and protective circuitry have mitigated many of these concerns, making BLDC motors increasingly reliable.
In conclusion, the choice between AC induction motors and DC brushless motors for fan applications depends on specific requirements such as efficiency, cost, noise levels, and control needs. AC induction motors remain a cost-effective and reliable option for basic fan applications, whereas DC brushless motors offer superior efficiency, quieter operation, and advanced control capabilities, making them ideal for modern, energy-efficient designs. As technology continues to evolve, the gap between these two motor types may narrow, but for now, each has its place in the diverse world of electric fans.
Electric Vehicles: Powering the Future of Transportation
You may want to see also
Explore related products
BLDC Motor Advantages: Efficiency, durability, and low noise benefits of brushless DC motors
Brushless DC (BLDC) motors have become increasingly popular in electric fans due to their numerous advantages over traditional brushed motors. One of the most significant benefits of BLDC motors is their efficiency. Unlike brushed motors, which experience energy loss due to friction between the brushes and the commutator, BLDC motors eliminate this issue by using an electronic commutation system. This results in higher energy conversion efficiency, meaning more of the electrical input is converted into mechanical output. For electric fans, this translates to lower power consumption and reduced electricity bills for users, making BLDC motors an eco-friendly and cost-effective choice.
Another key advantage of BLDC motors is their durability. The absence of brushes in these motors significantly reduces wear and tear, as brushes are prone to degradation over time. Without brushes, BLDC motors have fewer moving parts that can fail, leading to a longer lifespan. This is particularly beneficial for electric fans, which are often used for extended periods. The reduced maintenance requirements of BLDC motors also make them more reliable, ensuring consistent performance over years of operation. For manufacturers and consumers alike, this durability means fewer replacements and repairs, contributing to overall cost savings.
In addition to efficiency and durability, BLDC motors are renowned for their low noise operation. Traditional brushed motors generate noise due to the physical contact between the brushes and the commutator, as well as electromagnetic interference. BLDC motors, on the other hand, operate smoothly and quietly because they rely on electronic switching to control the motor’s phases. This makes them ideal for electric fans used in noise-sensitive environments such as bedrooms, offices, or libraries. The quiet operation enhances user comfort and satisfaction, making BLDC-powered fans a preferred choice for both residential and commercial applications.
The compact and lightweight design of BLDC motors is another advantage that contributes to their suitability for electric fans. Since BLDC motors do not require a commutator or brushes, they can be designed with a smaller form factor while maintaining high performance. This allows for sleeker and more aesthetically pleasing fan designs. Additionally, the reduced weight of BLDC motors makes fans easier to install and handle, which is particularly beneficial for ceiling fans or portable units. The combination of size and weight advantages further enhances the versatility of BLDC motors in various fan applications.
Lastly, BLDC motors offer precise speed control, which is a critical feature for electric fans. The electronic commutation system in BLDC motors allows for accurate control of the motor’s speed, enabling features like variable speed settings and smart fan modes. This level of control enhances user convenience, as fans can be adjusted to provide the exact airflow needed for different situations. Whether it’s a gentle breeze for sleeping or a powerful airflow for cooling, BLDC motors ensure optimal performance tailored to user preferences. This precision, combined with their efficiency, durability, and low noise, makes BLDC motors the superior choice for modern electric fans.
Split AC vs. Ceiling Fan: Which Consumes More Electricity?
You may want to see also
Explore related products
Single-Phase vs Three-Phase: Differences in motor types based on power supply requirements
Electric fans typically use single-phase induction motors due to their simplicity, cost-effectiveness, and suitability for low to moderate power applications. These motors are designed to operate on a single-phase power supply, which is commonly available in residential and small commercial settings. However, understanding the broader context of motor types based on power supply requirements—specifically single-phase versus three-phase motors—is essential to grasp why single-phase motors are the preferred choice for electric fans.
Single-Phase Motors: Power Supply and Characteristics
Single-phase motors are powered by a single alternating current (AC) waveform, which is standard in most household electrical systems. These motors are ideal for applications requiring less than 10 horsepower (HP), making them perfect for electric fans, which typically operate at fractions of a HP. The primary challenge with single-phase motors is their inability to self-start efficiently due to the absence of a rotating magnetic field. To overcome this, single-phase induction motors often incorporate additional components like capacitors or shaded poles. Capacitor-start motors, for instance, use a capacitor to create a phase shift, generating a starting torque. Shaded-pole motors, on the other hand, rely on a shaded ring around a portion of the stator to produce a rotating field, though they are less efficient and primarily used in low-power applications like fans.
Three-Phase Motors: Power Supply and Characteristics
Three-phase motors operate on a three-phase power supply, which consists of three AC waveforms, each 120 degrees out of phase. This setup inherently produces a rotating magnetic field, enabling three-phase motors to self-start without additional components. These motors are more powerful, efficient, and reliable, making them suitable for industrial applications requiring higher horsepower. However, three-phase power is not commonly available in residential areas, limiting its use in household appliances like electric fans. Three-phase motors are also more complex and expensive to manufacture, which further reduces their feasibility for low-power devices.
Key Differences in Power Supply Requirements
The fundamental difference between single-phase and three-phase motors lies in their power supply needs. Single-phase motors are designed for simplicity and compatibility with standard household power, while three-phase motors require specialized infrastructure. Additionally, single-phase motors often need auxiliary mechanisms to start, whereas three-phase motors start naturally due to their inherent design. The power output and efficiency of three-phase motors are significantly higher, but this comes at the cost of increased complexity and cost, making them impractical for small appliances like fans.
Why Single-Phase Motors Dominate Electric Fans
Electric fans use single-phase motors because they align with the power supply available in most homes and the modest power requirements of fans. The simplicity and lower cost of single-phase motors make them economically viable for mass production. While three-phase motors offer superior performance, their incompatibility with residential power systems and higher costs render them unsuitable for this application. Thus, single-phase motors, particularly shaded-pole or capacitor-start types, remain the standard choice for electric fans, balancing efficiency, cost, and practicality.
Are Electric Car Tax Credits Refundable? Understanding Your Financial Benefits
You may want to see also
Explore related products
Motor Speed Control: Methods like PWM and variable frequency drives for fan speed adjustment
Electric fans commonly use single-phase induction motors or brushless DC (BLDC) motors due to their efficiency, reliability, and cost-effectiveness. These motors are well-suited for fan applications, but controlling their speed requires specific methods to ensure smooth and energy-efficient operation. Motor speed control is essential for adjusting fan speed, and two prominent techniques are Pulse Width Modulation (PWM) and Variable Frequency Drives (VFDs). These methods allow for precise speed adjustments while maintaining motor performance and energy efficiency.
Pulse Width Modulation (PWM) is a widely used technique for controlling the speed of BLDC motors in electric fans. PWM works by rapidly switching the motor's power supply on and off, varying the width of the pulses to control the average voltage delivered to the motor. By adjusting the duty cycle (the ratio of "on" time to "off" time), the motor's speed can be finely tuned. For example, a 50% duty cycle delivers half the maximum power, effectively reducing the motor speed. PWM is efficient because it minimizes energy loss, as the motor is either fully on or fully off, avoiding resistive losses associated with traditional voltage reduction methods. This method is particularly popular in modern fans due to its simplicity, low cost, and compatibility with microcontrollers.
For single-phase induction motors used in some electric fans, Variable Frequency Drives (VFDs) are a more sophisticated method of speed control. VFDs work by converting the incoming AC power to DC and then back to AC at a variable frequency. Since the speed of an induction motor is directly proportional to the frequency of the supplied AC power, adjusting the frequency allows for precise speed control. VFDs also enable control over the voltage-to-frequency ratio, ensuring the motor receives the appropriate voltage for the desired speed, which prevents overheating and maintains efficiency. While VFDs are more complex and expensive than PWM, they offer superior control and are ideal for applications requiring wide speed ranges and high torque at low speeds.
Both PWM and VFDs offer distinct advantages depending on the motor type and application. PWM is best suited for BLDC motors in fans where simplicity and cost-effectiveness are priorities. In contrast, VFDs are more appropriate for single-phase induction motors in industrial or heavy-duty fan applications requiring precise control over a wide speed range. Regardless of the method, effective motor speed control enhances fan performance, energy efficiency, and user comfort by allowing adjustments to airflow based on specific needs.
In summary, motor speed control in electric fans is achieved through methods like PWM and VFDs, tailored to the type of motor used. PWM provides a straightforward and efficient solution for BLDC motors, while VFDs offer advanced control for single-phase induction motors. Understanding these techniques ensures optimal fan performance, energy savings, and adaptability to various operating conditions. As fan technology evolves, these speed control methods will continue to play a crucial role in meeting user demands for efficiency and convenience.
Avoid Wood Pellets in Electric Smokers: Key Reasons Explained
You may want to see also
Explore related products
Energy Efficiency Ratings: Importance of energy-efficient motors (e.g., IE3/IE4) in fan design
Electric fans typically use single-phase induction motors or brushless DC (BLDC) motors, depending on the design and application. However, when discussing energy efficiency in fan design, the focus shifts to the importance of using motors with high energy efficiency ratings, such as IE3 or IE4. These ratings, defined by the International Electrotechnical Commission (IEC), classify motors based on their energy performance, with IE3 and IE4 representing premium and super-premium efficiency levels, respectively. Incorporating such motors into fan design is crucial for reducing energy consumption, lowering operational costs, and minimizing environmental impact.
Energy-efficient motors like IE3 and IE4 play a pivotal role in fan design because fans are often used continuously for long periods, especially in industrial, commercial, and residential settings. Traditional motors, particularly those with lower efficiency ratings (e.g., IE1 or IE2), consume significantly more electricity to produce the same output, leading to higher energy bills and increased carbon emissions. By contrast, IE3 and IE4 motors are designed with advanced materials and technologies, such as improved core laminations, optimized winding designs, and reduced losses in bearings and rotors. These features enable them to convert electrical energy into mechanical energy more effectively, thereby reducing wasted energy in the form of heat.
The importance of energy-efficient motors in fan design extends beyond individual energy savings to broader environmental and economic benefits. For instance, widespread adoption of IE3 and IE4 motors in fans can contribute to global energy conservation efforts, aligning with sustainability goals and regulatory requirements. Many countries have implemented or are transitioning to mandatory energy efficiency standards for motors, making the use of IE3 and IE4 motors not just a choice but a necessity for manufacturers. Additionally, energy-efficient fans are increasingly preferred by consumers and businesses seeking to reduce their carbon footprint and operational costs, creating a competitive advantage for manufacturers who prioritize efficiency in their designs.
Incorporating IE3 or IE4 motors into fan design also involves considering the overall system efficiency, as the motor’s performance is closely tied to the fan’s aerodynamics and control mechanisms. For example, pairing an energy-efficient motor with a poorly designed fan blade or inefficient control system can negate its benefits. Therefore, designers must adopt a holistic approach, optimizing both the motor and the fan components to maximize energy savings. Variable speed drives (VSDs) are often used in conjunction with IE3/IE4 motors to further enhance efficiency by adjusting the fan speed based on demand, avoiding energy wastage during periods of low load.
Finally, investing in energy-efficient motors for fan design yields long-term returns despite potentially higher upfront costs. While IE3 and IE4 motors may be more expensive than their less efficient counterparts, the reduced energy consumption over the motor’s lifespan translates to substantial cost savings. Moreover, many governments and utilities offer incentives, rebates, or tax credits for adopting energy-efficient technologies, offsetting the initial investment. By prioritizing energy efficiency in fan design, manufacturers not only contribute to a more sustainable future but also meet the growing demand for eco-friendly products in the market.
Hybrid Car Electricity Usage: Understanding Power Consumption and Efficiency
You may want to see also
Frequently asked questions
The most common type of motor used in electric fans is a single-phase induction motor, specifically a shaded-pole motor or a split-phase motor, due to their simplicity, low cost, and reliability.
Yes, brushless DC (BLDC) motors are increasingly used in modern electric fans, especially in high-efficiency and premium models, as they offer better energy efficiency, longer lifespan, and quieter operation compared to traditional AC motors.
Yes, universal motors can be used in electric fans, particularly in portable or handheld fans. They are versatile and can run on either AC or DC power, but they tend to be noisier and less energy-efficient than other types.
Induction motors, especially capacitor-start or capacitor-run types, are preferred for ceiling fans because they provide consistent speed, good torque, and durability, making them suitable for continuous operation.
Synchronous motors are rarely used in electric fans because they require precise synchronization with the power supply frequency and are more complex and expensive compared to induction or BLDC motors.
