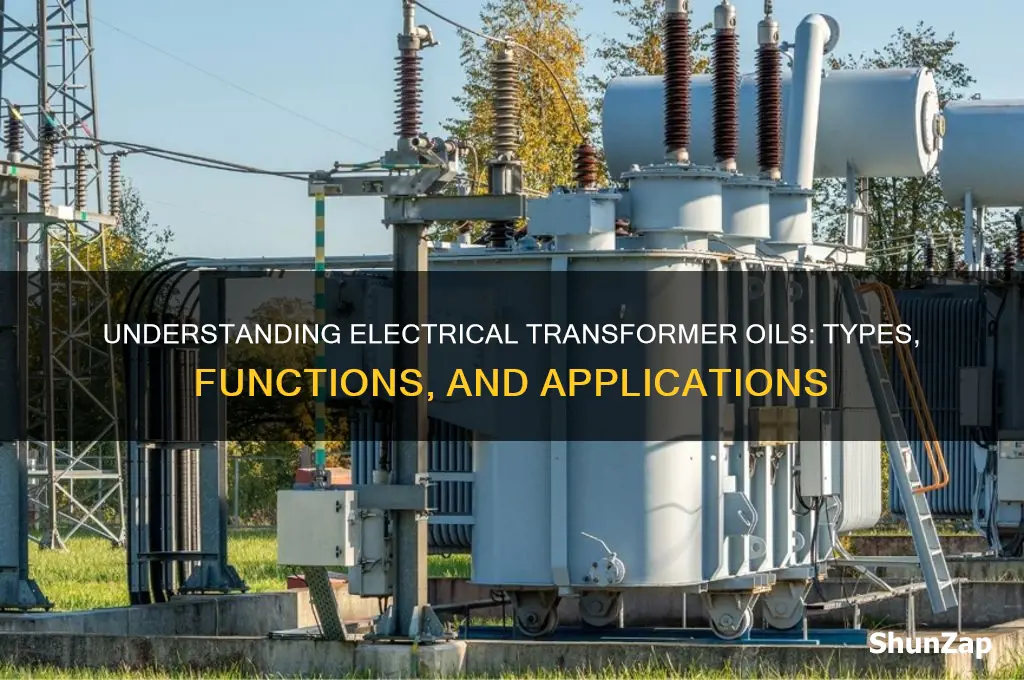

Electrical transformers are critical components in power distribution systems, and the type of oil used within them plays a vital role in their functionality and longevity. The most commonly used oil in transformers is mineral oil, derived from petroleum. This oil serves multiple purposes, including insulating the transformer’s components, dissipating heat generated during operation, and preventing oxidation and corrosion of internal parts. Mineral oil is preferred due to its excellent dielectric properties, thermal stability, and cost-effectiveness. However, in recent years, alternative oils such as silicone-based oils and synthetic esters have gained attention for their environmental benefits and improved performance in certain applications. The choice of oil depends on factors like transformer design, operating conditions, and environmental considerations.
| Characteristics | Values |
|---|---|
| Type of Oil | Mineral Oil (primarily naphthenic or paraffinic base oils) |
| Primary Function | Insulation, Cooling, Arc Suppression |
| Dielectric Strength | Typically > 30 kV/mm (varies with grade) |
| Flash Point | Minimum 140°C (284°F) |
| Pour Point | Typically -40°C to -25°C (-40°F to -13°F) |
| Viscosity at 40°C | 20-50 cSt (centistokes) |
| Oxidation Stability | High (resistant to thermal degradation) |
| Color | Pale yellow to amber |
| Specific Gravity | 0.85 - 0.90 (at 25°C) |
| Fire Point | Minimum 150°C (302°F) |
| Compatibility | Compatible with transformer materials (e.g., paper, copper) |
| Environmental Impact | Biodegradable, but requires proper disposal |
| Standards | ASTM D3487, IEC 60296, IEEE C57.120 |
| Additives | Antioxidants, pour point depressants (optional) |
| Toxicity | Low toxicity, but inhalation of vapors should be avoided |
| Cost | Relatively low compared to synthetic alternatives |
| Availability | Widely available globally |
Explore related products
What You'll Learn
- Mineral Oil: Most common, derived from petroleum, excellent cooling and insulating properties
- Silicone Oil: High thermal stability, used in high-temperature applications, non-flammable
- Ester Oil: Biodegradable, eco-friendly alternative, good dielectric strength, suitable for transformers
- Synthetic Oil: Chemically engineered, enhanced performance, used in specialized transformer designs
- Natural Esters: Plant-based, sustainable option, comparable performance to mineral oil
Mineral Oil: Most common, derived from petroleum, excellent cooling and insulating properties
Mineral oil is the most widely used insulating and cooling medium in electrical transformers, primarily due to its exceptional properties and cost-effectiveness. Derived from petroleum, this oil is a refined byproduct of the crude oil distillation process, specifically tailored for electrical applications. Its prevalence in transformers can be attributed to its ability to provide both electrical insulation and efficient heat dissipation, which are critical for the safe and reliable operation of these devices. The oil’s dielectric strength, a measure of its ability to resist electrical breakdown, makes it an ideal insulator for the high-voltage components within transformers. This property ensures that the transformer can operate under significant electrical stress without arcing or short-circuiting, thereby protecting the equipment and maintaining system stability.
One of the key advantages of mineral oil is its excellent thermal conductivity and high specific heat capacity, which enable it to absorb and dissipate heat generated during the transformer’s operation. Transformers are inherently inefficient devices, with a portion of electrical energy being converted into heat. Mineral oil circulates within the transformer, absorbing this heat and transferring it to the external environment through radiators or cooling fins. This cooling mechanism is essential for preventing overheating, which could otherwise lead to insulation degradation, reduced efficiency, or even catastrophic failure. The oil’s ability to maintain its properties over a wide temperature range further enhances its suitability for this application.
In addition to its insulating and cooling properties, mineral oil serves as a protective barrier against moisture and air, which can degrade the transformer’s internal components. By fully immersing the transformer’s core and windings in oil, the risk of corrosion and oxidation is minimized, thereby extending the equipment’s lifespan. The oil also aids in suppressing the formation of arcs and sparks, which could otherwise damage the transformer or pose safety hazards. Its inert nature ensures that it does not react with the materials used in transformer construction, maintaining the integrity of the system over time.
Mineral oil’s widespread adoption is also driven by its availability, affordability, and ease of maintenance. Unlike some specialized insulating fluids, mineral oil is readily available in large quantities due to its petroleum-based origin. Routine maintenance tasks, such as oil sampling, filtration, and topping up, are straightforward and well-established practices in the industry. Furthermore, mineral oil’s compatibility with standard transformer designs and materials simplifies manufacturing and retrofitting processes, making it a preferred choice for both new installations and existing infrastructure.
Despite its numerous benefits, mineral oil is not without limitations. It is flammable, which necessitates careful handling and the implementation of safety measures to mitigate fire risks. Additionally, its environmental impact, particularly in the event of spills or leaks, has led to the exploration of alternative insulating fluids. However, for the majority of applications, mineral oil remains the go-to solution due to its proven performance, reliability, and economic viability. Its role in ensuring the efficient and safe operation of electrical transformers underscores its importance in modern power distribution systems.
Can Electric Car Batteries Be Reused or Recycled Sustainably?
You may want to see also
Explore related products
Silicone Oil: High thermal stability, used in high-temperature applications, non-flammable
Silicone oil is a specialized type of insulating fluid increasingly recognized for its unique properties in high-performance electrical transformer applications. Unlike mineral oils, which are commonly used in standard transformers, silicone oil stands out due to its high thermal stability, making it ideal for environments where operating temperatures exceed the capabilities of conventional oils. This thermal stability ensures that the oil maintains its insulating properties even under extreme heat, which is critical for transformers used in industries such as aerospace, high-voltage power transmission, and renewable energy systems. The ability to withstand temperatures often above 200°C without degradation or breakdown positions silicone oil as a superior choice for demanding applications.
One of the most significant advantages of silicone oil is its non-flammable nature, which enhances the safety profile of transformers, particularly in high-risk environments. Traditional mineral oils pose a fire hazard if they leak or come into contact with high-temperature components, but silicone oil mitigates this risk due to its inherently fire-resistant composition. This property is especially valuable in densely populated or hazardous areas where a transformer failure could have catastrophic consequences. Additionally, silicone oil’s non-flammability reduces the need for extensive fire suppression systems, lowering both initial and maintenance costs for transformer installations.
In high-temperature applications, silicone oil’s performance is unmatched. Its low volatility ensures minimal evaporation loss, even at elevated temperatures, which helps maintain consistent insulation levels over time. This is particularly important in transformers used in desert climates, geothermal plants, or other settings where ambient temperatures are consistently high. Furthermore, silicone oil’s excellent dielectric strength ensures reliable electrical insulation, preventing arcing and short circuits that could lead to transformer failure. Its compatibility with standard transformer materials, such as copper and steel, also simplifies the adoption of silicone oil in existing designs without requiring significant modifications.
Despite its advantages, the use of silicone oil in transformers is not without challenges. It is generally more expensive than mineral oil, which can increase the upfront cost of transformer manufacturing. Additionally, silicone oil has a lower specific heat capacity compared to mineral oil, meaning it absorbs less heat per degree of temperature rise. This requires careful thermal management in transformer design to ensure efficient heat dissipation. However, for applications where thermal stability, safety, and reliability are paramount, the benefits of silicone oil often outweigh these drawbacks.
In summary, silicone oil is a highly specialized insulating fluid tailored for high-temperature applications in electrical transformers. Its high thermal stability and non-flammable properties make it an excellent choice for environments where standard mineral oils fall short. While its cost and thermal management requirements may pose challenges, the enhanced safety and performance it offers justify its use in critical and demanding transformer applications. As industries continue to push the boundaries of electrical infrastructure, silicone oil is likely to play an increasingly important role in ensuring the reliability and safety of high-performance transformers.
The Future of Electric Vehicles: When Will All Cars Go Green?
You may want to see also
Explore related products
Ester Oil: Biodegradable, eco-friendly alternative, good dielectric strength, suitable for transformers
Ester oil is emerging as a promising, eco-friendly alternative to traditional mineral oils used in electrical transformers. Derived from renewable sources such as plant oils or synthetic esters, ester oil is biodegradable, making it an environmentally responsible choice. Unlike mineral oils, which are petroleum-based and pose significant environmental risks in case of spills, ester oil naturally breaks down without causing long-term harm to ecosystems. This biodegradability is a critical advantage, especially in environmentally sensitive areas where transformer installations are common.
One of the key properties that make ester oil suitable for transformers is its excellent dielectric strength. Dielectric strength refers to a material's ability to withstand electrical stress without breaking down, a crucial factor in insulating transformer components. Ester oil performs comparably, if not superiorly, to mineral oil in this regard, ensuring reliable operation and longevity of transformer equipment. Additionally, ester oil has a higher flash point, enhancing safety by reducing the risk of ignition in high-temperature environments.
Another significant benefit of ester oil is its thermal stability and low pour point, which allows it to perform effectively in a wide range of temperatures. This makes it particularly suitable for transformers operating in extreme climates, from cold northern regions to hot desert environments. The oil's ability to maintain its properties under varying conditions ensures consistent performance and reduces the need for frequent maintenance or replacement.
Ester oil also offers improved fire safety characteristics compared to mineral oil. Its higher fire resistance minimizes the risk of fire propagation in the event of a transformer failure, protecting both equipment and personnel. This is especially important in densely populated or industrial areas where a transformer fire could have severe consequences. The use of ester oil aligns with global trends toward safer, more sustainable industrial practices.
In terms of compatibility, ester oil is designed to work seamlessly with existing transformer designs and materials. It does not require significant modifications to transformer components, making it an easy and cost-effective alternative for retrofitting or new installations. Manufacturers and operators can transition to ester oil without extensive overhauls, further enhancing its appeal as a practical and sustainable solution.
Overall, ester oil represents a forward-thinking choice for electrical transformers, combining biodegradability, eco-friendliness, and robust technical performance. Its adoption supports environmental sustainability while meeting the stringent demands of modern electrical infrastructure. As industries increasingly prioritize green technologies, ester oil is poised to become a standard in transformer insulation, contributing to a more sustainable and safer energy landscape.
Plug-In Electric Vehicle Apartment: A Guide to Ownership
You may want to see also
Explore related products
Synthetic Oil: Chemically engineered, enhanced performance, used in specialized transformer designs
Synthetic oil, a product of advanced chemical engineering, represents a significant evolution in the lubricants and insulators used in electrical transformers. Unlike mineral oils derived from crude petroleum, synthetic oils are meticulously crafted through chemical processes to achieve specific molecular structures and properties. This precision engineering allows synthetic oils to outperform traditional mineral oils in several critical areas, making them ideal for specialized transformer designs that demand enhanced performance and reliability. The chemical composition of synthetic oils can be tailored to exhibit superior thermal stability, oxidation resistance, and dielectric strength, ensuring optimal functionality even under extreme operating conditions.
One of the primary advantages of synthetic oil in transformers is its ability to maintain consistent performance across a wide temperature range. Transformers often operate in environments with fluctuating temperatures, from extreme cold to high heat. Synthetic oils are designed to resist viscosity changes, ensuring efficient heat dissipation and insulation properties regardless of the external conditions. This thermal stability is particularly crucial in high-voltage transformers and those used in harsh industrial or outdoor settings, where temperature variations can compromise the performance of conventional mineral oils.
Another key benefit of synthetic oil is its enhanced dielectric strength, which is essential for preventing electrical breakdowns within the transformer. The chemically engineered structure of synthetic oils minimizes the risk of arcing or short circuits by providing a more robust insulating barrier between conductive components. This property is especially valuable in specialized transformer designs, such as those used in renewable energy systems or high-frequency applications, where the risk of electrical discharge is elevated. Additionally, synthetic oils often exhibit lower pour points, ensuring they remain fluid and functional even in sub-zero temperatures.
Synthetic oils also offer superior resistance to oxidation and degradation, extending the operational lifespan of transformers. Oxidation, caused by exposure to air and heat, can lead to the formation of sludge and acidic byproducts that degrade the oil's insulating properties and damage transformer components. Chemically engineered synthetic oils are formulated with additives that inhibit oxidation, reducing maintenance requirements and the frequency of oil replacements. This longevity is particularly advantageous in critical infrastructure applications, where transformer downtime can have significant economic and operational impacts.
In specialized transformer designs, such as those used in compact or high-efficiency systems, synthetic oils play a pivotal role in optimizing performance. Their tailored properties allow for the use of smaller, more efficient transformer cores without compromising on safety or reliability. For instance, synthetic oils enable the design of dry-type transformers with oil-cooled components, combining the benefits of both technologies. Furthermore, synthetic oils are often compatible with advanced materials and coatings used in modern transformers, ensuring seamless integration and enhanced overall performance.
In conclusion, synthetic oil, with its chemically engineered composition and enhanced properties, is a cornerstone of specialized transformer designs. Its superior thermal stability, dielectric strength, oxidation resistance, and adaptability to extreme conditions make it an indispensable choice for applications where traditional mineral oils fall short. As transformer technology continues to evolve, the role of synthetic oils in ensuring efficiency, reliability, and longevity will only become more pronounced, solidifying their position as a critical component in the electrical power industry.
Are Fiat Electric Cars Reliable? A Comprehensive Review and Analysis
You may want to see also
Explore related products
Natural Esters: Plant-based, sustainable option, comparable performance to mineral oil
Natural esters, derived from plant-based sources such as soybean, sunflower, or rapeseed oils, have emerged as a sustainable and environmentally friendly alternative to traditional mineral oil in electrical transformers. These bio-based fluids are processed to enhance their dielectric properties, making them suitable for high-voltage applications. The primary advantage of natural esters lies in their renewable origin, which reduces dependency on fossil fuels and aligns with global efforts to minimize carbon footprints. As industries increasingly prioritize sustainability, natural esters offer a viable solution without compromising on performance.
One of the key benefits of natural esters is their comparable performance to mineral oil in electrical transformers. They exhibit excellent dielectric strength, thermal stability, and cooling efficiency, ensuring reliable operation under demanding conditions. Additionally, natural esters have a higher fire point than mineral oil, enhancing safety by reducing the risk of ignition in case of transformer failure. This improved safety profile, combined with their biodegradability and low toxicity, makes natural esters an attractive option for both indoor and outdoor transformer installations.
Another significant advantage of natural esters is their compatibility with existing transformer designs and materials. Unlike some synthetic alternatives, natural esters do not require extensive modifications to transformer components, making them a cost-effective choice for retrofitting or new installations. Their lubricating properties also contribute to reduced wear on moving parts, potentially extending the lifespan of transformer equipment. This compatibility ensures a seamless transition from mineral oil to natural esters, minimizing downtime and operational disruptions.
From an environmental perspective, natural esters stand out due to their biodegradability and reduced ecological impact. In the event of a spill, these plant-based fluids pose significantly less risk to soil, water, and wildlife compared to mineral oil. Their renewable sourcing further contributes to a lower lifecycle carbon footprint, supporting sustainability goals. As regulatory pressures increase to limit the use of non-renewable resources, natural esters provide a forward-thinking solution for transformer manufacturers and operators.
In conclusion, natural esters represent a plant-based, sustainable option for electrical transformers, offering performance on par with mineral oil while addressing environmental and safety concerns. Their renewable origin, biodegradability, and compatibility with existing systems make them a practical choice for modern transformer applications. As the energy sector continues to evolve toward greener technologies, natural esters are poised to play a pivotal role in shaping a more sustainable future for power distribution infrastructure.
Electric Vehicles: Environmental Impact and Unseen Adversities
You may want to see also
Frequently asked questions
Mineral oil, specifically transformer oil, is the most commonly used type of oil in electrical transformers due to its excellent insulating and cooling properties.
Mineral oil is preferred because it has high dielectric strength, thermal stability, and the ability to dissipate heat efficiently, making it ideal for insulating and cooling transformer components.
Yes, alternatives include silicone-based oils, synthetic esters, and vegetable-based oils, which are used in environmentally sensitive applications or where mineral oil is not suitable.
No, only oils specifically designed for transformer use, such as mineral oil or approved alternatives, should be used, as they meet the necessary electrical, thermal, and safety standards.
