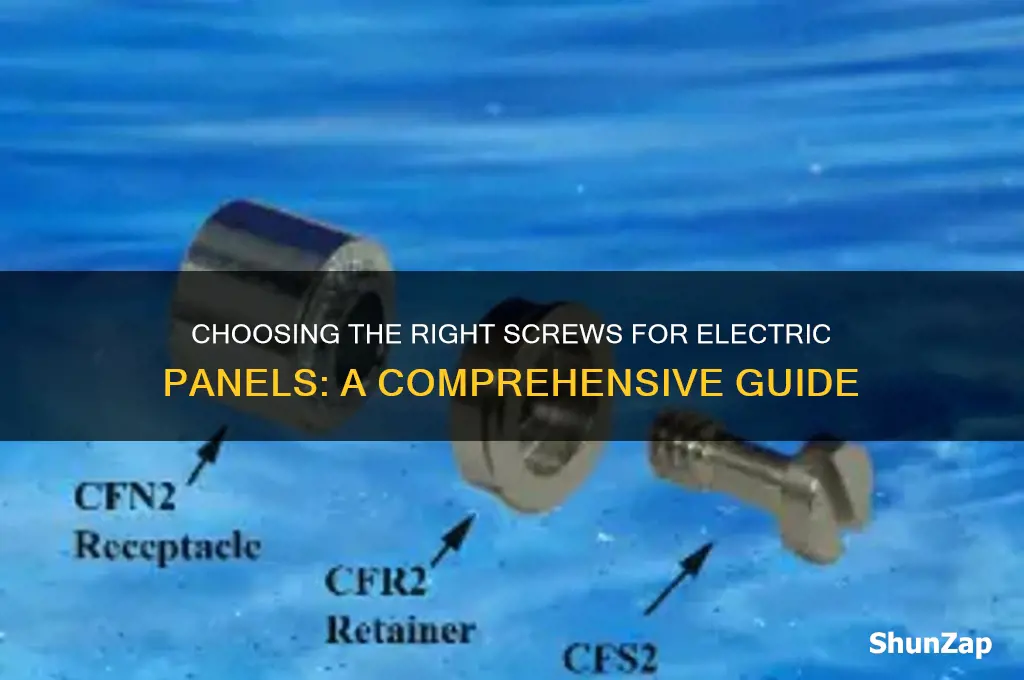

Electric panels, which house critical electrical components like circuit breakers and wiring, require specific types of screws to ensure safety, durability, and compliance with electrical codes. Commonly, stainless steel or zinc-plated steel screws are used due to their corrosion resistance and ability to withstand environmental factors. The screws typically feature a flat or Phillips head for ease of installation and are often self-tapping or self-drilling to simplify assembly. Additionally, screws with a #10 or #12 gauge and lengths ranging from 1/2 inch to 1 inch are standard, depending on the panel’s thickness and mounting requirements. It’s essential to use screws that meet UL (Underwriters Laboratories) or other relevant standards to guarantee proper grounding and secure fastening, preventing hazards like loose connections or electrical arcing.
| Characteristics | Values |
|---|---|
| Type | Typically machine screws or self-tapping screws |
| Head Type | Flat head, oval head, or round head |
| Drive Type | Slotted, Phillips, or combination (slotted/Phillips) |
| Material | Steel (often zinc-plated for corrosion resistance), stainless steel, or brass |
| Thread Type | Coarse or fine threads, depending on application |
| Size | Commonly #6, #8, or #10 gauge, with lengths ranging from 1/4" to 1" |
| Standards | Often comply with NEMA (National Electrical Manufacturers Association) or UL (Underwriters Laboratories) standards |
| Purpose | Securing panels, covers, and components in electrical enclosures |
| Special Features | May include locking mechanisms or tamper-resistant designs for security |
| Compatibility | Designed for use with threaded holes or self-tapping into sheet metal |
| Common Brands | Phillips, Robertson, or specialized electrical supply manufacturers |
Explore related products
What You'll Learn
- Standard Panel Screws: Common types like sheet metal screws for securing panels and components
- Grounding Screws: Specialized screws with green heads for electrical grounding and safety
- Machine Screws: Used for mounting panels to frames or enclosures securely
- Self-Tapping Screws: Ideal for pre-drilled holes, reducing installation time and effort
- Stainless Steel Screws: Corrosion-resistant screws for outdoor or humid environments
Standard Panel Screws: Common types like sheet metal screws for securing panels and components
When it comes to securing panels and components in electrical installations, standard panel screws are the go-to choice due to their reliability, ease of use, and compatibility with various materials. Among these, sheet metal screws are one of the most common types used in electric panels. These screws are designed with sharp threads that cut into sheet metal, wood, or plastic, providing a secure hold without the need for pre-drilling. Sheet metal screws typically feature a pan, round, or flat head and are available in various lengths and diameters to accommodate different panel thicknesses. Their versatility makes them ideal for fastening electrical components, mounting panels, and securing covers in both residential and commercial applications.
Another widely used type of standard panel screw is the self-tapping screw, which is specifically engineered to create its own threads as it is driven into the material. This eliminates the need for pre-tapped holes, saving time and effort during installation. Self-tapping screws are often used in electric panels made of thinner metals, where precision and a tight fit are crucial. They are commonly found in NEMA-rated enclosures and junction boxes, ensuring a secure and weather-resistant seal. These screws are typically made from durable materials like stainless steel or zinc-plated steel to resist corrosion and ensure long-term reliability in electrical environments.
Machine screws are also frequently used in electric panels, particularly for securing components like circuit boards, terminals, and switches. Unlike sheet metal screws, machine screws require pre-tapped holes or nuts to achieve a secure connection. They are available in a wide range of sizes and thread pitches, allowing for precise assembly in tight spaces. Machine screws are often used in conjunction with lock washers or nuts to prevent loosening due to vibration, a common concern in electrical installations. Their fine threads provide excellent holding power, making them suitable for applications where stability and accuracy are critical.
For applications requiring a more robust and tamper-resistant solution, security screws are sometimes used in electric panels. These screws feature unique drive styles, such as spindle, triangle, or hex pin, that require specialized tools for installation and removal. Security screws are particularly useful in public or accessible areas where preventing unauthorized access to electrical panels is essential. While not as common as sheet metal or self-tapping screws, they offer an added layer of protection for sensitive or high-risk installations.
In summary, standard panel screws like sheet metal screws, self-tapping screws, machine screws, and security screws are essential components in electric panel installations. Each type offers distinct advantages, from the versatility of sheet metal screws to the precision of machine screws and the added security of specialized fasteners. Selecting the appropriate screw type depends on factors such as panel material, thickness, and environmental conditions. By understanding the characteristics and applications of these common screws, electricians and installers can ensure a secure, efficient, and compliant electrical panel assembly.
Electric Vehicle Economics: Are Carmakers Facing Financial Losses?
You may want to see also
Explore related products
Grounding Screws: Specialized screws with green heads for electrical grounding and safety
Grounding screws are a critical component in electrical panels, designed specifically to ensure safety by providing a reliable path for electrical current to flow into the ground in case of a fault. These specialized screws are easily identifiable by their distinctive green heads, a universal color code that signifies grounding. The green color serves as a visual cue for electricians and inspectors, ensuring that the grounding connection is not overlooked during installation or maintenance. Typically made from durable materials like steel or brass, grounding screws are built to withstand corrosion and maintain conductivity over time, which is essential for their function in electrical systems.
The primary purpose of grounding screws is to protect against electrical shock and prevent damage to equipment by redirecting stray electrical currents safely into the earth. In an electrical panel, grounding screws are often located near the main breaker or along the panel's frame, connecting to the grounding bus bar. This bus bar is then linked to a grounding electrode, such as a metal rod driven into the ground outside the building. Proper installation of grounding screws is crucial; they must be tightened securely to ensure a low-resistance connection, as loose connections can compromise the effectiveness of the grounding system.
When selecting grounding screws for electric panels, it’s important to choose the correct size and thread type to match the panel’s specifications. Common sizes include #10-32 and #12-24 threads, though this can vary depending on the panel manufacturer. Additionally, grounding screws often feature a flat or hex head, allowing for easy installation with standard tools. Some panels may require screws with specific lengths or coatings to meet local electrical codes or environmental conditions, such as high humidity or exposure to chemicals.
Installation of grounding screws should always follow best practices and adhere to electrical codes, such as the National Electrical Code (NEC) in the United States. This includes ensuring that the screw is connected to a continuous grounding path and that all connections are free of paint, rust, or other contaminants that could impede conductivity. Regular inspections of grounding screws and the overall grounding system are recommended to identify and address any issues, such as corrosion or loose connections, before they pose a safety risk.
In summary, grounding screws with green heads are indispensable for electrical safety in panels, providing a vital link in the grounding system. Their design, material, and installation must meet strict standards to ensure they function effectively. By understanding their role and proper use, electricians and DIY enthusiasts can contribute to safer electrical installations and protect both people and property from the hazards of electrical faults.
Are Electric Car Batteries Truly Eco-Friendly? Uncovering the Green Truth
You may want to see also
Explore related products
Machine Screws: Used for mounting panels to frames or enclosures securely
Machine screws are a common and essential fastener type used in electrical panel installations, providing a secure and reliable method for mounting panels to frames or enclosures. These screws are specifically designed for fastening metal components together, making them ideal for the robust connections required in electrical applications. When it comes to electric panels, machine screws play a critical role in ensuring the panel is firmly attached to its supporting structure, which is often a metal frame or enclosure. This secure mounting is vital to maintain the integrity of the electrical system and prevent any movement or vibration that could lead to damage or malfunction.
The design of machine screws makes them well-suited for this task. They typically feature a uniform diameter along their length, with a threaded section that corresponds to a nut or a tapped hole in the receiving material. This threading allows for a tight and adjustable fit, ensuring the panel is held securely in place. Machine screws are often made from durable materials such as stainless steel, carbon steel, or alloy steel, providing the necessary strength and corrosion resistance for long-term use in various environments. The choice of material can depend on factors like the panel's weight, the environmental conditions, and the required level of corrosion protection.
For electric panel installations, machine screws are used in conjunction with corresponding nuts or threaded holes in the frame or enclosure. The process involves aligning the panel with the frame, inserting the screws through pre-drilled holes in the panel, and then tightening them securely. This can be done using hand tools or power tools, depending on the size of the screws and the accessibility of the installation area. It is crucial to ensure that the screws are tightened to the appropriate torque specifications to avoid over-tightening, which could damage the threads or the panel, or under-tightening, which may result in a loose connection.
One of the advantages of using machine screws is the ability to easily disassemble and reassemble panels when needed. This is particularly useful during maintenance, repairs, or upgrades, as it allows for quick access to the internal components of the electrical panel without causing damage to the mounting system. Additionally, machine screws offer a neat and professional finish, as they can be countersunk or used with decorative caps to create a flush surface, enhancing the overall appearance of the installation.
In summary, machine screws are a reliable and versatile choice for mounting electric panels to frames or enclosures. Their design and material options ensure a secure and durable connection, while also providing the flexibility needed for various installation scenarios. By following proper installation techniques and torque specifications, machine screws contribute to the overall safety and functionality of electrical systems, making them an indispensable component in the assembly of electric panels.
Do Electric Cars Require Inspections in New York State?
You may want to see also
Explore related products
Self-Tapping Screws: Ideal for pre-drilled holes, reducing installation time and effort
Self-tapping screws are a popular choice for electric panel installations due to their efficiency and ease of use, especially when working with pre-drilled holes. These screws are designed to create their own threads as they are driven into the material, eliminating the need for separate tapping operations. This feature significantly reduces installation time and effort, making them ideal for projects where speed and precision are crucial. When installing electric panels, time is often of the essence, and self-tapping screws streamline the process by combining threading and fastening into a single step.
One of the key advantages of self-tapping screws in electric panel applications is their compatibility with pre-drilled holes. Pre-drilled holes ensure proper alignment and reduce the risk of damaging the panel material during installation. Self-tapping screws are specifically engineered to engage with these holes seamlessly, providing a secure and reliable connection. This is particularly important in electrical work, where a tight and stable fit is essential to prevent loose connections that could lead to safety hazards or system failures.
Another benefit of self-tapping screws is their versatility in material compatibility. Electric panels are often made from materials like sheet metal, aluminum, or even certain plastics, and self-tapping screws can effectively fasten into all of these. For instance, self-tapping screws with sharp threads are ideal for softer materials like aluminum, while those with coarse threads perform better in harder metals. This adaptability ensures that electricians can use a single type of screw for various panel components, simplifying inventory management and reducing the likelihood of errors during installation.
When using self-tapping screws for electric panels, it’s important to select the appropriate screw length and diameter to match the thickness of the panel and the size of the pre-drilled holes. Overly long screws can damage internal components, while short screws may not provide adequate holding strength. Additionally, using a screwdriver with the correct torque setting ensures that the screws are tightened securely without stripping the threads or damaging the panel. Following manufacturer guidelines for screw selection and installation practices will maximize the benefits of self-tapping screws in electric panel applications.
In summary, self-tapping screws are an excellent choice for electric panel installations, particularly when working with pre-drilled holes. Their ability to create threads during installation reduces the time and effort required, making them a practical solution for electricians. By ensuring proper alignment, material compatibility, and correct screw selection, self-tapping screws provide a secure and efficient fastening method that enhances the overall quality and safety of electric panel assemblies.
Are Electric Cars Truly Green? Unveiling Their Environmental Impact
You may want to see also
Explore related products
Stainless Steel Screws: Corrosion-resistant screws for outdoor or humid environments
When selecting screws for electric panels, especially those installed in outdoor or humid environments, stainless steel screws are a top choice due to their exceptional corrosion resistance. Electric panels in such conditions are constantly exposed to moisture, salt, and temperature fluctuations, which can accelerate rust and degradation in standard screws. Stainless steel screws, typically made from alloys containing chromium, nickel, and molybdenum, form a protective oxide layer that prevents corrosion, ensuring long-term reliability and safety.
One of the key advantages of stainless steel screws is their ability to withstand harsh weather conditions without compromising structural integrity. For outdoor electric panels, such as those used in solar installations or exterior building wiring, stainless steel screws are ideal because they resist rusting even in rainy or coastal environments. Similarly, in humid indoor settings like basements or industrial facilities, these screws maintain their strength and appearance, reducing the risk of electrical failures caused by loose or damaged fasteners.
When choosing stainless steel screws for electric panels, it’s important to select the appropriate grade. 304 stainless steel is commonly used for general outdoor applications due to its good corrosion resistance, while 316 stainless steel offers superior protection against chloride corrosion, making it ideal for coastal or highly humid areas. Additionally, ensure the screws meet industry standards for electrical installations, such as those outlined by the National Electrical Code (NEC), to guarantee compatibility and safety.
Proper installation is also critical when using stainless steel screws. Over-tightening can strip the threads or damage the panel, while under-tightening may lead to loose connections. Using a torque screwdriver or wrench to achieve the manufacturer’s recommended torque ensures a secure fit without compromising the screw or the panel. Additionally, applying a thread-locking compound can provide extra protection against vibration and moisture infiltration.
In summary, stainless steel screws are an excellent choice for electric panels in outdoor or humid environments due to their corrosion resistance, durability, and compatibility with electrical applications. By selecting the appropriate grade, ensuring compliance with standards, and following proper installation practices, these screws can significantly enhance the longevity and safety of electrical systems in challenging conditions.
Are Electric Cars Affordable? Cost Analysis and Budget-Friendly Options
You may want to see also
Frequently asked questions
Electric panels commonly use sheet metal screws, which are self-tapping and designed for securing metal components.
Yes, stainless steel screws are often recommended for electric panels due to their corrosion resistance and durability.
No, wood screws are not suitable for electric panels as they are designed for wood and lack the strength and threading needed for metal applications.
Common screw sizes for electric panels include #6, #8, or #10 gauge, with lengths ranging from 1/4 inch to 1 inch, depending on the application.
Yes, grounding screws used in electric panels are typically made of conductive materials like brass or zinc-plated steel to ensure proper electrical continuity.
