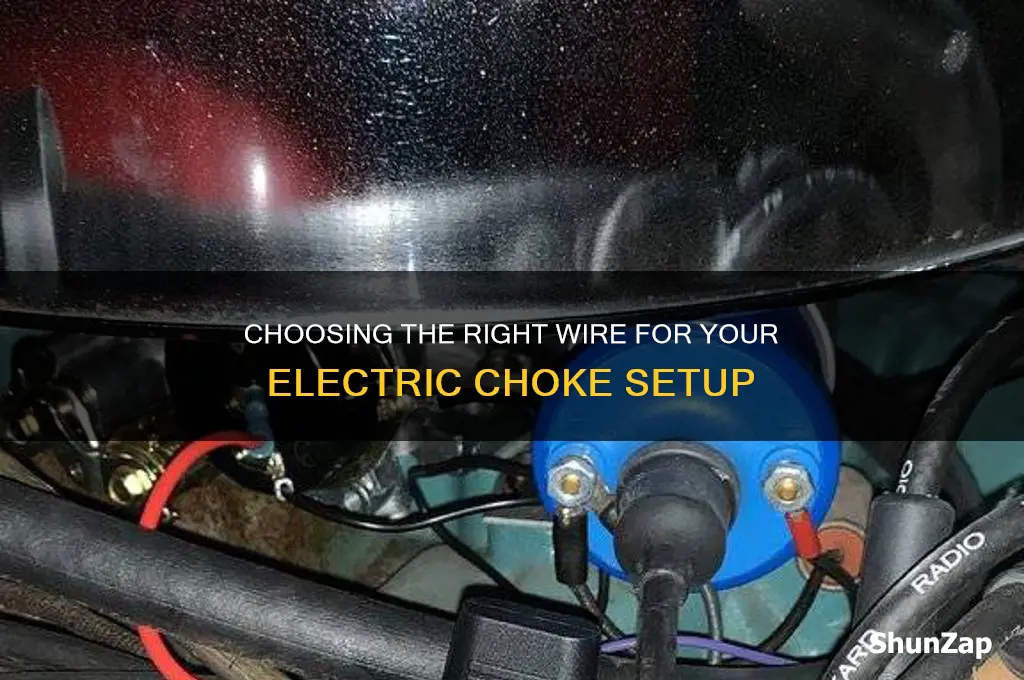

When selecting the appropriate wire for an electric choke, it's crucial to consider factors such as current capacity, temperature resistance, and durability. Electric chokes typically require a wire that can handle the specific amperage drawn by the choke while withstanding the heat generated during operation. A common choice is 18 to 16-gauge stranded copper wire, which offers sufficient flexibility and conductivity for most applications. Ensure the wire is rated for high-temperature environments, often indicated by insulation materials like silicone or Teflon. Additionally, using a wire with a voltage rating that exceeds the system’s requirements ensures safety and reliability. Always consult the choke’s specifications or manufacturer guidelines to confirm the correct wire gauge and type for optimal performance.
Explore related products
What You'll Learn
- Wire Gauge Selection: Choose gauge based on current draw and length
- Heat Resistance: Use wire rated for high temperatures near engines
- Insulation Type: Opt for durable, heat-resistant insulation materials
- Wire Length: Ensure sufficient length for choke installation and flexibility
- Compatibility: Verify wire compatibility with choke’s voltage and amperage requirements
Wire Gauge Selection: Choose gauge based on current draw and length
When selecting the appropriate wire gauge for an electric choke, it's crucial to consider both the current draw of the choke and the length of the wire run. The electric choke typically draws a relatively low amount of current, usually in the range of 1 to 3 amperes. However, using a wire gauge that is too thin can lead to excessive resistance, voltage drop, and potential overheating. As a general rule, start by identifying the maximum current the electric choke will draw under normal operating conditions. This information can often be found in the choke's specifications or user manual.
Once you know the current draw, consult a wire gauge chart or calculator to determine the appropriate gauge. For short wire runs (less than 5 feet), a 16-gauge wire is often sufficient for currents up to 3 amperes. However, for longer runs, the resistance of the wire increases, necessitating a thicker gauge to minimize voltage drop. For example, if the wire run is 10 feet or more, consider using a 14-gauge wire to ensure adequate current delivery without significant power loss. Always aim for a voltage drop of no more than 3-5% to maintain optimal performance of the electric choke.
The length of the wire is a critical factor because resistance increases with distance. Ohm's Law and the formula for voltage drop (Voltage Drop = Current × Resistance × Length) can guide your selection. For instance, if your electric choke draws 2 amperes and the wire run is 15 feet, a 14-gauge wire would be more appropriate than a 16-gauge wire to keep the voltage drop within acceptable limits. Using an online wire size calculator can simplify this process by providing a recommended gauge based on your specific current and length requirements.
Another consideration is the ambient temperature and the wire's insulation rating. If the wire is exposed to high temperatures, such as in an engine bay, ensure the wire's insulation is rated for the environment. High-temperature-rated wires may have slightly different gauge recommendations, so factor this into your selection. Additionally, using a wire with a slightly larger gauge than calculated can provide a safety margin, ensuring longevity and reliability in varying conditions.
Lastly, while focusing on gauge, don't overlook the importance of wire quality and flexibility. Stranded wires are generally preferred over solid wires for automotive applications due to their ability to withstand vibrations and bending. Choose a wire that meets the necessary gauge requirements while also being durable enough for the installation environment. Proper wire gauge selection ensures efficient operation of the electric choke, prevents potential damage, and contributes to the overall safety and reliability of the electrical system.
Charging Your Electric Car at Home: A Complete Guide for Beginners
You may want to see also
Explore related products
Heat Resistance: Use wire rated for high temperatures near engines
When selecting wire for an electric choke, especially in proximity to engines, heat resistance is a critical factor to consider. Engines generate significant heat, and the wire must be able to withstand these high temperatures without degrading or failing. Standard automotive wires may not be sufficient, as they can melt or become brittle when exposed to prolonged heat. Therefore, it's essential to use wire specifically rated for high-temperature environments. Look for wires with insulation materials like silicone, Teflon, or fiberglass, which are known for their ability to resist heat and maintain flexibility even under extreme conditions.
Silicone-insulated wire is a popular choice for high-temperature applications near engines. Silicone can withstand temperatures ranging from -50°C to 200°C (or higher, depending on the grade), making it ideal for the heat generated by engines. Additionally, silicone insulation is resistant to oil, chemicals, and moisture, which are common in automotive environments. When installing an electric choke, ensure the wire is rated for at least 125°C to 150°C to provide a safe margin for temperature fluctuations. Always check the wire’s temperature rating, which is usually marked on the insulation or specified by the manufacturer.
Another excellent option is Teflon-insulated wire, which offers even higher temperature resistance, typically up to 200°C or more. Teflon (PTFE) is highly durable and resistant to abrasion, making it suitable for areas where the wire may come into contact with sharp edges or moving parts. However, Teflon wire is generally more expensive than silicone-insulated wire, so it’s often reserved for applications where maximum heat resistance is required. For electric chokes, Teflon wire can be overkill unless the choke is located in an exceptionally hot area of the engine bay.
Fiberglass-insulated wire is another heat-resistant option, often used in high-temperature industrial applications. While it can withstand temperatures up to 260°C, it is less flexible than silicone or Teflon wire, which can make installation more challenging. For electric chokes, fiberglass wire is typically used in conjunction with other heat-resistant materials or in areas where flexibility is not a primary concern. Always ensure the wire’s insulation is intact and not damaged during installation, as exposed conductors can lead to shorts or failures.
Lastly, consider the wire gauge and length when selecting heat-resistant wire for an electric choke. Thicker wires (lower gauge numbers) are better at handling higher currents without overheating, but they may be less flexible. Choose a gauge that meets the choke’s current requirements while ensuring it remains manageable during installation. Additionally, keep the wire length as short as possible to minimize exposure to heat and reduce voltage drop. Proper routing and securing the wire away from direct heat sources, such as exhaust manifolds or turbochargers, will further enhance its longevity and performance.
Why British Homes Conserve More Energy: A Look at Lower Electricity Use
You may want to see also
Explore related products
Insulation Type: Opt for durable, heat-resistant insulation materials
When selecting the appropriate wire for an electric choke, the insulation type is a critical factor that directly impacts the wire's performance and longevity. Opt for durable, heat-resistant insulation materials to ensure the wire can withstand the high temperatures and harsh conditions often present in automotive environments. Materials like silicone rubber, Teflon (PTFE), or high-temperature thermoplastics (e.g., ETFE) are ideal choices. These materials offer excellent thermal stability, typically rated for continuous operation at temperatures ranging from 150°C to 200°C (302°F to 392°F), which is essential for wires near engines or exhaust systems.
Another key consideration is the insulation's resistance to chemicals and oils, as electric chokes are often exposed to automotive fluids. Silicone rubber, for instance, is highly resistant to oil, fuel, and coolant, making it a superior choice for under-hood applications. Teflon (PTFE) also excels in this area, providing exceptional chemical resistance and a low friction coefficient, which helps prevent abrasion from nearby components. Avoid using wires with PVC insulation, as it degrades quickly under high heat and is not suitable for engine bay environments.
Durability is equally important, as the wire may be subject to vibration, bending, and occasional movement during installation or maintenance. Heat-resistant insulation materials like silicone or Teflon maintain their flexibility and structural integrity over time, reducing the risk of cracking or brittleness. This ensures the wire remains reliable even after prolonged exposure to heat cycles and mechanical stress. Additionally, some insulation types come with reinforced layers or jackets, further enhancing their resistance to wear and tear.
The thickness of the insulation layer also plays a role in protecting the wire from heat and physical damage. A thicker insulation layer provides better thermal protection but may increase the wire's overall diameter, which could be a consideration in tight spaces. Striking a balance between insulation thickness and flexibility is crucial for optimal performance. For electric chokes, a wire with a medium to high insulation thickness (e.g., 0.5mm to 1.0mm) is generally recommended to ensure adequate protection without compromising usability.
Lastly, ensure the insulation material complies with relevant automotive standards, such as SAE (Society of Automotive Engineers) or ISO (International Organization for Standardization) ratings. These standards guarantee the wire's safety, reliability, and compatibility with automotive systems. For example, wires rated as "TXL" or "GPT" are commonly used in automotive applications due to their heat-resistant insulation and durability. By prioritizing durable, heat-resistant insulation materials, you can select a wire that not only meets the demands of an electric choke but also ensures long-term reliability in challenging environments.
Electric Vehicles: Powering Profits for Forward-Thinking Companies
You may want to see also
Explore related products
Wire Length: Ensure sufficient length for choke installation and flexibility
When selecting the wire for an electric choke, one of the critical factors to consider is the wire length. Ensuring sufficient length is essential for both the installation process and the long-term flexibility of the system. The wire must be long enough to reach from the power source (typically the vehicle’s battery or ignition system) to the electric choke, while also allowing for any routing or bending required to avoid interference with other engine components. A common mistake is choosing a wire that is too short, which can lead to strain on the connection or the need for awkward splicing, compromising reliability.
To determine the appropriate wire length, start by measuring the distance between the power source and the electric choke. Add an extra 6 to 12 inches to this measurement to account for routing around obstacles, such as engine parts or firewall openings. This additional length ensures the wire can be neatly installed without being taut, which is crucial for preventing damage from vibration or movement. For example, if the direct distance is 24 inches, a 30- to 36-inch wire would be ideal. Always prioritize flexibility over minimalism to avoid future issues.
Flexibility is another key consideration when it comes to wire length. A wire that is too short or rigid can become damaged over time due to engine vibrations or temperature fluctuations. Opt for a wire with a stranded core rather than solid copper, as stranded wires are more flexible and better suited to withstand the dynamic environment of an engine bay. Additionally, ensure the wire’s insulation is durable and heat-resistant to protect against high temperatures and potential abrasion from nearby components.
If your vehicle’s layout requires the wire to pass through tight spaces or make sharp turns, consider using a slightly longer wire to accommodate these bends without causing stress on the connections. It’s also a good practice to secure the wire along its route using zip ties or wire looms to prevent it from dangling or rubbing against moving parts. Properly managing the wire’s path not only ensures longevity but also maintains a clean and professional installation.
Finally, if you’re unsure about the exact length needed, it’s better to err on the side of caution and choose a longer wire. Excess wire can be coiled and secured out of the way, whereas a wire that’s too short will require additional workarounds. By prioritizing sufficient length and flexibility, you’ll ensure a reliable and hassle-free installation for your electric choke system.
Electric Blankets and Diabetes: Understanding the Potential Risks
You may want to see also
Explore related products
Compatibility: Verify wire compatibility with choke’s voltage and amperage requirements
When selecting the appropriate wire for an electric choke, ensuring compatibility with the choke's voltage and amperage requirements is crucial for both performance and safety. The first step is to identify the specific voltage and current (amperage) ratings of the electric choke. These specifications are typically provided by the manufacturer and can be found in the choke's documentation or on the product itself. Voltage compatibility ensures that the wire can safely handle the electrical potential without degradation or failure, while amperage compatibility ensures the wire can carry the required current without overheating or causing a voltage drop.
Once the choke's voltage and amperage requirements are known, the next step is to select a wire gauge that meets or exceeds these specifications. Wire gauge, often denoted by an American Wire Gauge (AWG) number, directly correlates to the wire's diameter and current-carrying capacity. A lower AWG number indicates a thicker wire capable of handling higher amperage. For instance, a 12-gauge wire is thicker and can handle more current than an 18-gauge wire. Refer to a wire gauge chart to determine the appropriate gauge based on the choke's amperage requirements and the length of the wire run, as longer runs may necessitate a thicker wire to minimize voltage drop.
In addition to gauge, the wire's insulation and temperature rating must also align with the choke's operating conditions. The insulation should be rated to withstand the voltage and temperature generated by the choke. For example, if the choke operates at 12 volts, the wire insulation should be rated for at least 12 volts, though a higher rating provides a safety margin. Similarly, the wire's temperature rating should match or exceed the maximum temperature the choke may produce during operation. High-temperature-rated wires, such as those with silicone or Teflon insulation, are often recommended for automotive applications where heat resistance is essential.
It’s also important to consider the environmental conditions in which the wire will be used. If the wire is exposed to moisture, chemicals, or extreme temperatures, choose a wire with appropriate insulation and protective coatings. For example, PVC-insulated wires are suitable for dry, indoor environments, while wires with cross-linked polyethylene (XLPE) or silicone insulation are better for high-temperature or outdoor applications. Ensuring the wire’s environmental compatibility prevents premature failure and maintains the choke’s reliability.
Finally, verify that the wire’s material and construction comply with relevant safety standards and regulations. Copper is the most common conductor material due to its excellent conductivity, but in some cases, tinned copper or other materials may be used for corrosion resistance. Always use wires that meet industry standards, such as those approved by the Society of Automotive Engineers (SAE) or other regulatory bodies, to ensure they are safe and reliable for use with electric chokes. Proper wire selection based on voltage, amperage, and environmental factors guarantees optimal performance and longevity of the electric choke system.
Why Neutral Wires Are Essential in Electrical Circuits
You may want to see also
Frequently asked questions
Typically, a 14-16 gauge wire is sufficient for an electric choke, as it handles the low-current requirements effectively.
It’s best to use stranded copper wire with insulation rated for high temperatures, as it provides flexibility and durability in engine environments.
Yes, keep the wire length as short as practical to minimize voltage drop, ensuring the choke operates reliably.
