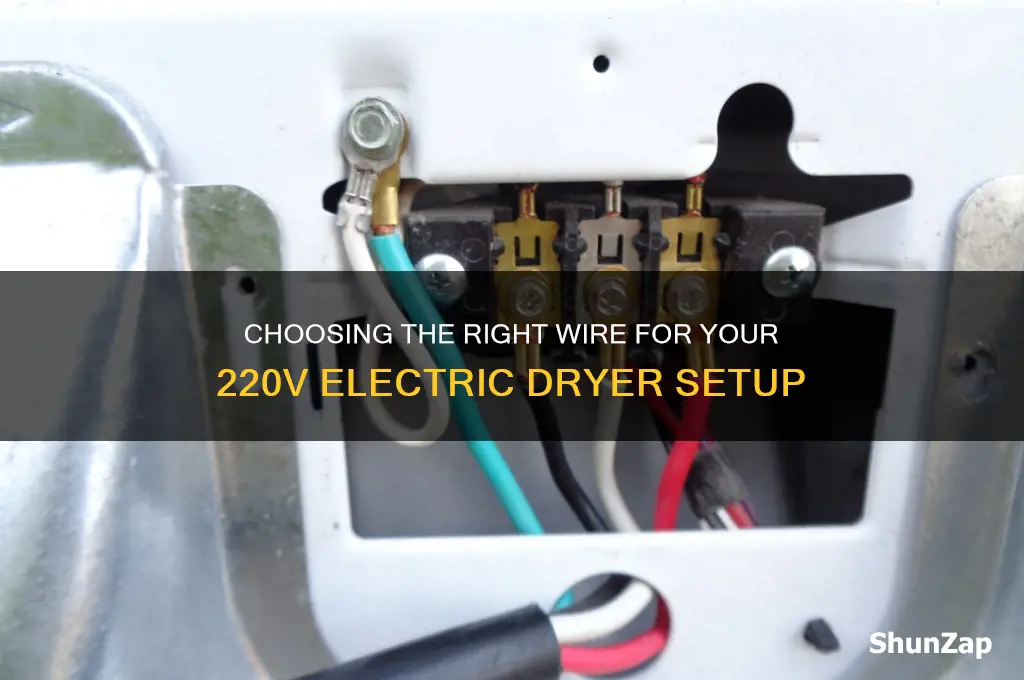

When installing or replacing the wiring for a 220V electric dryer, it’s crucial to use the correct wire type to ensure safety and efficiency. For most residential applications, a 10-gauge (10 AWG) copper wire with a grounding conductor is recommended, as it can handle the typical 30-amp current draw of standard dryers. The wire should be rated for high temperatures and insulated with a heat-resistant material, such as thermoplastic high heat-resistant nylon (THHN) or thermoplastic high heat-resistant old style (THWN). Additionally, the cable should have three or four conductors: two hot wires (usually red and black), a neutral wire (white), and a dedicated ground wire (green or bare copper). Always consult local electrical codes and the dryer’s manual for specific requirements, and consider hiring a licensed electrician to ensure proper installation and compliance with safety standards.
| Characteristics | Values |
|---|---|
| Voltage Rating | 220-240V |
| Wire Gauge | 10 AWG (American Wire Gauge) |
| Wire Type | Stranded or Solid Copper |
| Ampacity | 30 Amps (typical for electric dryers) |
| Insulation | Thermoplastic High Heat-resistant Nylon (THHN) or similar |
| Color Coding | Black (Hot), Red (Hot), White (Neutral), Green or Bare Copper (Ground) |
| Number of Wires | 4 (2 Hot, 1 Neutral, 1 Ground) |
| NEC Compliance | Meets National Electrical Code (NEC) standards for appliance circuits |
| Jacket Rating | 600V or higher |
| Temperature Rating | 90°C (194°F) minimum |
| Usage | Dedicated circuit for electric dryer |
| Breaker Size | 30 Amp double-pole breaker |
| Outlet Type | NEMA 14-30 (common for 220V dryers) |
Explore related products
What You'll Learn
- Wire Gauge Requirements: Determine correct gauge for safe 220V dryer operation
- Wire Type Selection: Choose between copper or aluminum wiring for efficiency
- Ampacity Considerations: Match wire ampacity to dryer’s electrical demand
- Safety Standards: Ensure compliance with NEC codes for 220V installations
- Installation Tips: Proper grounding and wiring techniques for 220V dryers
Wire Gauge Requirements: Determine correct gauge for safe 220V dryer operation
When determining the correct wire gauge for a 220V electric dryer, safety and efficiency are paramount. The wire gauge must be appropriate to handle the dryer's electrical load without overheating or causing voltage drop. Most residential 220V electric dryers require a 30-amp circuit, which dictates the wire gauge needed. According to the National Electrical Code (NEC), a 30-amp circuit typically uses 10-gauge wire. This gauge is sufficient to safely carry the current required by the dryer while minimizing energy loss and ensuring the wire remains within safe temperature limits during operation.
The choice of wire gauge is directly tied to the dryer's amperage rating, which is usually found on the appliance's data plate. For a standard 220V dryer drawing 30 amps, 10-gauge wire is the recommended size. However, if the dryer has a higher amperage rating, such as 40 or 50 amps, the wire gauge must be adjusted accordingly. For instance, a 40-amp circuit would require 8-gauge wire, while a 50-amp circuit would necessitate 6-gauge wire. Using a wire gauge that is too small for the dryer's amperage can lead to overheating, electrical fires, or damage to the appliance, making it critical to match the wire size to the dryer's specifications.
Another factor to consider is the length of the wire run from the circuit breaker to the dryer. Longer wire runs can result in voltage drop, which reduces the efficiency of the dryer and may cause it to operate poorly. To mitigate this, you may need to use a larger gauge wire than the minimum requirement. For example, if the wire run exceeds 50 feet, consider moving up to the next gauge size to ensure adequate power delivery. Consulting the NEC or a professional electrician can provide specific guidance based on your installation's unique requirements.
The type of wire used is also important. For 220V dryer installations, a stranded copper wire is typically recommended due to its flexibility and superior conductivity. The wire should be rated for high temperatures and enclosed in a durable insulation suitable for the environment where it will be installed. Additionally, the wire must be part of a cable assembly that includes a neutral wire and a ground wire, as required by electrical codes. The ground wire, usually bare or green, is essential for safety, providing a path for fault current to prevent electrical shocks.
Lastly, always ensure compliance with local building codes and regulations when selecting and installing wiring for a 220V dryer. Hiring a licensed electrician is advisable, especially if you are unsure about the correct wire gauge or installation process. Proper wiring not only ensures the safe operation of your dryer but also protects your home from potential electrical hazards. By carefully determining the correct wire gauge and following best practices, you can enjoy reliable and efficient performance from your electric dryer for years to come.
Electric Cars: Are They Easier to Maintain Than Traditional Vehicles?
You may want to see also
Explore related products
Wire Type Selection: Choose between copper or aluminum wiring for efficiency
When selecting the appropriate wire for a 220V electric dryer, one of the most critical decisions is choosing between copper and aluminum wiring. Both materials have distinct properties that impact efficiency, cost, and long-term performance. Copper is the more conductive of the two, offering lower electrical resistance, which means less energy loss as heat during operation. This higher conductivity translates to better efficiency, making copper the preferred choice for high-demand appliances like electric dryers. Additionally, copper wiring is more durable and less prone to oxidation, ensuring a longer lifespan and reduced maintenance needs.
Aluminum wiring, on the other hand, is a more cost-effective option due to its lower material cost compared to copper. However, aluminum has a higher electrical resistance, which can lead to greater energy loss and reduced efficiency. To compensate for this, aluminum wires need to be larger in diameter to carry the same current as copper wires. For a 220V electric dryer, this means using a thicker gauge aluminum wire, which can take up more space in conduit systems and may require additional labor during installation. Despite its lower cost, aluminum’s inefficiency and potential for overheating make it a less ideal choice for high-power appliances.
Another factor to consider is the compatibility of the wiring material with the dryer’s electrical connections. Copper wiring is universally compatible with most electrical systems and terminals, reducing the risk of loose connections or overheating at junction points. Aluminum wiring, however, requires special terminals and connectors to prevent galvanic corrosion, which can occur when aluminum comes into contact with other metals. This adds complexity to the installation process and increases the likelihood of errors if not handled correctly.
Efficiency also ties into safety considerations. Copper’s superior conductivity reduces the risk of overheating, a common issue with aluminum wiring, especially in high-load applications like electric dryers. Overheating can lead to insulation damage, fire hazards, or appliance malfunction. While aluminum can be used safely if installed correctly, it requires meticulous attention to detail, including proper termination and adherence to local electrical codes. For most homeowners and professionals, the added safety margin of copper makes it the more reliable choice.
In summary, while aluminum wiring may offer initial cost savings, copper wiring is the more efficient and safer option for a 220V electric dryer. Its higher conductivity, durability, and compatibility with electrical systems outweigh the upfront expense, ensuring better performance and longevity. When prioritizing efficiency and safety, copper is the recommended wire type for this application. Always consult local electrical codes and a licensed electrician to ensure compliance and proper installation.
Electric Cars vs. Gasoline: Are They Really More Expensive?
You may want to see also
Explore related products
Ampacity Considerations: Match wire ampacity to dryer’s electrical demand
When selecting the appropriate wire for a 220V electric dryer, ampacity considerations are paramount to ensure safety, efficiency, and compliance with electrical codes. Ampacity refers to the maximum current a wire can safely carry without overheating or causing damage. Electric dryers typically draw significant power, often ranging from 20 to 30 amps, depending on the model and heating element capacity. To match the wire ampacity to the dryer’s electrical demand, start by consulting the dryer’s specifications or manual to determine its exact amperage requirements. Using a wire with insufficient ampacity can lead to overheating, fire hazards, or damage to the appliance, while over-sizing the wire unnecessarily adds to installation costs.
The National Electrical Code (NEC) provides guidelines for wire sizing based on ampacity and voltage. For a 220V electric dryer, a 10-gauge wire (AWG) is commonly recommended for dryers rated at 30 amps, as it has an ampacity of 30 amps at 60°C (140°F). However, if the dryer draws less than 30 amps, such as 20 or 24 amps, a 12-gauge wire may suffice, though it is less common for dryers due to their high power demands. Always verify the wire’s ampacity rating and ensure it matches or exceeds the dryer’s requirements. Additionally, consider the wire’s insulation type; THHN or THWN-2 are typical choices for dryer circuits due to their heat and moisture resistance.
Another critical factor is the circuit breaker size, which must also match the wire ampacity and dryer’s electrical demand. For a 30-amp dryer, a 30-amp double-pole circuit breaker is required, paired with a 10-gauge wire. Using a breaker with a higher rating than the wire’s ampacity can lead to unsafe conditions, as the wire may overheat before the breaker trips. Conversely, a breaker with a lower rating than the wire’s ampacity will trip unnecessarily, causing inconvenience.
Environmental factors, such as temperature and wire bundling, can also affect ampacity. If the wire is installed in a hot environment or bundled with other wires, its ampacity may be reduced. In such cases, derating the wire size (e.g., using a larger gauge) is necessary to maintain safety. For example, if a 10-gauge wire is derated due to high ambient temperatures, an 8-gauge wire might be required to handle the same load safely.
Lastly, consulting a licensed electrician is highly recommended to ensure proper wire sizing and installation. They can assess your specific situation, including the dryer’s requirements, local electrical codes, and environmental conditions, to determine the most suitable wire and circuit setup. Proper ampacity matching not only ensures the dryer operates efficiently but also protects your home from electrical hazards. Always prioritize safety and compliance when dealing with high-voltage appliances like electric dryers.
Electric Vehicles: Mutual Funds for the Future of Driving
You may want to see also
Explore related products
Safety Standards: Ensure compliance with NEC codes for 220V installations
When installing a 220V electric dryer, ensuring compliance with the National Electrical Code (NEC) is paramount for safety and functionality. The NEC provides specific guidelines for wiring and electrical installations to prevent hazards such as overheating, electrical fires, or shocks. For a 220V dryer, the NEC typically requires the use of a 10-gauge (10 AWG) wire, which is rated to handle the current draw of most standard dryers. This wire size is crucial because it ensures the circuit can safely carry the load without overheating, which could lead to insulation failure or fire.
In addition to the wire gauge, the NEC mandates the use of a grounded circuit with a dedicated breaker. A 30-amp double-pole breaker is commonly used for 220V dryers, and the wiring must include three strands: two hot wires (typically red and black) and one green or bare copper wire for grounding. The grounding wire is essential for safety, as it provides a path for electrical current to safely dissipate in case of a fault, reducing the risk of electric shock or damage to the appliance. Always ensure the grounding is properly connected to the dryer and the electrical panel.
Another critical aspect of NEC compliance is the use of the correct cable type. For 220V dryer installations, a cable rated for high temperatures and suitable for dry locations, such as NM-B (non-metallic sheathed cable), is typically used. The cable must also be protected from physical damage, such as being run through conduit or secured in a way that prevents it from being pinched or damaged. Additionally, the NEC requires that the cable be labeled with its ampacity and voltage rating, ensuring it is appropriate for the application.
Proper installation techniques are also governed by NEC standards. For example, the cable must be securely connected to the dryer terminal block using the correct wire connectors, and all connections must be tight to prevent arcing or overheating. The NEC also specifies minimum clearance distances for electrical wiring to prevent overheating and fire hazards. For instance, wires must be kept away from flammable materials and should not be pinched or bent at sharp angles, which can damage the insulation.
Lastly, it is essential to verify local building codes and any additional requirements that may supplement the NEC. Some jurisdictions may have stricter regulations or specific mandates for electrical installations. Consulting with a licensed electrician or local inspector can help ensure that your 220V dryer installation not only meets NEC standards but also complies with all applicable local codes. Adhering to these safety standards protects both the appliance and the occupants of the building, making compliance a non-negotiable aspect of any electrical installation.
Electric Cars and Radiation: Uncovering the Truth Behind EMF Concerns
You may want to see also
Explore related products
Installation Tips: Proper grounding and wiring techniques for 220V dryers
When installing a 220V electric dryer, proper grounding and wiring are critical to ensure safety, efficiency, and compliance with electrical codes. The first step is selecting the correct wire type and gauge. For most residential 220V dryers, a 10-gauge (10 AWG) wire is recommended, as it can handle the typical 30-amp current draw of these appliances. The wire should be a four-conductor cable, consisting of two hot wires (usually red and black), one neutral wire (white), and one ground wire (green or bare copper). This configuration ensures the dryer operates safely and efficiently while providing a dedicated path for fault currents.
Proper grounding is non-negotiable for 220V dryers. The ground wire must be securely connected to both the dryer’s grounding terminal and the grounding bus bar in the electrical panel. Additionally, the dryer’s metal frame should be bonded to the ground wire to prevent electrical shock hazards. Ensure all connections are tight and free of corrosion. If your dryer has a metal exterior, verify that it is properly grounded to the electrical system. Using a grounding tester can help confirm that the grounding is effective and meets safety standards.
Wiring the dryer to the electrical panel requires careful attention to detail. Turn off the main breaker before beginning any work to avoid electrical hazards. Connect the two hot wires (red and black) to the corresponding hot terminals on the 30-amp double-pole breaker. The neutral wire (white) should be connected to the neutral bus bar in the panel, and the ground wire (green or bare) should be attached to the grounding bus bar. Double-check that all connections are secure and that the wires are not damaged or frayed. Incorrect wiring can lead to overheating, electrical fires, or damage to the dryer.
When routing the wiring from the panel to the dryer location, use a conduit or cable protector to shield the wires from physical damage. Ensure the wiring is kept away from heat sources, sharp edges, and areas prone to moisture. The dryer’s power cord should be plugged into a dedicated 240V outlet, which must match the dryer’s plug configuration. If the dryer comes with a pre-installed power cord, verify that it is rated for 220V and 30 amps. If a cord needs to be installed, use one specifically designed for high-voltage appliances and follow the manufacturer’s instructions carefully.
Finally, after completing the installation, test the dryer to ensure it functions correctly. Turn on the main breaker and check for any signs of overheating, unusual noises, or improper operation. Use a voltage tester to confirm that the outlet is delivering the correct 220V power. If any issues arise, immediately turn off the power and inspect the wiring and connections. Consulting a licensed electrician is advisable if you’re unsure about any step of the process, as improper installation can void warranties and pose serious safety risks. Following these grounding and wiring techniques will help ensure your 220V dryer operates safely and reliably for years to come.
Why Resistance is Essential in Electrical Circuits: Key Functions Explained
You may want to see also
Frequently asked questions
For most 220V electric dryers, a 10-gauge wire (10 AWG) is recommended. This gauge can handle the typical 30-amp current draw of standard dryers. Always check your dryer’s manual or specifications to confirm the correct wire size.
No, 12-gauge wire is not suitable for a 220V electric dryer. It is typically rated for 20 amps, which is insufficient for the 30-amp requirement of most dryers. Using 12-gauge wire could lead to overheating and safety hazards.
Solid wire is generally recommended for 220V electric dryers because it is easier to work with in home wiring applications and provides a secure connection. Stranded wire is more flexible but is typically used in applications requiring frequent movement, such as portable devices.
Use wire with insulation rated for high temperatures, such as NM-B (non-metallic sheathed cable) or UF-B (underground feeder cable) for outdoor installations. Ensure the wire is rated for at least 600 volts to meet safety standards for 220V appliances. Always follow local electrical codes.
