Beatrice Lang

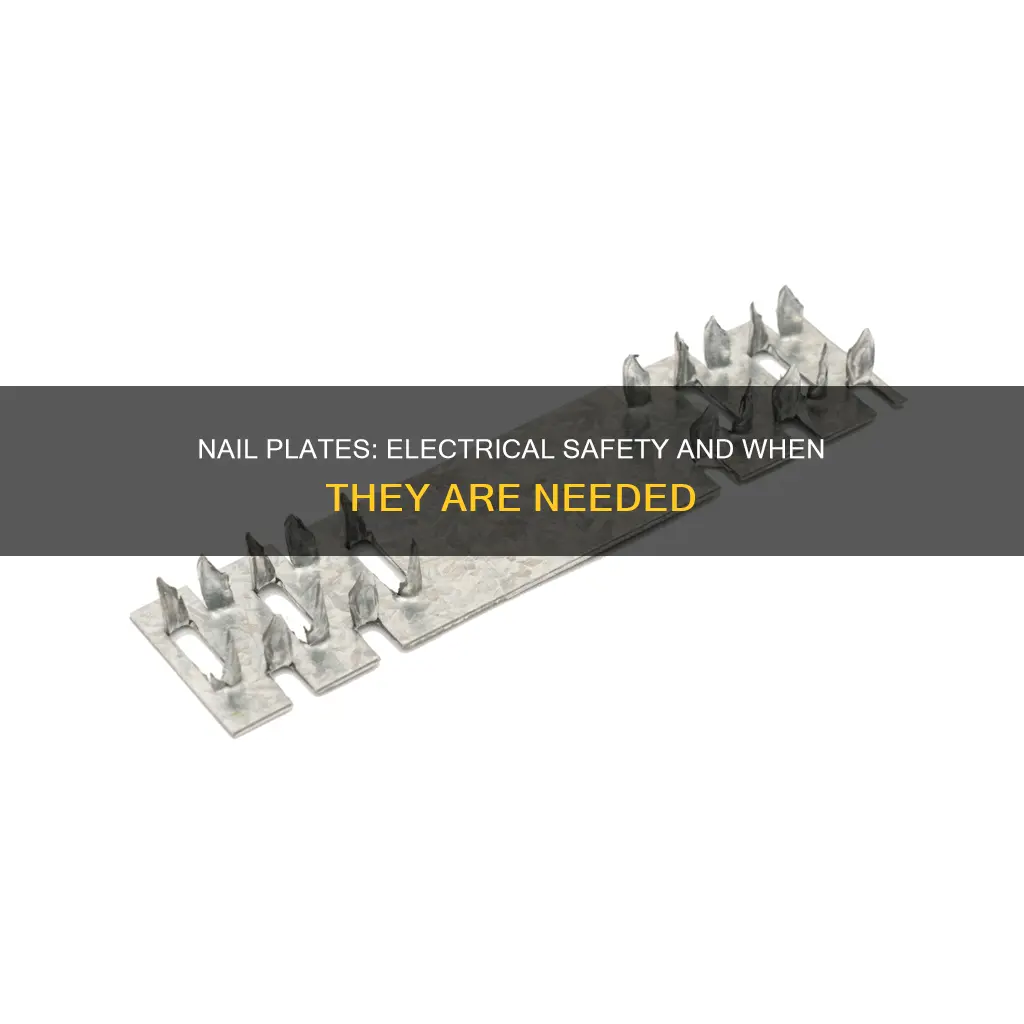

Nail plates are an essential safety feature in construction and DIY projects, particularly when dealing with electrical wiring. They serve as protective barriers, preventing nails or screws from penetrating wires or pipes located near wall studs. This safeguard helps prevent accidents, such as driving a nail into a live wire, which could result in electrical shocks, fires, or costly property damage. While code requirements mandate their use under specific circumstances, such as when wiring is less than 1 1/4 from the stud face, many professionals recommend using nail plates generously for added protection. Nail plates come in various sizes and can be installed during new construction or remodelling projects, ensuring safety and peace of mind for homeowners and builders alike.
| Characteristics | Values |
|---|---|
| Required distance between cable and stud | 1.25" (32mm) |
| Required protection | Steel plate or bushing |
| Minimum plate thickness | 1.6mm (1/16") |
| Required protection for pipes | Yes |
| Required protection for exterior walls | No |
| Required protection for wires | Yes |
| Required protection for interior walls | Yes |
| Required protection for holes | Yes |
Explore related products
What You'll Learn
- Nail plates are required when wires are less than 1-1/4 from the face of a stud
- They are also needed when cables are run on the side of a stud without 1.25 of space
- Steel nail plates are used to protect drywall installers from driving sheetrock screws into Romex
- Nail plates are required when cables are installed through bored holes in joists, rafters, or wood members
- They are also needed when pipes or wires go through a stud
Nail plates are required when wires are less than 1-1/4 from the face of a stud
Nail plates are an essential safety measure in electrical work, and they are required when wires are less than 1-1/4" (32mm) from the face of a stud. This rule aims to protect drywall installers from accidentally driving sheetrock screws into wires, which can cause electrical shocks, fires, and property damage.
In electrical work, it is crucial to maintain a minimum distance between wires and the face of a stud. When this distance is less than 1-1/4", nail plates are necessary to prevent accidental penetration by screws or nails. This scenario typically arises when wires are run vertically very close to the stud or through bored holes in joists or rafters.
The purpose of nail plates is to provide a protective barrier that covers the wiring and prevents screws or nails from penetrating the wires. This safeguard is particularly important because it helps prevent electrical shocks and fires, which can occur if a nail or screw pierces a live wire.
Nail plates come in various sizes and shapes, but for at-home DIY projects, the typical size is three inches in length and one-half inch in width. These nail plates should be made of steel and be at least 1.6 mm (1/16") thick to comply with electrical safety standards.
While nail plates are essential when wires are less than 1-1/4" from the face of a stud, they can also be used as additional protection even when not required. Some people choose to use them for peace of mind, especially in areas where heavy items like frames, speakers, or flat-screen TVs will be mounted, as the extra support can prevent accidental damage to wires or pipes.
Polaris Electric UTVs: Who's Driving Change?
You may want to see also
Explore related products
They are also needed when cables are run on the side of a stud without 1.25 of space
Nail plates are a vital safety feature in electrical installations, and their use is mandated by electrical codes and standards. These codes and standards are in place to protect people from electrical shocks, fires, and other hazards that can result from improper wiring. The National Electrical Code (NEC) and the International Plumbing Code (IPC) provide guidelines for the safe installation of wiring and pipes in buildings.
Nail plates are required when cables are run on the side of a stud without 1.25 inches of space. This distance is crucial because it provides a safety buffer to prevent accidental penetration by nails or screws, which could result in electrical hazards or damage to the wiring. If the cable is positioned closer than 1.25 inches to the face of the stud, nail plates become necessary to safeguard the wiring.
In such cases, it is essential to install nail plates made of steel or another suitable material to protect the cables. These nail plates act as a barrier, ensuring that nails or screws used during drywall installation or when hanging items on the wall do not penetrate the cables. This protective measure helps prevent electrical shocks, short circuits, and potential fires that could result from damaged wiring.
The size and placement of the nail plates is important to ensure effective protection. The plates should be at least 1/16 inch thick and of appropriate length and width to cover the wiring adequately. Nail plates are typically installed during new construction or remodeling projects, before wall coverings are added or removed.
While nail plates are essential for safety, it is worth noting that they may not always be required by code. In some cases, cables may be routed through drilled holes in studs, providing the necessary clearance from the stud's edge. However, even when not mandated, using nail plates can provide additional peace of mind and enhance safety.
Robots, Dreams, and Electric Sheep: Exploring AR's Potential
You may want to see also
Explore related products
Steel nail plates are used to protect drywall installers from driving sheetrock screws into Romex
Steel nail plates are essential safety tools used in electrical work and construction. They are specifically designed to protect drywall installers from accidentally driving sheetrock screws into Romex cables during installation or repair work. Drywall installers are professionals who specialize in installing and finishing drywall panels in various construction projects, including residential, commercial, and industrial sites. They are responsible for measuring, cutting, and installing drywall panels, ensuring they are securely attached to the underlying framework, such as studs or joists, using screws or nails.
Romex, or NM cable, is a type of electrical wiring commonly used in residential applications. It comes in two, three, or four-conductor cables, plus a ground wire, and is primarily used for wiring lights, receptacles, and other power needs in homes, garages, and outbuildings. While it is versatile and widely used, Romex wiring is governed by the National Electric Code (NEC) and local building codes, which specify where it can be installed. For example, Romex cannot be used in wet or damp locations, and must be kept inside the home, garage, or shed.
To ensure the safety of drywall installers and the integrity of electrical wiring, steel nail plates are used as a protective measure. When running electrical cables through bored holes in wood members, such as studs or joists, it is crucial to maintain a minimum distance from the edge of the hole to prevent penetration by screws or nails. If this distance cannot be maintained, as specified in the electrical codes, a steel nail plate is required. These nail plates provide a physical barrier that protects the cables from being pierced by screws or nails during the drywall installation process.
The use of steel nail plates is mandated by electrical safety regulations to safeguard against accidental damage to electrical wiring. By placing the nail plates over the cables, drywall installers can confidently drive sheetrock screws into the drywall panels without worrying about hitting the Romex cables hidden behind. This protective measure helps prevent electrical hazards, such as short circuits or fires, that could occur if a screw were to penetrate the cable. It also ensures that the drywall installation proceeds smoothly and safely, reducing the risk of injuries and costly repairs that may arise from accidental damage to electrical wiring.
Grounding Electric Fences: A Step-by-Step Guide
You may want to see also
Explore related products
Nail plates are required when cables are installed through bored holes in joists, rafters, or wood members
Nail plates are a vital safety feature in electrical installations, and it is essential to understand when and where they are required. In electrical work, nail plates serve as protection against accidental penetration by nails or screws, which can result in electrical shocks, short circuits, or damage to wiring.
When installing cables through bored holes in joists, rafters, or wood members, specific guidelines must be followed to ensure safe and code-compliant installations. Firstly, according to electrical standards, holes should be bored in such a way that the edge of the hole is no less than 32 mm (1 1/4 inches) from the nearest edge of the wood member. This distance is crucial to maintain a safe clearance between the wiring and any nails or screws that may be driven into the surrounding wood.
However, there are instances where maintaining this minimum distance is not feasible due to structural limitations or other factors. In such cases, the use of nail plates becomes mandatory. Nail plates are thin steel plates that are installed to cover the bored holes and protect the cables from penetration by screws or nails. These plates must be at least 1.6 mm (1/16 inches) thick and of appropriate length and width to cover the wiring adequately.
By installing nail plates, drywall installers and homeowners can rest assured that accidental nail or screw penetrations will not damage the wiring or pose electrical hazards. This is especially important when cables are installed through wood members that may be prone to nail or screw insertions, such as joists, rafters, or studs.
Washing Electric Blankets: Easy Steps for Clean Comfort
You may want to see also
Explore related products
They are also needed when pipes or wires go through a stud
Nail plates are an essential safety measure in electrical work, and their use is dictated by strict guidelines. They are required when pipes or wires go through a stud to prevent accidental penetration by nails or screws, which can cause electrical shocks, leaks, and fires.
The National Electrical Code (NEC) and International Plumbing Code (IPC) provide specific guidelines for the use of nail plates. According to the NEC, as referenced by electrical inspectors, nail plates are mandated when there is less than 1.25 inches of wood between the wall face and the wiring. This distance is crucial for safety, and if it cannot be maintained, nail plates become necessary.
The IPC also emphasizes the importance of nail plates for protection. It states that in concealed locations where pipes or non-galvanized steel pipes pass through holes or notches in studs, joists, or rafters, nail plates are required if the distance to the nearest edge is less than 1.5 inches. This code ensures that pipes are protected from potential damage by nails or screws.
Nail plates are typically installed during new construction or remodeling projects. They are placed before wall coverings are added or removed to ensure the safety of drywall installers and homeowners alike. The plates are designed to cover wiring holes and protect against accidental nail or screw penetration, which could result in costly and dangerous consequences.
While nail plates are essential for safety, they can also be used strategically to avoid interference with wall coverings. For example, Southwire's "Smart Shield" nail plates are designed to install inside wall cavities, preventing any issues with flat wall surfaces while still providing protection for wires and pipes. This innovative solution highlights the importance of considering nail plate placement to ensure both functionality and aesthetics.
Honda Clarity: Electric-Only Operation Explored
You may want to see also
Frequently asked questions
Nail plates are required for electrical when a cable or raceway-type wiring method is installed less than 1-1/4" or 32mm from the nearest edge of a wood member. In this case, a steel plate is needed to protect the wiring from penetration by screws or nails.
Nail plates are typically made of steel.
The most common nail plates for at-home DIY projects are three inches in length and one-half inch in width.
Nail plates are typically installed during a new build or remodeling project. They are set in place before wall covering is added or removed for a remodel.
