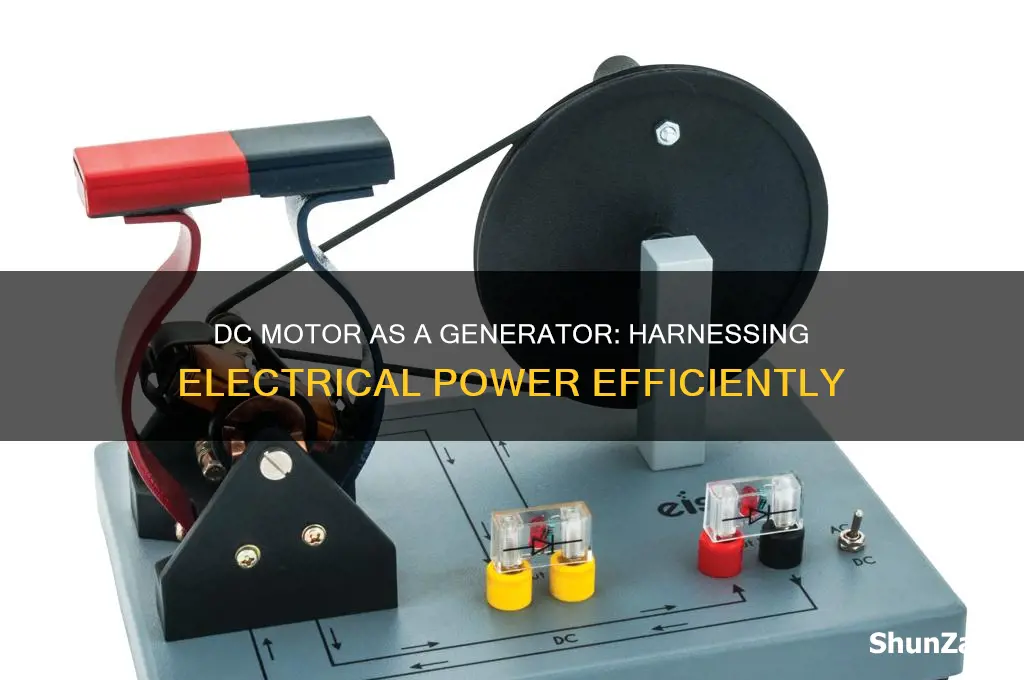

When using a DC motor to generate electricity, the process involves converting mechanical energy into electrical energy through the principle of electromagnetic induction. Typically, a DC motor operates as a generator when its rotor is rotated by an external mechanical force, such as a turbine or hand crank, causing the magnetic field to induce a voltage in the windings. This induced voltage results in the flow of direct current (DC) through the motor's terminals, effectively transforming it into a generator. Key factors influencing efficiency include the motor's speed, magnetic field strength, and the number of windings. Proper load matching and ensuring minimal friction are crucial to maximize power output. This method is commonly used in applications like regenerative braking systems, portable power generation, and small-scale renewable energy setups.
Explore related products
What You'll Learn
- Efficiency Factors: Input speed, torque, and load affect DC motor electricity generation efficiency
- Back EMF: Generated voltage opposes input, crucial for power output regulation
- Commutation Role: Brushes and commutator ensure continuous current flow during generation
- Load Matching: Optimal power output requires matching motor to load resistance
- Cooling Needs: Heat dissipation is critical to prevent overheating during generation
Efficiency Factors: Input speed, torque, and load affect DC motor electricity generation efficiency
When using a DC motor as a generator, efficiency is a critical factor that depends on several key variables, including input speed, torque, and load. Input speed plays a pivotal role in determining how effectively the motor converts mechanical energy into electrical energy. DC motors typically have an optimal speed range where they operate most efficiently as generators. Operating the motor at speeds below or above this range can lead to energy losses due to factors like increased friction, magnetic hysteresis, and eddy currents. For instance, running the motor too slowly may not generate enough back EMF (electromotive force) to produce a usable voltage, while excessively high speeds can cause overheating and mechanical stress, reducing overall efficiency. Therefore, maintaining the input speed within the motor’s optimal range is essential for maximizing electricity generation efficiency.
Torque is another critical factor influencing the efficiency of a DC motor when used as a generator. The torque applied to the motor’s shaft determines the mechanical power input, which directly affects the electrical output. Insufficient torque may result in low power generation, as the motor fails to overcome internal resistance and produce a meaningful current. Conversely, excessive torque can lead to inefficiencies by causing the motor to operate in a non-optimal magnetic field region or by increasing mechanical losses. To achieve peak efficiency, the torque must be carefully matched to the motor’s design specifications, ensuring that the magnetic field and armature interaction are optimized for energy conversion.
The load connected to the DC motor generator also significantly impacts its efficiency. The load determines how much electrical power is drawn from the generator, affecting the motor’s operating point. A load that is too light may result in the motor generating excess voltage but minimal current, leading to underutilization of the motor’s capabilities. On the other hand, an excessively heavy load can cause the motor to operate in a high-current, low-efficiency state, as the increased demand forces the motor to work harder, generating more heat and losses. Matching the load to the motor’s power output ensures that the generator operates at or near its maximum efficiency point, where the ratio of electrical output to mechanical input is optimized.
The interplay between input speed, torque, and load is crucial for achieving high efficiency in DC motor electricity generation. For example, increasing the input speed without adjusting the torque or load can lead to a mismatch, causing the motor to generate more voltage but less current, resulting in lower overall power output. Similarly, applying excessive torque to compensate for a heavy load can push the motor into an inefficient operating region. To optimize efficiency, these factors must be balanced: the input speed should be maintained within the optimal range, the torque should be matched to the motor’s design, and the load should be appropriately sized to utilize the motor’s full potential without overloading it.
In practical applications, monitoring and controlling these factors require careful design and testing. Using feedback mechanisms, such as speed sensors and current monitors, can help maintain the motor within its efficient operating range. Additionally, selecting a motor with specifications suited to the intended application—such as appropriate power rating, speed range, and torque capabilities—is essential for achieving high efficiency. By understanding and managing the effects of input speed, torque, and load, users can maximize the electricity generation efficiency of DC motors, ensuring reliable and sustainable energy conversion in various applications, from renewable energy systems to portable power generation.
