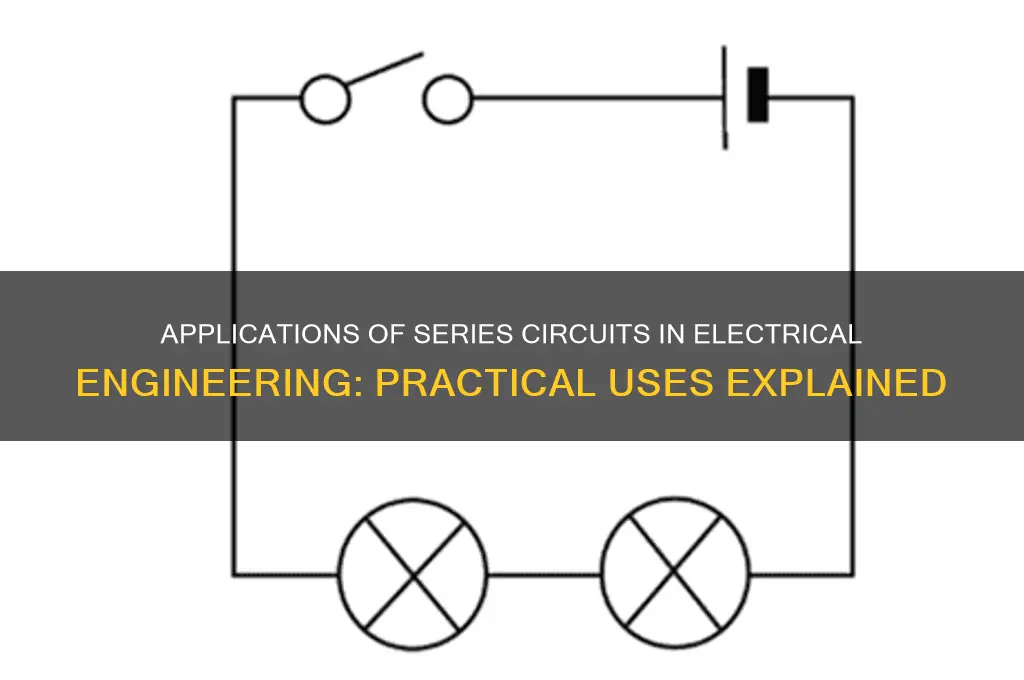

Series circuits are fundamental in electrical engineering, offering a structured approach to managing voltage, current, and resistance in various applications. They are particularly useful in scenarios where components need to share a common current, such as in LED strings, voltage dividers, and battery arrangements. In series configurations, the total resistance increases, which can be advantageous for limiting current and protecting sensitive components. Additionally, series circuits simplify troubleshooting and analysis, as the same current flows through all elements, making them essential in designing and optimizing electrical systems for efficiency and safety.
| Characteristics | Values |
|---|---|
| Circuit Analysis | Series circuits simplify analysis by allowing calculation of total resistance, current, and voltage using basic formulas (Ohm's Law, V=IR). |
| Voltage Division | Series circuits divide the total voltage across components proportionally to their resistances, useful for creating specific voltage levels. |
| Current Limiting | Series resistors limit current flow, protecting sensitive components from damage. |
| LED Circuits | LEDs are often connected in series with a resistor to control current and prevent burnout. |
| Battery Packs | Batteries are connected in series to increase the total voltage output. |
| Resistive Sensors | Sensors like thermistors and photoresistors are often used in series circuits to measure changes in resistance. |
| Signal Processing | Series circuits are used in filters (e.g., RC circuits) to shape and modify signals. |
| Timing Circuits | Series RC circuits create time delays in applications like timers and oscillators. |
| Power Distribution | Series circuits are used in some power distribution systems for specific voltage requirements. |
Explore related products
What You'll Learn
- Circuit Analysis: Series circuits simplify voltage and current calculations in complex electrical networks
- Power Distribution: Series connections optimize power transmission over long distances efficiently
- Filter Design: Series elements create frequency-selective filters for signal processing applications
- LED Lighting: Series configurations ensure uniform current distribution across multiple LED arrays
- Battery Systems: Series connections increase voltage output for high-energy storage applications
Circuit Analysis: Series circuits simplify voltage and current calculations in complex electrical networks
In electrical engineering, series circuits play a crucial role in simplifying circuit analysis, particularly in complex electrical networks. When components are connected in series, the same current flows through each component, which significantly reduces the complexity of current calculations. This is because the total current in a series circuit remains constant throughout, allowing engineers to focus on a single current value rather than dealing with multiple currents in parallel branches. By applying Ohm's Law (V = I * R) and Kirchhoff's Voltage Law (the sum of voltages around a closed loop is zero), engineers can easily determine the voltage drop across each component, making voltage calculations straightforward and efficient.
Series circuits are especially useful in voltage division, a fundamental concept in circuit analysis. In a series configuration, the total supply voltage is distributed across the components in proportion to their resistances. This property allows engineers to design circuits where specific voltage levels are required at different points, such as in signal conditioning or biasing circuits. For instance, in a series resistor network, the voltage drop across each resistor can be calculated using the formula \( V_n = V_{total} \times \frac{R_n}{R_{total}} \), where \( V_n \) is the voltage across the nth resistor, \( V_{total} \) is the total applied voltage, \( R_n \) is the resistance of the nth resistor, and \( R_{total} \) is the total resistance. This simplifies the design and analysis process, ensuring precise control over voltage levels.
Another advantage of series circuits in circuit analysis is their application in simplifying current calculations in multi-component networks. Since the current is the same through all components in a series circuit, engineers can directly apply Kirchhoff's Current Law (the sum of currents entering a node equals the sum of currents leaving the node) without the need for complex current distributions. This is particularly beneficial in troubleshooting and fault analysis, where identifying the current flow is essential. For example, in a series circuit with multiple resistors, the total resistance is simply the sum of individual resistances (\( R_{total} = R_1 + R_2 + \ldots + R_n \)), and the current can be calculated using \( I = \frac{V_{total}}{R_{total}} \), providing a clear and direct method for current determination.
Series circuits also facilitate the analysis of power dissipation in electrical networks. Since power (\( P \)) in a resistive component is given by \( P = I^2 \times R \) or \( P = \frac{V^2}{R} \), knowing the current or voltage across each component in a series circuit allows for straightforward power calculations. This is critical in designing circuits where power efficiency and heat management are important considerations. For instance, in LED circuits or voltage regulators, understanding how power is distributed across series components helps engineers ensure that each component operates within safe limits, preventing overheating or damage.
Lastly, series circuits are instrumental in educational and introductory circuit analysis, as they provide a foundational understanding of electrical principles. By starting with series configurations, students and engineers can grasp fundamental concepts like voltage division, current flow, and resistance combinations before moving on to more complex parallel or combination circuits. This step-by-step approach builds a strong analytical framework, enabling professionals to tackle intricate electrical networks with confidence. In summary, series circuits simplify voltage and current calculations, making them an indispensable tool in the analysis and design of complex electrical systems.
