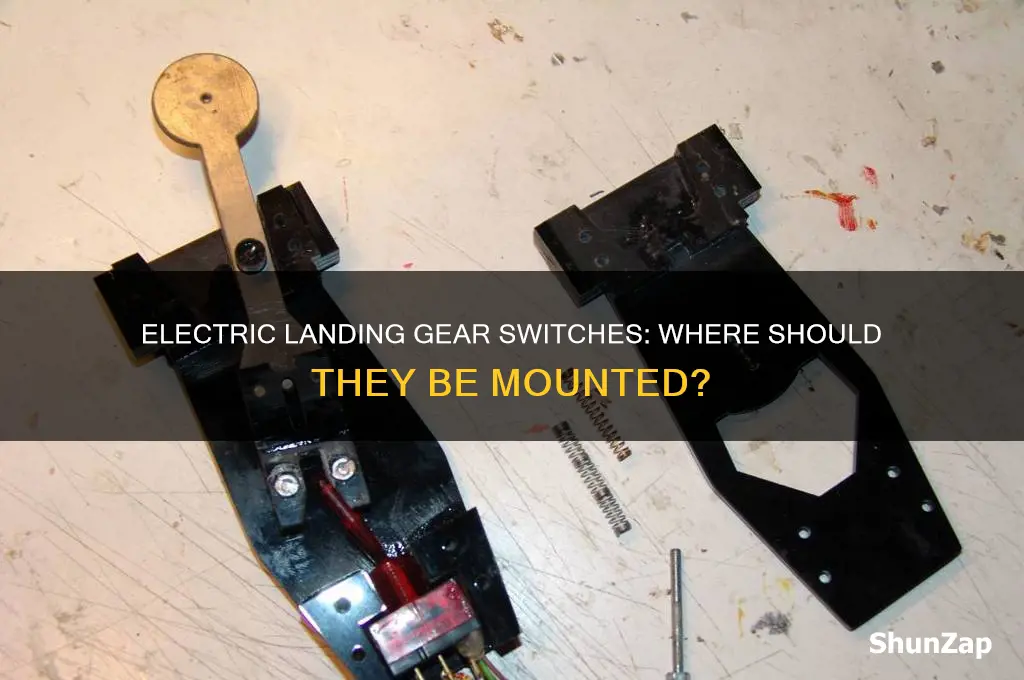

The placement of electric landing gear switches is an important consideration in aircraft design. Landing gear switches control the extension and retraction of the landing gear during takeoff and landing. These switches can be of different types, such as toggle switches or solenoid switches, and their installation can vary depending on factors such as the number of wires and the mounting type. Proper wiring of landing gear switches is crucial, as incorrect wiring can lead to issues with the landing gear operation. Additionally, safety devices such as ground locks and gear position indicators are employed to ensure that the landing gear remains locked and in the correct position during different phases of flight.
Explore related products
What You'll Learn
Landing gear switch wiring
Firstly, identify the wires and their respective functions. Landing gear switches typically have multiple wires, including pink, red, and black. In some cases, there may be two black wires of the same length, which can be distinguished by their connection points. The pink wire is usually connected to the positive battery terminal, while one short black wire connects to the negative battery terminal. The remaining wires, such as the long black and red wires, are typically connected to the motor.
Next, determine the correct wiring configuration. Refer to the wiring diagram or instructions specific to your landing gear switch. The diagram will illustrate how each wire should be connected to the battery and motor. It is crucial to follow these instructions precisely to ensure proper functionality and avoid electrical issues.
When connecting the wires, pay attention to their placement and polarity. The wires connected to the motor may change the direction in which the motor turns. Therefore, ensure that they are attached to the correct sides based on your motor mounting location. Some motors may have colour-coded connections to assist in proper wiring.
During the installation process, it is essential to consider the type of switch mount you are using. Switches can be either 1-hole or 3-hole mount types. A 3-hole mount switch requires drilling three holes in the instrument panel for the mounting screws, button, toggle lever, or rocker. On the other hand, a 1-hole mount switch offers a neater installation and provides a smooth area for affixing adjacent switch identification labels or placards.
Finally, test the wiring configuration to ensure proper functionality. Check the continuity through the switch contacts to ensure that they are making the appropriate connections when the switch is engaged. You can use a DC test light or a multimeter to verify power at the switch connections and the motor. If you encounter any issues, refer to the troubleshooting steps provided by the manufacturer or seek assistance from a qualified technician.
