The use of the term ground is common in electrical and electronics applications. Electrical circuits may be connected to the ground for safety, to complete a circuit, or as a reference point for voltage measurements. The ground serves as a safety valve for excess positive charge, attracting it with a negatively charged wire and providing a safe outlet. This prevents dangerous voltages from appearing on exposed conductive parts of electrical equipment, reducing the risk of electrical shock. Grounding also limits the build-up of static electricity, preventing dangerous charges from accumulating during atmospheric phenomena. In some cases, the ground itself can be used as a conductor in a circuit, eliminating the need for a separate return conductor and reducing costs.
| Characteristics | Values |
|---|---|
| Why electricity always goes to ground | To prevent dangerous static charges from building up |
| To complete the circuit | |
| To prevent shocks and electrocution | |
| To prevent fires | |
| To prevent lightning strikes | |
| To protect against electrical faults | |
| To prevent the build-up of static electricity | |
| To provide a zero-voltage reference level | |
| To provide a common return path for electric current |
Explore related products
$14.15 $15.99
What You'll Learn
- Grounding prevents electrical faults from causing shocks or electrocution
- Grounding protects against lightning strikes and static electricity build-up
- Grounding completes the circuit, allowing current to flow safely
- Grounding provides a reference point for voltage measurements
- Grounding prevents dangerous voltages from appearing on exposed conductive parts of equipment
Grounding prevents electrical faults from causing shocks or electrocution
Grounding is essential in preventing electrical faults from becoming dangerous by providing a safe pathway for electric currents to travel without risking human life or property damage. It is the process of connecting a conductor or an electrical device to the earth, providing a safe and stable path for excess electricity to escape. This reduces the risk of electrical shock, electrocution, and fires caused by unexpected voltage spikes or short circuits.
When an electrical fault occurs, there is usually a loose connection or a broken wire in an electrical circuit, causing an imbalance between the "hot" side of the circuit and its return line to the ground. This difference in potential creates a high voltage differential between the two points, resulting in a surge of electric current that can cause physical harm. By providing a safe path of low resistance (ground) for this electric surge to travel through, grounding allows this energy to safely dissipate into the earth instead of causing injury.
Grounding also serves as a safety measure by preventing electrical shock if you accidentally come into contact with exposed metal parts on wiring systems. When properly grounded, these metal parts are connected directly to the ground and, therefore, cannot store static electricity, which can cause shocks if touched. A properly installed ground wire will quickly disperse any stored static electricity into the earth, away from workers or users.
Earthing and bonding are two critical concepts in electrical wiring. While both are related to connecting a power system to the ground, they have different applications and require different methods for achieving safety. Bonding involves joining non-current-carrying parts together but not directly to the earth's ground. This does not provide protection against electric shocks but increases reliability inside equipment elements among exposed conductive parts that could come into contact with humans under normal operating conditions.
In conclusion, grounding prevents electrical faults from causing shocks or electrocution by providing a safe pathway for excess electricity to flow away from users or equipment and into the earth, protecting individuals and equipment from harm.
Electric vs Wet Shaving: Which is the Better Option?
You may want to see also
Explore related products
Grounding protects against lightning strikes and static electricity build-up
Grounding is an essential safety feature within a building's electrical system. It protects against lightning strikes and prevents static electricity build-up by providing a safe path for excess current to flow into the earth.
Lightning strikes can be extremely dangerous, containing up to one billion volts of electricity. When lightning strikes a building, the excess voltage can cause serious damage to facilities and systems, and can even lead to fires. Grounding systems divert this excess electricity away from the building and into the earth, preventing damage and reducing the risk of fire.
In addition to protecting against lightning strikes, grounding also helps to prevent static electricity build-up. Static electricity can cause power surges, which can damage electronic components and lead to equipment malfunctions. Grounding provides a path for this excess electricity to dissipate safely, preventing it from overheating wires or causing sparks.
The goal of grounding is to connect all the neutral points of current-carrying conductors to the earth. This creates a highly efficient route for excess electricity to flow, preventing arcing and directing electricity safely into the ground. Proper grounding can also help to extend the lifespan of electronic equipment by minimising the risk of voltage spikes and malfunctions.
Overall, grounding is an important safety measure that helps to protect against lightning strikes and static electricity build-up, safeguarding both people and property.
UK Electricity Prices: What's Behind the Surge?
You may want to see also
Explore related products
Grounding completes the circuit, allowing current to flow safely
The concept of 'grounding' in electrical circuits is essential for safety and the proper functioning of electrical systems. Grounding completes the circuit, providing a safe path for excess electrical current to flow and preventing hazardous situations.
Electricity always seeks to complete a circuit and flow back to its source. When an electrical system is grounded, it uses the Earth as a reference point or common return path for electric current. This means that any excess electricity or faults in the system will be directed into the ground, preventing it from passing through a person or causing damage to equipment.

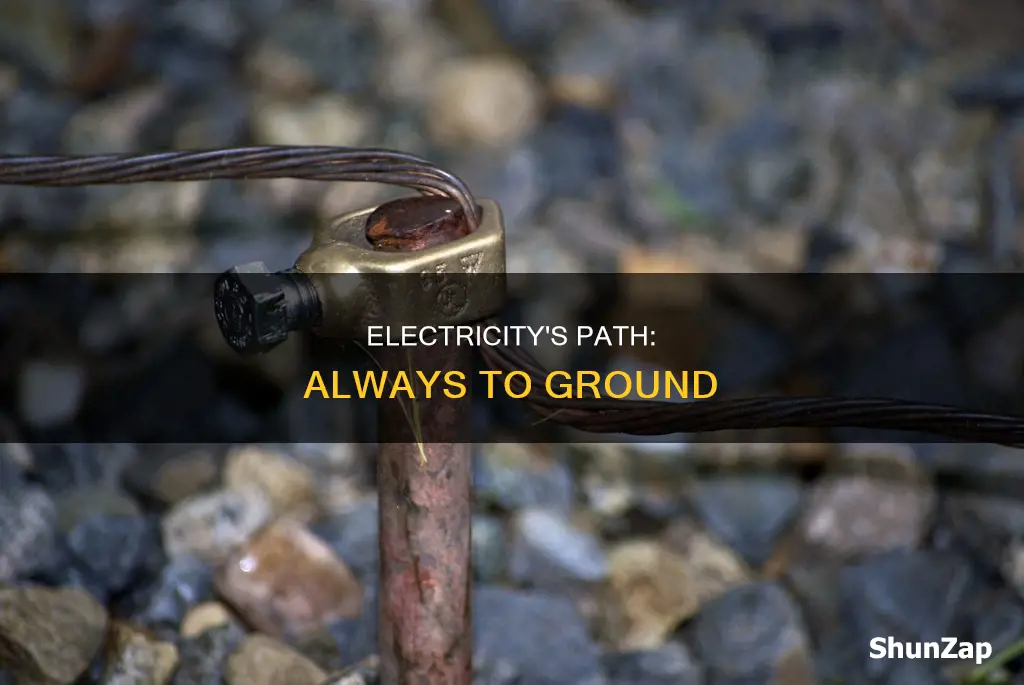

In electrical engineering, the term 'ground' or 'earth' is commonly used to refer to a direct connection to the physical ground, usually through a ground wire or rod. This wire is typically buried in the earth outside a home or building, providing a path for excess positive charge to flow into the negatively charged ground. This attraction between opposite charges ensures that excess energy is safely directed away from electrical systems and sensitive equipment.
The use of grounding in electrical systems is not a new concept. As early as the 1830s, German scientist Carl August Steinheil discovered that the ground could be utilised as the return path in long-distance electromagnetic telegraph systems, eliminating the need for a separate return wire. This principle was later applied to power transmission circuits, where the ground serves as a conductor, providing cost savings and safety benefits.
Grounding is particularly important in homes and buildings to ensure electrical safety. Without proper grounding, excess electricity from appliances or power lines could pass through a person, leading to electrical shocks or electrocution. Additionally, grounding helps protect against lightning strikes and prevents the build-up of static electricity, reducing the risk of fires or damage to sensitive equipment.
The Evolution of Electric Traffic Signals
You may want to see also
Explore related products
Grounding provides a reference point for voltage measurements
Grounding is an essential component of electrical safety in homes. It provides a safe outlet for excess energy, preventing the dangers of fire and electrocution. The ground wire connected to electrical outlets and panels is buried in the earth outside a home, providing a "safety valve" for excess positively charged energy. The negatively charged ground wire attracts the excess positive charge in electrical lines, safely absorbing the extra current.
In electrical engineering, grounding plays a crucial role in voltage measurement. It serves as a reference point or "reference ground" in electrical circuits, providing a common return path for electric current. This reference point is used to measure voltages and compare potential differences. The ground's potential is arbitrarily defined as zero, allowing for the measurement of potential in the circuit relative to the ground.
The concept of a "reference ground" is particularly important in power distribution systems. A protective earth (PE) conductor is an essential safety component in these systems, and grounding limits the build-up of static electricity when handling flammable products or sensitive devices. Additionally, grounding can be used as a cost-saving measure in some telegraph and power transmission circuits, eliminating the need for a separate return conductor.
Grounding also provides a reference point for voltage measurements in sensitive equipment. Circuits used for audio/video production or measurement instruments may be connected to an isolated ungrounded technical power system. This setup helps limit the injection of noise from the power system, ensuring more accurate measurements and reducing interference.
Furthermore, grounding is crucial for surge protection in electronic devices. Surge protectors are designed to safeguard expensive electronics from voltage spikes. However, they are ineffective without proper grounding. By providing a path to the earth, grounding ensures that excess current is safely directed away from sensitive electronics, protecting them from potential damage caused by power surges.
Easy Guide: Removing Push-Fit Electrical Connectors
You may want to see also
Explore related products
Grounding prevents dangerous voltages from appearing on exposed conductive parts of equipment
The concept of grounding is essential in electrical engineering to prevent dangerous voltages from appearing on exposed conductive parts of equipment. Grounding, also known as earthing, is the process of connecting electrical circuits or equipment to the physical ground, which is typically considered a reference potential or zero potential.
In electrical systems, grounding provides a safe pathway for excess electricity to flow, preventing it from appearing on exposed conductive parts. This is particularly important when internal insulation fails or when there is a fault in the electrical circuit, which can result in dangerous voltages. By connecting exposed conductive parts to a "ground" wire, a low-impedance path is created for current to flow back to the incoming neutral, which is also grounded. As a result, circuit breakers or RCDs can interrupt the power supply in the event of a fault, protecting users from electrical shock hazards.
In addition to preventing electrical shocks, grounding also helps to dissipate transient voltages and limit voltage rises in the system. This is especially relevant in installations with high potential differences, such as mains electricity (AC power) wiring. By grounding the system, any excess voltage is safely directed into the earth, preventing damage to equipment and ensuring the safety of workers.
Grounding is also crucial in specific environments, such as hospitals and construction sites, where the risk of electric shock is high. In these cases, special ungrounded power systems may be used to minimize leakage current to the ground, protecting patients or users from electrical hazards. Furthermore, in electrostatic sensitive areas, ground mats are used to dissipate static electricity generated by people and equipment, preventing the build-up of static charges that could lead to electrical faults.
Overall, grounding is a critical safety measure in electrical systems, preventing dangerous voltages from appearing on exposed conductive parts of equipment. By providing a low-resistance path for excess electricity to flow into the earth, grounding protects users, equipment, and systems from electrical faults, voltage surges, and potential damage.
Designing Around an Electric Fireplace: Creative Tips and Tricks
You may want to see also
Frequently asked questions
Electricity goes to ground because the Earth has a conductivity that allows it to absorb an unlimited amount of current without changing its potential.
Grounding electricity is essential for safety, as it provides a "safety valve" for excess positively charged energy. This prevents dangerous voltages from appearing on exposed conductive parts of electrical equipment, reducing the risk of fire and
Electricity goes to ground through a ground wire, which is connected to outlets and electrical panels and is literally dug into the earth outside a building.
A ground wire, also known as an earth wire, is a safety feature that connects exposed conductive parts of electrical equipment to the ground. This provides a low-impedance path for current to flow back to the incoming neutral, allowing circuit breakers to interrupt the power supply in the event of a fault.
If electricity is not properly grounded, it can lead to safety hazards such as electrical shocks and electrocution. In the event of a fault, excess current may pass through a person's body, using it as a means to complete the path to the negatively charged ground.
