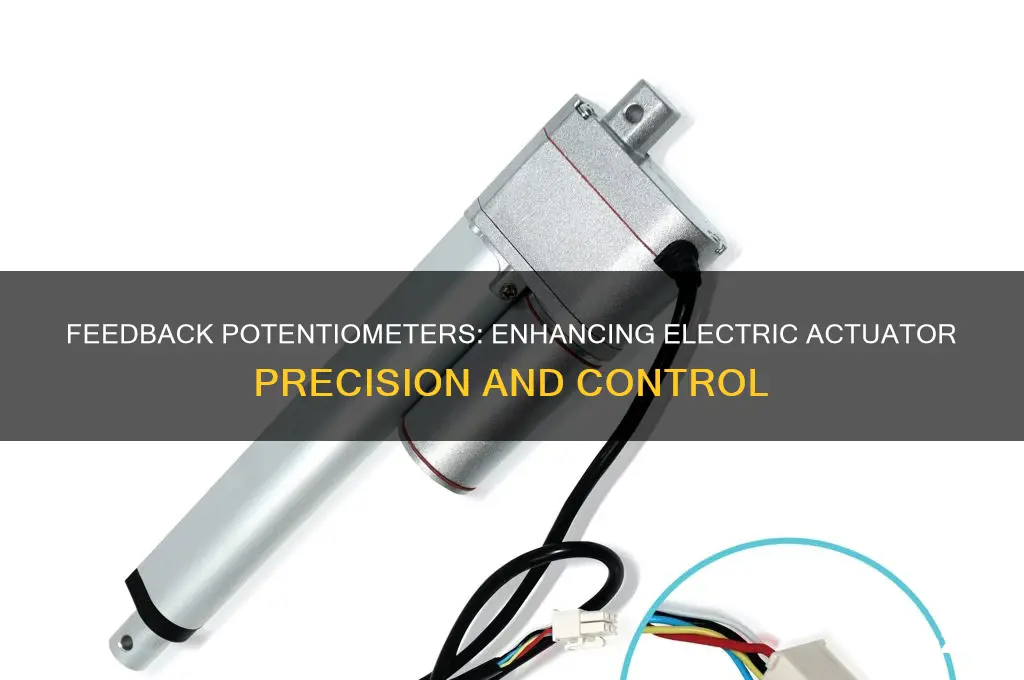

A feedback potentiometer is used on an electric actuator to provide precise position control and monitoring by converting the mechanical position of the actuator into an electrical signal. This component acts as a sensor, allowing the control system to accurately determine the actuator's current position relative to its full range of motion. By continuously feeding this positional data back to the controller, the system can make real-time adjustments to ensure the actuator moves to the desired location with high accuracy and repeatability. This feedback mechanism is crucial for applications requiring tight control, such as in robotics, automation, or machinery, where even minor deviations in position can impact performance or safety. Additionally, the potentiometer helps in detecting and compensating for mechanical wear or external disturbances, enhancing the overall reliability and efficiency of the actuator system.
| Characteristics | Values |
|---|---|
| Position Sensing | Provides real-time feedback on the actuator's position for precise control. |
| Closed-Loop Control | Enables closed-loop control systems, ensuring accuracy and stability. |
| Linear Output | Delivers a linear voltage output proportional to the actuator's position. |
| Cost-Effectiveness | Relatively inexpensive compared to other position sensors. |
| Durability | Robust design suitable for industrial environments. |
| Ease of Integration | Simple to integrate with existing control systems. |
| Resolution | Offers high resolution for fine position adjustments. |
| Power Consumption | Low power consumption, ideal for battery-operated systems. |
| Temperature Stability | Maintains accuracy over a wide temperature range. |
| Mechanical Simplicity | Few moving parts, reducing wear and maintenance needs. |
| Real-Time Monitoring | Allows continuous monitoring of actuator movement. |
| Compatibility | Works with various actuator types (linear, rotary). |
| Error Detection | Helps detect mechanical failures or misalignment. |
| Repeatability | Ensures consistent performance over repeated operations. |
| Compact Size | Space-efficient design for tight installations. |
Explore related products
What You'll Learn
- Accuracy Enhancement: Feedback potentiometers ensure precise position control by providing real-time resistance-based feedback to the actuator
- Closed-Loop Control: Enables closed-loop systems, correcting errors and maintaining desired actuator positions despite external forces
- Cost-Effectiveness: Offers a simple, affordable solution for position sensing compared to advanced encoders or sensors
- Durability: Robust design withstands harsh environments, ensuring reliable feedback in industrial actuator applications
- Linear Response: Provides a linear output proportional to position, simplifying signal interpretation and control logic
Accuracy Enhancement: Feedback potentiometers ensure precise position control by providing real-time resistance-based feedback to the actuator
In the realm of electric actuators, achieving precise position control is paramount for applications requiring accuracy and repeatability. Feedback potentiometers play a crucial role in enhancing the accuracy of these systems by providing real-time resistance-based feedback to the actuator. This feedback mechanism enables the actuator to continuously monitor its position, making necessary adjustments to maintain the desired setpoint. As the actuator moves, the feedback potentiometer's wiper adjusts its position along the resistive track, generating a variable resistance signal that corresponds to the actuator's actual position. This signal is then fed back to the control system, allowing it to compare the actual position with the desired position and make corrective actions if necessary.
The use of feedback potentiometers in electric actuators significantly improves their accuracy by minimizing positioning errors. Without feedback, actuators rely solely on open-loop control, which is susceptible to errors caused by factors such as mechanical backlash, friction, and variations in load. Feedback potentiometers provide closed-loop control, enabling the actuator to compensate for these errors in real-time. By continuously monitoring the actuator's position and adjusting its movement accordingly, feedback potentiometers ensure that the actuator reaches and maintains the desired position with a high degree of accuracy. This is particularly important in applications requiring precise positioning, such as robotics, CNC machines, and medical equipment.
One of the key advantages of feedback potentiometers is their ability to provide high-resolution position feedback. The resistive track of the potentiometer can be designed with a high degree of precision, allowing for fine position adjustments. As the actuator moves, the feedback potentiometer generates a smooth and continuous resistance signal, providing the control system with detailed information about the actuator's position. This high-resolution feedback enables the control system to make precise adjustments, resulting in accurate and repeatable positioning. Furthermore, feedback potentiometers can be designed with different resistance ranges and linearity characteristics, making them suitable for a wide range of actuator applications.
The real-time nature of the feedback provided by potentiometers is another critical factor in accuracy enhancement. As the actuator moves, the feedback potentiometer immediately generates a corresponding resistance signal, allowing the control system to respond rapidly to any deviations from the desired position. This quick response time enables the actuator to make necessary adjustments on-the-fly, minimizing positioning errors and ensuring accurate control. In contrast, systems without real-time feedback may experience delays in detecting and correcting positioning errors, leading to reduced accuracy and performance. By providing instantaneous feedback, feedback potentiometers enable electric actuators to achieve precise position control, even in dynamic and demanding applications.
In addition to improving accuracy, feedback potentiometers also contribute to the overall reliability and robustness of electric actuator systems. By providing continuous position feedback, these devices enable the control system to detect and diagnose potential issues, such as mechanical failures or wear, before they lead to significant positioning errors. This early detection capability allows for proactive maintenance and repair, minimizing downtime and reducing the risk of catastrophic failures. Moreover, feedback potentiometers are often designed with robust construction and high durability, making them suitable for use in harsh environments and demanding applications. As a result, electric actuators equipped with feedback potentiometers can operate with high accuracy, reliability, and longevity, making them ideal for critical applications where precision and performance are essential.
