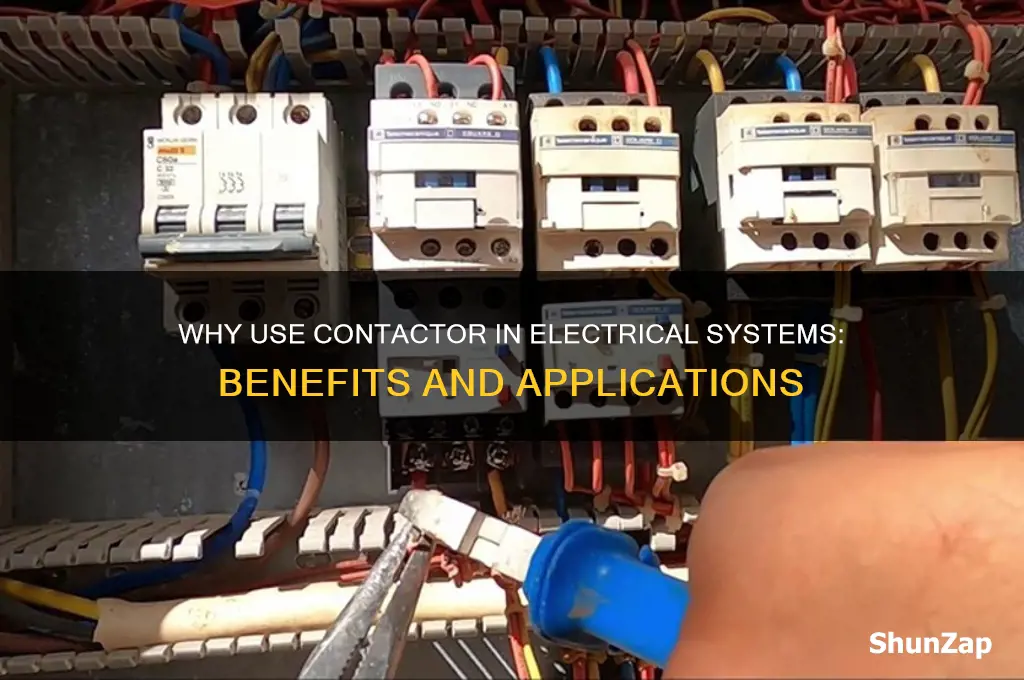

A contactor is an essential electromechanical switch used in electrical systems to control the flow of electricity to motors, lighting, heating, and other high-power loads. It acts as a relay but is specifically designed to handle higher currents and provide a robust, reliable connection. Contactors are crucial because they allow for remote and automatic control of electrical circuits, ensuring safety by isolating the control circuit from the power circuit. They also protect equipment from damage by enabling quick disconnection in case of overloads or faults. Additionally, contactors improve system efficiency by reducing energy loss and extending the lifespan of connected devices. Their durability and ability to handle frequent switching operations make them indispensable in industrial, commercial, and residential applications.
| Characteristics | Values |
|---|---|
| Remote Control | Allows switching of electrical circuits from a distance, enhancing safety and convenience. |
| High Current Handling | Capable of handling large currents (up to thousands of amperes) without overheating or damage. |
| Frequent Operation | Designed for frequent switching cycles, making them ideal for motor control and industrial applications. |
| Low Voltage Control | Can control high-power circuits using low-voltage control signals, reducing energy consumption and costs. |
| Overload Protection | Often integrated with thermal or electronic overload relays to protect motors and circuits from damage. |
| Noise Suppression | Equipped with features to minimize electrical noise and arcing during switching. |
| Compact Design | Space-efficient compared to manual switches or relays, suitable for panel mounting. |
| Durability | Built to withstand harsh industrial environments, ensuring long operational life. |
| Auxiliary Contacts | Provides additional contacts for control and signaling purposes in complex systems. |
| Arc Suppression | Designed to extinguish arcs quickly, reducing wear and ensuring reliable operation. |
| Versatility | Used in various applications, including motor control, lighting systems, and power distribution. |
| Cost-Effective | Offers a cost-effective solution for high-power switching compared to other alternatives. |
Explore related products
What You'll Learn
- Contactor vs Relay: Contactors handle higher currents, relays for low-power control circuits
- Motor Control: Safely start, stop, and reverse motors with high current capacity
- Overload Protection: Integrated overload relays protect motors from excessive current
- Remote Switching: Enables control of high-power circuits from a distance safely
- Arc Suppression: Extinguishes electrical arcs, ensuring safe circuit interruption
Contactor vs Relay: Contactors handle higher currents, relays for low-power control circuits
In the realm of electrical control systems, contactors and relays are essential components, each serving distinct purposes based on their design and capabilities. The primary distinction between the two lies in their current-handling capacities, which dictates their application in various electrical setups. Contactors are specifically engineered to manage higher currents, typically in the range of 10 to 1250 amperes, making them ideal for controlling power circuits in heavy-duty applications like motors, lighting systems, and heating equipment. Their robust construction includes larger contacts and a more substantial enclosure to dissipate heat efficiently, ensuring reliability under high-current conditions. This makes contactors indispensable in industrial environments where large amounts of power need to be switched frequently and safely.
On the other hand, relays are designed for low-power control circuits, handling currents usually below 10 amperes. They are smaller, more compact, and often used in control panels, automation systems, and electronic devices to switch signals or low-power loads. Relays are not built to withstand the heat and mechanical stress associated with high currents, which is why they are unsuitable for power circuit control. Instead, they excel in applications requiring precise control, such as in PLCs (Programmable Logic Controllers) or as interface devices between control circuits and larger systems. Their lightweight design and lower cost make them a practical choice for tasks that do not demand high-current capabilities.
The physical differences between contactors and relays further highlight their intended uses. Contactors feature larger coils and contacts, often with additional features like arc suppression systems to handle the challenges of high-current switching. They are also typically open-frame devices, allowing for better heat dissipation. Relays, in contrast, are enclosed units with smaller coils and contacts, optimized for low-power operation. Their compact size makes them ideal for integration into densely packed control systems where space is at a premium.
Another critical aspect is the application-specific design of these devices. Contactors are often used in conjunction with overload protection devices, such as thermal or electronic relays, to safeguard motors and other high-power equipment from damage. Relays, however, are commonly employed in safety circuits, timing functions, and signal switching, where their low-power capabilities are perfectly suited. For instance, a relay might be used to activate an alarm system or control the operation of a small solenoid valve, tasks that do not require the high-current capacity of a contactor.
In summary, the choice between a contactor and a relay hinges on the current requirements of the application. Contactors are the go-to solution for high-current power circuits, offering durability and safety in demanding industrial environments. Relays, with their low-power design, are ideal for control circuits where precision and compactness are more important than current-handling capacity. Understanding this fundamental difference ensures the correct selection of components, optimizing both performance and safety in electrical systems.
Electric Vehicles: Rods and Pistons, What's the Deal?
You may want to see also
Explore related products
Motor Control: Safely start, stop, and reverse motors with high current capacity
In motor control applications, contactors play a crucial role in safely starting, stopping, and reversing motors with high current capacity. A contactor is an electrically controlled switch used for switching an electrical power circuit. When dealing with high-power motors, directly switching them on or off using manual switches or relays can be hazardous and inefficient. Contactors are specifically designed to handle the high inrush currents that occur when motors start, preventing damage to the motor and the control circuitry. They act as a bridge between the power supply and the motor, ensuring that the motor can be controlled reliably and safely.
One of the primary reasons contactors are used in motor control is their ability to handle high currents and frequent switching operations. Motors, especially large ones, draw significant current during startup, which can be several times the rated current. Contactors are built with robust contacts and materials that can withstand these high currents without welding or degrading over time. Additionally, contactors are equipped with arc suppression systems, such as arc chutes, to safely dissipate the electrical arc generated during switching, thereby protecting the contacts and ensuring longevity.
Another critical function of contactors in motor control is their role in reversing motor direction. Reversing a motor involves switching the phase sequence of the power supply, which requires precise control to avoid short circuits or damage. Contactors are often used in pairs or as part of a reversing starter circuit to achieve this. By opening one set of contacts and closing another, the motor's direction can be reversed safely and efficiently. This is particularly important in industrial applications where motors need to operate bidirectionally, such as in conveyor systems or machinery.
Safety is a paramount concern in motor control, and contactors contribute significantly to this aspect. They are typically integrated with overload relays and thermal protection devices to safeguard the motor from overcurrent conditions. If the motor draws excessive current due to overload or fault, the overload relay trips, and the contactor disconnects the power, preventing motor burnout. Furthermore, contactors can be remotely controlled via low-voltage signals, allowing operators to start, stop, or reverse motors from a safe distance, reducing the risk of electrical shock or injury.
In summary, contactors are essential components in motor control systems for safely starting, stopping, and reversing motors with high current capacity. Their ability to handle high inrush currents, frequent switching, and precise direction control makes them indispensable in industrial and commercial applications. By incorporating safety features and ensuring reliable operation, contactors protect both the motor and the personnel involved, making them a cornerstone of efficient and secure motor control systems.
Switch to Electric Cars: Save Money, Environment, and Future Generations
You may want to see also
Explore related products
Overload Protection: Integrated overload relays protect motors from excessive current
Contactor devices are essential components in electrical systems, particularly for controlling and protecting motors. One of their critical functions is overload protection, which is achieved through integrated overload relays. These relays are designed to safeguard motors from excessive current, a common issue that can lead to overheating, insulation breakdown, and eventual motor failure. Overload protection is crucial because motors often experience increased current draw during startup or when subjected to heavy loads, conditions that can cause long-term damage if not managed properly.
Integrated overload relays work by continuously monitoring the current flowing through the motor circuit. When the current exceeds a predetermined safe threshold, the relay trips, disconnecting the motor from the power supply. This immediate response prevents the motor from operating under hazardous conditions, thereby extending its lifespan and reducing the risk of costly repairs or replacements. The relays are typically calibrated to match the motor's rated current, ensuring accurate and reliable protection tailored to the specific application.
The use of overload relays in contactors provides a more efficient and automated solution compared to manual monitoring. Without such protection, excessive current could go unnoticed, leading to irreversible damage. Overload relays are particularly important in industrial settings where motors operate continuously under varying loads. By integrating these relays directly into the contactor, the system ensures that protection is always active and synchronized with the motor's control mechanism, eliminating the need for separate protective devices.
Another advantage of integrated overload relays is their ability to provide both thermal and magnetic protection. Thermal protection accounts for gradual overcurrent conditions, such as prolonged overloading, while magnetic protection responds to sudden, high-current faults. This dual functionality ensures comprehensive safeguarding against different types of electrical stresses. Additionally, modern overload relays often feature adjustable trip settings, allowing users to fine-tune the protection level based on specific motor and application requirements.
In summary, overload protection through integrated overload relays is a vital aspect of using contactors in electrical systems. By monitoring and controlling the current supplied to motors, these relays prevent excessive current from causing damage, ensuring safe and efficient operation. Their integration into contactors simplifies system design, enhances reliability, and provides a cost-effective solution for motor protection. For anyone working with electrical motors, understanding and utilizing this feature is essential for maintaining system integrity and longevity.
Electric Blankets and Generators: A Risky Power Combination Explained
You may want to see also
Explore related products
Remote Switching: Enables control of high-power circuits from a distance safely
In electrical systems, contactors play a crucial role in enabling remote switching, which allows for the safe control of high-power circuits from a distance. This functionality is essential in industrial, commercial, and even residential applications where manual operation of high-current switches would be hazardous or impractical. Remote switching ensures that operators can activate or deactivate heavy-duty equipment without physically interacting with the high-power components, minimizing the risk of electrical shock, arc flashes, or other accidents. Contactors act as intermediaries, using low-voltage control signals to manage high-power loads, making them indispensable for safety and efficiency.
The primary advantage of remote switching via contactors is the ability to isolate the control mechanism from the high-power circuit. For instance, a contactor can be controlled by a simple push button, switch, or programmable logic controller (PLC) located far from the actual load. This separation ensures that operators remain out of harm's way while managing equipment such as motors, heaters, or lighting systems. The contactor’s electromagnetic coil, energized by a low-voltage signal, closes the high-current contacts, completing the circuit and powering the load. This design eliminates the need for direct human interaction with high-voltage components, significantly enhancing safety.
Another critical aspect of remote switching with contactors is their ability to handle frequent switching operations reliably. High-power circuits often require repeated activation and deactivation, which can cause wear and tear on mechanical switches. Contactors are specifically designed to withstand such demands, featuring robust contacts and arc suppression systems that prevent damage from electrical arcs. This durability ensures long-term reliability, reducing downtime and maintenance costs in industrial environments where continuous operation is essential.
Furthermore, remote switching via contactors facilitates integration with advanced control systems, such as automation and IoT devices. By connecting contactors to PLCs or smart controllers, operators can program complex sequences, monitor load conditions, and implement safety interlocks. For example, a contactor can be configured to automatically shut off a motor if it overheats or if a fault is detected, preventing equipment damage and ensuring operational safety. This level of automation is particularly valuable in large-scale facilities where manual oversight is impractical.
In summary, remote switching enabled by contactors is a cornerstone of modern electrical systems, providing a safe, reliable, and efficient way to control high-power circuits from a distance. By isolating operators from hazardous voltages, handling frequent switching operations, and integrating with advanced control systems, contactors ensure both personnel safety and system longevity. Their role in remote switching underscores their importance in applications ranging from manufacturing plants to residential HVAC systems, making them an essential component in electrical engineering.
Electric Vehicles: Trusted by Many or Few?
You may want to see also
Explore related products
Arc Suppression: Extinguishes electrical arcs, ensuring safe circuit interruption
In electrical systems, contactors play a crucial role in controlling the flow of electricity to various devices and equipment. One of the primary reasons for using contactors is their ability to handle high currents and voltages, ensuring safe and efficient circuit interruption. A critical aspect of this process is arc suppression, which focuses on extinguishing electrical arcs that occur when contacts open or close. When a contactor interrupts a circuit, the separation of contacts can lead to the formation of an electrical arc – a luminous discharge of current across the gap. If left unchecked, this arc can cause significant damage to the contactor, reduce its lifespan, and pose serious safety risks, including equipment failure or fire hazards.
Arc suppression mechanisms in contactors are designed to rapidly extinguish these arcs, ensuring safe and reliable circuit interruption. One common method is the use of arc chutes or arc runners, which are specially designed structures that guide the arc into a series of narrow plates or channels. As the arc is stretched and divided within these channels, it is exposed to a larger surface area, causing it to cool rapidly and dissipate. This process effectively breaks the arc into smaller, less energetic segments, which are easier to extinguish. The materials used in arc chutes, such as steel or copper, are chosen for their ability to withstand high temperatures and facilitate arc quenching.
Another technique employed in contactors for arc suppression is the use of magnetic fields. Some contactors incorporate magnetic blowouts, which generate a magnetic field that forces the arc to move in a specific direction, typically away from the contacts. This movement increases the arc's length, reducing its intensity and accelerating its extinction. Magnetic blowouts are particularly effective in high-current applications where arcs are more persistent and difficult to control. By combining mechanical and magnetic arc suppression methods, contactors can ensure that arcs are extinguished quickly and efficiently, minimizing the risk of damage or accidents.
The design of the contactor itself also plays a vital role in arc suppression. Contact material selection is critical, as materials with high melting points and good conductivity, such as silver alloys, are more resistant to arc erosion. Additionally, the geometry of the contacts is optimized to facilitate arc initiation at specific points, making it easier to control and extinguish. Some contactors also feature auxiliary contacts that close before the main contacts open, providing a path for the current to divert and reducing the arc's intensity. These design considerations collectively contribute to effective arc suppression, ensuring that the contactor can safely interrupt circuits even under heavy loads.
In summary, arc suppression is a fundamental function of contactors in electrical systems, addressing the challenge of extinguishing electrical arcs during circuit interruption. Through the use of arc chutes, magnetic blowouts, and thoughtful design features, contactors can mitigate the risks associated with arcs, such as equipment damage and safety hazards. By ensuring safe and reliable circuit control, contactors not only protect electrical systems but also enhance their operational efficiency and longevity. This makes arc suppression a critical aspect of contactor functionality, underscoring their importance in modern electrical applications.
Gas Power Dominance: Why It's a Leading Electricity Source Today
You may want to see also
Frequently asked questions
A contactor is an electrically controlled switch used for switching an electrical power circuit. It is used to control high-power loads like motors, lighting, and heating systems, providing a safe and reliable way to turn power on and off without manual intervention.
A simple switch is not designed to handle high currents and can overheat, melt, or fail under heavy loads. A contactor is built with robust contacts and arc suppression features, making it suitable for high-power applications and ensuring longer lifespan and safety.
Contactors offer remote control capability, high switching capacity, and protection against overloads and short circuits. They also reduce manual intervention, improve system efficiency, and can be integrated with relays and other control devices for automated operations.
Yes, contactors can be used for both AC and DC circuits, but the design and specifications may differ. AC contactors are optimized for alternating current, while DC contactors are designed to handle direct current, ensuring proper arc extinction and performance in their respective applications.
