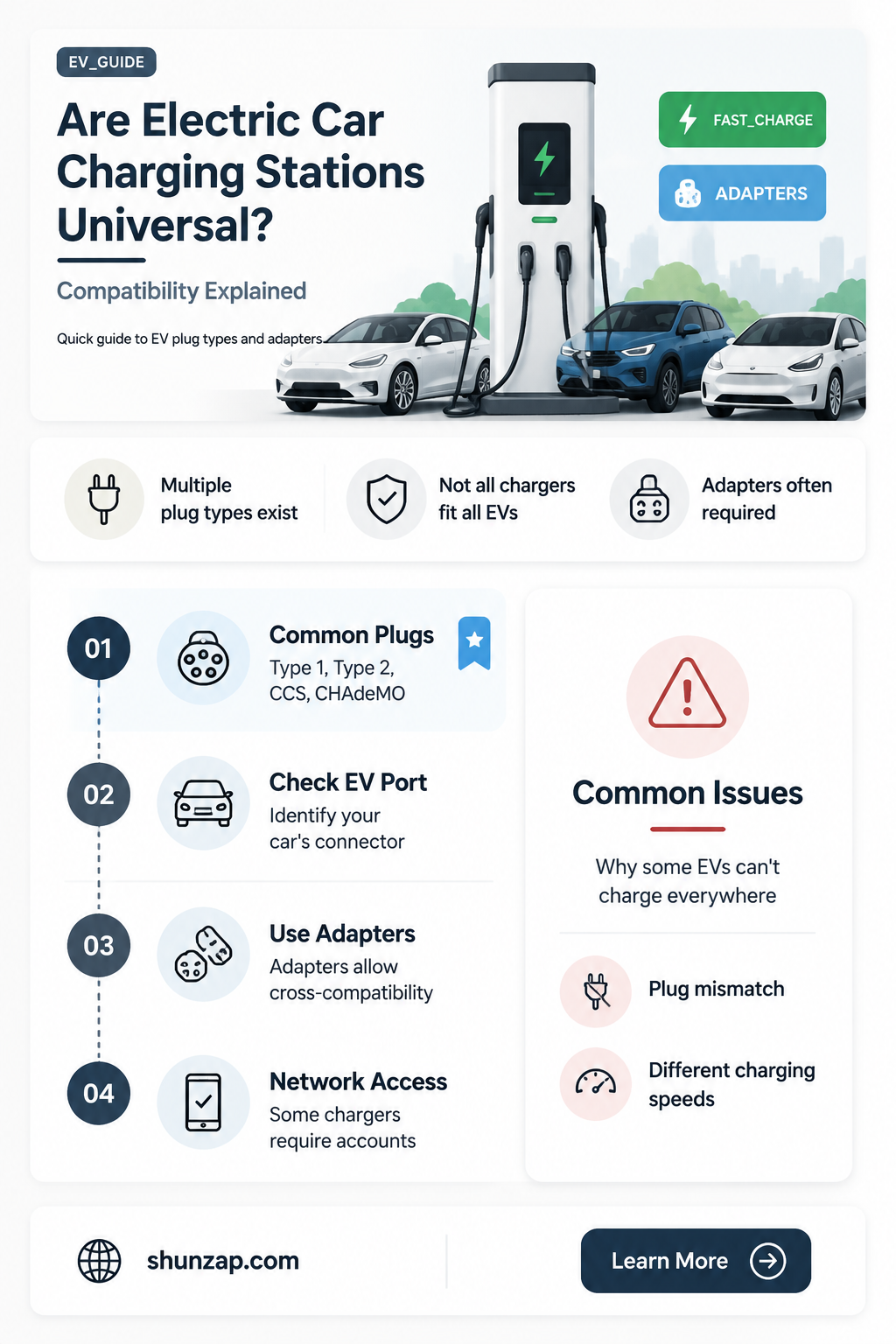

Electric car charging stations are a critical component of the growing electric vehicle (EV) infrastructure, but they are not universally standardized. While efforts have been made to create compatibility across different EV models and charging networks, variations in connector types, charging speeds, and payment systems persist. For instance, Tesla uses its proprietary Supercharger network, while other manufacturers often rely on CCS (Combined Charging System) or CHAdeMO standards. Additionally, regional differences, such as Type 2 connectors in Europe versus J1772 in North America, further complicate universality. Despite these challenges, ongoing collaborations between automakers, governments, and industry groups aim to streamline charging experiences, making interoperability more achievable in the future.
| Characteristics | Values |
|---|---|
| Universality of Charging Standards | Not universal; multiple standards exist (e.g., CCS, CHAdeMO, Tesla, Type 2). |
| Connector Types | CCS (Combined Charging System), CHAdeMO, Tesla Supercharger, Type 1, Type 2. |
| Regional Variations | Europe: Type 2; North America: CCS/Tesla; Japan: CHAdeMO; China: GB/T. |
| Interoperability | Limited; adapters may be required for cross-standard compatibility. |
| Charging Speeds | Varies by standard and station (Level 1, Level 2, DC Fast Charging). |
| Network Compatibility | Proprietary networks (e.g., Tesla) vs. open networks (e.g., Electrify America). |
| Global Standardization Efforts | CCS is becoming the global standard, but adoption is still ongoing. |
| Adapter Availability | Adapters exist but may not be universally available or convenient. |
| Future Outlook | Trend toward CCS as a universal standard, but full compatibility remains a challenge. |
Explore related products
What You'll Learn
- Charging Connector Types: Differences in plug designs like CCS, CHAdeMO, and Type 2
- Charging Speeds: Variations in power levels (Level 1, 2, DC Fast Charging)
- Network Compatibility: Access restrictions across different charging networks (e.g., Tesla Superchargers)
- Global Standards: Regional variations in charging infrastructure and protocols
- Payment Systems: Diverse payment methods and membership requirements at charging stations
Charging Connector Types: Differences in plug designs like CCS, CHAdeMO, and Type 2
The world of electric vehicle (EV) charging is not as straightforward as one might hope, especially when it comes to the various charging connector types. The question of universality in EV charging stations is closely tied to the different plug designs, which can be a source of confusion for many EV owners and potential buyers. Understanding the key connector types—CCS, CHAdeMO, and Type 2—is essential to navigating the charging landscape effectively.
CCS (Combined Charging System) is a widely adopted standard, particularly in Europe and North America. It is designed to accommodate both AC (Alternating Current) and DC (Direct Current) charging through a single connector. The CCS plug combines the standard Type 2 connector for AC charging with an additional two DC pins for rapid charging. This dual-purpose design makes CCS a versatile option, allowing EV drivers to use a single port for various charging needs. The CCS standard is supported by a large number of automakers, including BMW, Daimler, Ford, and the Volkswagen Group, ensuring its prevalence in many modern electric vehicles.
In contrast, CHAdeMO is a DC rapid charging standard that originated in Japan and has gained global recognition. The CHAdeMO connector is distinct, featuring a unique, round-shaped plug with a locking mechanism. This standard is known for its high-power charging capabilities, often providing faster charging times compared to other methods. Many early electric vehicles, such as the Nissan Leaf and Mitsubishi Outlander PHEV, adopted CHAdeMO, and it remains a popular choice for DC fast charging, especially in Asia. However, its separate connector for DC charging means that vehicles with CHAdeMO ports may require an adapter for slower AC charging.
Type 2 connectors are primarily used for AC charging and are prevalent in Europe. This connector type is characterized by its compact, rectangular design with a single charging cable. Type 2 plugs are often found on home charging stations and public AC charging points. They support single-phase and three-phase charging, making them suitable for a wide range of electric vehicles. While Type 2 is not capable of DC fast charging, its widespread adoption in Europe has made it a standard for slower, everyday charging needs.
The differences in these plug designs highlight the current lack of universality in EV charging stations. Each connector type has its advantages and specific use cases, which can impact the charging experience. For instance, a CCS-equipped vehicle can utilize a broader range of charging stations, while a CHAdeMO-only car might require careful planning for long-distance travel. As the EV market continues to evolve, efforts are being made to streamline and standardize charging infrastructure, but for now, understanding these connector types is crucial for a seamless charging experience.
In summary, the CCS, CHAdeMO, and Type 2 charging connectors represent the diversity in EV charging standards. Each has its own strengths and applications, influencing the compatibility and convenience of charging for electric vehicle owners. As the industry moves towards more unified solutions, being aware of these differences is essential for anyone navigating the world of electric mobility.
Mechanical vs. Electrical Car Oil Pumps: Understanding the Differences
You may want to see also
Explore related products
![Raylix 16A Level 1&2 EV Charger, 110V-240V Electric Car Charger with 21ft Cable [Adjustable Current & Delay Charging] Portable EV Chargers for All SAE J1772, Nema 6-20 & Nema 5-15 Plug, Accessories](https://m.media-amazon.com/images/I/71jtqSY-S4L._AC_UL320_.jpg)
Charging Speeds: Variations in power levels (Level 1, 2, DC Fast Charging)
Electric vehicle (EV) charging stations are not universally standardized, and one of the key factors contributing to this is the variation in charging speeds, which are categorized into different power levels: Level 1, Level 2, and DC Fast Charging. Each level offers distinct charging speeds and is suited to different scenarios, depending on the driver’s needs and the vehicle’s capabilities. Understanding these variations is essential for EV owners to manage their charging efficiently.
Level 1 charging is the slowest and most basic option, typically providing power at a rate of 120 volts (V) and 1.4 to 1.9 kilowatts (kW). This method uses a standard household outlet and is often included with the purchase of an EV. While it is convenient for overnight charging at home, it is not practical for quick top-ups due to its slow speed. For example, it can take 8 to 20 hours to fully charge a typical EV battery, depending on its capacity. Level 1 charging is universal in the sense that any EV can use it, but its slow speed limits its practicality for long-distance travel or urgent charging needs.
Level 2 charging offers a significant upgrade in speed, operating at 240 volts (V) and delivering power between 3.3 kW to 19.2 kW. This level requires a dedicated charging station, often installed at homes, workplaces, or public charging locations. Level 2 chargers can fully charge an EV in 4 to 10 hours, making them a popular choice for daily use. However, compatibility can vary depending on the connector type (e.g., J1772 in North America or Type 2 in Europe). While Level 2 charging is more standardized than Level 1, the lack of a universal connector across regions still poses challenges for international EV travel.
DC Fast Charging (Level 3) is the fastest option available, delivering power at rates ranging from 50 kW to 350 kW or more. This method uses direct current (DC) to charge the battery directly, bypassing the vehicle’s onboard charger. DC Fast Chargers can provide an 80% charge in as little as 20 to 40 minutes, making them ideal for long trips. However, not all EVs support DC Fast Charging, and even among those that do, the maximum charging speed can vary based on the vehicle’s capabilities. Additionally, connector types for DC Fast Charging are not universal, with standards like CCS (Combined Charging System), CHAdeMO, and Tesla’s proprietary connector dominating different regions. This lack of standardization is a significant barrier to universality in EV charging.
In summary, while the concept of EV charging stations is global, the variations in charging speeds and connector types prevent them from being truly universal. Level 1 charging is slow but widely accessible, Level 2 offers a practical balance of speed and convenience, and DC Fast Charging provides rapid charging but with limited compatibility. Until global standards are adopted for connectors and power levels, EV owners must remain aware of their vehicle’s capabilities and the infrastructure available in their region to ensure seamless charging experiences.
Electric Vehicles: Exploring the Current Lineup of Electric Cars
You may want to see also
Explore related products
Network Compatibility: Access restrictions across different charging networks (e.g., Tesla Superchargers)
Electric vehicle (EV) charging networks are not universally compatible, and access restrictions vary widely across different providers. One of the most prominent examples is Tesla’s Supercharger network, which was initially exclusive to Tesla vehicles. While Tesla has opened some Superchargers to non-Tesla EVs in select regions through its "Magic Dock" adapter, the majority of its network remains restricted. This exclusivity limits access for non-Tesla EV owners, who must rely on other charging networks. Tesla’s proprietary connector and network design highlight the fragmentation in the EV charging ecosystem, where compatibility is often tied to specific brands or partnerships.
Other charging networks, such as Electrify America, EVgo, and ChargePoint, generally offer broader compatibility but may still impose access restrictions based on membership or payment methods. For instance, some networks require users to create an account or use a specific RFID card to initiate charging, while others accept contactless payments or mobile apps. These barriers, though minor, can inconvenience drivers who are not enrolled in a particular network. Additionally, pricing structures vary, with some networks offering subscription plans or pay-as-you-go options, further complicating access for occasional users.
Public charging networks often collaborate with automakers to provide preferential access to certain EV models. For example, Electrify America has partnerships with brands like Volkswagen and Hyundai, offering discounted rates or free charging sessions to their customers. While these partnerships benefit specific EV owners, they can exclude drivers of other brands, reinforcing the lack of universality in charging access. Such restrictions underscore the need for standardized solutions to ensure equitable access across all EV models.
Another layer of complexity arises from regional differences in charging infrastructure. In Europe, the Combined Charging System (CCS) is the standard for DC fast charging, while Tesla uses its proprietary connector. In North America, CCS is also prevalent, but Tesla’s network remains distinct. China, on the other hand, has its own GB/T standard, further fragmenting global compatibility. These regional disparities mean that even within a single country, EV owners may encounter charging stations they cannot use, depending on their vehicle’s connector type.
Efforts to improve network compatibility are underway, with initiatives like the Plug and Charge standard, which aims to streamline authentication and payment processes across networks. However, widespread adoption remains a challenge. Until a universal solution is implemented, EV drivers must navigate a patchwork of networks, each with its own access restrictions. For now, tools like charging apps and adapters can help mitigate these issues, but they do not eliminate the underlying fragmentation in the EV charging landscape.
Understanding Electric Car Heat: Efficiency, Sources, and Energy Management
You may want to see also
Explore related products
Global Standards: Regional variations in charging infrastructure and protocols
The concept of universal electric vehicle (EV) charging stations is an ideal scenario for EV owners, but the reality is far more complex due to regional variations in charging infrastructure and protocols. These differences are primarily driven by historical developments, regulatory frameworks, and market demands across various parts of the world. Understanding these variations is crucial for both consumers and industry stakeholders to navigate the global EV landscape effectively.
In North America, the Combined Charging System (CCS) has emerged as the dominant standard for DC fast charging. This system, which combines AC and DC charging capabilities, is widely supported by major automakers and charging network providers. However, Tesla, a leading EV manufacturer, uses its proprietary connector, which, while highly efficient, is not compatible with CCS without an adapter. Efforts are underway to standardize charging infrastructure further, but the presence of multiple standards can still create confusion and inconvenience for EV drivers.
In Europe, the CCS standard also prevails, but the region has made significant strides in harmonizing charging protocols through the European Committee for Electrotechnical Standardization (CENELEC). The EU’s focus on interoperability has led to a more cohesive charging network, with AC charging primarily using Type 2 connectors. Additionally, Europe has been proactive in implementing policies like the Alternative Fuels Infrastructure Regulation (AFIR), which mandates the deployment of universal charging standards across member states, further reducing regional disparities.
Asia presents a more fragmented picture, with varying standards across countries. In China, the GB/T standard dominates, which differs from both CCS and CHAdeMO (a Japanese standard). This has created challenges for foreign EV manufacturers entering the Chinese market and for Chinese EVs exported globally. Japan, on the other hand, has championed the CHAdeMO standard, which is widely used for DC fast charging but is less prevalent outside the country. These regional standards reflect the unique industrial and regulatory environments of Asian countries, making universal compatibility a significant hurdle.
In other parts of the world, such as Australia and India, charging infrastructure is still in its nascent stages, with a mix of standards being adopted. Australia has leaned toward the CCS standard, aligning with global trends, while India is exploring a combination of CCS and domestic solutions to address its growing EV market. The lack of a unified global standard complicates international travel for EV owners and slows down the adoption of EVs in regions with inadequate infrastructure.
Efforts to achieve global standardization are ongoing, with organizations like the International Electrotechnical Commission (IEC) and the International Organization for Standardization (ISO) working to harmonize charging protocols. However, regional preferences, economic interests, and technological advancements continue to influence the development of charging infrastructure. Until a truly universal standard is adopted and implemented worldwide, EV owners will need to remain aware of the regional variations in charging infrastructure and protocols to ensure seamless mobility.
Japan's EV Stumble: Losing the Global Race
You may want to see also
Explore related products
Payment Systems: Diverse payment methods and membership requirements at charging stations
The landscape of payment systems at electric vehicle (EV) charging stations is far from universal, presenting drivers with a variety of methods and membership requirements that can vary widely depending on the network, location, and even the specific station. This diversity, while offering flexibility, can also create confusion and inconvenience for EV owners, particularly those traveling across different regions or using multiple charging networks. Understanding these payment systems is crucial for a seamless charging experience.
One of the most common payment methods is the use of RFID (Radio-Frequency Identification) cards or key fobs provided by charging networks. These cards are often tied to a membership account, which may require a monthly fee or a pay-as-you-go structure. Networks like ChargePoint and EVgo utilize this system, allowing members to access stations by tapping their card or fob on a reader. However, the lack of interoperability between networks means that a card from one provider may not work on another’s station, necessitating multiple memberships for widespread access. Some networks also offer guest access, but this typically involves higher rates and may require additional steps, such as calling a number or using a mobile app to start a session.
Mobile apps have emerged as another popular payment method, offering convenience and additional features like locating nearby stations, checking availability, and monitoring charging progress. Apps from networks like Tesla, Electrify America, and Shell Recharge often integrate payment systems, allowing users to pay directly through the app using a credit card or linked payment method. However, the requirement to download and set up multiple apps for different networks can be cumbersome. Some apps also offer membership benefits, such as discounted rates or access to exclusive stations, further complicating the user experience for those without memberships.
Credit card payment options are increasingly available at public charging stations, providing a universal method for drivers without specific network memberships. These stations typically feature a card reader directly on the charging unit, enabling users to initiate a session by swiping or inserting their card. While this method offers convenience, it often comes with higher per-kWh rates compared to membership-based pricing. Additionally, not all stations support credit card payments, particularly older or less frequently updated units, limiting their universality.
Membership requirements add another layer of complexity to the payment ecosystem. Some networks require a subscription for access, while others offer tiered membership plans with varying benefits. For instance, a basic membership might provide access to standard chargers at a certain rate, while a premium membership could include faster charging speeds or reduced fees. These requirements can deter occasional users or those who prefer not to commit to a specific network. Furthermore, international travelers may face additional challenges, as payment methods and membership systems can differ significantly between countries.
In summary, the payment systems at electric car charging stations are diverse and often tied to specific networks or membership structures, making universality a distant goal. While options like RFID cards, mobile apps, and credit card payments offer flexibility, they also require users to navigate a fragmented landscape. As the EV market continues to grow, standardization of payment methods and increased interoperability between networks will be essential to enhance the user experience and encourage broader adoption of electric vehicles.
Claiming and Reporting Your Electric Vehicle Tax Credit
You may want to see also
Frequently asked questions
No, electric car charging stations are not entirely universal. While many EVs use the standard J1772 connector for Level 2 charging in North America or the Type 2 connector in Europe, Tesla vehicles require an adapter for non-Tesla stations. Additionally, DC fast charging stations use different connectors, such as CCS (Combined Charging System) or CHAdeMO, which may not be compatible with all EVs.
Most public charging stations are designed to be compatible with a wide range of electric vehicles, but compatibility depends on the connector type and your car’s charging port. For example, Tesla Superchargers are primarily for Tesla vehicles, though Tesla has begun opening some stations to non-Tesla EVs with CCS adapters. Always check the connector type and your vehicle’s compatibility before using a station.
There is no single universal standard for electric car charging connectors globally. In North America, J1772 is common for Level 2 charging, while CCS is widely used for DC fast charging. In Europe, Type 2 connectors are standard for Level 2, and CCS is also prevalent for fast charging. In Japan, CHAdeMO is still used for some vehicles. Efforts are underway to standardize connectors, but regional differences persist.
