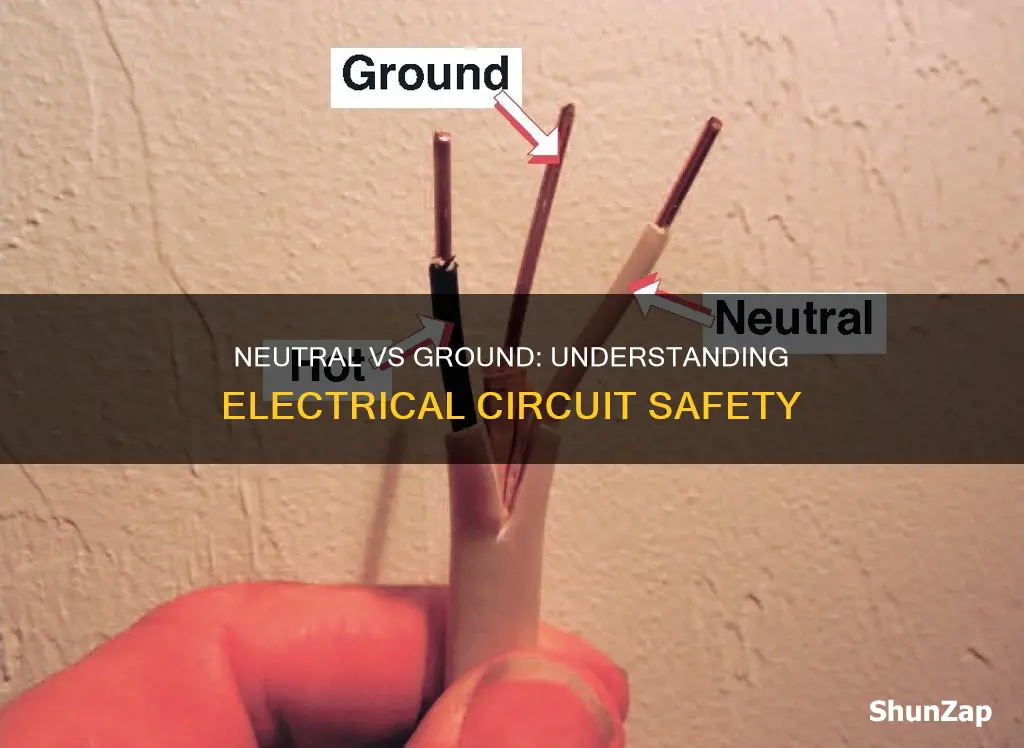

In electrical engineering, the terms ground and neutral refer to two distinct types of circuit conductors used in alternating current (AC) electrical systems. While they serve different purposes, they are closely related and essential for the safe operation of electrical circuits. The neutral wire, typically white, completes the circuit loop by carrying the current back to the power source, while the ground wire, often green or bare copper, is dedicated solely to safety, providing a low-impedance path for fault currents to safely dissipate into the ground. Understanding the distinction between these two conductors is crucial for ensuring the proper functioning and safety of electrical systems.
Characteristics and Values of Neutral and Ground in Electricity
| Characteristics | Neutral | Ground |
|---|---|---|
| Function | Completes the circuit loop and carries current back to the power source | Dedicated to safety, providing a path for fault currents to safely dissipate into the ground |
| Safety | Prevents overloading, which can lead to overheating and potential fire hazards | Protects against electrical shocks, fires, and equipment damage in the event of a fault |
| Current | Carries current | Does not carry current during normal operation |
| Voltage | Not at 0 V | At 0 V |
| Connection | Connected to ground at the transformer and the main circuit breaker panel | Connected to the main circuit breaker panel |
| Colour | White | Green or bare copper |
Explore related products
What You'll Learn
- Neutral and ground wires are closely related but distinct
- Neutral wires carry current and complete the circuit loop
- Ground wires are a safety feature, providing a path for fault currents
- Neutral and ground wires should only be bonded together in the main panel
- Ground wires are not intended to carry current during normal operation
Neutral and ground wires are closely related but distinct
In electrical engineering, ground and neutral wires are both circuit conductors used in alternating current (AC) electrical systems. However, they are not interchangeable and have distinct roles in ensuring safety and proper circuit completion.
The neutral wire is a current-carrying conductor that acts as a return path for the current in an AC circuit. In other words, it safely carries the current back to the power source, allowing electrical appliances to function without any issues.
The ground wire, on the other hand, is not intended to carry current during normal operation. Instead, it is a critical safety feature designed to provide a safe route for electrical currents to flow in case something goes wrong. For example, if there is a short circuit or a fault in an electrical device, the ground wire acts as a backup pathway for excess electricity to travel safely into the earth. This prevents dangerous levels of voltage from building up and causing harm.
The main source of confusion between the two is that the neutral wire is connected to ground (earth) at the transformer (the source) and also at the main circuit breaker panel on the consumer side (the load). However, it is important to note that the ground wire is not meant to carry current under normal circumstances. It only carries significant current if there is a circuit fault that could otherwise energize exposed conductive parts and pose a shock hazard.
In summary, while the neutral wire completes the circuit loop and handles the flow of electricity during normal operation, the ground wire is solely dedicated to safety, providing a low-resistance path for fault currents to safely dissipate into the ground.
