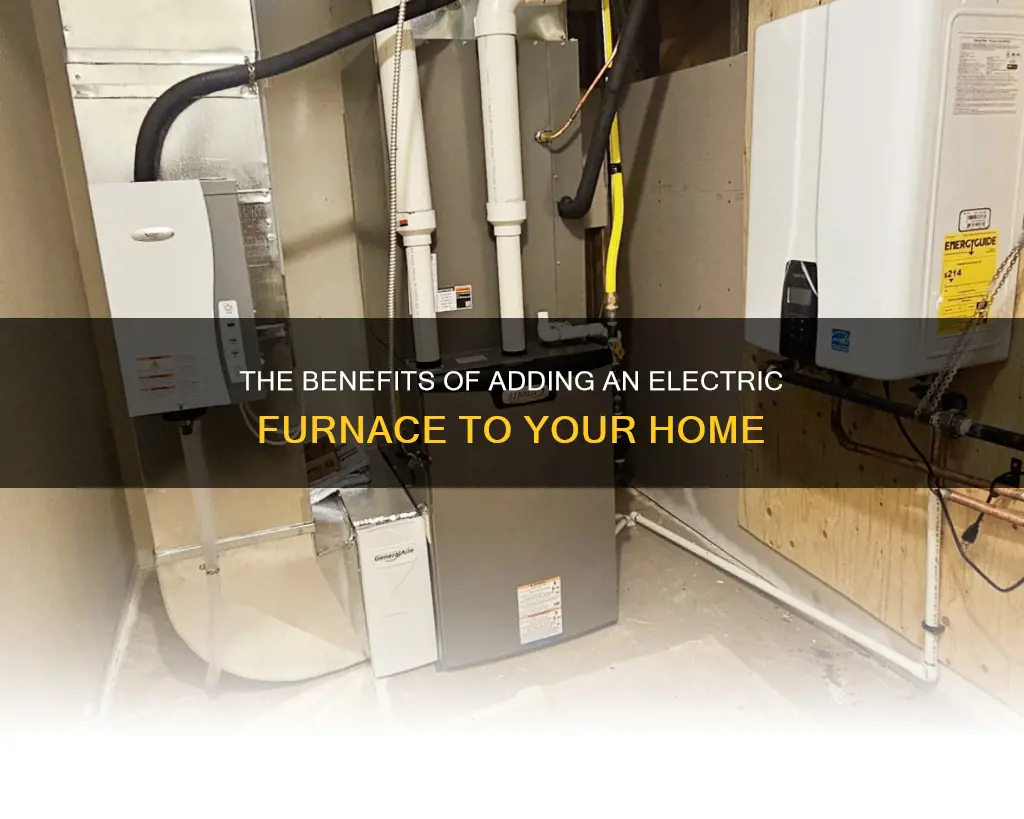

Electric furnaces are a great alternative to traditional charcoal, wood, or gas furnaces. They are more energy-efficient, cost-effective, and environmentally friendly. While installing an electric furnace can be a complex process, especially if you want to heat multiple rooms, it is still possible to do it yourself. This introduction will provide an overview of the process, including the steps for installing and wiring an electric furnace, as well as the benefits and considerations of switching from a traditional furnace to an electric one.
Characteristics and Values Table for Adding an Electric Furnace:
| Characteristics | Values |
|---|---|
| Installation | Not a job for everyone; consider calling qualified personnel, especially for complex duct systems. |
| Planning | Decide between heating one room or multiple rooms, and choose a furnace type accordingly. For multiple rooms, plan the number of fittings to avoid a furnace that's too small. |
| Power Requirements | Ensure access to a power socket. For bigger furnaces, a heavy-duty power line is needed to avoid blowing fuses. |
| Air Intake | Bigger furnaces require an air intake source, which may involve creating a hole in the wall. |
| Placement | Consider adequate placement for bigger furnaces, keeping them away from combustible materials. |
| Ducts | Find a suitable track for the ducts and connect them to the furnace, ensuring careful joints to prevent leaks. |
| Airflow | For bigger systems, ensure the outside fan is not blocked for optimal airflow. |
| Efficiency | Electric furnaces are more efficient than fuel-based systems as they don't produce combustion by-products that release heat. |
| Refractory | Use a refractory material that can withstand high temperatures and cyclic heating/cooling without cracking. |
| Electrical System | Prepare the electrical system by connecting steel wire to the burner's contacts and power wires, ensuring proper insulation. |
| Wiring | Consult an electrician for wiring instructions, as they vary based on furnace specifications and local regulations. |
| Gas-to-Electric Conversion | Consult a home service company and a certified plumber. Cap the gas line and remove the exhaust vent. Install a new 240-volt circuit if needed. |
| Cost | Electric furnaces are less expensive initially but cost more to run due to higher electricity consumption. |
| Lifespan | Electric furnaces typically last longer than gas furnaces, especially in warmer climates. |
Explore related products
What You'll Learn
Planning: single or multiple rooms?
Planning whether to heat a single room or multiple rooms is a key consideration when installing an electric furnace. This decision will determine the type of furnace you need, its placement, and the complexity of the installation process.
If you only need to heat a single room, a small electric furnace will suffice. The main requirement for installing a small furnace is to have a power socket nearby. The furnace can simply be plugged into the power socket, and no additional ductwork or airflow considerations are necessary.
On the other hand, if you plan to heat multiple rooms, you will need a larger electric furnace with a duct system to distribute heat to the desired rooms. This option is more complex and may require the expertise of qualified personnel. You will need to plan the exact number of fittings the furnace will need to ensure that it is powerful enough to heat all the rooms adequately. Additionally, the placement of the furnace becomes more critical for larger systems. Adequate clearance from combustible materials must be maintained, and a hole in the wall may be required to provide an air intake source for the furnace.
It is important to note that the airflow requirements differ between small and large furnaces. For a small furnace, airflow is not a significant concern as it will gather air from the room. In contrast, for a larger furnace, ensuring adequate airflow is vital. Make sure that the outside fan of the furnace is not obstructed, as this will impact the performance of the furnace.
Furthermore, when considering multiple rooms, you may want to explore options for creating heating zones to control the temperature in different areas of your home independently. This can be achieved through sensor-based zoning or by installing multiple thermostats, each controlling a specific zone. Sensor-based zoning is particularly useful for central heating systems, as it avoids the need for a major construction project to implement system-based zoning. Smart thermostats with room sensors can measure and optimize the temperature in each zone, providing a more energy-efficient solution.
Preventing Electrical Contact Sticking: A Practical Guide
You may want to see also
Explore related products
Positioning: power socket, air intake, and clearance
When positioning an electric furnace, there are a few key considerations to keep in mind: the power socket, air intake, and clearance.
Firstly, the power socket is an essential requirement for any electric furnace. If you are installing a small furnace for a single room, the placement is not as crucial, as long as there is access to a power socket nearby. However, for larger furnaces serving multiple rooms, you must ensure that the power line is heavy-duty to handle the electrical load. It may be necessary to install a dedicated circuit and special wiring system to prevent blowing fuses. Consult with a qualified electrician to determine if your existing electrical system can handle the furnace's power requirements.
Next, consider the air intake for the electric furnace. A sufficient source of fresh air is crucial for the furnace's efficiency and performance. The furnace requires oxygen for combustion, and a restricted air intake can lead to decreased performance and increased electricity usage. Plan for an adequate air intake path, such as a duct from an outside vent leading directly to the furnace. Ensure that any outside fans or vents are not blocked by obstacles, as this will impact the airflow.
Lastly, pay attention to the clearance requirements around the electric furnace. It is essential to maintain a safe distance from combustible materials. While specific clearance distances vary depending on the furnace fuel type and manufacturer's instructions, a typical range is between 0" to 18" to 36". Additionally, ensure that there is adequate working space around the furnace, particularly at the front, to allow for maintenance and access to components.
When positioning the electric furnace, consider the overall layout of your duct system and the rooms you want to heat. Ensure that the furnace has sufficient airflow and that the ducts are properly connected to avoid leaks and ensure optimal heating in all desired areas.
Remember, installing an electric furnace can be a complex task, especially if you plan to heat multiple rooms. Always refer to the manufacturer's instructions and consider seeking assistance from qualified personnel to ensure a safe and effective installation.
Dentists Weigh in on Electric vs Manual Toothbrushes
You may want to see also
Explore related products
Installation: ducts, joints, and airflow
Installing an electric furnace is a complex task, and if you want a duct system to heat multiple rooms, it is advised to call qualified personnel. However, if you want to try it yourself, there are a few things to consider. First, decide if you want to provide heat for just one room or multiple rooms. Based on that, you can choose the type of furnace and plan the number of fittings required.
The ductwork in your home is likely extensive, running through walls, under floors, and through crawl spaces. When installing a new furnace, you usually won't need to replace the ductwork. However, it is recommended to have installers perform duct testing to spot leaks or areas where ducts might lose heat. If your ductwork is extremely old or in poor shape, consider partial ductwork replacement.
When designing the duct system, calculate the heat loss and gain in each room to determine the duct layout. Draw a diagram showing which rooms the ducts will serve, along with room measurements. Choose a duct type that is durable and long-lasting, such as sheet metal ductwork. Flexible duct options like flexible fiberglass are easier to install but can degrade over time and are difficult to clean.
When installing the ducts, avoid long runs as shorter runs make it easier for the HVAC system to move air. Place the AC equipment closer to the rooms it serves. You can run ducts through wall studs or webbed eco joists between floors. Ensure that all seams are taped or caulked, especially if the ducts will be concealed. Use metal-backed tape or mastic gum to seal the ducts and prevent leaks.
Performing Electrical Circuit Load Tests: A Comprehensive Guide
You may want to see also
Explore related products
Wiring: breakers, circuits, and voltage
When adding an electric furnace, it is important to carefully consider the wiring, breakers, circuits, and voltage requirements. This process can be complex, and it is highly advised to call qualified personnel, especially if you want a complex duct system to heat multiple rooms. However, if you plan to proceed with a do-it-yourself installation, here is some information to guide you.
Firstly, determine the size and power of your electric furnace to establish the voltage and circuit requirements. Electric furnaces typically require a new 240-volt circuit and wires run to the furnace. This task must be performed by a licensed electrician. The wire size is crucial and should match the specifications of your unit. The wire size chart and current limits for wire gauges can be found online.
When wiring an electric furnace, it is common to have two separate breakers in the breaker panel serving the unit. These breakers act as service disconnects, and their ratings should match the furnace's requirements. For example, a 14.4 kW furnace might use a 60-amp breaker, while an 18 kW furnace may require a 100-amp breaker. The National Electrical Code (NEC) mandates that large heating loads be divided into smaller loads of no more than 48 amps.
Additionally, some furnaces have built-in breakers. For instance, a furnace model might feature a DP 50-amp and a DP 60-amp breaker. In such cases, it is essential to refer to the manual for specific wiring instructions. You may need to feed a subpanel with a 100-amp breaker and then match the breakers in the subpanel to those on the furnace.
It is worth noting that the wiring configuration can vary depending on the manufacturer and model of the electric furnace. Some furnaces have single-circuit designs, while others use two circuits. Always consult the manual and follow the electrical specifications provided by the manufacturer. If you are unsure or uncomfortable with any part of the process, it is best to consult a qualified electrician.
Electric Scooters in Palm Springs: Are They Legal?
You may want to see also
Explore related products
Safety: qualified personnel, fuses, and combustible materials
Installing an electric furnace is a complex task that requires careful consideration of safety precautions to prevent potential hazards such as electrocution and fires. Here are some essential safety guidelines regarding qualified personnel, fuses, and combustible materials:
Qualified Personnel:
- It is highly recommended to hire qualified and licensed HVAC technicians or electricians for installing an electric furnace. They have the necessary expertise to select, size, and install the furnace correctly, reducing the risk of short circuits, power surges, and electrical fires.
- Professionals will also ensure the furnace is properly sized for your specific living space, enhancing safety and efficiency.
- While DIY installations may be tempting to save costs, incorrect installation can lead to safety hazards and reduce the effectiveness of the unit.
Fuses:
- When installing a larger electric furnace, ensure that the power line is heavy-duty to handle the electrical load.
- You may need to install a heavy-duty special wiring system to prevent blowing fuses every time the furnace starts up.
- Consult with a qualified electrician to determine the appropriate wiring and fuse configuration for your specific furnace model and power requirements.
Combustible Materials:
- Keep combustible materials, such as gasoline, newspapers, paint thinner, and cleaners, away from the electric furnace cabinet.
- The exterior of the furnace cabinet heats up, similar to a gas furnace, so it is crucial to maintain a clearance of at least five feet around it to prevent the risk of fire.
- Regularly clean or replace the furnace filter to prevent clogging. A clogged filter can restrict airflow, leading to overheating and an increased fire risk due to the presence of flammable debris.
Remember, safety should be the top priority when adding an electric furnace. Always follow the instructions provided by qualified personnel and manufacturers to ensure a safe and effective installation.
Dimming Lights: Energy Saver or Myth?
You may want to see also
Frequently asked questions
Electric furnaces are less expensive than gas furnaces and last longer. They are also more energy-efficient than gas furnaces, even high-efficiency condensing ones.
First, decide whether you want to heat one room or multiple rooms. If you want to heat multiple rooms, you will need a duct system and a bigger furnace with adequate placing. You will also need to make a plan for how many fittings the furnace needs to have.
Installing an electric furnace is not a simple job and it is recommended to call qualified personnel, especially if you want a complex duct system. If you want to heat multiple rooms, you will need to dig a hole in the wall for the furnace to have an air source. You will also need to ensure that the power line is heavy-duty.
You will need to consult the manual for the electric furnace to determine the correct wiring. You will also need to check the electrical specifications, including the minimum circuit ampacity (MCA) and maximum over-current protection (MOP).
