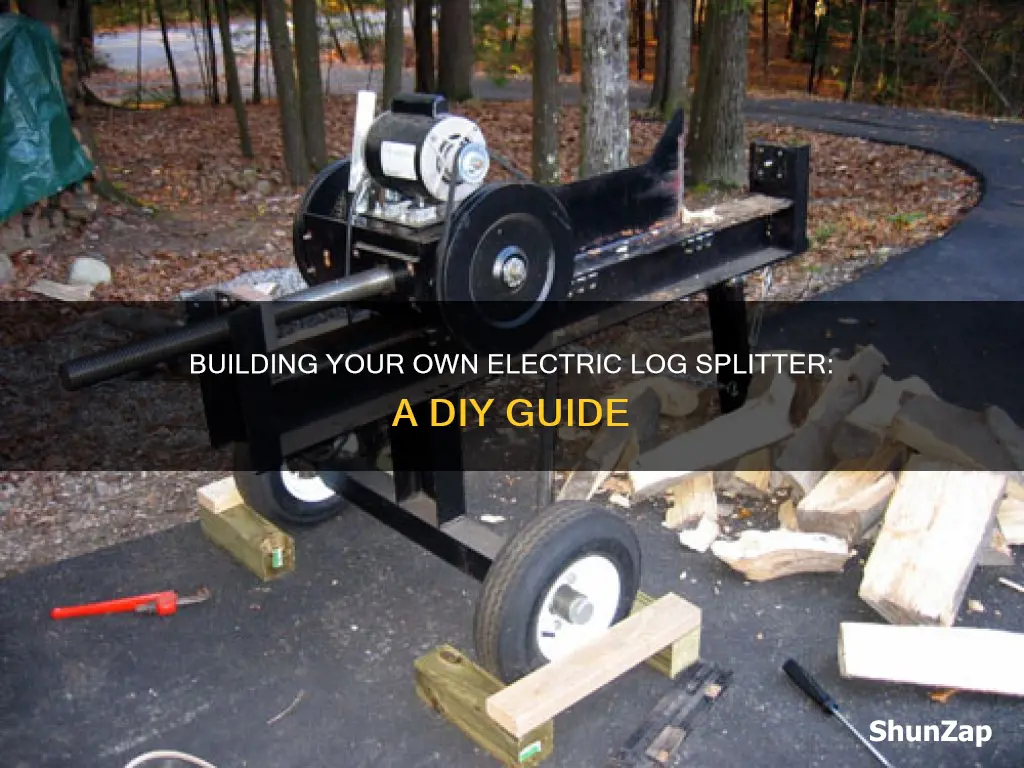

Building your own electric log splitter can be a fun project, but it's important to consider the costs and complexity involved. While commercial-grade splitters with electric motors are readily available, some people prefer the challenge and customization of building their own. Key components to consider when designing an electric log splitter include the motor size and type, voltage requirements, pump specifications, and control handles. Safety is also a critical factor, especially when dealing with high-power motors and hydraulic systems. In this guide, we will explore the steps, considerations, and best practices for building an electric log splitter, ensuring a safe and effective outcome.
Explore related products
What You'll Learn
Choosing the right motor
Firstly, you should consider the voltage of the motor. The standard voltage for electric log splitters is 120V, which can be plugged into a typical household outlet. However, if you opt for a higher voltage, such as 240V, you may need to install a dedicated circuit to handle the increased power demand. It's important to ensure that the motor's voltage matches the power supply available to avoid electrical issues.
Another key consideration is the horsepower (HP) of the motor. The HP rating determines the splitter's performance and capacity. For instance, a 5HP motor is commonly used in electric log splitters and can provide sufficient power for most applications. However, if you plan to split harder woods or larger logs, you may require a more powerful motor, such as a 7.5HP or even a 12HP option, to achieve quicker cycle times and handle more demanding tasks.
The revolutions per minute (RPM) of the motor also play a role in the performance of your electric log splitter. A higher RPM, such as 3600 RPM, can deliver faster cycle times compared to a lower RPM motor. However, it's important to strike a balance, as running the motor at a very high RPM may put excessive strain on the system. Some recommend a 1750 RPM motor to prevent pump cavitation and reduce overall stress on the system.
Lastly, cost is an important factor when choosing a motor. Electric motors can range in price, with a single-phase motor costing between $700 and $1100. It's essential to consider your budget and the overall cost of building the electric log splitter to make an informed decision.
In summary, selecting the right motor involves considering voltage, horsepower, RPM, and cost. By carefully evaluating these factors, you can choose a motor that suits your specific requirements, ensuring optimal performance, safety, and efficiency for your electric log splitter.
