Molly Ayala

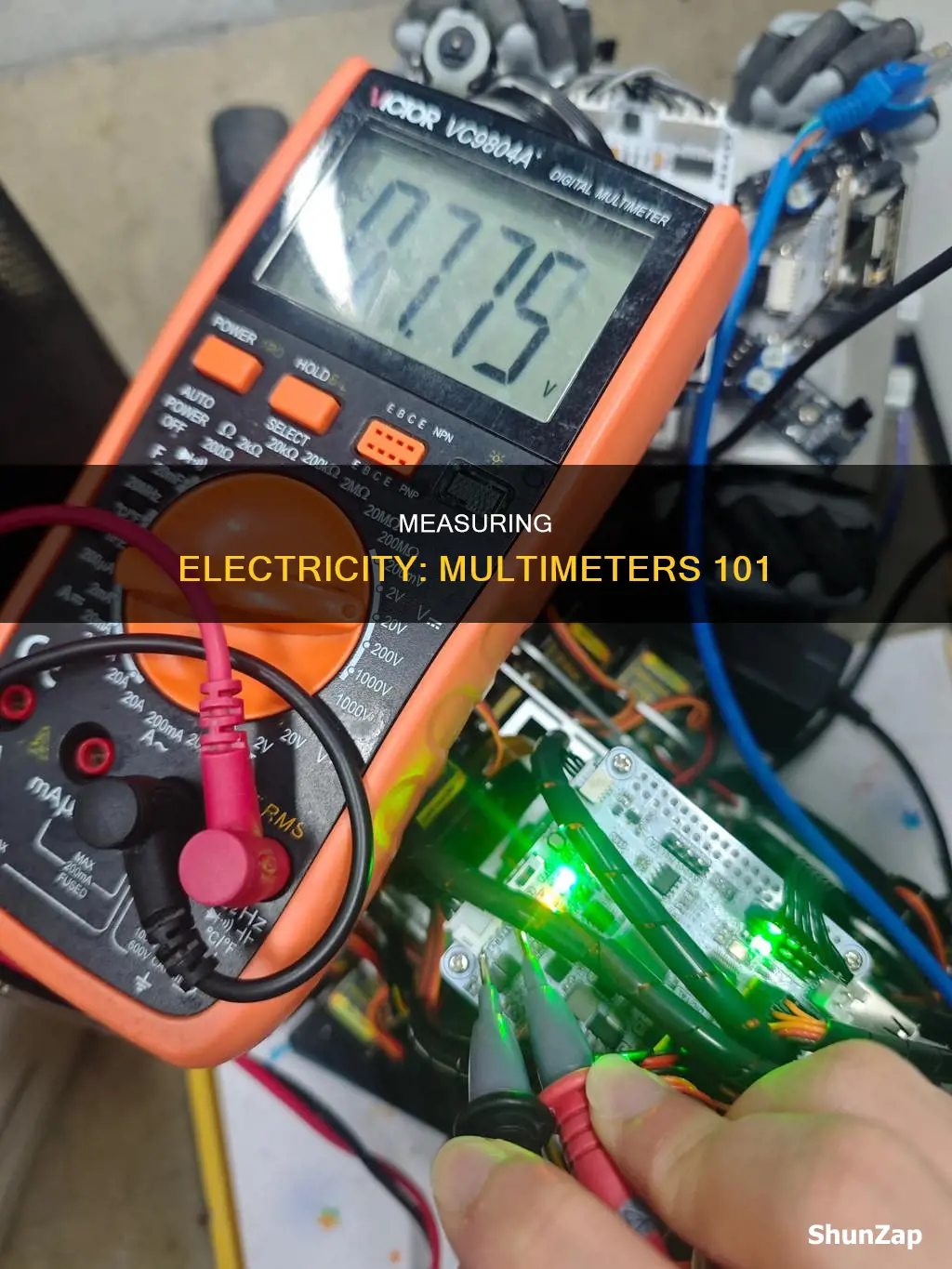

A multimeter is a versatile tool used to test different units of electricity, such as voltage (AC and DC), current, and resistance. It is a handy instrument for homeowners to keep at home to help diagnose electrical problems. When using a multimeter, it is important to always check your equipment and ensure that the area you are testing is dry. Before testing electricity with a multimeter, you should set the meter to the Volts AC setting, which will likely look like a capital V followed by a ~. You should then choose a setting that is higher than what you expect to get. To test voltage, insert a probe into each slot and read the line voltage measurement. A properly working outlet will give a reading of 110 to 120 volts.
| Characteristics | Values |
|---|---|
| Checking equipment | Check for cracks on the multimeter and fraying or nicks in the wires before use |
| Safety | Wear rubber gloves and shoes with rubber soles. Keep fingers away from metal probe tips and avoid touching exposed conductors |
| Testing conditions | Ensure the area is dry |
| Internal working of probes | Tap the red and black tips together and check the reading is 0.5 ohms or less. If it is higher, replace the probes |
| Testing AC voltage | Set the mode to AC voltage. Start at the top of the range and adjust down. Ensure the multimeter is set higher than the voltage number printed on the cord |
| Testing continuity | Set the selection knob to the continuity setting. Touch the tips of the red and black terminals together and look for a number that is zero or close to zero on the display |
| Testing polarity | Insert one probe into the large slot and the other against the screw. If the voltage detector lights, the hot and neutral wires are reversed |
| Testing voltage | Set the multimeter to measure voltage. Insert a probe into each slot and read the line voltage measurement. A properly working outlet gives a reading of 110 to 120 volts |
Explore related products
What You'll Learn
- Check your multimeter is in good condition and set to the correct unit
- Wear safety gear and keep fingers away from metal probe tips
- Insert probes into the correct jacks and touch the tips together
- Check for continuity to determine if a power cord is functional
- Measure voltage to determine the amount of electricity flowing through a circuit
Check your multimeter is in good condition and set to the correct unit
Checking that your multimeter is in good condition is an important step when using an electrical tester. This will help protect you from mishaps that can result in electrical shock. Before you begin, check for cracks on the multimeter and for any fraying or nicks in the wires. Do not test if your equipment is damaged.
To check that your multimeter is working properly internally, you need to "ohm-out" the leads. Put the multimeter in the resistance (ohms or Ω) setting, then connect the probes to the correct ports. Typically, the black probe goes in "COM", while the red goes in "VΩmA", "VΩ", or "V". Touch the tips of the probes together, being careful not to touch the metal parts with your fingers, and check that the reading is 0.5 ohms or less. If the reading is over 0.5 ohms, you will need to replace the probes.
When testing electricity, you will usually be testing voltage, continuity, or resistance. To test voltage, set the meter to the "Volts AC" setting, or "VAC". Choose a setting that is higher than the voltage number printed on the cord or the voltage you expect to get. To test continuity, set the selection knob to the continuity setting. To test resistance, set the multimeter to the ohms setting.
Sam's Club Electric Scooters: Availability and Options
You may want to see also
Explore related products
Wear safety gear and keep fingers away from metal probe tips
When using a multimeter, it is important to wear safety gear and keep your fingers away from the metal probe tips. This is because multimeters are often used to test live circuits, which can be extremely dangerous. Working on live wiring can lead to property damage, personal injury, or even death.
To protect yourself from electrical shock, always wear proper safety gear when using a multimeter, especially when measuring high voltages and currents. This includes wearing rubber gloves and shoes with rubber soles. Additionally, always keep your fingers away from the metal probe tips and avoid touching any exposed conductors. The metal probe tips are the pointy metal ends that come with the multimeter. They are used to make contact with the object being tested. By keeping your fingers away from the metal probe tips, you reduce the risk of electrical shock.
It is also important to note that you should never touch the metal tips of the probes with your hands. Before beginning any measurements, ensure that the multimeter probes are working properly by performing an internal check. To do this, set the multimeter to the resistance (ohms or Ω) setting and connect the probes to the correct ports. Then, touch the tips of the probes together, being careful not to touch the tips with your hands. The reading should be 0.5 ohms or less. If the reading is higher, the probes need to be replaced.
In addition to wearing safety gear and avoiding contact with metal probe tips, it is crucial to follow other safety precautions when using a multimeter. Always work in dry conditions and ensure that the area you are testing is dry as well. Check your equipment for any signs of damage, such as cracks on the multimeter or fraying/nicks in the wires. Do not use damaged equipment. When testing live circuits, be mindful of your body posture. Position your limbs so that if you do receive an electrical shock, your muscles will pull you away from the source.
How to Extinguish Electrical Fires Safely and Effectively
You may want to see also
Explore related products
Insert probes into the correct jacks and touch the tips together
When inserting the probes, it is important to ensure that they are plugged into the correct jacks. The black probe should be plugged into the black, "NEG" or "COM" jack, while the red probe should be plugged into the red, "POS" or the second jack, which may be labelled "VΩmA", "VΩ", or "V".
Once the probes are correctly inserted, you can touch the tips of the probes together, being careful not to touch the metal parts with your fingers. The reading on the multimeter should be 0.5 ohms or less. If the reading is higher than that, it indicates that the probes need to be replaced. This step is crucial to ensure the multimeter is functioning correctly before proceeding with any electrical measurements.
It is worth noting that different multimeters may have varying labels and options, so it is always good to refer to the documentation for your specific meter to confirm the correct probe placement. Additionally, always prioritise safety by ensuring that the area you are testing is dry and that you are wearing appropriate protective gear, such as rubber gloves, when working with electrical equipment.
By inserting the probes into the correct jacks and touching the tips together, you can confirm that your multimeter is ready for use and proceed with confidence to the next steps of your electrical testing or troubleshooting process.
Understanding Skeletal Muscle Cells' Electrical Insulation
You may want to see also
Explore related products
Check for continuity to determine if a power cord is functional
To check for continuity to determine if a power cord is functional, you will need to use a multimeter. Before you begin, make sure all parts of your multimeter are in good condition. Check for cracks on the multimeter and for any fraying or nicks in the wires. Do not test if your equipment is damaged. If you’d like to feel safer when testing, wear rubber gloves and shoes with rubber soles.
Now, to check for continuity, start by unplugging the power cord from the device and the AC outlet. Then, set the multimeter to continuity test mode. The setting is usually symbolized by a diode or sound wave symbol. If the meter is set to the correct mode, you should hear the meter beep when the leads are touched together.
Next, verify that the positive lead is plugged into the voltmeter/ohmmeter outlet. You can test for a potential open circuit by using one multimeter lead to touch one of the prongs on the AC side of the power cord. Then, use the other lead to touch one end of the console side of the power cord. If there is an adequate electrical connection, the multimeter will continuously beep.
Additionally, you should have continuity on each of the four connectors. On the male plug, the round pin is ground, the flat blade on either side is "hot", and the center blade is neutral. On the other end, the "tab" on the side of the connector is ground, the curved blades with the little "L" in them are the "hots", and the last curved blade is neutral. You should have continuity between neutral to neutral, ground to ground, and one of the hots to hot and the other hot to the remaining hot.
Electric Types and Paralysis: Double Damage?
You may want to see also
Explore related products
Measure voltage to determine the amount of electricity flowing through a circuit
To measure voltage and determine the amount of electricity flowing through a circuit, you will need a multimeter. This is a tool used to measure electricity, and it comes in digital and analog versions.
Before you begin, check your multimeter for any signs of damage, such as cracks or fraying wires. Also, ensure that the area you are testing is dry. If your multimeter is damaged, do not proceed with the test. For added safety during the test, consider wearing rubber gloves and shoes with rubber soles.
Now, follow these steps to measure voltage:
- Set the multimeter to the correct unit to avoid danger. If you are measuring voltage in a circuit, set the multimeter to "Volts AC" (denoted by a capital "V" followed by a "~"). If the voltage in the circuit is unknown, set the range to the highest voltage setting.
- Plug the probes into the correct jacks. The black probe typically goes into the "COM" jack, while the red probe goes into "VΩmA", "VΩ", or "V".
- Touch the probes to the correct points in the circuit. One probe should contact a GND connection, and the other should touch the VCC or 5V connection. Ensure that you apply a little pressure when touching the probes to the circuit.
- Read the measurement on the multimeter's display. If you are using a digital multimeter, you will see a numerical value. On an analog multimeter, you will see a meter and an indicator pointing to a number.
By following these steps, you can safely and effectively measure voltage in a circuit using a multimeter.
Adding an Electrical Subpanel: A Comprehensive Guide
You may want to see also
Frequently asked questions
Always check your equipment before using it. Look for cracks on the multimeter and fraying or nicks in the wires. Do not use the multimeter if it is damaged. Only use it in dry conditions. Wear rubber gloves and shoes with rubber soles for added safety.
Put the multimeter in resistance mode (ohms or Ω) and connect the probes to the correct ports (black probe in the COM port, red probe in the mAVΩ port). Gently tap the tips of the probes together, ensuring you do not touch the metal parts with your fingers. The reading should be 0.5 ohms or less. If it is higher, replace the probes.
Set the multimeter to measure voltage (Volts AC). Insert a probe into each slot and read the line voltage measurement. A properly working outlet should give a reading of 110 to 120 volts. If there is no reading, check the wiring and outlet.
Set the multimeter to the continuity setting. Plug the black probe into the COM port and the red probe into the mAVΩ port. Touch the tips of the probes together and look for a reading of zero or close to zero, indicating continuity. Place one probe on each end of the electrical component you are testing. If there is continuity, the reading will remain at zero or close to zero. If there is no continuity, the multimeter will display "OL" or "open loop", indicating the component needs to be replaced.
