Otis Singleton
There are several ways to connect an electric piano to a computer, depending on what you want to achieve. If you want to record audio from your piano, you can use the LINE OUT sockets or the headphone sockets if your piano doesn't have line outputs. If you want to send your playing data, you can use MIDI data through a USB-to-host socket or a dedicated MIDI socket, although you may need an adapter or USB-MIDI cable since most computers don't include MIDI ports. You can also use a small mixer that has the piano's headphone output as an input and is plugged into the computer via USB.
| Characteristics | Values |
|---|---|
| Connection type | MIDI to USB, USB to USB, USB to mixer |
| Connection direction | Piano to computer, piano to mixer to computer |
| Use case | Play piano audio through computer, record piano audio on computer |
| Cable type | MIDI to USB, USB A to B, USB B to A, USB to host |
| Cable availability | Included with piano, common and easily available |
| Additional software | Required, but free options available |
Explore related products
What You'll Learn
Use a USB cable to connect the piano to the computer

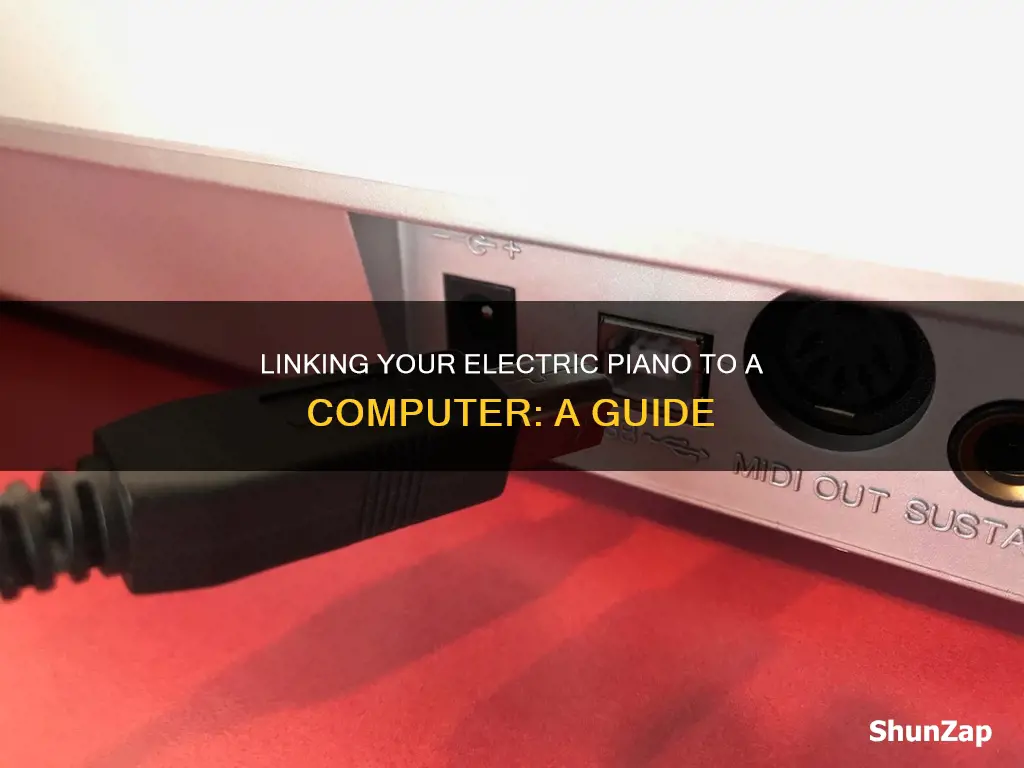

Connecting your electric piano to your computer using a USB cable is a straightforward process. First, you need to ensure you have the correct USB cable. The most common type of USB cable used for this purpose is a USB-B to USB-A cable. Your piano will likely have a USB-B port, and this is by far the most common type of port for connecting an electric piano to a computer. The USB-B end of the cable is square-shaped and will be plugged into the USB-B socket on your piano, usually labelled 'USB to Host'.
The other end of the cable is USB-A, which is rectangular-shaped and will be plugged into one of your computer's USB ports. The type of USB connector on your computer may vary depending on the model and age of your computer. Most PCs still have traditional USB-A ports, but newer models like the MacBook Pro may only have USB-C ports. In this case, you will need a special USB-B to USB-C cable or an adapter to convert the USB-A plug to a USB-C one.
If you are connecting to an audio interface, you may need a USB-C to USB adapter, depending on the model and age of your computer. You can then connect a 1/4" instrument cable from the headphone output of your piano to the audio interface's input.
It is worth noting that if your piano does not have a USB-B port, you can also use a USB-MIDI cable or an adapter to connect to your computer's USB port. This method will allow you to send MIDI data, which includes information about which keys you pressed, when, how hard, and for how long.
By following these steps, you should be able to successfully connect your electric piano to your computer using a USB cable, opening up new features and functionalities for your instrument.
Electric Furnace Efficiency: Does It Decline Over Time?
You may want to see also
Explore related products
Use a MIDI to USB cable
If your piano has a USB-to-host port, you can connect it to your computer using a standard USB (type B) cable. This cable will likely be included with your piano, but if not, you can use any standard USB A to B cable. Newer pianos support MIDI over this USB connection, so you won't need any additional MIDI cables or connections.
If your piano does not have a USB-to-host port, you can use a MIDI to USB cable to connect it to your computer. This cable will allow you to send playing data, such as information about which keys you pressed, when, how hard, and for how long, to your computer. Most computers don't have built-in MIDI ports, so you may need an adapter or a USB-MIDI cable.
Once you have the correct cable, simply connect the MIDI out port on your piano to the USB port on your computer. Your computer should automatically recognize that there is a digital piano sending MIDI data through the connection. However, depending on your specific configuration, you may need to install additional software or drivers.
Additionally, if you want to record audio from your piano, you can use the LINE OUT sockets or, if your piano doesn't have line outputs, the headphone sockets. You can also use a small USB mixer, which will allow you to hear both the computer and the piano audio through your headset and record the piano sound on your computer.
Electric Shavers and Shaving Cream: A Good Mix?
You may want to see also
Explore related products
Connect piano headphone output to a laptop via a USB mixer
Connecting a piano's headphone output to a laptop via a USB mixer is a great way to record your piano playing or listen to it through your computer. Here's a step-by-step guide to help you set it up:
Step 1: Check Your Connections
Before you begin, ensure you have the correct cables and connections on your piano and laptop. Most digital pianos have either a USB or MIDI output, and some may only have a headphone output. Your laptop should have a USB port, and if it lacks a 3.5mm headphone jack, you'll need an adapter or converter.
Step 2: Choose the Right USB Mixer
Select a USB mixer that suits your needs. For example, the Behringer USB mixer (Q802USB) is a popular choice, as mentioned on Reddit. This mixer allows you to input the piano's headphone output and connect it to your laptop via USB.
Step 3: Connect the Piano to the Mixer
Use the appropriate cable to connect the headphone output of your piano to the input on the USB mixer. This could be an aux cable or a 3.5mm stereo jack, depending on your piano's output. Ensure that the connection is secure.
Step 4: Connect the Mixer to the Laptop
Now, connect the USB mixer to your laptop using a USB cable. If your laptop requires an adapter or converter for the headphone jack, make sure to use that before connecting the mixer. Again, ensure all connections are secure.
Step 5: Adjust the Settings
Once everything is connected, adjust the settings on your mixer and laptop to ensure they work harmoniously. You may need to select your USB device as the audio input in the recording software you're using. You can also use the EQ knobs on the mixer to adjust the sound to your liking.
Step 6: Test the Setup
With everything connected and adjusted, it's time to test the setup. Play some music on your piano and slowly increase the volume on the mixer until you hear the sound coming through your laptop or preferred speakers. You may also want to test recording your piano playing to ensure the audio is being transmitted correctly.
By following these steps, you should be able to successfully connect your piano's headphone output to your laptop via a USB mixer, allowing you to record and listen to your piano playing through your computer.
Electric Parade: Disney World's Illuminating Nighttime Spectacle
You may want to see also
Explore related products
Use the LINE OUT sockets to record audio from the piano
If your piano has line outputs, you can use them to record audio from your piano. You can use a pair of standard instrument cables, also known as "guitar" cables, to connect your piano to your computer. You can purchase these from any music store or online. It is recommended to buy cables that are not considerably longer than you need, as the extra cable length will just be in the way.
If your piano has two line outs, you can connect them to any of the line inputs on your computer. You will need two TR cables, one for the left output and one for the right output. Make sure to set your inputs to line mode and not mic or guitar. You can also use a stereo jack-to-jack cable to connect your piano to your computer.
If your piano does not have dedicated line outputs, you can use the headphone output as a substitute. You can use a regular TRS to TRS stereo cable or a stereo TRS to mono TS cable. You can also use a stereo TRS to two mono TS splitter and connect only one of the channels to the interface. Note that while this method will work, it is not ideal and may result in a downgrade from stereo to mono sound.
To ensure the best audio quality, it is recommended to use an external USB audio interface. This will provide much better quality than the built-in audio chip in your computer. Make sure that your audio interface is in line-level mode and not in microphone or Hi-Z guitar mode. You can also combine the two channels of a stereo output by creating a pseudo-balanced cable with two TRS jacks.
How Electric Force Affects Objects Around Us
You may want to see also
Explore related products
Send playing data via MIDI data
If you want to send playing data – that is, information about which keys you pressed, when, how hard, and for how long – you’ll be using MIDI data. Newer digital piano models have USB-to-host ports and support MIDI over that USB connection, so no actual MIDI cables or connections are required. You can simply connect the piano to your computer using a standard USB (type B) cable. The cable is likely included with the piano, but if not, you can use any common USB A-to-B cable.
If your piano does not have a USB-to-host port, you can use dedicated MIDI sockets to connect to your computer. However, since most computers don't include MIDI ports, you will need an adapter or a USB-MIDI cable.
Your computer should automatically recognize that there is a digital piano sending MIDI data through the connection. However, depending on your configuration, it may not. In this case, you may need to install additional software or drivers to enable your computer to recognize the MIDI data.
Additionally, if you want to hear the piano sound through your computer or headphones, you can use a small USB mixer. For example, the Behringer USB mixer (Q802USB) can be used to input the piano headphone output and connect to your laptop via USB. This allows you to either listen to both the computer and the piano through your headset or listen to the piano only while recording the piano sound on your computer.
Understanding Electrical Short Circuits and Their Impact
You may want to see also
Frequently asked questions
There are several ways to connect your electric piano to your computer, depending on what you want to achieve. You can use a USB cable, an adapter, or a MIDI cable. If you want to record audio from your piano, you can use the LINE OUT sockets or the headphone sockets.
If your piano has a USB-to-host socket, you can connect it to your computer using a standard USB (type A to B) cable. Newer piano models support MIDI over a USB connection, so you won't need a separate MIDI-to-USB cable.
Yes, you can use headphones with your electric piano and computer setup. You can either listen to both the computer and the piano through your headset or listen to the piano only while recording the piano sound on the computer.
