Detecting electrical leakage in a car is crucial for maintaining safety, preventing battery drain, and avoiding potential damage to the vehicle's electrical system. Electrical leakage occurs when current flows through unintended paths, often due to faulty wiring, damaged insulation, or malfunctioning components. Common signs include a dead battery after the car has been parked for a while, dim or flickering lights, or unusual electrical behavior. To diagnose the issue, start by using a multimeter to measure the current draw when the car is off; a reading significantly higher than the normal standby current (typically around 20-50 milliamps) indicates a leak. Next, isolate the problem by disconnecting and testing individual circuits or fuses until the leakage source is identified. Addressing the issue promptly, whether by repairing damaged wires, replacing faulty components, or seeking professional assistance, ensures the vehicle remains reliable and safe to operate.
| Characteristics | Values |
|---|---|
| Visual Inspection | Check for frayed wires, burnt marks, or loose connections in the car's wiring harness. |
| Battery Drain Test | Measure battery voltage after 12-24 hours; significant drop indicates a possible leak. |
| Multimeter Usage | Use a multimeter to measure current draw with all accessories off; normal draw is <50mA. |
| Parasitic Draw Test | Disconnect fuses one by one while monitoring current to identify the faulty circuit. |
| Amperage Clamp | Use an amperage clamp to measure current flow in specific circuits for abnormalities. |
| Voltage Drop Test | Test voltage drops across connections; significant drops indicate high resistance or leaks. |
| Fusible Link Check | Inspect fusible links for melting or damage, which can cause electrical leaks. |
| Relays and Modules | Test relays and modules for sticking or malfunctioning, leading to excessive current draw. |
| Ground Connections | Ensure all ground points are clean and secure; poor grounding can mimic leakage symptoms. |
| Professional Diagnostic Tools | Use OBD-II scanners or automotive multimeters for advanced diagnostics. |
| Symptoms to Watch | Dim lights, dead battery, intermittent electrical issues, or unusual smells. |
| Water Damage Inspection | Check for water intrusion in wiring harnesses, especially in older vehicles. |
| Circuit Breaker Test | Test circuit breakers for tripping, which may indicate a short or leak. |
| Load Testing | Apply load to specific circuits to check for overheating or excessive current draw. |
| Wiring Diagram Reference | Use the vehicle's wiring diagram to trace circuits and identify potential leak points. |
Explore related products
What You'll Learn
- Visual Inspection: Check for corrosion, burnt wires, or damaged insulation around battery, fuses, and connectors
- Battery Drain Test: Monitor voltage drop overnight to identify parasitic draws from faulty components
- Multimeter Usage: Use a multimeter to test continuity and resistance in circuits for leaks
- Fuse Box Examination: Inspect fuses for blown or melted signs, indicating potential short circuits
- Water Leak Detection: Look for moisture near electrical components, as water can cause hidden leaks
Visual Inspection: Check for corrosion, burnt wires, or damaged insulation around battery, fuses, and connectors
Corroded battery terminals are a telltale sign of electrical issues. That white, ashy residue or greenish buildup around the battery posts isn’t just unsightly—it’s a barrier to proper electrical flow. Over time, this corrosion can lead to voltage drops, dimming lights, or even a car that won’t start. Grab a wire brush and baking soda solution (three tablespoons of baking soda per cup of water) to clean the terminals. Rinse with clean water, dry thoroughly, and apply a thin coat of dielectric grease to prevent future corrosion.
Burnt wires often reveal themselves through discoloration, melting, or a distinct acrid smell. High-resistance connections, short circuits, or overloaded circuits are common culprits. Inspect wiring harnesses near the battery, fuses, and connectors for charring or brittle insulation. If you spot damage, replace the affected wires immediately—driving with compromised wiring is a fire hazard. Pro tip: Use a multimeter to test for continuity in suspect wires; a reading of "OL" (open loop) indicates a break.
Damaged insulation is a silent saboteur, allowing wires to short against metal components or each other. Look for cracks, fraying, or exposed copper around the battery tray, fuse box, and under the dashboard. Rodent damage is a common cause, especially in parked vehicles. To prevent further issues, wrap exposed wires with electrical tape or heat-shrink tubing. For severe cases, consult a professional to rewrap or replace the entire harness.
Fuses and connectors are ground zero for electrical leaks. Melted fuse blades or discolored plastic housings signal overheating, while loose or corroded connectors can cause intermittent faults. Wiggle-test connectors for snugness and inspect fuse boxes for moisture intrusion. Keep a spare set of fuses in your glove compartment and use a fuse puller to avoid damaging the fuse box. Regularly cleaning connectors with electronic contact cleaner can extend their lifespan and ensure reliable connections.
Comparing a well-maintained electrical system to a neglected one highlights the importance of visual inspections. A car with clean terminals, intact wiring, and secure connections starts reliably, runs smoothly, and avoids costly repairs. Conversely, ignored corrosion, burnt wires, or damaged insulation lead to dead batteries, blown fuses, and potential safety hazards. Dedicate 15 minutes monthly to this inspection—it’s a small investment that pays off in reliability and peace of mind.
Safely Install a Circuit Breaker for Your Electric Car Charger: A Guide
You may want to see also
Explore related products
Battery Drain Test: Monitor voltage drop overnight to identify parasitic draws from faulty components
A car battery that drains overnight is a telltale sign of a parasitic draw—a persistent electrical leak from a component that should be dormant. This silent drain can leave you stranded, damage the battery, and strain the alternator. The battery drain test is a precise method to quantify this leakage and pinpoint the culprit. By measuring the voltage drop over several hours, you can determine if the draw exceeds the acceptable range, typically 20–50 milliamps for modern vehicles. This test isolates the issue, distinguishing between a failing battery and an electrical fault, saving time and misdiagnosis.

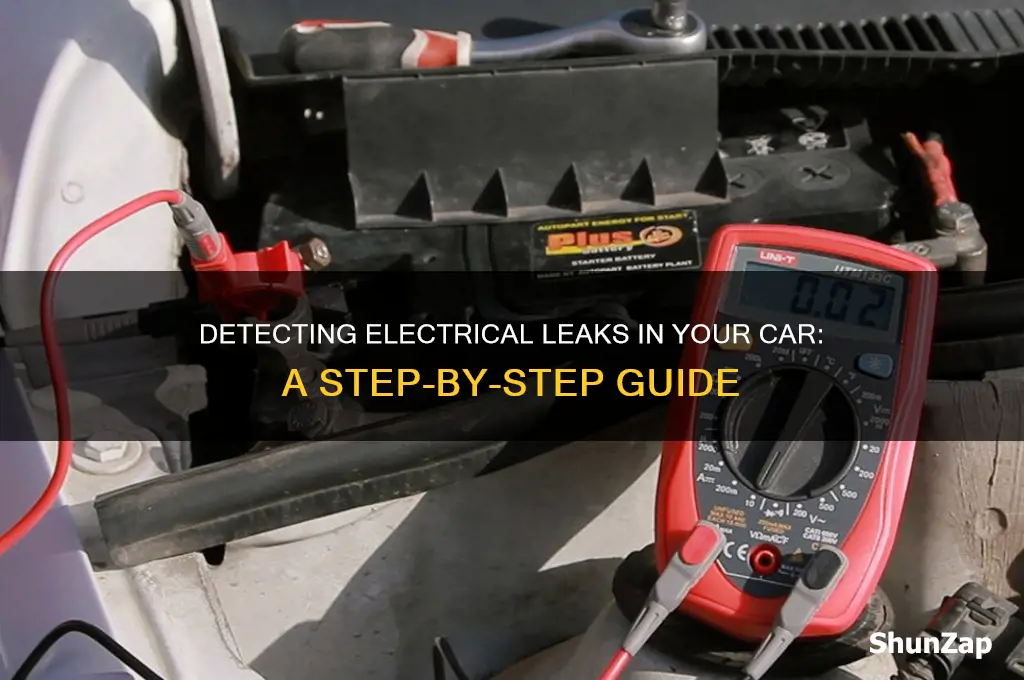

To perform the test, start with a fully charged battery (12.6 volts or higher). Disconnect the negative battery terminal and connect a digital multimeter in series between the terminal and the battery post. Set the multimeter to measure current (amps) and observe the reading. A draw above 50 milliamps indicates a problem. For accuracy, let the vehicle sit overnight, as some systems take hours to enter sleep mode. Document the initial and final voltage readings to calculate the total drop, which should not exceed 0.1–0.2 volts in a healthy system.
While the test is straightforward, interpreting results requires caution. A high draw doesn’t always mean a single faulty component; multiple minor leaks can accumulate. For instance, a stuck relay, malfunctioning control module, or even a forgotten interior light can contribute. To isolate the source, remove fuses one by one while monitoring the multimeter. When the draw drops significantly, you’ve identified the affected circuit. However, avoid this method in newer cars with complex electronics, as removing fuses can trigger error codes or damage sensitive systems.
The battery drain test is a diagnostic cornerstone, but it’s not foolproof. Environmental factors like temperature can affect results, and some parasitic draws are intermittent, evading detection. For stubborn cases, consult a professional with specialized tools like a circuit tester or scan tool. While the test demands patience and precision, it’s a cost-effective way to diagnose electrical leaks before they escalate. Regularly performing this test, especially in older vehicles, can prevent unexpected breakdowns and extend the life of your electrical system.
Step-by-Step Guide to Wiring Your Electric Car Seat Safely
You may want to see also
Explore related products
![[Black] Seam Sealer Automotive-Professional Grade High Strength Waterproof Automotive Adhesive for Auto Body Repair, Rust & Leak Prevention-Quick Paintable Sealant for Metal, Plastic -10.5Oz Tube](https://m.media-amazon.com/images/I/71PxeJpFoCL._AC_UL320_.jpg)
Multimeter Usage: Use a multimeter to test continuity and resistance in circuits for leaks
A multimeter is an indispensable tool for diagnosing electrical leaks in a car, offering precision in identifying faults that visual inspections often miss. By testing continuity and resistance, it reveals whether current is flowing where it shouldn’t or if there’s an unintended path in the circuit. For instance, a frayed wire touching the chassis could create a ground fault, draining the battery and triggering warning lights. The multimeter quantifies these issues, turning guesswork into actionable data.
To begin, set your multimeter to the continuity or resistance mode, typically denoted by a diode symbol or an ohm (Ω) sign. Start by disconnecting the battery to prevent accidental shorts. For continuity testing, place the probes on either end of a wire or component. A consistent beep or low resistance reading (near 0Ω) indicates a complete circuit, while no beep or high resistance suggests a break or leak. For example, testing a suspected faulty fuse should yield near-zero resistance if intact; anything higher points to a potential leak or failure.
Resistance testing provides a more nuanced view, especially in complex circuits. Set the multimeter to the resistance scale and measure across components like sensors or wiring harnesses. A reading significantly lower than the expected value (e.g., a 120Ω sensor showing 20Ω) indicates a short or leak, while an open circuit will display "OL" (open loop). This method is particularly useful for pinpointing leaks in high-resistance areas, such as corroded connectors or damaged insulation, which might not trigger continuity alarms but still cause issues.
Caution is essential when using a multimeter in a car’s electrical system. Always ensure the ignition is off and the battery is disconnected to avoid damage to sensitive components or personal injury. Avoid touching probes to multiple points simultaneously, as this can create unintended paths for current. Additionally, be mindful of the voltage range; most automotive circuits operate at 12V, but some systems, like airbags or alternators, can spike higher, potentially damaging the multimeter or causing hazards.
In conclusion, mastering multimeter usage for continuity and resistance testing transforms electrical leak detection from a daunting task into a systematic process. By understanding the tool’s capabilities and limitations, you can diagnose issues with confidence, saving time and preventing further damage. Whether you’re a DIY enthusiast or a professional mechanic, this method is a cornerstone of automotive electrical troubleshooting, offering clarity in the often-hidden world of car electronics.
Are Electric Cars Truly Zero Emission? Uncovering the Hidden Truth
You may want to see also
Explore related products
Fuse Box Examination: Inspect fuses for blown or melted signs, indicating potential short circuits
A blown fuse is often the first visible symptom of an electrical issue in your car. The fuse box, typically located under the dashboard or in the engine compartment, houses these small but crucial components. Each fuse is designed to protect a specific circuit by interrupting the flow of electricity when it detects an overload. When a fuse blows, it’s a clear signal that something in the circuit it protects has malfunctioned, potentially due to a short circuit or excessive current draw. Identifying a blown fuse early can prevent further damage to your vehicle’s electrical system.
To inspect the fuse box, start by locating it using your car’s manual. Most fuse boxes have a diagram on the cover or inside, labeling each fuse and its corresponding circuit. Remove the cover and visually examine each fuse. A blown fuse will typically show visible signs such as a broken or melted wire inside the transparent casing. Some fuses may appear intact but are still faulty; in such cases, a multimeter can be used to test continuity. If a fuse is blown, replace it with one of the same amperage rating—using a higher-rated fuse can lead to overheating and fire hazards.
While replacing a blown fuse is straightforward, it’s essential to investigate the root cause. A blown fuse is rarely an isolated incident; it often indicates a deeper issue, such as a short circuit, damaged wiring, or a malfunctioning component. For example, if the fuse for the headlights keeps blowing, the problem could lie in the wiring harness, a faulty headlight switch, or even water intrusion causing a short. Ignoring the underlying cause and repeatedly replacing the fuse can lead to more extensive and costly repairs.
Regular fuse box inspections should be part of your routine vehicle maintenance, especially if you notice intermittent electrical issues like flickering lights or non-responsive accessories. Keep a spare set of fuses in your car for emergencies, but always address the root cause promptly. By treating the fuse box as an early warning system, you can catch electrical leaks or faults before they escalate, ensuring your vehicle remains safe and reliable.
Electric Car Batteries: Do They Drain When Parked Unused?
You may want to see also
Explore related products
![[Black] Professional Automotive Seam Sealer, Paintable Quick-Set Polyurethane Auto Body Seam Sealer for Metal Surfaces of Cars, Trucks, Etc, Includes Gloves & Tip - Black RV Roof Sealant](https://m.media-amazon.com/images/I/71b4p-ZwmcL._AC_UL320_.jpg)
Water Leak Detection: Look for moisture near electrical components, as water can cause hidden leaks
Water intrusion in a vehicle often manifests subtly, making it a stealthy culprit behind electrical malfunctions. Moisture near electrical components like fuses, wiring harnesses, or the ECU can corrode connections, short circuits, or degrade insulation over time. Unlike visible leaks, these issues may not present immediate symptoms, making proactive inspection critical. Start by examining areas prone to water accumulation, such as under the dashboard, around door seals, or near the firewall, using a flashlight to spot dampness, discoloration, or mold growth.
To systematically detect hidden water leaks, employ a multi-step approach. First, inspect the vehicle after rain or washing, focusing on areas where water might pool. Use a moisture meter or a non-invasive infrared thermometer to identify damp spots, as water retains temperature differently than dry materials. Second, trace the path of water intrusion by checking for compromised seals, rusted body panels, or clogged drainage channels. Third, test electrical systems for erratic behavior, such as flickering lights or unresponsive controls, which may indicate water damage.
A comparative analysis reveals that water leaks often mimic symptoms of other electrical issues, complicating diagnosis. For instance, corrosion from moisture can cause intermittent faults similar to those from a failing alternator or battery. However, water damage typically worsens in humid conditions or after exposure to moisture, whereas mechanical failures remain consistent. To differentiate, isolate the affected circuit and inspect for telltale signs of water exposure, such as rust or mineral deposits on connectors.
Persuasively, addressing water leaks promptly not only prevents costly repairs but also ensures safety. Moisture near airbag control modules or ABS systems can compromise their functionality, posing a hazard. Regularly applying dielectric grease to electrical connections in vulnerable areas can act as a preventive measure, repelling water and inhibiting corrosion. Additionally, investing in a professional water leak detection service using UV dyes or borescopes can uncover issues invisible to the naked eye, offering peace of mind.
In conclusion, detecting water leaks near electrical components requires vigilance and a methodical approach. By combining visual inspections, diagnostic tools, and preventive measures, drivers can mitigate the risks of hidden water damage. Remember, water’s destructive potential in electrical systems is often silent but cumulative, making early detection a cornerstone of vehicle maintenance.
