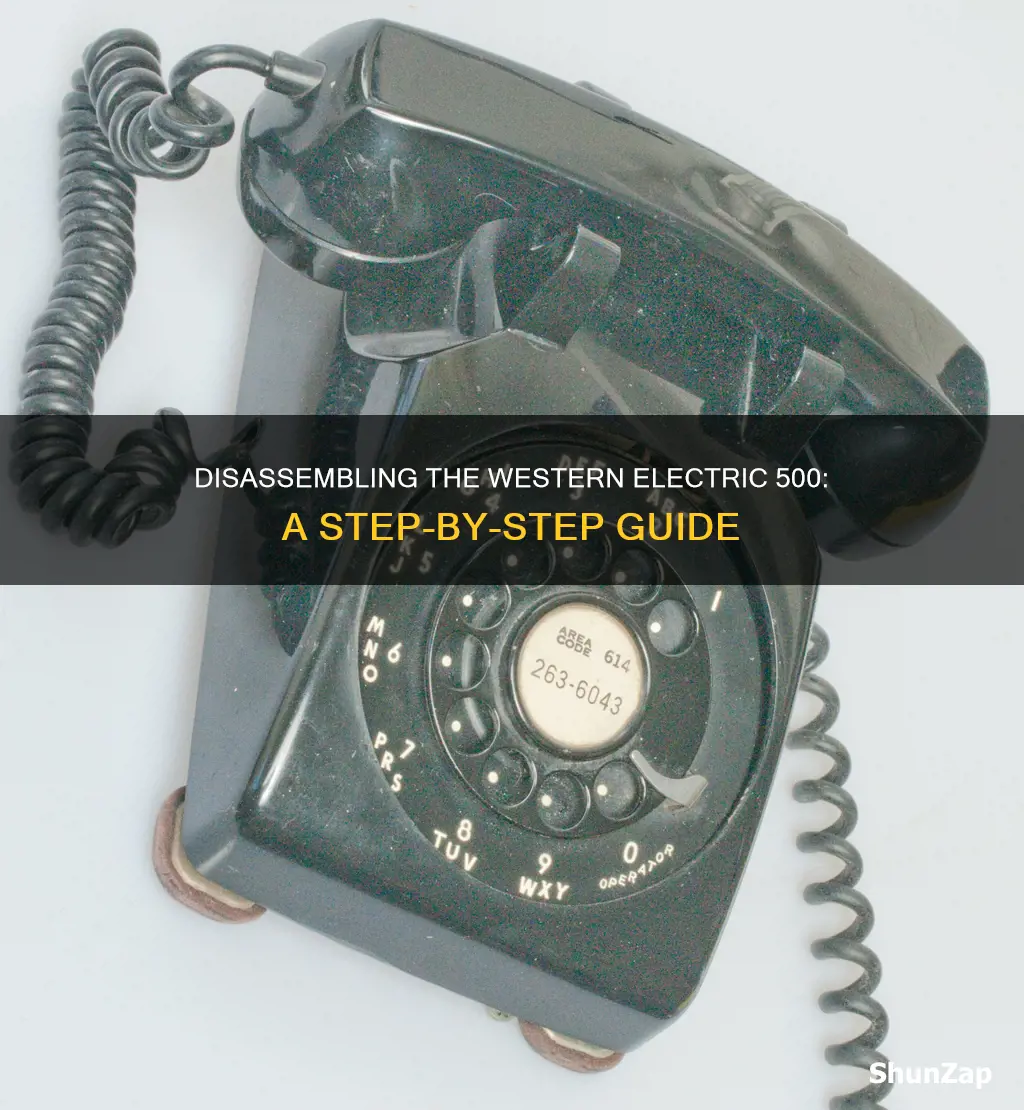

The Western Electric 500 telephone series was the standard domestic desk telephone set issued by the Bell System in North America from 1950 until the 1984 Bell System divestiture. The model 500's modular construction simplified its manufacture and repair and allowed for a large number of variants with added features. The model 500 telephone series was very popular and common among North American businesses and households throughout the latter half of the 20th century. This article will provide a step-by-step guide on how to disassemble the iconic Western Electric 500 telephone.
| Characteristics | Values |
|---|---|
| Design | All operational parts of the phone were mounted on the base plate, and the housing only contained two plungers to activate the hook switch when the handset was lifted from the cradle. |
| Manufacturing | The modular construction of the Western Electric 500 compared to previous types simplified manufacture and repair and facilitated a large number of variants with added features. |
| Variants | The Model 1500, produced from 1963 to 1968, adapted the 500 design for touch-tone dialing with a push-button pad for the digits 0 through 9. The Model 2500, introduced in 1968, added the * and # keys. |
| Robustness | The Western Electric 500 is described as having a "very robust design" and lasting a long time. |
| Compatibility | It is unclear whether the Western Electric 500 is compatible with today's phone systems. |
| Repair | The phone rarely needs repairs, but when it does, it is a "remarkably complex, simple device." Most can be reconfigured with just a screwdriver. |
| Safety | The phone has no safety ground, and the ring voltage is high enough to be considered hazardous. |
Explore related products
What You'll Learn
Removing the cover
To start, locate the screws that secure the cover to the base of the phone. There should be four screws in total, two on each side of the handset cradle. Using your screwdriver, carefully remove these screws and set them aside in a safe place so they do not get lost.
Once the screws have been removed, you can begin to gently lift the cover away from the base. It is important to be cautious during this step, as there are still some wires connecting the cover to the base that need to be carefully detached. These wires are typically the yellow, red, and green wires that connect to the terminal block. Gently pull these wires free from the terminal block, taking care not to strain or damage them.
With the wires detached, you can now fully separate the cover from the base. Place the cover aside in a safe place, as you will need to reattach it once your repairs or maintenance are complete.
Now that the cover has been successfully removed, you will have access to the internal components of the phone. This includes the terminal block, which is where the wires you detached were connected, as well as the hook switch and other mechanical parts. From here, you can proceed with your desired maintenance or repair tasks. Remember to refer to a qualified technician's guide or seek expert advice if performing any complex repairs or adjustments.
