Extending electrical wiring inside a wall is a complex process that requires careful planning and execution. It is important to ensure that the extension is done safely and correctly to avoid any electrical hazards. One common method is to use a junction box, which allows for the extension of wires without the need for complex rewiring. This involves splicing wires together using push-in connectors or soldering, ensuring proper insulation with heat shrink tubing. It is crucial to follow safety protocols, such as turning off the power and verifying the absence of current before beginning any work. The cost of extending electrical wiring can vary, with DIY projects costing less than $50, while hiring an electrician can cost around $200 for a typical circuit extension.
Explore related products
What You'll Learn
Turn off the breaker switch for the circuit
Before you begin any work on electrical wiring, it is imperative that you prioritise your safety. One of the most important steps to ensure your safety is to turn off the breaker switch for the circuit. This is because you never want to work on a live electrical circuit.
To start, locate the breaker switch for the circuit you will be working on and turn it off. If you are uncertain which circuit to shut off, it is best to turn off the main breaker switch. This will cut off power to your entire house, ensuring that you can work safely.
Once you have turned off the appropriate breaker switch, it is crucial to verify that there is no current where you will be working. You can do this by using a non-contact voltage detector, a multimeter, or both. Only once you have confirmed that there is no current should you proceed with the next steps of your electrical wiring project.
It is worth noting that extending electrical wiring can be a complex and risky task, especially for those without experience. There are potential dangers associated with electrical work, including electrocution, fires, and even explosions. Therefore, it may be advisable to consider hiring a professional electrician to assist you with your project.
Electric Toothbrush Tricks to Keep Toothpaste in Place
You may want to see also
Explore related products
Use a non-contact voltage detector to ensure there is no current
Before beginning any work on electrical wiring, it is crucial to ensure that the circuit is not live. Working on a live electrical circuit can be extremely dangerous, leading to electrocution, fires, or even explosions. Therefore, it is essential to take the necessary steps to confirm that there is no current flowing through the circuit.
One effective tool to achieve this is a non-contact voltage detector. This device allows you to check for voltage without making direct physical contact with the electrical components. By simply touching the tip of the detector to a terminal strip, outlet, or supply cord, you can safely test for voltage. Non-contact voltage detectors are widely available, and brands like Fluke offer easy-to-use options.
To use a non-contact voltage detector effectively, follow these steps:
- Locate the breaker switch for the specific circuit you will be working on and turn it off. If you are uncertain which circuit to shut off, it is advisable to turn off the main breaker switch to cut power to your entire house.
- Once the power is off, use the non-contact voltage detector to double-check that there is no current flowing through the circuit. Touch the tip of the detector to the relevant terminal strip, outlet, or supply cord to test for voltage.
- If the detector indicates that there is still voltage present, you may need to double-check that you have turned off the correct breaker switch. Return to step 1 and ensure that the power is definitely off.
- If you are certain the power is off but the detector still indicates voltage, it is possible that the detector is experiencing a false positive. While rare, false negatives can occur due to factors like grounded armour blocking the electric field sensed by the detector. To mitigate this, try exposing individual conductors to free air and testing again.
- Only proceed with the electrical work if you are absolutely certain that there is no current flowing through the circuit. Remember that electricity can be unpredictable, and it is always better to be safe than sorry.
By following these steps and utilizing a non-contact voltage detector, you can significantly enhance your safety when working with electrical wiring inside walls. Remember that electrical work can be hazardous, and it is recommended to seek professional assistance if you are uncomfortable or unfamiliar with the tasks involved.
Electric Charge and Magnetism: Similarities in Force and Function
You may want to see also
Explore related products
Remove the existing fixture or socket and wire caps
Before starting any work on electrical wiring, it is important to ensure your safety. Never work on a live electrical circuit. Locate and turn off the breaker switch for the circuit where you’ll be working. If you’re uncertain which circuit to shut off, turn off the main breaker switch to cut power to the entire house. Use a voltage tester to ensure there is no current where you’re working. For added safety, run a strip of electrical tape across each circuit breaker switch involved in your project.
Now, to remove the existing fixture or socket and wire caps, you will need a multi-bit screwdriver. Loosen and remove the retaining ring of the cable connector on the side of the box. With a stud finder, determine which side of the box the wall stud is on. Use a pry bar or screwdriver to gently coax the box away from the stud, enough to see the mounting nail or screw. With a metal blade on a reciprocating, oscillating, or keyhole saw, cut the nail or screw. Pull the box out of the hole while leaving the wire in the wall cavity. Loosen and remove the cable clamp connector.
If you choose not to reinstall the old fixture, you must cover the box with an NEC-approved cover. You can also use wire nuts (also called wire caps) to cap off the ends of the wires. Use the appropriate size of wire nut for the wire. Turn the wire nut clockwise. Tape each wire nut onto its respective wire with electrical tape. The tape is only used to secure the wire nuts, not to insulate bare wire ends. Label the wires before pushing them back into the box. Check to make sure that your assembly has not come apart before proceeding. Any exposed copper wire may cause an electrical short or fire.
If you are removing a light fixture, you can disconnect the wire from the switch that controls the light. Then, cut the wire back inside the switch box so that it cannot be used again. You can then push the wire back into the wall without a box. However, if there is no box installed and only a hole drilled in the wall, you must use a box to keep the wires in and cover it with a blank cover.
Converting Choke: Electric to Manual
You may want to see also
Explore related products
Run new non-metallic electrical cable to the location of the new fixture
Running new non-metallic electrical cable is a complex task that requires careful planning and execution. Here is a step-by-step guide to help you through the process:
Firstly, it is crucial to ensure your safety. Always turn off the affected circuits and confirm that there is no current where you are working. Never work on a live electrical circuit. Determine the location of your new fixture and plan the route of your cable, deciding where to cut holes and run the cable inside walls and ceilings. Mark and cut a hole in the wall to expose the top plate and the wall cavity. This will provide space to work and run the new cable.
Next, you will need to choose the electrical source for your new fixture. If you are tapping into an existing outlet box, ensure it has fewer than the maximum number of wires and that the total electrical draw does not exceed the ampere rating. Once you have identified the source, cut access to the wiring through the wall and install a junction box. This junction box must remain accessible without the need for disassembling any part of the building, and it should be covered with a blank plate to protect the splice.
Now you are ready to run the new non-metallic electrical cable. Using fish tape, run the cable from the location of the new fixture to the existing circuit. This step can be tricky, so it is helpful to have a second person at one end to guide the cable. Ensure you pay attention to the amp rating for the circuit you are extending.
Finally, slide the new and old cables through the clamping tabs of the old work electrical box, leaving about six inches of the cable coming out of the box. Insert the box into the wall and tighten the securing wings with a screwdriver. You can now trim and strip the old cable wires and remove the protective casing from the new cable wires.
Remember, working with electricity carries risks, so always proceed with caution and seek professional advice or assistance if you are unsure about any part of the process.
Setting Up Lincoln Electric Welder: A Step-by-Step Guide
You may want to see also
Explore related products
Attach the old fixture or new cover plate to the electrical box
Once you have extended the wiring, you can attach the old fixture or a new cover plate to the electrical box. If you have chosen to reinstall the old fixture, simply screw it back into place. If you are not reinstalling the old fixture, you must cover the box with an NEC-approved cover.
If you are installing a new cover plate, first ensure that the electrical box is securely attached to the wall stud. You can do this by using a stud finder to locate the stud and then screwing the box into place.
Next, you will need to attach the cover plate to the electrical box. Cover plates typically have two holes on the top and bottom that line up with the electrical box's screws. Line up the cover plate so that the screws on the electrical box are visible through the holes in the cover plate.
Finally, tighten the screws on the electrical box to secure the cover plate in place. Be sure not to overtighten the screws, as this can cause the cover plate to crack or break. Once the cover plate is secure, you can turn the electricity back on to the circuit.
The Future of Family Travel: 3-Row Electric SUVs
You may want to see also
Frequently asked questions
If you are remodeling a room or building a new wall, you may need to extend or re-position electrical wiring.
Before attempting to extend electrical wiring inside a wall, locate and turn off the breaker switch for the circuit where you will be working. If you are uncertain, turn off the main breaker switch. Use a voltage detector to ensure there is no current where you are working.

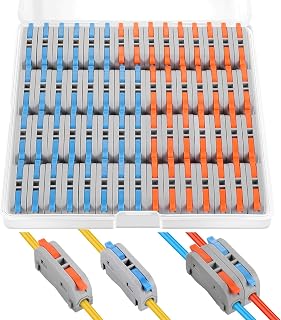

One of the easiest ways to extend electrical wiring is to use a push-in connector, which allows you to splice two wires together without the need for extra tools. Alternatively, you can cut and strip the wires, solder them together, and cover them with heat shrink tubing.
You will need a non-contact voltage detector, a multimeter, a screwdriver, a stud finder, a pry bar, a saw, wire strippers, fish tape, and a new non-metallic electrical cable.
