Tachometers are a great tool for your vehicle if you want to monitor your engine speed or idle. They are nearly a necessity for a vehicle with a manual transmission. Tachometers typically receive their signal from specific sources such as the negative side of the ignition coil, the engine's ECM/computer, or an aftermarket ignition control box. When connecting a tachometer, it's important to use the right wiring connection. The wires tapped into the tachometer and their fuses must be able to support the extra power draw from the tachometer. The red wire from the tachometer goes to a 12-volt source in the fuse box that is only on when the key is on. The black wire goes to a good ground or to the body.
Characteristics and Values Table for Electric Tachometer Installation
| Characteristics | Values |
|---|---|
| Tachometer Signal Sources | Negative side of the ignition coil, engine's ECM/computer, or an aftermarket ignition control box |
| Connection Methods | Soldering with heat shrink tubing, butt connections with crimping, quick-release connections with clips, twisting wires with electrical tape or wire nuts |
| Wiring Colors | Red (ignition power), Black (ground), White (illumination power), Green (tach wire) |
| Power Source | Connect red wire to a 12-volt source in the fuse box that activates with the key |
| Ground Connection | Connect black wire to a clean, clear, and tight ground |
| Testing | Start the vehicle and confirm accurate RPM readings as the engine revs |
| Signal Adapter | Use a tach signal adapter or signal conditioner (e.g., Dakota Digital SGI-100BT) for custom setups |
| Calibration | Use reflective tape on the balancer to calibrate RPM readings and adjust the tach accordingly |
| Wire Management | Wrap and hide excess wire in the dashboard |
Explore related products
What You'll Learn
Understanding tachometer signals
Tachometers are devices that produce signals proportional to the speed of rotation of a joint. They are typically used to measure the rotational speed of a vehicle's crankshaft, which is attached to the pistons of the engine by connecting rods. The speed of the crankshaft is fundamental to understanding the output of the engine.
There are various types of tachometers, including those that measure the frequency or time between pulses generated by the rotating shaft. Digital tachometers, for example, sense the passage of equally spaced marks on a rotating disk or shaft, with measurement resolution governed by the number of marks around the circumference. Tachometers can also be distinguished by the type of current they use, with direct current (DC) and alternate current (AC) tachometers being the most common. DC tachometers are more prevalent in robotics, as they offer reliable and stable outputs without the need for external excitation.
Tachometers receive their signals from sources such as the negative side of the ignition coil, the engine's ECM/computer, or an aftermarket ignition control box. The signal type is important to understand for proper installation. Most modern stepper motor tachometers use a square wave signal, which provides a clean, precise, and stable RPM reading. However, not all tachometers require this signal type exclusively.
In some cases, an alternator signal (R terminal) may output an AC sine wave signal, which varies in frequency and amplitude based on alternator speed, not engine RPM. This can result in no RPM reading, erratic needle movement, or incorrect RPM values as the tachometer may not recognize or accurately interpret the signal.
Electric Sleep Citation: Androids' Dreams and Their Meanings
You may want to see also
Explore related products
Choosing the right wiring connection
When it comes to choosing the right wiring connection for your electric tachometer, there are several options to consider. The connection method you select will depend on factors such as the specific type of tachometer you have, your vehicle's make and model, and your personal preference for installation method. Here are some common wiring connection options to consider:
Soldered Connections with Heat Shrink Tubing: This method involves soldering the wires together and then covering the joint with heat shrink tubing. Heat shrink tubing is a type of protective insulation that shrinks tightly over the wires when heated, providing insulation, strain relief, and protection against moisture and abrasion. This connection method is secure and durable but may require more time and specialised tools.
Butt Connections with Crimping: This technique involves stripping the insulation from the wires and joining them together with a crimp connector. A crimping tool is used to compress the connector, creating a secure and reliable connection. This method is straightforward and widely used, but it's important to ensure a proper crimp to avoid potential issues with connectivity.
Quick-Release Connections with Male and Female Clip Ends: Quick-release connections offer convenience and ease of installation. This method uses male and female clip ends that easily snap together, providing a secure and detachable connection. This option is useful if you anticipate the need to disconnect the wiring regularly or want a more straightforward installation process.
Twisted Wires with Electrical Tape or Wire Nuts: This approach involves twisting the wires together and then securing the connection with electrical tape or wire nuts. Electrical tape is a quick and simple solution, while wire nuts provide a more secure connection by screwing onto the wires, insulating and protecting the connection. This method is straightforward, but it may not offer the same level of security as other options.
It is important to consult the instructions provided with your tachometer, as they may include specific recommendations or requirements for wiring connections. If you are unable to obtain these instructions, exercise caution and consider seeking advice from a professional or the manufacturer to avoid potential damage to your tachometer or vehicle systems.
Trimming Your Beard: Using an Electric Trimmer Like a Pro
You may want to see also
Explore related products
Using a tach signal adapter
Firstly, it's important to identify the type of signal your tachometer requires. Most modern stepper motor tachometers use a square wave signal, which provides a clean, precise, and stable RPM reading. However, some stepper motor tachs can also work with an inductive or sine wave signal, depending on their internal circuitry and compatibility. If you're unsure about your signal source, you can test it using a multimeter or an oscilloscope.
Once you've identified the required signal type, you can choose the appropriate tach signal adapter. For example, the Dakota Digital SGI-100BT is a popular adapter that converts various signal types, including the alternator R terminal, to a usable square wave. Another option is the MSD 8920 Tach Adapter, which is designed for ignition signal conversion.
When installing the adapter, it's crucial to follow the manufacturer's instructions carefully. In general, you'll need to locate the ignition coil and connect the adapter to the negative side, also known as the tach pickup. This connection allows the tachometer to translate the electronic pulses of the ignition coil into an RPM gauge reading. Ensure that the connection is clean and free of any oxidation or debris.
Additionally, you'll need to consider the wiring for your tachometer. The adapter will likely have a specific wire colour code, such as a green wire, that needs to be connected correctly. Find a pathway for this wire to run through the firewall in front of the driver under the dashboard, and protect it with a rubber grommet and silicon gel to prevent chafing.
Electricity Rates: Dynamic Pricing and 5-Minute Intervals
You may want to see also
Explore related products
Connecting the wires
Now, onto the wire connections:

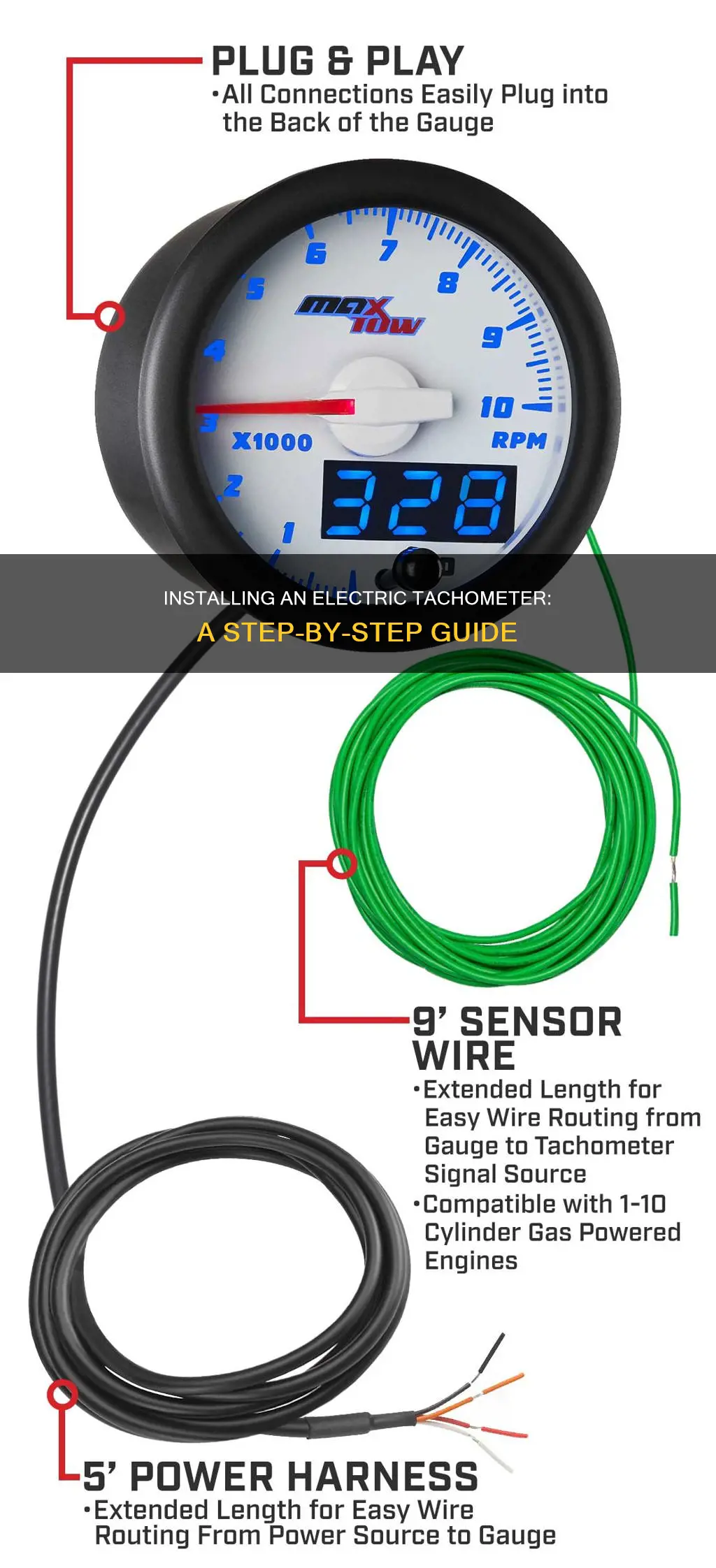

Firstly, identify the wires coming out of the tachometer. Typically, there will be four wires: red, black, white, and green. The red wire is for ignition power, the black wire is for ground, the white wire is for illumination power, and the green wire is the tach wire.
Secondly, determine where these wires need to connect. The red wire should connect to a 12-volt source in the fuse box that is active only when the key is on, preventing battery drain when the vehicle is off. The black wire should be connected to a good ground, ensuring the connection is clear of paint or dirt and is tight. A common ground point is the body of the vehicle, and black wires typically indicate a ground connection.
The white wire for illumination can be connected to the headlights or dash lights, depending on your setup. Finally, the green tach wire needs to connect to the distributor wire. This wire carries the signal from the engine, which the tachometer reads to display the RPM readings.
When making these connections, you can use various methods, such as soldered connections with heat shrink tubing, butt connections with crimping, quick-release connections, or twisting wires together with electrical tape or wire nuts. Ensure that the connections are secure and insulated to prevent any short circuits or damage to the vehicle's electrical system.
Once the connections are made, start the vehicle and test the tachometer. Confirm that it accurately displays the RPM readings as you rev the engine.
Electricity's Agricultural Revolution: Powering Crop Growth
You may want to see also
Explore related products
Testing the tachometer
Step 1: Ensure your vehicle or equipment is turned off and put on your safety gear. Disconnect the battery to avoid electric shock.
Step 2: Consult the wiring diagram for your vehicle or equipment to locate the tachometer subsystem. Typically, there will be a signal wire, a ground wire, and a power supply wire.
Step 3: Check the wiring for continuity using a multimeter. Set it to measure resistance and look for breaks or shorts that could impair signal transmission.
Step 4: Verify that the tachometer is correctly powered and that the signal wire is connected. Ensure the ground connection is good and tight, and clear of any paint or dirt.
Step 5: Start the vehicle and confirm that the tachometer accurately displays RPM readings as you rev the engine. The RPM readings should rise and fall in conjunction with the engine RPMs.
Step 6: If you suspect interference from other electrical components, ensure there is no electromagnetic interference affecting performance.
Step 7: If you encounter issues such as erratic readings, no reading, or consistently high or low readings, refer to the common issues and troubleshooting steps outlined in the multimeter guide.
Step 8: If you have exhausted all troubleshooting steps without success, consider consulting a specialist technician to avoid further damage to your equipment.
